Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
L6228PDTR IC MTR DRV BIPOLAR 8-52V 36PWRSO STMicroelectronics	277	-	RFQ	Datenblatt	STSPIN L62	36-PowerBSSOP (0.433", 11.00mm Width)	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	DMOS	1, 1/2	General Purpose	1.4A	8V ~ 52V	8V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up

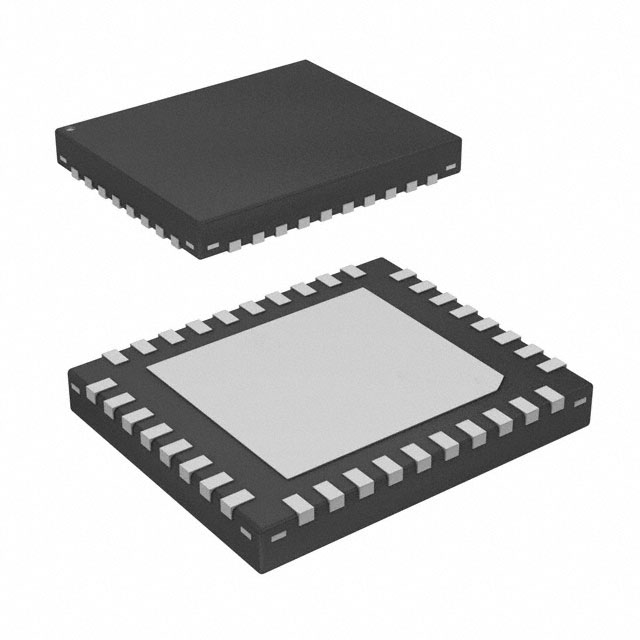

TMC2100-LA-T IC MTR DRV BIPOLAR 5.5-46V 36QFN Analog Devices Inc./Maxim Integrated	5,917	-	RFQ	Datenblatt	-	36-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	Power MOSFET	1 ~ 1/256	General Purpose	1.2A	5.5V ~ 46V	5.5V ~ 46V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	36-QFN (5x6)

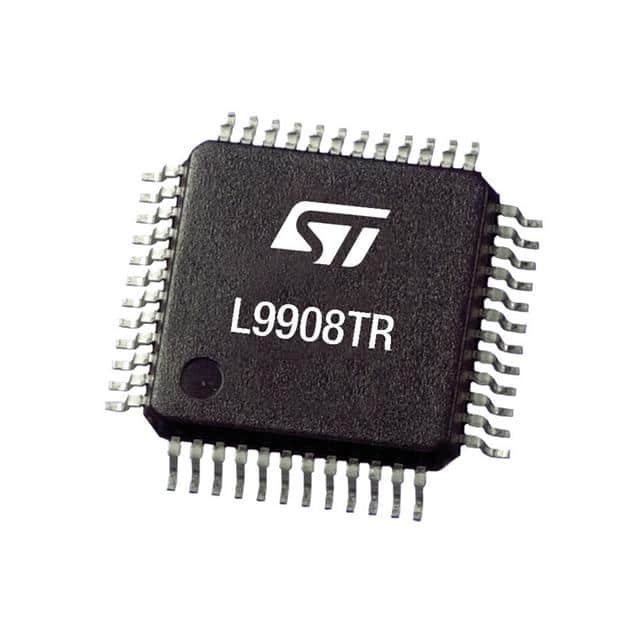

L9908TR AUTOMOTIVE 3-PHASE MOTOR GATE DR STMicroelectronics	6,229	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	PWM, SPI	IGBT	-	-	-	4.5V ~ 75V	4.5V ~ 75V	-40°C ~ 150°C (TA)	Automotive	-	Surface Mount	48-TQFP-EP (7x7)
TMC260C-PA IC MTR DRV BIPOLAR 3-5.25V 44QFP Analog Devices Inc./Maxim Integrated	2,897	-	RFQ	Datenblatt	-	44-LQFP	Tray	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	2A (Max)	3V ~ 5.25V	9V ~ 39V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	44-PQFP (10x10)
L293D IC MTRDRV BIPLR 4.5-36V 16PWRDIP STMicroelectronics	3,289	-	RFQ	Datenblatt	-	16-DIP (0.300", 7.62mm)	Tube	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	-	-	General Purpose	600mA	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 150°C (TJ)	-	-	Through Hole	16-PowerDIP
DRV8245SQRXZRQ1 AUTOMOTIVE 40-V, 32-A H-BRIDGE D Texas Instruments	2,895	-	RFQ	Datenblatt	-	16-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	SPI	Bi-CMOS	-	-	32A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	16-VQFN-HR (3.5x5.5)
AMT49100KJPTR-A-3 80V BLDC GATE DRIVER W/ASIL FEAT Allegro MicroSystems	18,619	-	RFQ	Datenblatt	-	48-LQFP Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	SPI	Power MOSFET	-	-	-	10V ~ 80V	3.3V	-40°C ~ 150°C (TA)	Automotive	AEC-Q100	Surface Mount	48-LQFP-EP (7x7)
L6472PDTR IC MTR DRV BIPLR 3.3V/5V 36PWRSO STMicroelectronics	7,535	-	RFQ	Datenblatt	STSPIN L64	36-PowerBSSOP (0.433", 11.00mm Width)	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI	DMOS	1 ~ 1/16	General Purpose	3A	3.3V, 5V	8V ~ 45V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
A3979SLPTR-T IC MTR DRV BIPOLR 3-5.5V 28TSSOP Allegro MicroSystems	15,091	-	RFQ	Datenblatt	-	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/16	General Purpose	2.5A	3V ~ 5.5V	8V ~ 35V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	28-TSSOP-EP
L6229PDTR IC MOTOR DRVR 12V-52V 36POWERSO STMicroelectronics	2,751	-	RFQ	Datenblatt	STSPIN L62	36-PowerBSSOP (0.433", 11.00mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	BiCDMOS	-	General Purpose	1.4A	12V ~ 52V	12V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
TMC2130-LA-T IC MTR DRV BIPOLAR 5.5-46V 36QFN Analog Devices Inc./Maxim Integrated	15,820	-	RFQ	Datenblatt	-	36-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	1.2A	5.5V ~ 46V	5.5V ~ 46V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	36-QFN (5x6)
TMC2160A-TA-T IC MTR DRV BIPOLAR 10-50V 48TQFP Analog Devices Inc./Maxim Integrated	9,131	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Universal	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	Automation Control, Industrial, Medical	20A	10V ~ 50V	10V ~ 55V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP-EP (7x7)
TMC2160A-TA IC MTR DRV BIPOLAR 10-50V 48TQFP Analog Devices Inc./Maxim Integrated	1,524	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tray	Active	Bipolar	Universal	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	Automation Control, Industrial, Medical	20A	10V ~ 50V	10V ~ 55V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP-EP (7x7)
MAX31790ATI+ IC MOTOR DRIVER 3V-5.5V 28TQFN Analog Devices Inc./Maxim Integrated	0	-	RFQ	Datenblatt	-	28-WFQFN Exposed Pad	Tube	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Low Side (6)	I2C	Power MOSFET	-	Fan Motor Driver	-	3V ~ 5.5V	-	-40°C ~ 125°C (TA)	-	-	Surface Mount	28-TQFN (4x4)
L293DD013TR IC MTR DRV BIPOLR 4.5-36V 20SOIC STMicroelectronics	9,964	-	RFQ	Datenblatt	-	20-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	-	-	General Purpose	600mA	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-SO
TMC2100-TA-T IC MTR DRV BIPOLAR 5.5-46V 48QFP Analog Devices Inc./Maxim Integrated	8,218	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	Power MOSFET	1 ~ 1/256	General Purpose	1.4A	5.5V ~ 46V	5.5V ~ 46V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP
DRV8262DDWR DRV8262DDWR Texas Instruments	7,234	-	RFQ	-	-	44-PowerTSSOP (0.244", 6.20mm Width)	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	On/Off, PWM	NMOS	-	General Purpose	8A, 8A	4.5V ~ 65V	4.5V ~ 65V	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	44-HTSSOP
A3985SLDTR-T IC MTR DRV BIPOLR 12-50V 38TSSOP Allegro MicroSystems	3,619	-	RFQ	Datenblatt	-	38-TFSOP (0.173", 4.40mm Width)	Tape & Reel (TR)	Active	Bipolar	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI	Power MOSFET	1, 1/2	General Purpose	-	12V ~ 50V	-	-20°C ~ 85°C (TA)	-	-	Surface Mount	38-TSSOP
L6235PD IC MOTOR DRVR 12V-52V 36POWERSO STMicroelectronics	3,502	-	RFQ	Datenblatt	STSPIN L62	36-PowerBSSOP (0.433", 11.00mm Width)	Tube	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	DMOS	-	General Purpose	2.8A	12V ~ 52V	12V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
DRV8145SQRXZRQ1 AUTOMOTIVE 40-V 46-A HALF BRIDGE Texas Instruments	305	-	RFQ	Datenblatt	-	16-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge	PWM, SPI	Bi-CMOS	-	-	46A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount	16-VQFN-HR (3.5x5.5)
