Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
DRV8301DCAR IC MOTOR DRIVER 6V-60V 56HTSSOP Texas Instruments	2,046	-	RFQ	Datenblatt	-	56-PowerTFSOP (0.240", 6.10mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	SPI	Power MOSFET	-	General Purpose	-	6V ~ 60V	-	-40°C ~ 125°C (TA)	-	-	Surface Mount	56-HTSSOP
TMC2130-TA-T IC MTR DRV BIPOLAR 5.5-46V 48QFP Analog Devices Inc./Maxim Integrated	8,305	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	1.4A	5.5V ~ 46V	5.5V ~ 46V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP-EP (7x7)
A4980KLPTR-T IC MTR DRV BIPOLR 3-5.5V 28TSSOP Allegro MicroSystems	13,195	-	RFQ	Datenblatt	-	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	DMOS	1, 1/2, 1/4, 1/16	-	1.4A	3V ~ 5.5V	0V ~ 50V	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	28-TSSOP-EP

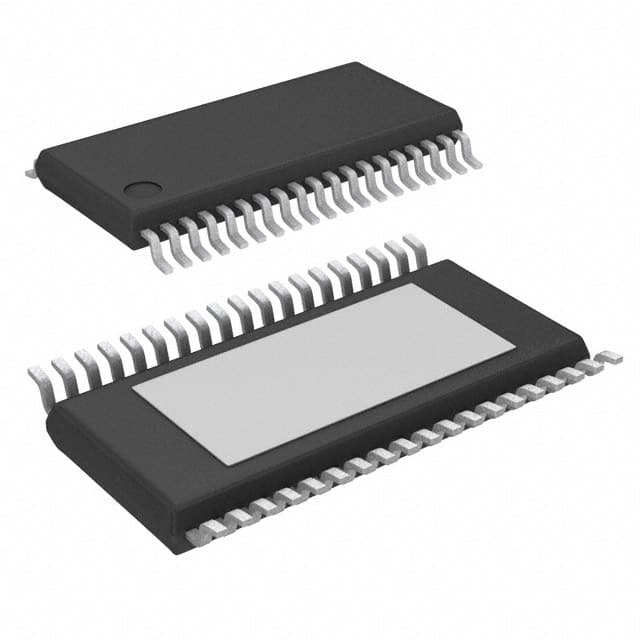

L6482H IC MTR DRV BIPLR 3.3/5V 38HTSSOP STMicroelectronics	3,868	-	RFQ	Datenblatt	STSPIN L64	38-TFSOP (0.173", 4.40mm Width) Exposed Pad	Tube	Active	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI	Power MOSFET	1 ~ 1/16	General Purpose	-	3.3V, 5V	-	-40°C ~ 150°C (TJ)	-	-	Surface Mount	38-HTSSOP
A3977SLPTR-T IC MTR DRV BIPOLR 3-5.5V 28TSSOP Allegro MicroSystems	8,016	-	RFQ	Datenblatt	-	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/8	General Purpose	2.5A	3V ~ 5.5V	8V ~ 35V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	28-TSSOP-EP

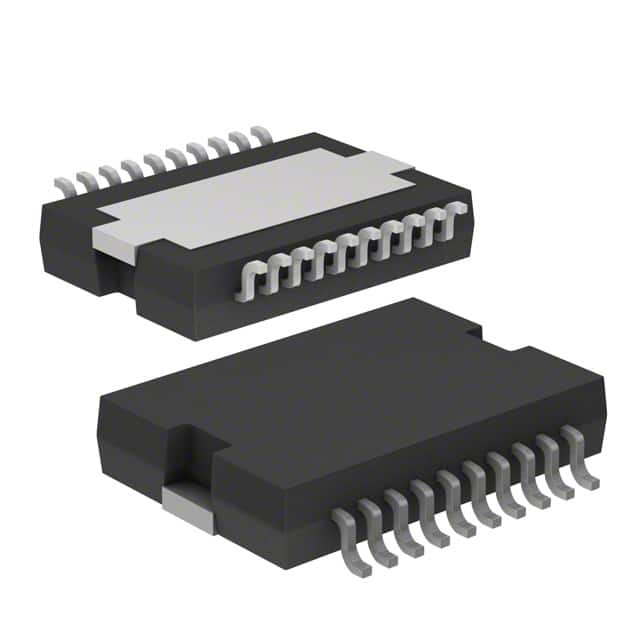

TLE82092SAAUMA1 IC MOTOR DRIVER 4.4V-5.25V 20DSO Infineon Technologies	1,510	-	RFQ	Datenblatt	-	20-SOIC (0.433", 11.00mm Width) Exposed Pad	Tape & Reel (TR)	Active	-	Brushless DC (BLDC) Servo, Brushed DC Servo	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	SPI	Power MOSFET	-	-	8.6A	4.4V ~ 5.25V	4.5V ~ 28V	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	PG-DSO-20-65
TMC2209-LA-T IC MTR DRV 4.75-28V QFN28 Analog Devices Inc./Maxim Integrated	13,514	-	RFQ	Datenblatt	stallGuard™	28-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Step/Direction	Step/Direction, UART	Power MOSFET	1 ~ 1/256	Automation Control	2A	4.8V ~ 5.25V	5.5V ~ 29V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	28-QFN (5x5)
A3984SLPTR-T IC MTR DRV BIPOLR 3-5.5V 24TSSOP Allegro MicroSystems	36,628	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/16	General Purpose	2A	3V ~ 5.5V	8V ~ 35V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-TSSOP-EP
A3983SLPTR-T IC MTR DRV BIPOLR 3-5.5V 24TSSOP Allegro MicroSystems	10,848	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/8	General Purpose	2A	3V ~ 5.5V	8V ~ 35V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-TSSOP-EP
L6472H IC MTR DRV BIPLR 3.3/5V 28HTSSOP STMicroelectronics	7,102	-	RFQ	Datenblatt	STSPIN L64	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tube	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI	DMOS	1 ~ 1/16	General Purpose	3A	3.3V, 5V	8V ~ 45V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	28-HTSSOP
L6482HTR IC MTR DRV BIPLR 3.3/5V 38HTSSOP STMicroelectronics	5,251	-	RFQ	Datenblatt	STSPIN L64	38-TFSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI	Power MOSFET	1 ~ 1/16	General Purpose	-	3.3V, 5V	-	-40°C ~ 150°C (TJ)	-	-	Surface Mount	38-HTSSOP
L6470H IC MTR DRV BIPLR 3.3/5V 28HTSSOP STMicroelectronics	1,433	-	RFQ	Datenblatt	STSPIN L64	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tube	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI	DMOS	1 ~ 1/128	General Purpose	3A	3.3V, 5V	8V ~ 45V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	28-HTSSOP

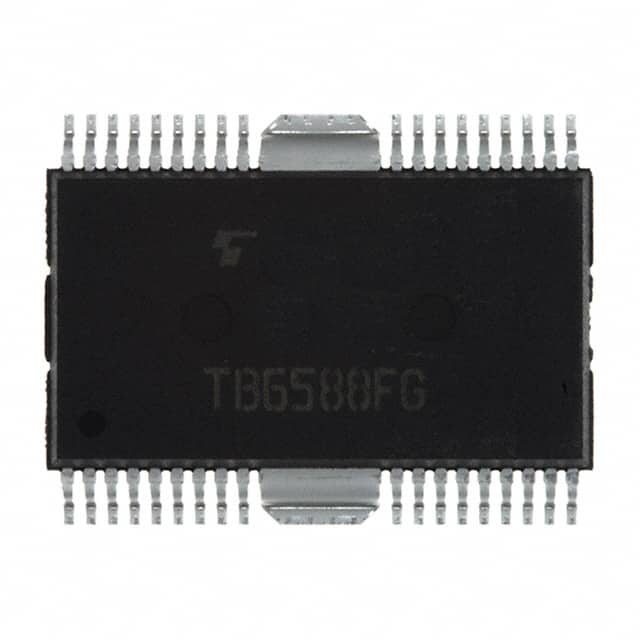

TB6588FG,8,EL,JU IC MOTOR DRIVER 7V-42V 36HSOP Toshiba Semiconductor and Storage	3,579	-	RFQ	Datenblatt	-	36-BSSOP (0.346", 8.80mm Width) + 2 Heat Tabs	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	Power MOSFET	-	General Purpose	1.5A	7V ~ 42V	7V ~ 42V	-30°C ~ 105°C (TA)	-	-	Surface Mount	36-HSOP
TB67S249FTG,EL IC MOTOR DRIVER BIPOLAR 48VQFN Toshiba Semiconductor and Storage	9,057	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (8)	Parallel	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16, 1/32	General Purpose	4.5A	4.75V ~ 5.25V	10V ~ 47V	-20°C ~ 85°C (TA)	-	-	Surface Mount	48-VQFN (7x7)
L6234PD IC MOTOR DRIVER 7V-52V 20POWERSO STMicroelectronics	408	-	RFQ	Datenblatt	STSPIN L62	20-SOIC (0.433", 11.00mm Width) Exposed Pad	Tube	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	BiCDMOS	-	General Purpose	4A	7V ~ 52V	7V ~ 52V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-20
L6205D IC MTR DRVR BIPOLAR 8-52V 20SOIC STMicroelectronics	3,896	-	RFQ	Datenblatt	STSPIN L62	20-SOIC (0.295", 7.50mm Width)	Tube	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	BiCDMOS	-	General Purpose	2.8A	8V ~ 52V	8V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	20-SO
A3992SLPTR-T IC MTR DRV BIPLR 4.5-5.5V 24SSOP Allegro MicroSystems	8,909	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Serial	DMOS	1 ~ 1/64	General Purpose	1.5A	4.5V ~ 5.5V	15V ~ 50V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-TSSOP-EP
A3987SLPTR-T IC MTR DRV BIPOLR 3-5.5V 24TSSOP Allegro MicroSystems	6,028	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/16	General Purpose	1.5A	3V ~ 5.5V	8V ~ 50V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-TSSOP-EP
MC33035DWR2G IC MOTOR DRIVER 10V-30V 24SOIC onsemi	2,269	-	RFQ	Datenblatt	-	24-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Analog	-	-	General Purpose	-	10V ~ 30V	-	-40°C ~ 85°C (TA)	-	-	Surface Mount	24-SOIC
MAX14870ETC+T IC MOTOR DRIVER 4.5V-36V 12TDFN Analog Devices Inc./Maxim Integrated	6,606	-	RFQ	Datenblatt	-	12-WFDFN Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	PWM	Bi-CMOS	-	General Purpose	3A	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	12-TDFN (3x3)

Total 4748 Record«Prev 1 2 3 4 5 678 9 10...238 Next»
