Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket

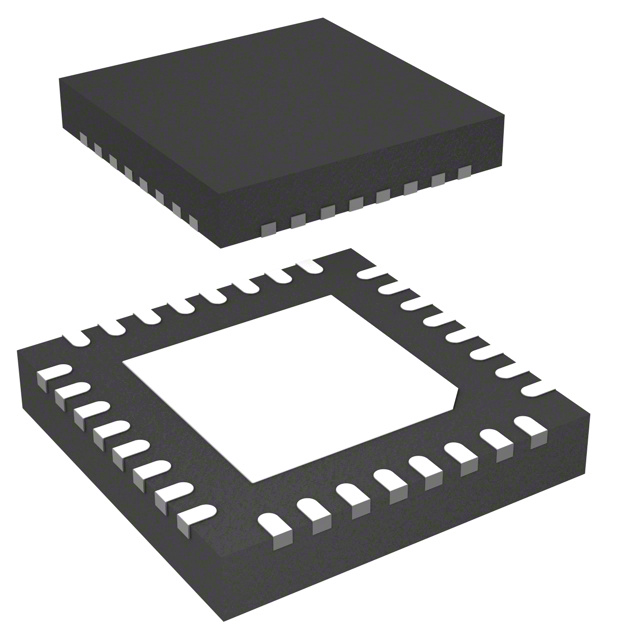

TMC262C-LA IC MTR DRVR BIPLR 3.3-5.5V 32QFN Analog Devices Inc./Maxim Integrated	19,440	-	RFQ	Datenblatt	-	32-VFQFN Exposed Pad	Tray	Active	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	-	3V ~ 5.25V	9V ~ 59V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	32-QFN (5x5)
MC33926PNBR2 IC MOTOR DRIVER 5V-28V 32PQFN NXP USA Inc.	2,366	-	RFQ	Datenblatt	-	32-PowerQFN	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	CMOS	-	-	5A	5V ~ 28V	5V ~ 28V	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount	32-PQFN (8x8)

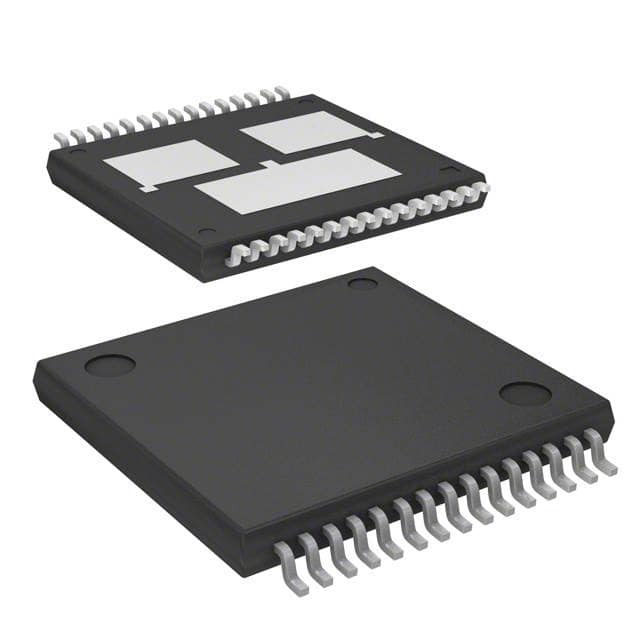

VNH3SP30TR-E IC MTR DRV 5.5-36V MULTIPWRSO-30 STMicroelectronics	4,527	-	RFQ	Datenblatt	STripFET™, VIPower™	30-MPSO, MultiPowerSO	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel, PWM	Power MOSFET	-	-	30A	5.5V ~ 36V	5.5V ~ 36V	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	MultiPowerSO-30
TMC5130A-TA-T IC MTR DRV BIPOLAR 5.5-46V 48QFP Analog Devices Inc./Maxim Integrated	9,263	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction, RS-232	Power MOSFET	1 ~ 1/256	General Purpose	1.4A	5.5V ~ 46V	4.75V ~ 46V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP-EP (7x7)
A3938SLDTR-T IC MOTOR DRIVER 18V-50V 38TSSOP Allegro MicroSystems	11,624	-	RFQ	Datenblatt	-	38-TFSOP (0.173", 4.40mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel, PWM	Power MOSFET	-	General Purpose	-	18V ~ 50V	-	-20°C ~ 85°C (TA)	-	-	Surface Mount	38-TSSOP
MP6540HGU-A-Z 50V, 5A, THREE-PHASE POWER STAGE Monolithic Power Systems Inc.	2,917	-	RFQ	Datenblatt	-	26-VFQFN	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Pre-Driver - Half Bridge (3)	PWM	Power MOSFET	-	Brushless DC (BLDC)	5A	5.5V ~ 50V	-	-40°C ~ 125°C (TJ)	-	-	Surface Mount	26-QFN (5x5)
L6470PD IC MOTOR DRIVER BIPLR 36POWERSSO STMicroelectronics	967	-	RFQ	Datenblatt	STSPIN L64	36-PowerBSSOP (0.433", 11.00mm Width)	Tube	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI	DMOS	1 ~ 1/128	General Purpose	3A	3.3V, 5V	8V ~ 45V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
L6470PDTR IC MTR DRV BIPLR 3.3V/5V 36PWRSO STMicroelectronics	317	-	RFQ	Datenblatt	STSPIN L64	36-PowerBSSOP (0.433", 11.00mm Width)	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI	DMOS	1 ~ 1/128	General Purpose	3A	3.3V, 5V	8V ~ 45V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
L6205PD013TR IC MTR DRV BIPOLAR 8-52V 20PWRSO STMicroelectronics	1,184	-	RFQ	Datenblatt	STSPIN L62	20-SOIC (0.433", 11.00mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	BiCDMOS	-	General Purpose	2.8A	8V ~ 52V	8V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-20
TMC5240ATJ+T 36V 2ARMS+ SMART INTEGRATED STEP Analog Devices Inc./Maxim Integrated	2,209	-	RFQ	Datenblatt	-	32-WFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	SPI, UART	Power MOSFET	1 ~ 1/256	General Purpose	2.1A	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 125°C	-	-	Surface Mount	32-TQFN (5x5)
VNH5019ATR-E IC MTR DRV 5.5-24V MULTIPWRSO-30 STMicroelectronics	6,400	-	RFQ	Datenblatt	ECOPACK®, VIPower™	30-PowerSOP (0.630", 16.00mm Width)	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel, PWM	Power MOSFET	-	-	30A	5.5V ~ 24V	5.5V ~ 24V	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	MultiPowerSO-30
MP6540HGU-P 50V, 5A, THREE-PHASE POWER STAGE Monolithic Power Systems Inc.	1,500	-	RFQ	Datenblatt	-	26-VFQFN	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Pre-Driver - Half Bridge (3)	PWM	Power MOSFET	-	Brushless DC (BLDC)	5A	5.5V ~ 50V	-	-40°C ~ 125°C (TJ)	-	-	Surface Mount	26-QFN (5x5)
TMC5130A-TA IC MTR DRV BIPOLAR 5.5-46V 48QFP Analog Devices Inc./Maxim Integrated	10,879	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tray	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction, RS-232	Power MOSFET	1 ~ 1/256	General Purpose	1.4A	5.5V ~ 46V	4.75V ~ 46V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP-EP (7x7)

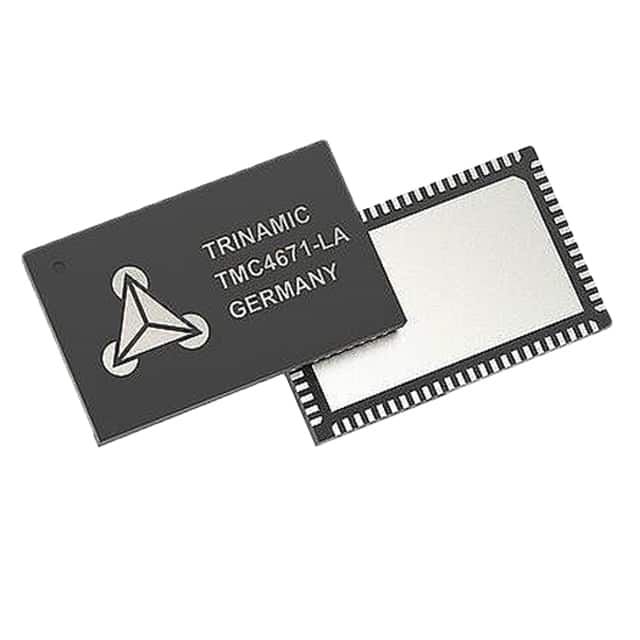

TMC4671-LA SERVO CONTROLLER IC, QFN76 Analog Devices Inc./Maxim Integrated	1,126	-	RFQ	Datenblatt	-	76-VFQFN Exposed Pad	Tray	Active	Multiphase	Brushless DC (BLDC), PMSM, DC	Controller - Commutation, Direction Management	Pre-Driver - High Side/Low Side	SPI, Step/Direction	Power MOSFET	-	Servo	4mA	3.15V ~ 3.45V	-	-40°C ~ 125°C (TJ)	-	-	Surface Mount	76-QFN (10.5x6.5)
TMC5240ATJ+ 36V 2ARMS+ SMART INTEGRATED STEP Analog Devices Inc./Maxim Integrated	319	-	RFQ	Datenblatt	-	32-WFQFN Exposed Pad	Tray	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	SPI, UART	Power MOSFET	1 ~ 1/256	General Purpose	2.1A	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 125°C	-	-	Surface Mount	32-TQFN (5x5)
NCV33035DWR2G IC MOTOR DRIVER 10V-30V 24SOIC onsemi	395	-	RFQ	Datenblatt	-	24-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Analog	-	-	General Purpose	-	10V ~ 30V	-	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	24-SOIC
MP6541AGQKT-Z 45V 8A THREE-PHASE POWER STAGE W Monolithic Power Systems Inc.	4,846	-	RFQ	Datenblatt	-	26-PowerWQFN	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	PWM	Power MOSFET	-	General Purpose	8A	4.75V ~ 40V	4.75V ~ 40V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	26-TQFN (6x6)
MP6541GQKT-Z 45V 8A THREE-PHASE POWER STAGE W Monolithic Power Systems Inc.	4,747	-	RFQ	Datenblatt	-	26-PowerWQFN	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	PWM	Power MOSFET	-	General Purpose	8A	4.75V ~ 40V	4.75V ~ 40V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	26-TQFN (6x6)
MAX6650EUB+ IC MOTOR DRIVER 3V-5.5V 10UMAX Analog Devices Inc./Maxim Integrated	546	-	RFQ	Datenblatt	-	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)	Tube	Active	-	Brushless DC (BLDC)	Controller - Speed	Pre-Driver - Low Side	I2C	-	-	Fan Controller	-	3V ~ 5.5V	-	-40°C ~ 85°C (TA)	-	-	Surface Mount	10-uMAX/uSOP
MAX6650EUB+T IC MOTOR DRIVER 3V-5.5V 10UMAX Analog Devices Inc./Maxim Integrated	6,143	-	RFQ	Datenblatt	-	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Speed	Pre-Driver - Low Side	I2C	-	-	Fan Controller	-	3V ~ 5.5V	-	-40°C ~ 85°C (TA)	-	-	Surface Mount	10-uMAX/uSOP

Total 4748 Record«Prev 1... 6 7 8 91011 12 13...238 Next»
