Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
TMC5160A-TA-T IC MTR DRVR BIPOLAR 8-60V 48TQFP Analog Devices Inc./Maxim Integrated	19,441	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Universal	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	Automation Control, Industrial, Medical	20A	10V ~ 50V	10V ~ 55V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP-EP (7x7)
TMC2660C-PA-T IC MTR DRV BIPOLAR 3.3-5V 44PQFP Analog Devices Inc./Maxim Integrated	46,111	-	RFQ	Datenblatt	-	44-LQFP	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	2.8A	3.3V ~ 5V	9V ~ 30V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	44-PQFP
MAX6651EEE+T IC MOTOR DRIVER 3V-5.5V 16QSOP Analog Devices Inc./Maxim Integrated	1,618	-	RFQ	Datenblatt	-	16-SSOP (0.154", 3.90mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Speed	Pre-Driver - Low Side	I2C	-	-	Fan Controller	-	3V ~ 5.5V	-	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-QSOP

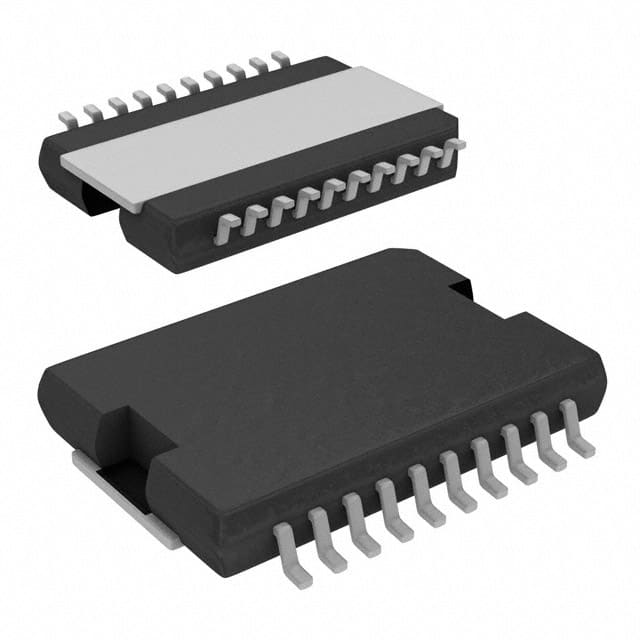

MC33886PVWR2 IC MOTOR DRIVER 5V-40V 20HSOP NXP USA Inc.	9,819	-	RFQ	Datenblatt	-	20-SOIC (0.433", 11.00mm Width) Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	CMOS	-	General Purpose	5A	5V ~ 40V	5V ~ 40V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-HSOP
MP6541AGQKT-P 45V 8A THREE-PHASE POWER STAGE W Monolithic Power Systems Inc.	1,385	-	RFQ	Datenblatt	-	26-PowerWQFN	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	PWM	Power MOSFET	-	General Purpose	8A	4.75V ~ 40V	4.75V ~ 40V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	26-TQFN (6x6)
L6208PD013TR IC MTR DRV BIPOLAR 8-52V 36PWRSO STMicroelectronics	6,685	-	RFQ	Datenblatt	STSPIN L62	36-PowerBSSOP (0.433", 11.00mm Width)	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	DMOS	1, 1/2	General Purpose	2.8A	8V ~ 52V	8V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
L6208PD IC MTR DRV BIPOLAR 8-52V 36PWRSO STMicroelectronics	805	-	RFQ	Datenblatt	STSPIN L62	36-PowerBSSOP (0.433", 11.00mm Width)	Tube	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	DMOS	1, 1/2	General Purpose	2.8A	8V ~ 52V	8V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
TMC5031-LA IC MTR DRVR BIPOLAR 3.3-5V 48QFN Analog Devices Inc./Maxim Integrated	2,487	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tray	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (8)	SPI	Power MOSFET	1 ~ 1/256	General Purpose	-	3.3V ~ 5V	4.75V ~ 16V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-QFN (7x7)
TMC5160A-TA IC MTR DRVR BIPOLAR 8-60V 48TQFP Analog Devices Inc./Maxim Integrated	316	-	RFQ	Datenblatt	-	48-TQFP Exposed Pad	Tray	Active	Bipolar	Universal	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	Automation Control, Industrial, Medical	20A	10V ~ 50V	10V ~ 55V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-TQFP-EP (7x7)
UC3637N IC MOTOR DRIVER 2.5V-20V 18DIP Texas Instruments	234	-	RFQ	Datenblatt	-	18-DIP (0.300", 7.62mm)	Tube	Active	-	Brushed DC	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	Parallel	-	-	General Purpose	-	2.5V ~ 20V	-	0°C ~ 70°C (TA)	-	-	Through Hole	18-PDIP
TMC260C-PA-T IC MTR DRV BIPOLAR 3-5.25V 44QFP Analog Devices Inc./Maxim Integrated	1,411	-	RFQ	Datenblatt	-	44-LQFP	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	2A (Max)	3V ~ 5.25V	9V ~ 39V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	44-PQFP (10x10)
MAX6620ATI+T IC MOTOR DRIVER 3V-5.5V 28TQFN Analog Devices Inc./Maxim Integrated	8,557	-	RFQ	Datenblatt	-	28-WFQFN Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Controller - Speed	Pre-Driver - High Side (4)	I2C	-	-	Fan Controller	-	3V ~ 5.5V	-	-40°C ~ 125°C (TA)	-	-	Surface Mount	28-TQFN (5x5)
MAX22200ETJ+ EIGHT HALF-BRIDGES SERIAL CONTRO Analog Devices Inc./Maxim Integrated	474	-	RFQ	Datenblatt	-	32-WFQFN Exposed Pad	Tray	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (8)	SPI	Power MOSFET	-	Brushed DC	1A	4.5V ~ 36V	1.8V	-40°C ~ 85°C (TA)	-	-	Surface Mount	32-TQFN (5x5)
MC33887APVWR2 IC MOTOR DRIVER 5V-28V 20HSOP NXP USA Inc.	4,010	-	RFQ	Datenblatt	-	20-SOIC (0.433", 11.00mm Width) Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	Power MOSFET	-	General Purpose	5A	5V ~ 28V	5V ~ 28V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-HSOP
MAX31785ETL+ IC MOTOR DRIVER 2.7V-5.5V 40TQFN Analog Devices Inc./Maxim Integrated	1,052	-	RFQ	Datenblatt	-	40-WFQFN Exposed Pad	Tube	Active	-	Brushed DC	Controller - Speed	Pre-Driver	I2C	-	-	Fan Controller	-	2.7V ~ 5.5V	-	-40°C ~ 85°C (TA)	-	-	Surface Mount	40-TQFN (6x6)
MC33887APVW IC MOTOR DRIVER 5V-28V 20HSOP NXP USA Inc.	5,849	-	RFQ	Datenblatt	-	20-SOIC (0.433", 11.00mm Width) Exposed Pad	Tube	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	Power MOSFET	-	General Purpose	5A	5V ~ 28V	5V ~ 28V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-HSOP
TMC262C-LA-T IC MTR DRVR BIPLR 3.3-5.5V 32QFN Analog Devices Inc./Maxim Integrated	6,173	-	RFQ	Datenblatt	-	32-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	-	3V ~ 5.25V	9V ~ 59V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	32-QFN (5x5)
MC33887PFK IC MOTOR DRIVER 5V-28V 36PQFN NXP USA Inc.	4,381	-	RFQ	Datenblatt	-	36-PowerQFN	Tray	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	Power MOSFET	-	General Purpose	5A	5V ~ 28V	5V ~ 28V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	36-PWR QFN (9x9)
TMC429-LI-T IC MTR DRVR BIPOLAR 3.3-5V 32QFN Analog Devices Inc./Maxim Integrated	4,416	-	RFQ	Datenblatt	-	32-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Controller - Commutation, Direction Management	SPI, Step/Direction	SPI	CMOS	1 ~ 1/64	General Purpose	-	3.3V ~ 5V	-	-40°C ~ 105°C (TA)	-	-	Surface Mount	32-QFN (5x5)
TMC5041-LA-T IC MTR DRV BIPOLAR 5.5-26V 48QFN Analog Devices Inc./Maxim Integrated	16,163	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (8)	SPI	Power MOSFET	1 ~ 1/256	General Purpose	1.1A	5.5V ~ 26V	5.5V ~ 26V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	48-QFN (7x7)

Total 4748 Record«Prev 1... 7 8 9 101112 13 14...238 Next»
