Schaltwandler- und SMPS-Transformatoren

Schaltwandler- und SMPS-Transformatoren sind magnetische Komponenten, die in Schaltnetzteilen zur Energieübertragung, galvanischen Isolation und Spannungswandlung eingesetzt werden. Sie werden häufig in AC-DC-Netzteilen, DC-DC-Wandlern, Adaptern, Ladegeräten, industriellen Leistungsmodulen, LED-Treibern, Kommunikationsgeräten, Unterhaltungselektronik und Embedded-Systemen verwendet.

Diese Kategorie umfasst Flyback-Transformatoren, Forward-Converter-Transformatoren, Push-Pull-Transformatoren, isolierte DC-DC-Wandler-Transformatoren, Hochfrequenz-SMPS-Transformatoren und verwandte magnetische Komponenten. Die Auswahl erfolgt häufig nach Eingangsspannung, Ausgangsspannung, Leistung, Schaltfrequenz, Isolationsfestigkeit, Kernmaterial, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Schaltwandler- und SMPS-Transformatoren von anerkannten Herstellern wie Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Typ	Anwendungen	Vorgesehener Chipsatz	Chipsatzhersteller	Spannung - Primär	Spannung - Hilfsspannung	Spannung - Isolierung	Induktivität bei Frequenz	Frequenz	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Stellfläche	Stil
PA5100.005NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	861	-	RFQ	Datenblatt	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5099.003NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	1,701	-	RFQ	Datenblatt	PA5099.XXXNLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.006NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	865	-	RFQ	Datenblatt	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.004NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	865	-	RFQ	Datenblatt	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.002NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	855	-	RFQ	Datenblatt	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA5100.001NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	113	-	RFQ	Datenblatt	PA5100XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.535" L x 0.433" W (13.60mm x 11.00mm)	0.610" (15.50mm)	0.535" L x 0.433" W (13.60mm x 11.00mm)	Wirewound
PA3856.004NLT XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	900	-	RFQ	Datenblatt	EP13Plus	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.526" W (14.50mm x 13.36mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
PGT6465NLT XFMR FLYBACK 205UH SMD Pulse Electronics	138	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	-	-	-	70 ~ 820V	-	4000Vrms	205µH @ 100kHz	133kHz	-40°C ~ 130°C	-	-	Surface Mount	0.650" L x 0.642" W (16.50mm x 16.30mm)	0.433" (11.00mm)	0.862" L x 0.650" W (21.90mm x 16.50mm)	Wirewound
POE7W2X12-R XFMR POE CONFIG DC/DC 100UH SMD Eaton - Electronics Division	0	-	RFQ	Datenblatt	PoE	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	100µH @ 100kHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	0.673" L x 0.630" W (17.10mm x 16.00mm)	0.331" (8.40mm)	0.673" L x 0.878" W (17.10mm x 22.30mm)	-
POE030-PD13050S XFMR POE DC/DC CONV 70UH SMD Bourns Inc.	146	-	RFQ	Datenblatt	POE-PD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	11.5V	1500Vrms	70µH @ 100kHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.638" L x 0.551" W (16.20mm x 14.00mm)	0.571" (14.50mm)	-	-
PA5000.001NL XFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics	600	-	RFQ	Datenblatt	PA5000.XXXNL	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	10V @ 50mA	3000Vrms	100µH	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.697" L x 0.531" W (17.70mm x 13.50mm)	Wirewound
PA5000.002NL XFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics	595	-	RFQ	Datenblatt	PA5000.XXXNL	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	10V @ 50mA	3000Vrms	100µH	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.697" L x 0.531" W (17.70mm x 13.50mm)	Wirewound
PA5111.001NLT XFMR FLYBACK DC/DC CONV 80UH SMD Pulse Electronics	244	-	RFQ	Datenblatt	PA5111.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 75V	-	3000Vrms	80µH @ 200kHz	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound
PA5000.003NLT XFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics	110	-	RFQ	Datenblatt	PA5000.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 75V	-	5000Vrms	100µH @ 200kHz	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound
PA5111.002NLT XFMR FLYBACK DC/DC CONV 80UH SMD Pulse Electronics	105	-	RFQ	Datenblatt	PA5111.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 75V	-	3000Vrms	80µH @ 200kHz	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound
PA4470.005NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	698	-	RFQ	Datenblatt	PA4470	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	10V @ 50mA	-	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	-	0.236" (6.00mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-
PA4470.001NLT XFMR FLYBACK DC/DC CONV SMD Pulse Electronics	482	-	RFQ	Datenblatt	PA4470	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	10V @ 50mA	-	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	-	0.236" (6.00mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-

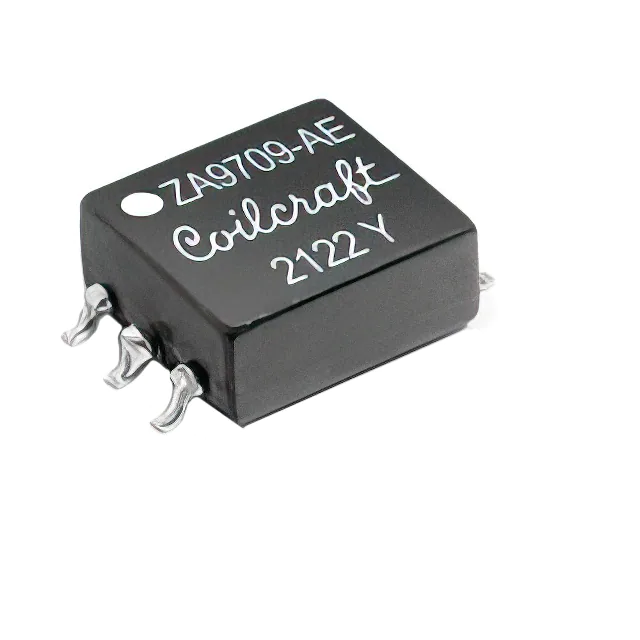

ZA9709-AED XFMR FWD P-P DC/DC CONV 145UH SM Coilcraft	2,264	-	RFQ	Datenblatt	ZA9709	Strip	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505B	Texas Instruments	3.3V	-	2500Vrms	145µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.171" (4.34mm)	0.512" L x 0.347" W (13.00mm x 8.82mm)	-
PAT6042NL XFMR FLYBACK Pulse Electronics	3,640	-	RFQ	Datenblatt	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

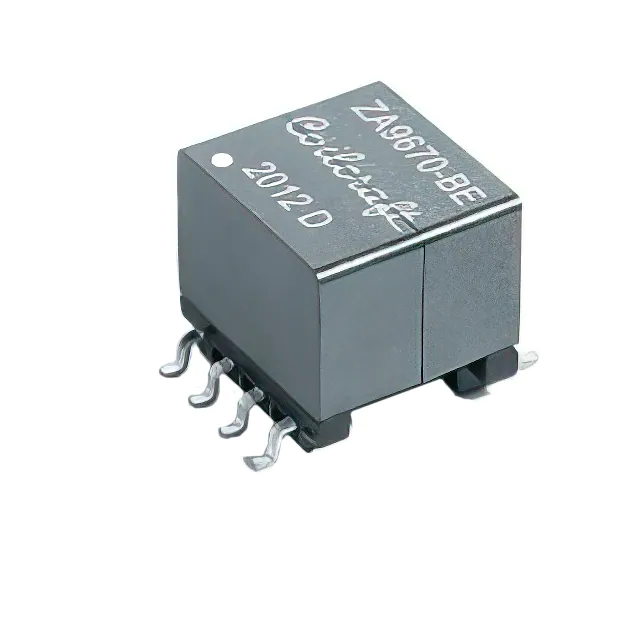

ZA9671-BED XFMR FLYBACK DC/DC CONV 9UH SMD Coilcraft	958	-	RFQ	Datenblatt	-	Strip	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH @ 300kHz	300kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.394" (10.00mm)	0.520" L x 0.430" W (13.21mm x 10.92mm)	-

Total 1831 Record«Prev 1... 25 26 27 282930 31 32...92 Next»
