Schaltwandler- und SMPS-Transformatoren

Schaltwandler- und SMPS-Transformatoren sind magnetische Komponenten, die in Schaltnetzteilen zur Energieübertragung, galvanischen Isolation und Spannungswandlung eingesetzt werden. Sie werden häufig in AC-DC-Netzteilen, DC-DC-Wandlern, Adaptern, Ladegeräten, industriellen Leistungsmodulen, LED-Treibern, Kommunikationsgeräten, Unterhaltungselektronik und Embedded-Systemen verwendet.

Diese Kategorie umfasst Flyback-Transformatoren, Forward-Converter-Transformatoren, Push-Pull-Transformatoren, isolierte DC-DC-Wandler-Transformatoren, Hochfrequenz-SMPS-Transformatoren und verwandte magnetische Komponenten. Die Auswahl erfolgt häufig nach Eingangsspannung, Ausgangsspannung, Leistung, Schaltfrequenz, Isolationsfestigkeit, Kernmaterial, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Schaltwandler- und SMPS-Transformatoren von anerkannten Herstellern wie Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Typ	Anwendungen	Vorgesehener Chipsatz	Chipsatzhersteller	Spannung - Primär	Spannung - Hilfsspannung	Spannung - Isolierung	Induktivität bei Frequenz	Frequenz	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Stellfläche	Stil
SUOST-16-1212 UNIV OFFLINE SMTXFMR2X Signal Transformer	690	-	RFQ	Datenblatt	SUOST	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	195 ~ 265V	-	-	1.5mH @ 100kHz	60 ~ 150kHz	-40°C ~ 125°C	-	-	Surface Mount	0.811" L x 0.654" W (20.60mm x 16.60mm)	0.531" (13.50mm)	-	-
SUOST-13-2424 UNIV OFFLINE SMTXFMR2X Signal Transformer	690	-	RFQ	Datenblatt	SUOST	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	-	1.25mH @ 100kHz	60 ~ 150kHz	-40°C ~ 125°C	-	-	Surface Mount	0.811" L x 0.654" W (20.60mm x 16.60mm)	0.531" (13.50mm)	-	-
SUOST-13-1205 UNIV OFFLINE SMTXFMR1X Signal Transformer	690	-	RFQ	Datenblatt	SUOST	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	125 ~ 375V	-	-	1.25mH @ 100kHz	60 ~ 150kHz	-40°C ~ 125°C	-	-	Surface Mount	0.811" L x 0.654" W (20.60mm x 16.60mm)	0.531" (13.50mm)	-	-
B82805A0952A250 XFMR FWD P-P DC/DC CONV 9.5UH SM EPCOS - TDK Electronics	740	-	RFQ	Datenblatt	B82805	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	9.5µH @ 50kHz	250kHz	-25°C ~ 125°C	-	-	Surface Mount	0.315" L x 0.236" W (8.00mm x 6.00mm)	0.224" (5.70mm)	0.315" L x 0.378" W (8.00mm x 9.60mm)	-
78931610512 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	2,366	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	RS-485	-	5V	-	-	475µH @ 100kHz	300kHz ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.187" (4.74mm)	-	Toroidal
78931610515 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	2,360	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	RS-485	-	5V	-	-	475µH @ 100kHz	300kHz ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.187" (4.74mm)	-	Toroidal
78931610518 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	2,278	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	RS-485	-	5V	-	-	475µH @ 100kHz	300kHz ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.187" (4.74mm)	-	Toroidal
78931812518 XFMR P-P DC/DC CONV 86UH SMD Würth Elektronik	1,781	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Push-Pull Converters	RS-485	Monolithic Power Systems Inc	5V	-	2500V	86µH @ 10kHz	420kHz	-40°C ~ 125°C	-	-	Surface Mount	0.364" L x 0.327" W (9.25mm x 8.30mm)	0.171" (4.34mm)	-	-
78931812505 XFMR P-P DC/DC CONV 86UH SMD Würth Elektronik	1,541	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Push-Pull Converters	RS-485	Monolithic Power Systems Inc	5V	-	2500V	86µH @ 10kHz	420kHz	-40°C ~ 125°C	-	-	Surface Mount	0.364" L x 0.327" W (9.25mm x 8.30mm)	0.171" (4.34mm)	-	-
78931812512 XFMR P-P DC/DC CONV 86UH SMD Würth Elektronik	996	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Push-Pull Converters	RS-485	Monolithic Power Systems Inc	5V	-	2500V	86µH @ 10kHz	420kHz	-40°C ~ 125°C	-	-	Surface Mount	0.364" L x 0.327" W (9.25mm x 8.30mm)	0.171" (4.34mm)	-	-
78931812523 XFMR P-P DC/DC CONV 86UH SMD Würth Elektronik	816	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Push-Pull Converters	RS-485	Monolithic Power Systems Inc	5V	-	2500V	86µH @ 10kHz	420kHz	-40°C ~ 125°C	-	-	Surface Mount	0.364" L x 0.327" W (9.25mm x 8.30mm)	0.171" (4.34mm)	-	-
78931610505 XFMR FWD P-P DC/DC CONV 475UH SM Würth Elektronik	783	-	RFQ	Datenblatt	WE-PSPA	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	RS-485	-	5V	-	-	475µH @ 100kHz	300kHz ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	0.281" L x 0.265" W (7.14mm x 6.73mm)	0.187" (4.74mm)	-	Toroidal
TGMR-H540V8LFTR ISO MOD DC FOR MAX13253 1A 4.5KV HALO Electronics, Inc.	250	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	MAX13253	Analog Devices, Inc	-	-	4500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.590" L x 0.475" W (14.99mm x 12.07mm)	0.340" (8.64mm)	-	Wirewound
PDC025-FD20A05S XFMR POE DC/DC CONV 70UH SMD Bourns Inc.	144	-	RFQ	Datenblatt	PDC-FD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 57V	12V @ 20mA	1500Vrms	70µH @ 250kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.453" (11.50mm)	-	-

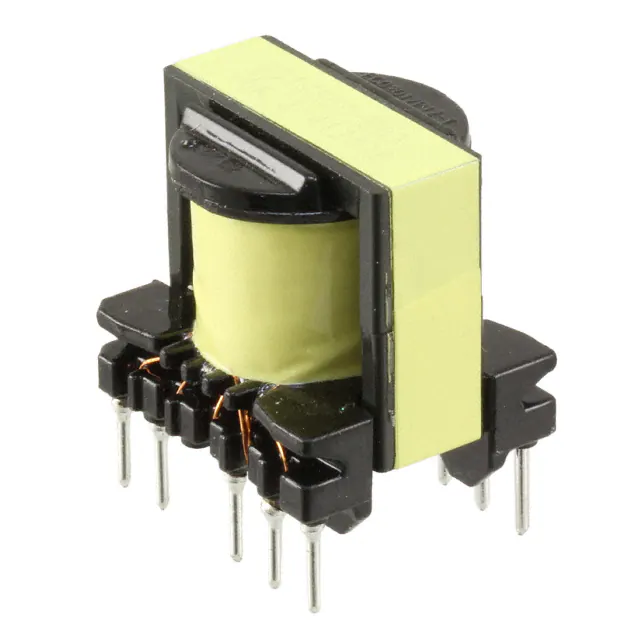

ECO2017SEO-D03V014 XFMR FLYBACK AC/DC CONV 555UH TH TDK Corporation	209	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 264V	12V @ 1A	3000Vrms	555µH @ 100kHz	-	-30°C ~ 120°C	-	-	Through Hole	0.768" L x 0.886" W (19.50mm x 22.50mm)	0.945" (24.00mm)	0.768" L x 0.886" W (19.50mm x 22.50mm)	-
ECO2225SEO-D01H016 XFMR FLYBACK AC/DC CONV 567UH TH TDK Corporation	115	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 276V	12V @ 50mA, 12V @ 1.5A	3000Vrms	567µH @ 10kHz	67kHz	-30°C ~ 120°C	-	-	Through Hole	1.024" L x 1.201" W (26.00mm x 30.50mm)	0.945" (24.00mm)	1.024" L x 1.201" W (26.00mm x 30.50mm)	-
750811613 XFMR LED DR AC/DC CONV 800UH TH Würth Elektronik	998	-	RFQ	Datenblatt	MID-OLEFD	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 170kHz	-40°C ~ 125°C	-	-	Through Hole	0.846" L x 1.142" W (21.50mm x 29.00mm)	0.477" (12.12mm)	0.846" L x 1.142" W (21.50mm x 29.00mm)	-
B78304B1030A003 XFMR DC/DC CONV 100UH SMD EPCOS - TDK Electronics	1,763	-	RFQ	Datenblatt	B78304B	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	100µH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.315" L x 0.276" W (8.00mm x 7.00mm)	0.224" (5.70mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-
750343341 XFMR FWD P-P DC/DC CONV 152UH SM Würth Elektronik	408	-	RFQ	Datenblatt	WE-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	5V	-	5000V	152µH @ 100kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.300" (7.62mm)	-	Laminated Core
750317933 XFMR FLYBACK DC/DC CONV 21UH SMD Würth Elektronik	185	-	RFQ	Datenblatt	MID-FLYTI	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	18 ~ 36V	10V @ 20mA	1500Vrms	21µH @ 10kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.571" (14.50mm)	-	Laminated Core

Total 1831 Record«Prev 1... 21 22 23 242526 27 28...92 Next»
