Schaltwandler- und SMPS-Transformatoren

Schaltwandler- und SMPS-Transformatoren sind magnetische Komponenten, die in Schaltnetzteilen zur Energieübertragung, galvanischen Isolation und Spannungswandlung eingesetzt werden. Sie werden häufig in AC-DC-Netzteilen, DC-DC-Wandlern, Adaptern, Ladegeräten, industriellen Leistungsmodulen, LED-Treibern, Kommunikationsgeräten, Unterhaltungselektronik und Embedded-Systemen verwendet.

Diese Kategorie umfasst Flyback-Transformatoren, Forward-Converter-Transformatoren, Push-Pull-Transformatoren, isolierte DC-DC-Wandler-Transformatoren, Hochfrequenz-SMPS-Transformatoren und verwandte magnetische Komponenten. Die Auswahl erfolgt häufig nach Eingangsspannung, Ausgangsspannung, Leistung, Schaltfrequenz, Isolationsfestigkeit, Kernmaterial, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Schaltwandler- und SMPS-Transformatoren von anerkannten Herstellern wie Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Typ	Anwendungen	Vorgesehener Chipsatz	Chipsatzhersteller	Spannung - Primär	Spannung - Hilfsspannung	Spannung - Isolierung	Induktivität bei Frequenz	Frequenz	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Stellfläche	Stil
750811330 XFMR FLYBACK AC/DC CONV 300UH TH Würth Elektronik	88	-	RFQ	Datenblatt	WE-FB, MID-OLLT	Tray	Active	For AC/DC Converters	Flyback Converters	LT3799	Linear Technology	120 ~ 375V	-	4500Vrms	300µH @ 10kHz	200kHz	-	-	-	Through Hole	1.559" L x 1.700" W (39.60mm x 43.18mm)	1.205" (30.61mm)	1.559" L x 1.700" W (39.60mm x 43.18mm)	-
750342585 XFMR FLYBACK AC/DC CONV 2.5MH TH Würth Elektronik	10	-	RFQ	Datenblatt	MID-OLTI	Tray	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	400 ~ 690V	16V @ 1A	3800Vrms	2.5mH @ 50kHz	68kHz	-40°C ~ 125°C	-	-	Through Hole	0.960" L x 1.400" W (24.38mm x 35.56mm)	1.740" (44.20mm)	0.960" L x 1.400" W (24.38mm x 35.56mm)	-
PA3856.003NL XFMR FWD P-P DC/DC CONV SMD Pulse Electronics	34	-	RFQ	Datenblatt	-	Tray	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	-	-	Surface Mount	0.571" L x 0.695" W (14.50mm x 17.65mm)	0.551" (14.00mm)	0.571" L x 0.695" W (14.50mm x 17.65mm)	-
PA2718NL XFMR FLYBACK CONFIG DC/DC TH Pulse Electronics	98	-	RFQ	Datenblatt	-	Tray	Active	Configurable (For DC/DC)	Flyback Converters	-	-	85 ~ 256V	-	3000Vrms	-	132kHz	-40°C ~ 130°C	-	-	Through Hole	0.531" L x 0.768" W (13.50mm x 19.50mm)	0.591" (15.00mm)	0.531" L x 0.768" W (13.50mm x 19.50mm)	-
750342178 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	49	-	RFQ	Datenblatt	MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	FlyBuck™	Texas Instruments	17 ~ 32V	-	1500Vrms	50µH @ 10kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.280" (7.11mm)	0.610" L x 0.670" W (15.49mm x 17.02mm)	-
PM9595NLT XFMR FLYBACK DC/DC CONV 13UH SMD Pulse Electronics	71	-	RFQ	Datenblatt	PM9595.XXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	12V	-	4300VDC	13µH	350kHz	-40°C ~ 125°C	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.539" (13.70mm)	0.512" L x 0.394" W (13.01mm x 10.00mm)	Wirewound
750312723 XFMR FLYBACK DC/DC CONV 925UH TH Würth Elektronik	75	-	RFQ	Datenblatt	WE-FB, MID-OLTI	Tray	Active	For DC/DC Converters	Flyback Converters	UCC287xx, UCC289xx	Texas Instruments	85 ~ 265V	20V	4500Vrms	925µH @ 10kHz	130kHz	-40°C ~ 125°C	-	-	Through Hole	0.560" L x 0.805" W (14.22mm x 20.45mm)	0.415" (10.54mm)	0.560" L x 0.805" W (14.22mm x 20.45mm)	-
PA5112.002NLT XFMR FLYBACK DC/DC CONV 160UH SM Pulse Electronics	65	-	RFQ	Datenblatt	PA5112.XXXNL	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	85 ~ 265V	-	3000Vrms	160µH @ 140kHz	140kHz	-40°C ~ 130°C	-	-	Surface Mount	0.531" L x 0.520" W (13.50mm x 13.20mm)	0.650" (16.50mm)	0.689" L x 0.531" W (17.50mm x 13.50mm)	Wirewound

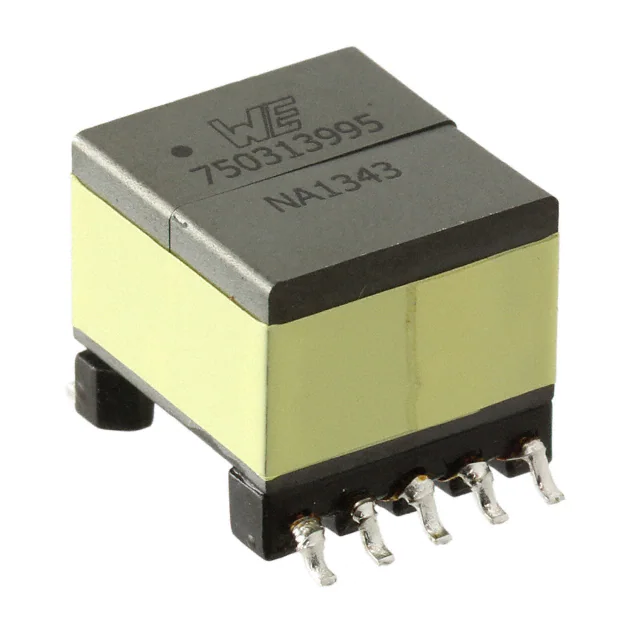

750313995 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	32	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	FlyBuck™	Texas Instruments	15 ~ 40V	-	1500Vrms	50µH @ 10kHz	300 ~ 600kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
749196211 XFMR FLEXIBLE CONFIG DC/DC SMD Würth Elektronik	95	-	RFQ	Datenblatt	WE-FLEX	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.642" L x 0.472" W (16.30mm x 12.00mm)	0.291" (7.40mm)	-	-
750343804 XFMR SMD Würth Elektronik	88	-	RFQ	Datenblatt	WE-FW, MID-HB	Tape & Reel (TR)	Active	-	-	-	-	15V	-	3000VAC	-	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.485" (12.32mm)	-	-
750871010 XFMR FLYBACK AC/DC CONV 3.3MH TH Würth Elektronik	64	-	RFQ	Datenblatt	WE-UNIT, MID-OLSTM	Tray	Active	For AC/DC Converters	Flyback Converters	VIPER17L	STMicroelectronics	120 ~ 385V	12V @ 10mA	4000Vrms	3.3mH @ 10kHz	60kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.787" L x 0.975" W (20.00mm x 24.00mm)	-

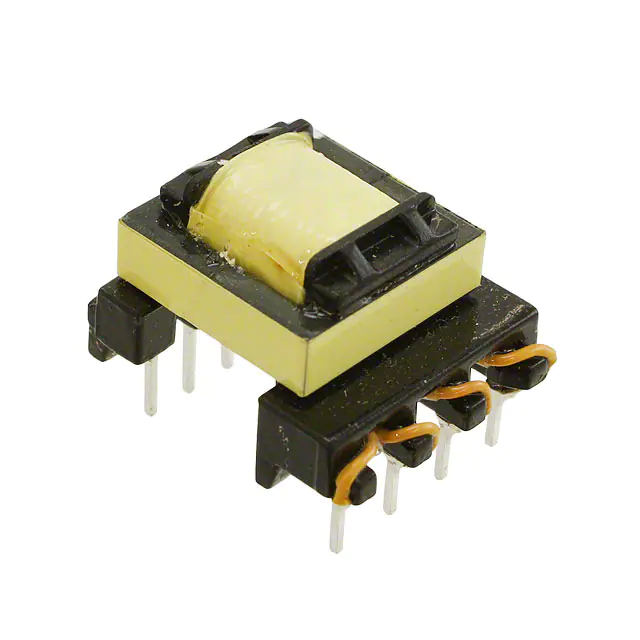

749118215 XFMR LED DR AC/DC CONV 900UH TH Würth Elektronik	30	-	RFQ	Datenblatt	WE-UNIT	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCP101x, NCP105x	On Semiconductor	120 ~ 385V	-	4000Vrms	900µH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	0.795" L x 0.965" W (20.20mm x 24.50mm)	0.650" (16.50mm)	0.795" L x 0.965" W (20.20mm x 24.50mm)	-
750317893 XFMR FLYBACK DC/DC CONV 18UH SMD Würth Elektronik	96	-	RFQ	Datenblatt	WE-AGDT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	4000Vrms	18µH @ 100kHz	350kHz	-40°C ~ 130°C	-	-	Surface Mount	0.445" L x 0.431" W (11.30mm x 10.95mm)	0.470" (11.94mm)	0.445" L x 0.431" W (11.30mm x 10.95mm)	-

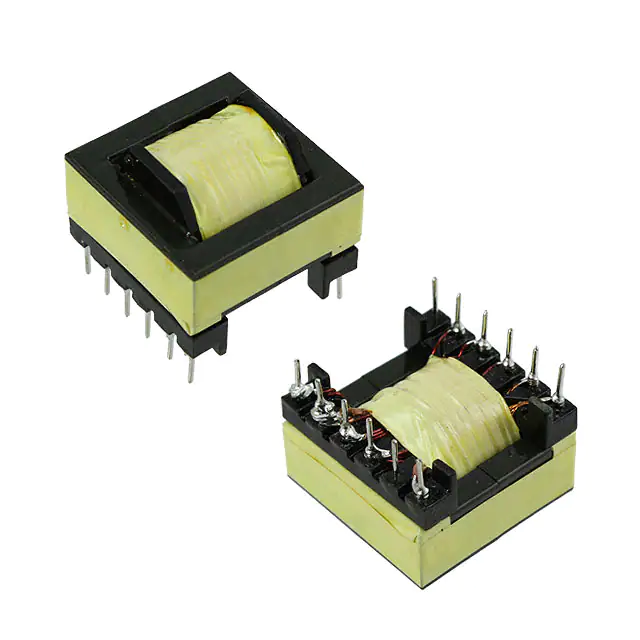

750811630 XFMR FLYBCK AC/DC CONV 1.04MH TH Würth Elektronik	89	-	RFQ	Datenblatt	WE-UNIT, MID-OLPI	Tray	Active	For AC/DC Converters	Flyback Converters	TOP258	Power Integrations	120 ~ 375V	-	4000Vrms	1.04mH @ 10kHz	132kHz	-40°C ~ 125°C	-	-	Through Hole	1.220" L x 1.220" W (31.00mm x 31.00mm)	0.989" (25.12mm)	1.220" L x 1.220" W (31.00mm x 31.00mm)	-

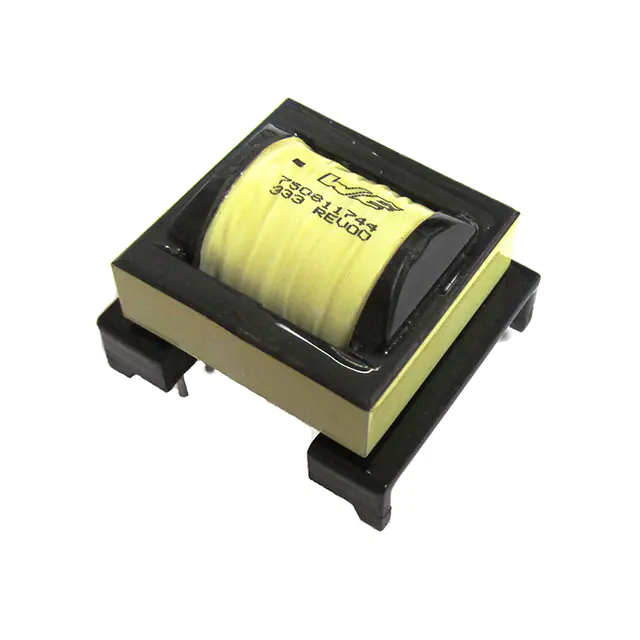

750811744 XFMR FLYBACK DC/DC CONV 450UH TH Würth Elektronik	52	-	RFQ	Datenblatt	MID-OLON	Tray	Active	For DC/DC Converters	Flyback Converters	-	On Semiconductor	90 ~ 375V	14V @ 50mA	4000Vrms	450µH @ 10kHz	80kHz	-40°C ~ 125°C	-	-	Through Hole	1.559" L x 1.700" W (39.60mm x 43.18mm)	1.200" (30.48mm)	-	-
750871110 XFMR FLYBACK AC/DC CONV 1.6MH TH Würth Elektronik	52	-	RFQ	Datenblatt	WE-UNIT, MID-OLSTM	Tray	Active	For AC/DC Converters	Flyback Converters	VIPER28	STMicroelectronics	120 ~ 385V	10V @ 10mA	4000Vrms	1.6mH @ 10kHz	-	-40°C ~ 125°C	-	-	Through Hole	0.827" L x 0.984" W (21.00mm x 25.00mm)	0.635" (16.13mm)	0.827" L x 0.984" W (21.00mm x 25.00mm)	-
750813002 XFMR FLYBACK AC/DC CONV 2MH TH Würth Elektronik	57	-	RFQ	Datenblatt	WE-FB, MID-OLLT	Tray	Active	For AC/DC Converters	Flyback Converters	LT3799	Linear Technology	90 ~ 265V	-	4500Vrms	2mH @ 10kHz	1MHz	-40°C ~ 125°C	-	-	Through Hole	0.591" L x 0.620" W (15.00mm x 15.75mm)	0.732" (18.59mm)	0.591" L x 0.620" W (15.00mm x 15.75mm)	-
750871111 XFMR FLYBACK AC/DC CONV 1.7MH TH Würth Elektronik	65	-	RFQ	Datenblatt	WE-UNIT, MID-OLSTM	Tray	Active	For AC/DC Converters	Flyback Converters	VIPER27L	STMicroelectronics	120 ~ 385V	12V @ 10mA	4000Vrms	1.7mH @ 10kHz	60kHz	-40°C ~ 125°C	-	-	Through Hole	0.827" L x 0.984" W (21.00mm x 25.00mm)	0.635" (16.13mm)	0.827" L x 0.984" W (21.00mm x 25.00mm)	-
750310988 XFMR FLYBACK DC/DC CONV 14UH SMD Würth Elektronik	64	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	12V	-	1500Vrms	14µH @ 200kHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
