FETs, MOSFETs
FETs und MOSFETs
TomatoElec liefert FETs und MOSFETs für Industrie, Automotive, Leistungssteuerung, Motorantriebe und allgemeine Elektronikanwendungen. Unsere Beschaffungsunterstützung umfasst Feldeffekttransistoren, Leistungs-MOSFETs und weitere häufig verwendete Halbleiterprodukte für Schalt- und Steuerungsanwendungen.
Wir unterstützen flexible RFQ-Services für die Beschaffung von FETs und MOSFETs und helfen Kunden, ihre Einkaufseffizienz für reguläre Bedarfe, dringende Anforderungen und ausgewählte schwer beschaffbare Teile zu verbessern.
Mit Zugang zu mehreren Versorgungskanälen möchte TomatoElec Kunden zuverlässige Unterstützung bei der Beschaffung von FETs und MOSFETs, schnelle Angebotsabgabe und weltweite Lieferung bieten.
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | FET-Typ | Technologie | Drain-Source-Spannung (Vdss) | Strom - Dauer-Drain (Id) @ 25 °C | Antriebsspannung (Max Rds Ein, Min Rds Ein) | Rds Ein (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate-Ladung (Qg) (Max) @ Vgs | Vgs (Max) | Eingangskapazität (Ciss) (Max) @ Vds | FET-Funktion | Leistungsverlust (Max) | Betriebstemperatur | Klasse | Qualifizierung | Montageart | Lieferant Gerätepaket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXUV170N075SMOSFET N-CH 75V 175A PLUS-220SMD |
3,808 | - |
|
- |
- | PLUS-220SMD | Box | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 175A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PLUS-220SMD |
|
SI1419DH-T1-E3MOSFET P-CH 200V 300MA SC70-6 |
2,419 | - |
|
- |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 300mA (Ta) | 6V, 10V | 5Ohm @ 400mA, 10V | 4.5V @ 100µA | 6.2 nC @ 10 V | ±20V | - | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1433DH-T1-E3MOSFET P-CH 30V 1.9A SC70-6 |
6,670 | - |
|
- |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.9A (Ta) | 4.5V, 10V | 150mOhm @ 2.2A, 10V | 3V @ 100µA | 5 nC @ 4.5 V | ±20V | - | - | 950mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1471DH-T1-E3MOSFET P-CH 30V 2.7A SC70-6 |
8,093 | - |
|
Datenblatt |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Tc) | 2.5V, 10V | 100mOhm @ 2A, 10V | 1.6V @ 250µA | 9.8 nC @ 4.5 V | ±12V | 445 pF @ 15 V | - | 1.5W (Ta), 2.78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1473DH-T1-E3MOSFET P-CH 30V 2.7A SC70-6 |
2,456 | - |
|
Datenblatt |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Tc) | 4.5V, 10V | 100mOhm @ 2A, 10V | 3V @ 250µA | 6.2 nC @ 4.5 V | ±20V | 365 pF @ 15 V | - | 1.5W (Ta), 2.78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1488DH-T1-E3MOSFET N-CH 20V 6.1A SC70-6 |
2,001 | - |
|
Datenblatt |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.1A (Tc) | 1.8V, 4.5V | 49mOhm @ 4.6A, 4.5V | 950mV @ 250µA | 10 nC @ 5 V | ±8V | 530 pF @ 10 V | - | 1.5W (Ta), 2.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
SI3467DV-T1-E3MOSFET P-CH 20V 3.8A 6TSOP |
8,638 | - |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.8A (Ta) | 4.5V, 10V | 54mOhm @ 5A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | - | - | 1.14W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
SI3851DV-T1-E3MOSFET P-CH 30V 1.6A 6TSOP |
3,188 | - |
|
- |
LITTLE FOOT® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.6A (Ta) | 4.5V, 10V | 200mOhm @ 1.8A, 10V | 1V @ 250µA (Min) | 3.6 nC @ 5 V | ±20V | - | Schottky Diode (Isolated) | 830mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
SI3853DV-T1-E3MOSFET P-CH 20V 1.6A 6TSOP |
4,028 | - |
|
Datenblatt |
LITTLE FOOT® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.6A (Ta) | 2.5V, 4.5V | 200mOhm @ 1.8A, 4.5V | 500mV @ 250µA (Min) | 4 nC @ 4.5 V | ±12V | - | Schottky Diode (Isolated) | 830mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SI4348DY-T1-E3MOSFET N-CH 30V 8A 8SO |
8,574 | - |
|
- |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 4.5V, 10V | 12.5mOhm @ 11A, 10V | 2V @ 250µA | 23 nC @ 4.5 V | ±12V | - | - | 1.31W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4620DY-T1-E3MOSFET N-CH 30V 6A/7.5A 8SO |
4,786 | - |
|
Datenblatt |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta), 7.5A (Tc) | 4.5V, 10V | 35mOhm @ 6A, 10V | 2.5V @ 250µA | 13 nC @ 10 V | ±20V | 1040 pF @ 15 V | Schottky Diode (Isolated) | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4621DY-T1-E3MOSFET P-CH 20V 6.2A 8SO |
4,209 | - |
|
Datenblatt |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.2A (Tc) | 4.5V, 10V | 54mOhm @ 5A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | 450 pF @ 10 V | Schottky Diode (Isolated) | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4632DY-T1-E3MOSFET N-CH 25V 40A 8SO |
4,688 | - |
|
Datenblatt |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 40A (Tc) | 4.5V, 10V | 2.7mOhm @ 20A, 10V | 2.6V @ 250µA | 161 nC @ 10 V | ±16V | 11175 pF @ 15 V | - | 3.5W (Ta), 7.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4833ADY-T1-E3MOSFET P-CH 30V 4.6A 8SO |
8,812 | - |
|
Datenblatt |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Tc) | 4.5V, 10V | 72mOhm @ 3.6A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 750 pF @ 15 V | Schottky Diode (Isolated) | 1.93W (Ta), 2.75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI5445BDC-T1-E3MOSFET P-CH 8V 5.2A 1206-8 |
3,997 | - |
|
Datenblatt |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 5.2A (Ta) | 1.8V, 4.5V | 33mOhm @ 5.2A, 4.5V | 1V @ 250µA | 21 nC @ 4.5 V | ±8V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|

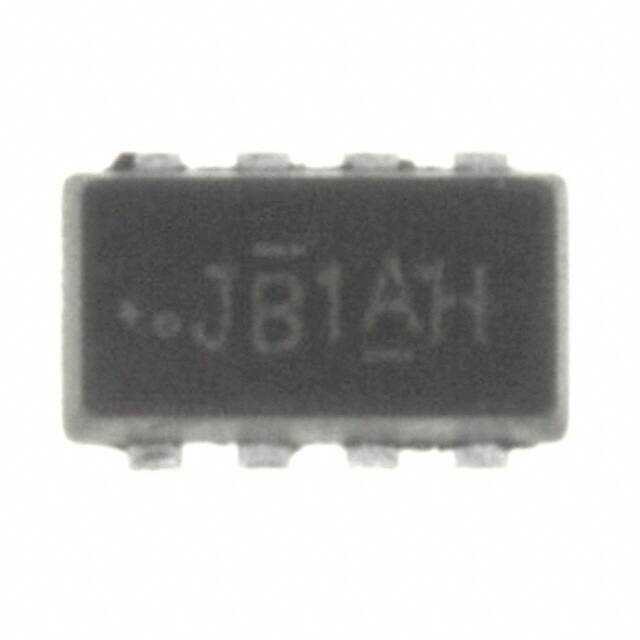

SI5855DC-T1-E3MOSFET P-CH 20V 2.7A 1206-8 |
7,548 | - |
|
- |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.8V, 4.5V | 110mOhm @ 2.7A, 4.5V | 1V @ 250µA | 7.7 nC @ 4.5 V | ±8V | - | Schottky Diode (Isolated) | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
SI7100DN-T1-E3MOSFET N-CH 8V 35A PPAK1212-8 |
7,752 | - |
|
Datenblatt |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8 V | 35A (Tc) | 2.5V, 4.5V | 3.5mOhm @ 15A, 4.5V | 1V @ 250µA | 105 nC @ 8 V | ±8V | 3810 pF @ 4 V | - | 3.8W (Ta), 52W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI7136DP-T1-E3MOSFET N-CH 20V 30A PPAK SO-8 |
6,117 | - |
|
Datenblatt |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 30A (Tc) | 4.5V, 10V | 3.2mOhm @ 20A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 3380 pF @ 10 V | - | 5W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7382DP-T1-E3MOSFET N-CH 30V 14A PPAK SO-8 |
5,329 | - |
|
Datenblatt |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 4.7mOhm @ 24A, 10V | 3V @ 250µA | 40 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7384DP-T1-E3MOSFET N-CH 30V 11A PPAK SO-8 |
6,292 | - |
|
Datenblatt |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 8.5mOhm @ 18A, 10V | 3V @ 250µA | 18 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
