OR-Controller, ideale Dioden

OR-Controller und ideale Dioden-Controller sind Power-Management-ICs zur Steuerung der Strompfadauswahl, Sperrung von Rückströmen und verlustarmen Ersetzung herkömmlicher Dioden in elektronischen Systemen. Sie werden häufig in redundanten Netzteilen, Batterie-Backup-Systemen, Hot-Swap-Designs, Servern, Telekommunikationsgeräten, industriellen Steuerungen, Automobilelektronik und hochzuverlässigen Stromversorgungsarchitekturen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert OR-Controller sowie ideale Dioden-Controller von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Vishay. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von OR-Controllern und idealen Dioden einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Typ	FET-Typ	Verhältnis - Eingang:Ausgang	Interner Schalter	Verzögerungszeit – EIN	Verzögerungszeit – AUS	Strom – Ausgang (Max)	Strom - Versorgung	Spannung - Versorgung	Anwendungen	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
LM66100DCKR IC OR CTRLR IDEAL DIODE SC70-6 Texas Instruments	145,921	-	RFQ	Datenblatt	-	6-TSSOP, SC-88, SOT-363	Tape & Reel (TR)	Active	-	P-Channel	1:1	Yes	27 µs	2 µs	1.5A	-	1.5V ~ 5.5V	General Purpose	-40°C ~ 105°C	-	-	Surface Mount	SC-70-6
LM66200DRLR IC POWER Texas Instruments	7,037	-	RFQ	Datenblatt	-	SOT-583	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	2:1	Yes	-	-	2.5A	1.35 µA	1.6V ~ 5.5V	General Purpose	-40°C ~ 125°C (TA)	-	-	Surface Mount	SOT-583
LM66100DCKT IC OR CTRLR IDEAL DIODE SC70-6 Texas Instruments	6,213	-	RFQ	Datenblatt	-	6-TSSOP, SC-88, SOT-363	Tape & Reel (TR)	Active	-	P-Channel	1:1	Yes	27 µs	2 µs	1.5A	-	1.5V ~ 5.5V	General Purpose	-40°C ~ 105°C	-	-	Surface Mount	SC-70-6
AP74700QW6-7 LOAD SWITCH SOT26 T&R 3K Diodes Incorporated	7,029	-	RFQ	Datenblatt	-	SOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	1.4 µs	450 ns	-	80 µA	3.2V ~ 65V	-	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	SOT-26
LM73100RPWR 2.7-V TO 23-V, 5.5-A IDEAL DIODE Texas Instruments	9,987	-	RFQ	Datenblatt	-	10-VFQFN	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	Yes	29.57 ms	64.44 µs	5.5A	459 µA	2.7V ~ 23V	General Purpose	-40°C ~ 125°C (TJ)	-	-	Surface Mount	10-VQFN-HR (2x2)
LM74502DDFR 3.2-V TO 65-V INDUSTRIAL RPP CON Texas Instruments	7,881	-	RFQ	Datenblatt	-	SOT-23-8 Thin, TSOT-23-8	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	2 µs	75 µs	2.37A	45 µA	3.2V ~ 65V	General Purpose	-40°C ~ 125°C (TA)	-	-	Surface Mount	TSOT-23-8
LM74700QDBVRQ1 POWER MANAGEMENT Texas Instruments	2,191	-	RFQ	Datenblatt	-	SOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	1.4 µs	450 ns	5A	-	3.2V ~ 65V	-	-40°C ~ 125°C (TJ)	Automotive	AEC-Q100	Surface Mount	SOT-23-6
MAX40200AUK+T IC DIODE CURRENT SWITCH SOT23-5 Analog Devices Inc./Maxim Integrated	18,047	-	RFQ	Datenblatt	-	SC-74A, SOT-753	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	1:1	Yes	65 µs	1.6 ms	1.2A	7 µA	1.5V ~ 5.5V	Handheld/Mobile Devices	-40°C ~ 125°C	-	-	Surface Mount	SOT-23-5

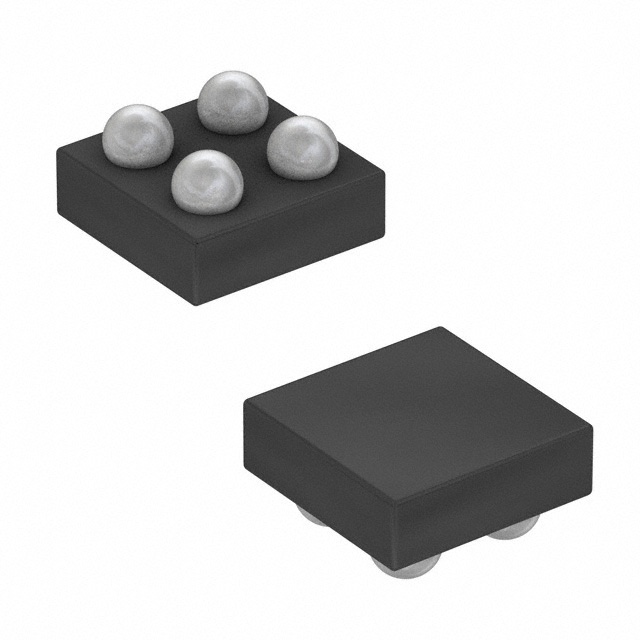

MAX40200ANS+T IC DIODE CURRENT SWITCH 4WLP Analog Devices Inc./Maxim Integrated	24,853	-	RFQ	Datenblatt	-	4-XFBGA, WLBGA	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	1:1	Yes	65 µs	1.6 ms	1.2A	7 µA	1.5V ~ 5.5V	Handheld/Mobile Devices	-40°C ~ 125°C	-	-	Surface Mount	4-WLP (0.73x0.73)
MAX40203AUK+T IC IDEAL DIODE Analog Devices Inc./Maxim Integrated	39,625	-	RFQ	Datenblatt	-	SC-74A, SOT-753	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	1:1	Yes	320 µs	80 µs	1A	300 nA	1.2V ~ 5.5V	Battery Backup, Handheld/Mobile Devices	-40°C ~ 125°C (TA)	-	-	Surface Mount	SOT-23-5
MAX40203ANS+T LOW CURRENT IDEAL DIODE Analog Devices Inc./Maxim Integrated	2,274	-	RFQ	Datenblatt	-	4-XFBGA, WLBGA	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	1:1	Yes	320 µs	80 µs	1A	300 nA	1.2V ~ 5.5V	Handheld/Mobile Devices	-40°C ~ 125°C (TA)	-	-	Surface Mount	4-WLP (0.77x0.77)
LM74502QDDFRQ1 AUTOMOTIVE REVERSE POLARITY PROT Texas Instruments	692	-	RFQ	Datenblatt	-	SOT-23-8 Thin, TSOT-23-8	Tape & Reel (TR)	Active	Source Selector Switch	N-Channel	1:1	No	75 µs	2 µs	2A	45 µA	4V ~ 60V	-	-40°C ~ 125°C (TJ)	Automotive	-	Surface Mount	TSOT-23-8
LM74700QDDFRQ1 3.2-V TO 65-V, 80-UA IQ AUTOMOTI Texas Instruments	2,854	-	RFQ	Datenblatt	-	SOT-23-8 Thin, TSOT-23-8	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	1.4 µs	450 ns	5A	-	3.2V ~ 65V	-	-40°C ~ 125°C (TJ)	Automotive	AEC-Q100	Surface Mount	TSOT-23-8
LM5050MKX-1/NOPB IC OR CTRLR N+1 6SOT Texas Instruments	12,920	-	RFQ	Datenblatt	-	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	N:1	No	-	486 ns	-	130 µA	5V ~ 75V	Redundant Power Supplies	-40°C ~ 125°C	-	-	Surface Mount	SOT-23-THIN
TPS2115ADRBR IC OR CTRLR SRC SELECT 8SON Texas Instruments	6,349	-	RFQ	Datenblatt	-	8-VDFN Exposed Pad	Tape & Reel (TR)	Active	Source Selector Switch	N-Channel	2:1	Yes	1 ms	5 ms	2A	55 µA	2.8V ~ 5.5V	Handheld/Mobile Devices	-40°C ~ 85°C	-	-	Surface Mount	8-SON (3x3)
LM74700QDBVTQ1 LOW IQ, IDEAL DIODE CONTROLLER Texas Instruments	4,966	-	RFQ	Datenblatt	-	SOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	1.4 µs	450 ns	5A	-	3.2V ~ 65V	-	-40°C ~ 125°C (TJ)	Automotive	AEC-Q100	Surface Mount	SOT-23-6

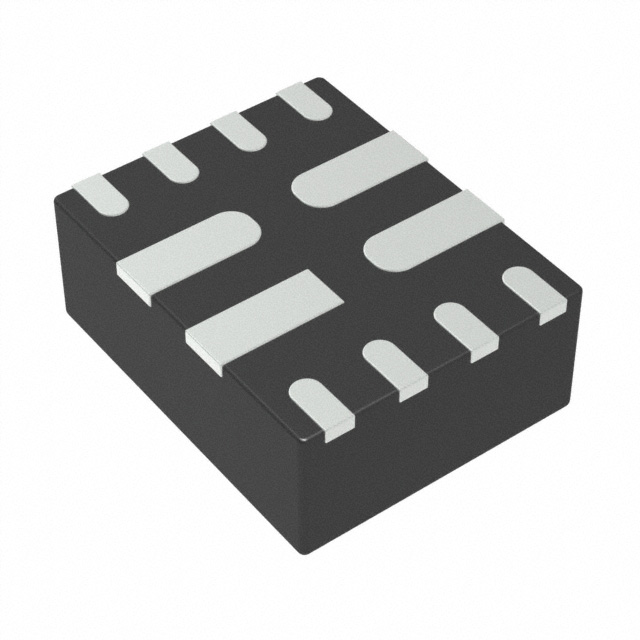

TPS2121RUXR PWR MGMT BATTERY MGMT Texas Instruments	8,246	-	RFQ	Datenblatt	-	12-VFQFN	Tape & Reel (TR)	Active	Source Selector Switch	N-Channel	2:1	-	-	-	4.5A	-	2.8V ~ 22V	General Purpose	-40°C ~ 125°C (TJ)	-	-	Surface Mount	12-VQFN-HR (2x2.5)
LM5050Q1MKX-1/NOPB IC OR CTRLR N+1 6SOT Texas Instruments	3,991	-	RFQ	Datenblatt	-	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	N:1	No	-	486 ns	-	130 µA	5V ~ 75V	Redundant Power Supplies	-40°C ~ 125°C	Automotive	AEC-Q100	Surface Mount	SOT-23-THIN

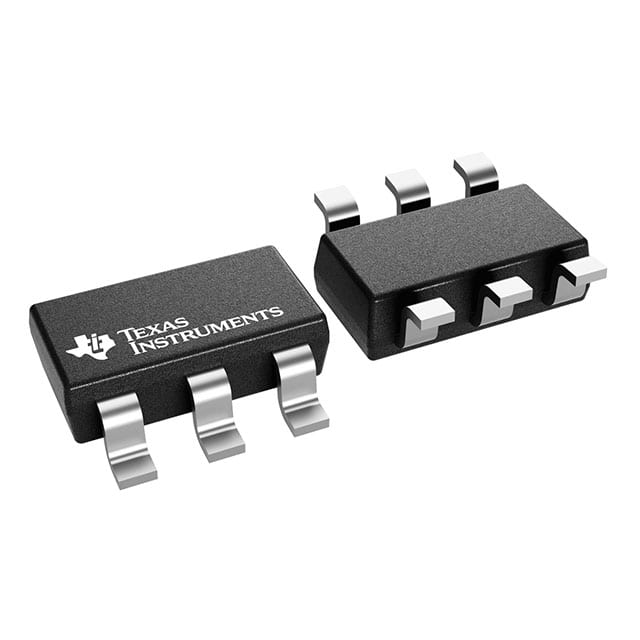

LM5050MK-1/NOPB IC OR CTRLR N+1 6SOT Texas Instruments	11,559	-	RFQ	Datenblatt	-	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	N:1	No	-	486 ns	-	130 µA	5V ~ 75V	Redundant Power Supplies	-40°C ~ 125°C	-	-	Surface Mount	SOT-23-THIN
LM5050MK-2/NOPB IC OR CTRLR N+1 6SOT Texas Instruments	3,119	-	RFQ	Datenblatt	-	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	N:1	No	-	450 ns	-	355 µA	6V ~ 75V	Redundant Power Supplies	-40°C ~ 125°C	-	-	Surface Mount	SOT-23-THIN

Total 604 Record«Prev12 3 4...31 Next»
