OR-Controller, ideale Dioden

OR-Controller und ideale Dioden-Controller sind Power-Management-ICs zur Steuerung der Strompfadauswahl, Sperrung von Rückströmen und verlustarmen Ersetzung herkömmlicher Dioden in elektronischen Systemen. Sie werden häufig in redundanten Netzteilen, Batterie-Backup-Systemen, Hot-Swap-Designs, Servern, Telekommunikationsgeräten, industriellen Steuerungen, Automobilelektronik und hochzuverlässigen Stromversorgungsarchitekturen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert OR-Controller sowie ideale Dioden-Controller von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Vishay. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von OR-Controllern und idealen Dioden einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Typ	FET-Typ	Verhältnis - Eingang:Ausgang	Interner Schalter	Verzögerungszeit – EIN	Verzögerungszeit – AUS	Strom – Ausgang (Max)	Strom - Versorgung	Spannung - Versorgung	Anwendungen	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket

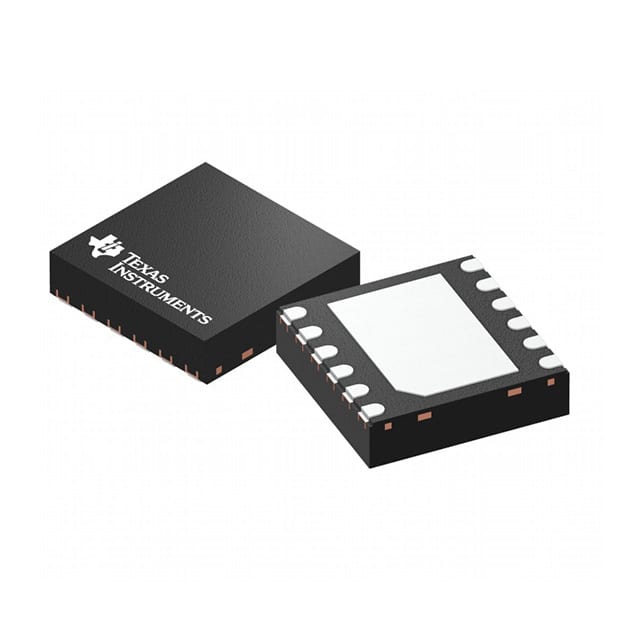

LM74810QDRRRQ1 AUTOMOTIVE IDEAL DIODE CONTROLLE Texas Instruments	3,699	-	RFQ	Datenblatt	-	12-WFDFN Exposed Pad	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	850 ns	500 ns	-	408 µA	3V ~ 65V	Redundant Power Supplies	-40°C ~ 125°C (TJ)	Automotive	AEC-Q100	Surface Mount, Wettable Flank	12-WSON (3x3)
LM74800QDRRRQ1 3-V TO 65-V, AUTOMOTIVE IDEAL DI Texas Instruments	10,192	-	RFQ	Datenblatt	-	12-WFDFN Exposed Pad	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	2.6 µs	500 ns	2.6A	413 µA	3V ~ 65V	Redundant Power Supplies	-40°C ~ 125°C (TJ)	Automotive	AEC-Q100	Surface Mount, Wettable Flank	12-WSON (3x3)
LM5050Q0MK-1/NOPB IC OR CTRLR N+1 6SOT Texas Instruments	7,479	-	RFQ	Datenblatt	-	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	N:1	No	-	486 ns	-	130 µA	5V ~ 75V	Redundant Power Supplies	-40°C ~ 150°C	Automotive	AEC-Q100	Surface Mount	SOT-23-THIN
LM5050Q1MK-1/NOPB IC OR CTRLR N+1 6SOT Texas Instruments	2,123	-	RFQ	Datenblatt	-	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	N:1	No	-	486 ns	-	130 µA	5V ~ 75V	Redundant Power Supplies	-40°C ~ 125°C	Automotive	AEC-Q100	Surface Mount	SOT-23-THIN
LM74801QDRRRQ1 3-V TO 65-V, AUTOMOTIVE IDEAL DI Texas Instruments	10,940	-	RFQ	Datenblatt	-	12-WFDFN Exposed Pad	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	2.6 µs	500 ns	5A	413 µA	3V ~ 65V	Redundant Power Supplies	-40°C ~ 125°C (TJ)	Automotive	AEC-Q100	Surface Mount, Wettable Flank	12-WSON (3x3)
LM74910QRGERQ1 AUTOMOTIVE IDEAL DIODE WITH CIRC Texas Instruments	9,602	-	RFQ	-	-	24-VFQFN Exposed Pad	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	Yes	-	-	2.6A	635 µA	3V ~ 65V	N+1 Power Supplies, High Availability	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount, Wettable Flank	24-VQFN (4x4)
MAX16171ATA+T IDEAL DIODE CONTROLLER WITH REVE Analog Devices Inc./Maxim Integrated	9,291	-	RFQ	Datenblatt	-	8-WFDFN Exposed Pad	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	-	-	-	150 µA	4V ~ 57V	Redundant Power Supplies, Telecom Infrastructure	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount, Wettable Flank	8-TDFN-CU (2x3)

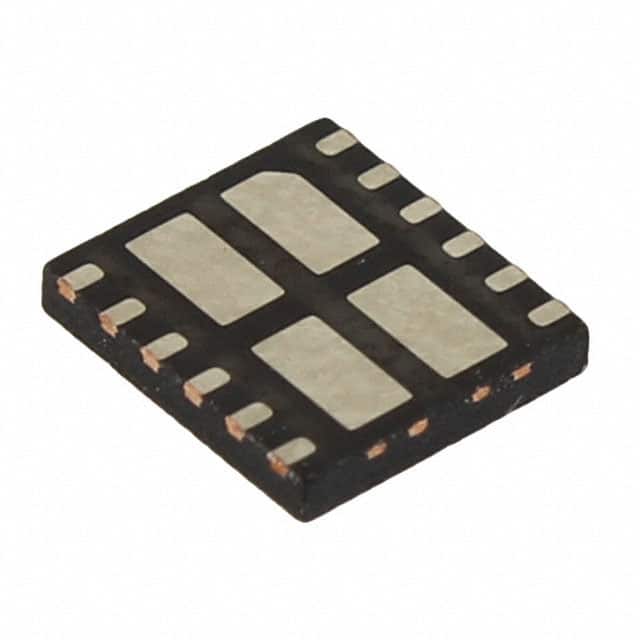

FDMQ8205A GREENBRIDGETM 2 SERIES OF HIGH-E onsemi	4,270	-	RFQ	Datenblatt	GreenBridge™	12-WDFN Exposed Pad	Tape & Reel (TR)	Active	Bridge Rectifier	N and P-Channel	Bridge (2)	Yes	-	-	-	400 µA	57V (Max)	Power Over Ethernet (PoE)	-40°C ~ 85°C	-	-	Surface Mount	12-MLP (5x4.5)

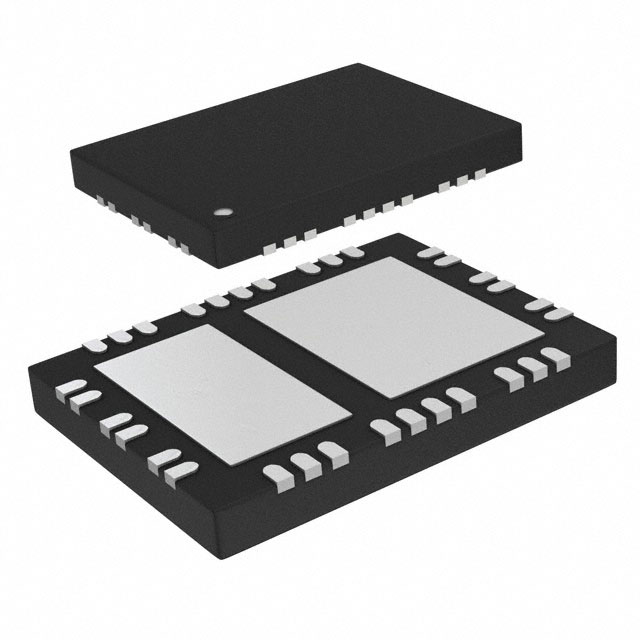

PD70224ILQ-TR IC BRIDGE RECT FET BASED 40MLPQ Microchip Technology	10,474	-	RFQ	Datenblatt	-	40-TFQFN Exposed Pad, 32 Leads	Tape & Reel (TR)	Active	Bridge Rectifier	N-Channel	Bridge (2)	Yes	-	-	1.5A	900 µA	57V (Max)	Power Over Ethernet (PoE)	-40°C ~ 125°C	-	-	Surface Mount	40-QFN (6x8)
LM74930QRGERQ1 LM74930QRGERQ1 Texas Instruments	358	-	RFQ	Datenblatt	-	24-VFQFN Exposed Pad	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	-	-	2.6A	665 µA	4V ~ 65V	Redundant Power Supplies	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount, Wettable Flank	24-VQFN (4x4)
MAX16171ATA/VY+T IDEAL DIODE CONTROLLER 8-TDFN Analog Devices Inc./Maxim Integrated	2,872	-	RFQ	Datenblatt	-	8-WFDFN Exposed Pad	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	-	-	-	150 µA	4V ~ 57V	Redundant Power Supplies, Telecom Infrastructure	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount, Wettable Flank	8-TDFN-CU (2x3)
MAX17614ATP+ 60V, 3A IDEAL DIODE POWER PATH S Analog Devices Inc./Maxim Integrated	319	-	RFQ	Datenblatt	-	20-WFQFN Exposed Pad	Tray	Active	Source Selector Switch	N-Channel	1:1	Yes	1.15 ms	-	3A	1.02 mA	4.5V ~ 60V	Redundant Power Supplies	-40°C ~ 125°C	-	-	Surface Mount	20-TQFN (4x4)
LM74700MDDFREP ENHANCED LOW IQ IDEAL DIODE CONT Texas Instruments	2,333	-	RFQ	Datenblatt	-	SOT-23-8 Thin, TSOT-23-8	Tape & Reel (TR)	Active	N+1 ORing Controller	N-Channel	1:1	No	1.4 µs	450 ns	-	80 µA	3.2V ~ 65V	General Purpose	-50°C ~ 125°C (TJ)	-	-	Surface Mount	TSOT-23-8
LT4321IUF#PBF IC OR CTRLR BRIDGE RECT 16QFN Analog Devices Inc.	6,744	-	RFQ	Datenblatt	-	16-WQFN Exposed Pad	Tube	Active	Bridge Rectifier	N-Channel	Bridge (2)	No	-	-	-	32 µA	20V ~ 80V	Power Over Ethernet (PoE)	-40°C ~ 85°C	-	-	Surface Mount	16-QFN (4x4)
LT4321IUF#TRPBF IC OR CTRLR BRIDGE RECT 16QFN Analog Devices Inc.	2,580	-	RFQ	Datenblatt	-	16-WQFN Exposed Pad	Tape & Reel (TR)	Active	Bridge Rectifier	N-Channel	Bridge (2)	No	-	-	-	32 µA	20V ~ 80V	Power Over Ethernet (PoE)	-40°C ~ 85°C	-	-	Surface Mount	16-QFN (4x4)
LTC4412ES6#TRMPBF IC OR CTRLR SRC SELECT TSOT23-6 Analog Devices Inc.	4,790	-	RFQ	Datenblatt	PowerPath™	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	2:1	No	110 µs	13 µs	-	15 µA	2.5V ~ 28V	Handheld, USB Powered Supplies	-40°C ~ 85°C	-	-	Surface Mount	TSOT-23-6
LTC4412ES6#TRPBF IC OR CTRLR SRC SELECT TSOT23-6 Analog Devices Inc.	1,287	-	RFQ	Datenblatt	PowerPath™	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	2:1	No	110 µs	13 µs	-	15 µA	2.5V ~ 28V	Handheld, USB Powered Supplies	-40°C ~ 85°C	-	-	Surface Mount	TSOT-23-6
LTC4412IS6#TRPBF IC OR CTRLR SRC SELECT TSOT23-6 Analog Devices Inc.	1,205	-	RFQ	Datenblatt	PowerPath™	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	2:1	No	110 µs	13 µs	-	15 µA	2.5V ~ 28V	Handheld, USB Powered Supplies	-40°C ~ 85°C	-	-	Surface Mount	TSOT-23-6
LTC4412IS6#TRMPBF IC OR CTRLR SRC SELECT TSOT23-6 Analog Devices Inc.	335	-	RFQ	Datenblatt	PowerPath™	SOT-23-6 Thin, TSOT-23-6	Tape & Reel (TR)	Active	Source Selector Switch	P-Channel	2:1	No	110 µs	13 µs	-	15 µA	2.5V ~ 28V	Handheld, USB Powered Supplies	-40°C ~ 85°C	-	-	Surface Mount	TSOT-23-6
LT4321HUF#TRPBF IC OR CTRLR BRIDGE RECT 16QFN Analog Devices Inc.	3,249	-	RFQ	Datenblatt	-	16-WQFN Exposed Pad	Tape & Reel (TR)	Active	Bridge Rectifier	N-Channel	Bridge (2)	No	-	-	-	32 µA	20V ~ 80V	Power Over Ethernet (PoE)	-40°C ~ 125°C	-	-	Surface Mount	16-QFN (4x4)

Total 604 Record«Prev 123 4 5...31 Next»
