Startseite > Produkte > Kondensatoren > Tantalkondensatoren

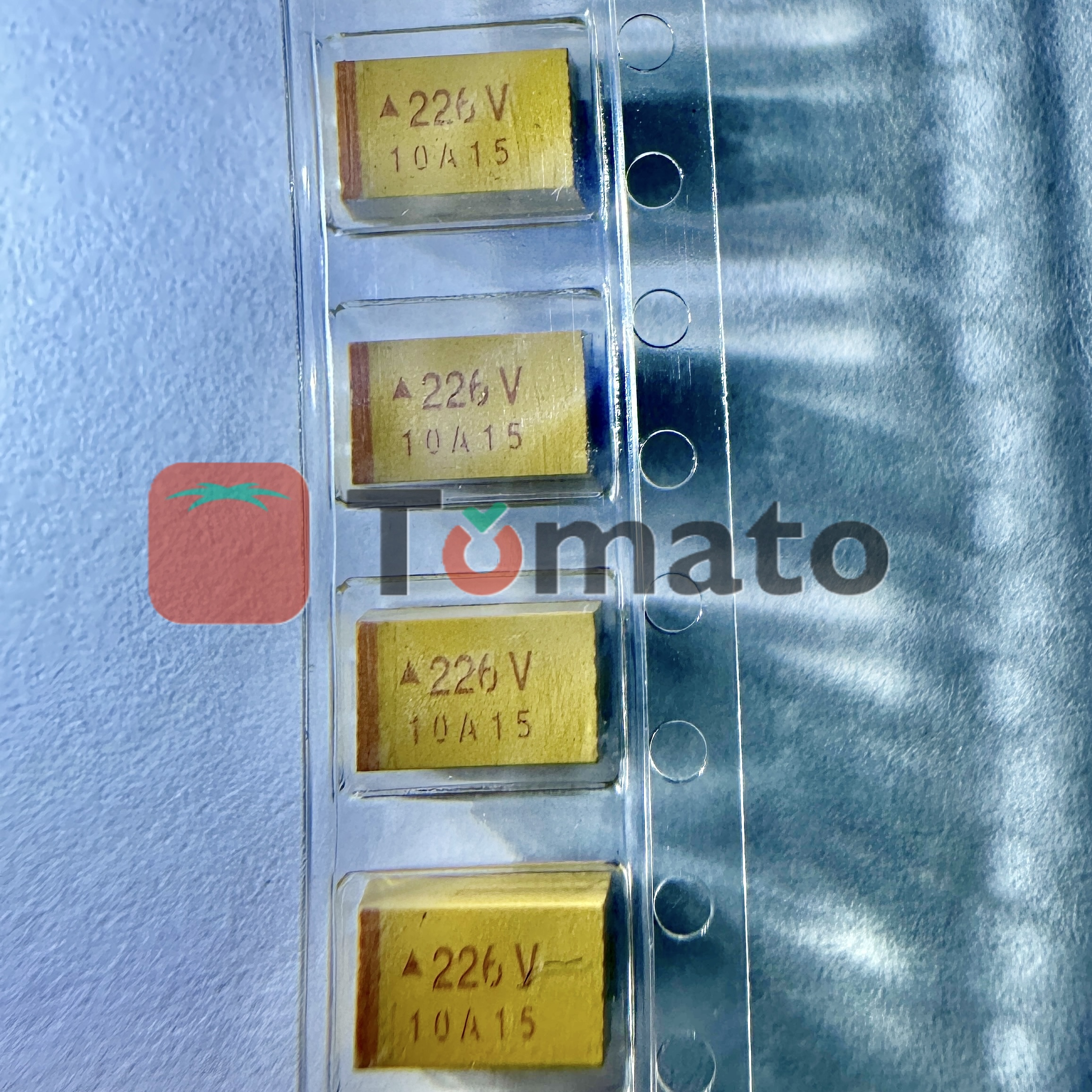

KYOCERA AVX TAJE226M035RNJ

< >

Vergleichen

Teilenr.:: TAJE226M035RNJ

Hersteller:: KYOCERA AVX

Kategorie:: Tantalkondensatoren

Gehäuse:: 2917 (7343 Metric)

Beschreibung:: CAP TANT 22UF 20% 35V 2917

Menge:: RFQ Zur RFQ-Liste hinzufügen Jetzt kaufen In den Warenkorb

Stückpreis:$0

Gesamtpreis:$0

Zahlung:

Versand:

Inventar:3,552

Senden Sie uns Ihre Anfrage, wir antworten sofort.

Lager:3,552

Menge	Stückpreis	Gesamtpreis
1+	$0.000	$0.000

RFQ In den Warenkorb

About TAJE226M035RNJ

Looking for TAJE226M035RNJ supplier or distributor? Tomato Electronics provides high-quality electronic components including MLCC capacitors, tantalum capacitors, ICs, diodes and more.

Produktdetails

TAJE226M035RNJ – KYOCERA AVX 22µF 35V TAJ Series Solid Tantalum Capacitor

TAJE226M035RNJ is a KYOCERA AVX TAJ Series molded solid tantalum chip capacitor designed for power filtering, rail decoupling and compact energy storage in electronic circuits. With 22µF capacitance, 35VDC voltage rating, ±20% tolerance, 500mΩ ESR and E Case / 2917 / 7343 metric package, it is suitable for DC/DC converter support, power management circuits, industrial control boards, communication modules, consumer electronics and general-purpose SMD capacitor applications.

Capacitance22µF

Voltage35VDC

Tolerance±20%

CaseE / 2917 / 7343

Engineering note: Confirm polarity, voltage derating, surge current, ripple current, ESR, PCB land pattern and the latest KYOCERA AVX datasheet before production approval.

Component Overview

TAJE226M035RNJ belongs to the KYOCERA AVX TAJ Series of standard solid tantalum capacitors. It provides stable capacitance in a molded SMD package and is commonly selected where designers need a polarized capacitor with defined ESR behavior, compact assembly and a practical 35V voltage rating.

TomatoElec view: TAJE226M035RNJ is useful when a BOM requires a 22µF 35V tantalum capacitor with E Case 2917 package, ±20% tolerance and 500mΩ ESR. Its value comes from 35V voltage rating, TAJ Series availability, defined ESR, stable SMD capacitance and a widely recognized KYOCERA AVX ordering code.

Circuit Function & Design Role

Power-Rail Decoupling

Helps stabilize supply rails near ICs, regulators, interface modules and mixed-signal circuits.

Power Filtering

Supports low-frequency filtering and output smoothing in compact power management designs.

Energy Storage

Provides local charge storage for transient load support when properly derated and validated.

Compact SMD Layout

E Case / 2917 footprint enables practical capacitance density in surface-mount PCB assemblies.

Key Electrical & Package Information

Manufacturer	KYOCERA AVX
Part Number	TAJE226M035RNJ
Series	TAJ Series / TAJ Standard
Device Type	Molded solid tantalum SMD capacitor
Capacitance	22µF
Voltage Rating	35VDC
Capacitance Tolerance	±20%
ESR	500mΩ
Dissipation Factor	6%
Leakage Current	7.7µA
Polarity	Polar
Case Code	E Case
Package / Case	2917 / 7343 Metric
Mounting Type	Surface Mount / SMD
Dimensions	7.3mm × 4.3mm × 4.1mm
Operating Temperature	-55°C to +125°C
Packaging	Tape and reel / cut tape options
Factory Pack	400 pcs
Product Status	Active

Design reminder: Tantalum capacitors are polarized components. Check voltage derating, surge current, reverse voltage limits, ripple current, temperature rise and fault conditions before use in a production power rail.

Application Scenarios

Power Management Circuits

Used for rail decoupling, local energy storage and filtering around DC/DC converters and LDOs.

Industrial Control Boards

Suitable for controller, sensor, automation and monitoring boards requiring stable SMD capacitance.

Communication Modules

Applicable to filtering and decoupling positions in communication equipment and mixed-signal boards.

General Electronics

Useful where a BOM requires 22µF capacitance, 35V rating, ±20% tolerance and E Case 2917 footprint.

TomatoElec Quality & Supply Notes

As an in-stock independent distributor and electronic components supplier, TomatoElec supports TAJE226M035RNJ sourcing for engineering samples, production replenishment, urgent replacement and BOM purchasing. For tantalum capacitors, correct manufacturer, capacitance, voltage rating, tolerance, ESR, case size, polarity marking and original sourcing are important because the component affects power-rail stability and long-term reliability.

Original component sourcing: support sourcing of original KYOCERA AVX tantalum capacitor products.
Inventory support: help confirm available stock, package condition, date code and shipment schedule.
Package verification: confirm E Case / 2917 / 7343 Metric package and tape-and-reel carrier before shipment.
BOM matching: verify capacitance, voltage rating, tolerance, ESR, leakage, polarity, case size and operating temperature before approving any substitute.

Replacement & BOM Matching Guidance

TAJE226M035RNJ should not be replaced only by matching 22µF and 35V. Engineers should compare capacitor technology, polarity, case size, tolerance, ESR, leakage current, ripple current, surge rating, voltage derating and PCB footprint.

Selection tip: TAJE226M035RNJ and TAJE226K035RNJ share the same capacitance and voltage class, but their tolerance codes are different. Confirm whether the BOM accepts ±20% tolerance before substituting.

FAQ

What is TAJE226M035RNJ used for?

It is used for power-rail decoupling, filtering, energy storage and general-purpose SMD capacitor positions in power, industrial, communication and consumer circuits.

Is TAJE226M035RNJ the same as TAJE226K035RNJ?

No. TAJE226M035RNJ has ±20% capacitance tolerance, while TAJE226K035RNJ uses ±10% tolerance. Confirm BOM approval before substitution.

What package is TAJE226M035RNJ?

TAJE226M035RNJ uses E Case, also commonly listed as 2917 or 7343 Metric SMD package.

Can TomatoElec support TAJE226M035RNJ sourcing?

TomatoElec can support TAJE226M035RNJ inquiry, inventory confirmation, BOM sourcing and shipment coordination.

Final Selection Summary

TAJE226M035RNJ is a KYOCERA AVX TAJ Series 22µF, 35V, ±20% molded solid tantalum SMD capacitor for designs requiring E Case / 2917 footprint, 500mΩ ESR and stable SMD capacitance.

TomatoElec recommendation: Use TAJE226M035RNJ when the BOM requires KYOCERA AVX TAJ Series 22µF 35V tantalum capacitor performance, ±20% tolerance, 500mΩ ESR and E Case / 2917 SMD packaging.

TAJE226M035RNJ Spezifikationen

Spezifikationen
FAQ
Beiträge

Vergleich
Verwandt

Bilder
Teilenr.	TAJE226M035RNJ
Hersteller	KYOCERA AVX
Serie	TAJ
Verpackung	Tape & Reel (TR)
Produktstatus	Active
Kapazität	22 µF
Toleranz	±20%
Spannung - Nenn	35 V
Typ	Molded
ESR (Äquivalenter Serienwiderstand)	500mOhm
Betriebstemperatur	-55°C ~ 125°C
Lebensdauer bei Temperatur	-
Montageart	Surface Mount
Größe/Abmessung	0.287" L x 0.169" W (7.30mm x 4.30mm)
Höhe - Sitz (Max)	0.169" (4.30mm)
Leitungsabstand	-
Größencode des Herstellers	E
Bewertungen	-
Funktionen	General Purpose
Ausfallrate	-
Klasse	-
Qualifizierung	-
