Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
HX5004NLT TRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics	2,321	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	-40°C ~ 85°C	-	-
MUJ-103A-500 INTERFACE MODULE 1:1:2:2 SMD Amgis, LLC	3,692	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	25mH	-	1:1:2:2	Surface Mount	0.504" L x 0.346" W (12.80mm x 8.80mm)	0.246" (6.25mm)	-40°C ~ 85°C	-	-
HX5019FNLT PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics	1,394	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	0.780" L x 0.750" W (19.81mm x 19.05mm)	0.100" (2.54mm)	-40°C ~ 85°C	-	-

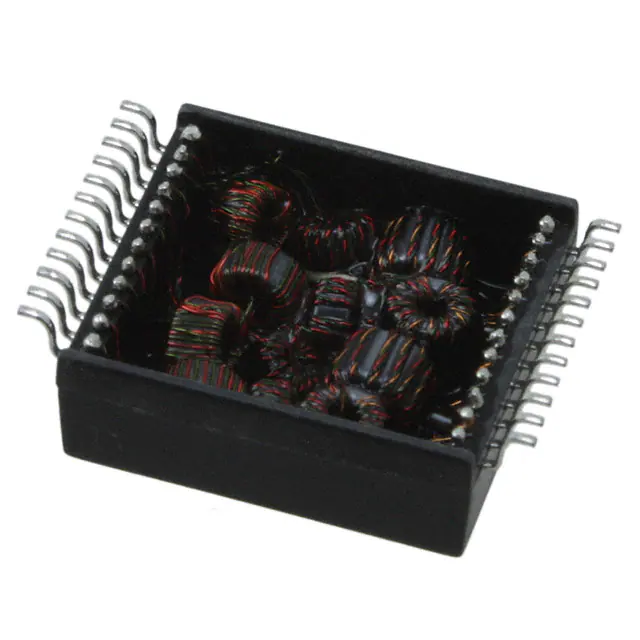

H5008NLT MODULE GIGABIT LAN 24SOIC 1PORT Pulse Electronics	598	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.743" L x 0.538" W (18.87mm x 13.67mm)	0.231" (5.87mm)	0°C ~ 70°C	-	-
7490240142 WE-LAN 10/100/1000 BASE-T SMT TR Würth Elektronik	260	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.719" L x 0.600" W (18.25mm x 15.24mm)	-	-40°C ~ 85°C	-	-
749014012 TRANSFORMER WE-LAN MED 10/100BT Würth Elektronik	1,370	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.967" L x 0.669" W (24.55mm x 17.00mm)	0.427" (10.85mm)	0°C ~ 70°C	-	-
HX5004NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	3,227	-	RFQ	Datenblatt	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	-40°C ~ 85°C	-	-
H5008NL MODULE GIGABIT LAN 24SOIC 1PORT Pulse Electronics	753	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.743" L x 0.538" W (18.87mm x 13.67mm)	0.231" (5.87mm)	0°C ~ 70°C	-	-
HX4110NLT MDL SIN 2.5GD 1:1 SMT TR Pulse Electronics	768	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	General Purpose	120µH	-	1:1	Surface Mount	0.650" L x 0.360" W (16.51mm x 9.14mm)	0.082" (2.08mm)	-40°C ~ 85°C	-	-
HX4110NL TRANSF MOD 2.55G 4CH 60W POE Pulse Electronics	539	-	RFQ	Datenblatt	-	Tube	Active	General Purpose	120µH	-	1CT:1CT	Surface Mount	0.650" L x 0.360" W (16.51mm x 9.14mm)	0.082" (2.08mm)	-	-	-
749050017 TRANSFORMER LAN Würth Elektronik	848	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN	120µH	-	1:1	Surface Mount	0.550" L x 0.532" W (13.97mm x 13.50mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-

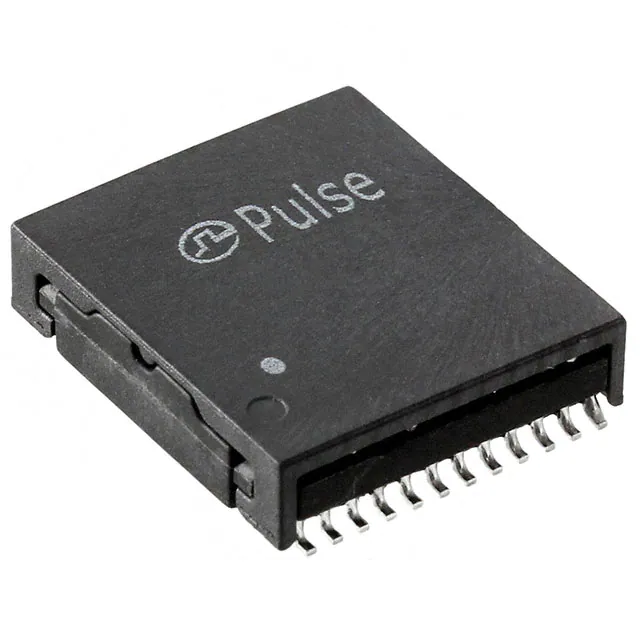

H1174FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,899	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.515" L x 0.574" W (13.08mm x 14.57mm)	0.145" (3.69mm)	0°C ~ 70°C	-	-
HM5004ENL XFMR MDL 1000BASE-T SMT AEC-Q200 Pulse Electronics	535	-	RFQ	Datenblatt	-	Tube	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.695" L x 0.480" W (17.65mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 105°C	-	-
HM5004ENLT MDL SIN 1GD 1:1 SMT TR Pulse Electronics	1,200	-	RFQ	Datenblatt	HX5004NL	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	0.695" L x 0.480" W (17.65mm x 12.20mm)	0.225" (5.72mm)	-40°C ~ 105°C	-	-
H1164NL MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics	1,283	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

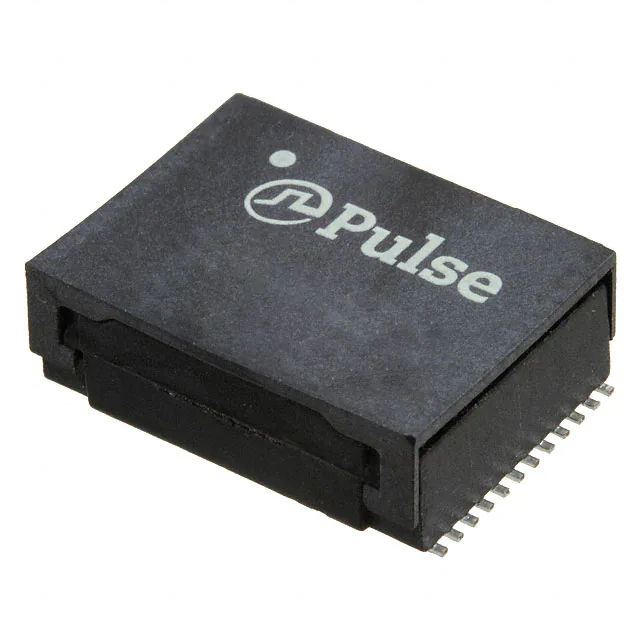

HX5008FNL PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics	2,837	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100/1000 Base-T	325µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	0.518" L x 0.703" W (13.16mm x 17.86mm)	0.241" (6.12mm)	-40°C ~ 85°C	-	-

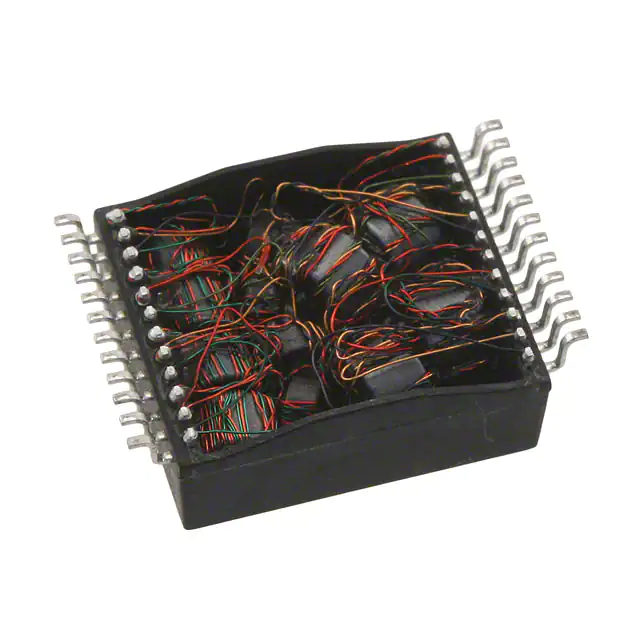

HX5008NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	2,146	-	RFQ	Datenblatt	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	-40°C ~ 85°C	-	-
H1164NLT XFRMR MODUL AUTO MDI/MDIX 10/100 Pulse Electronics	2,007	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.125" L x 0.480" W (28.58mm x 12.19mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
HX5200NL XFRMR MODL 2PORT POE GIGABIT Pulse Electronics	1,709	-	RFQ	Datenblatt	-	Tray	Active	Isolation and Data Interface (Encapsulated)	-	-	-	Surface Mount	0.580" L x 0.680" W (14.73mm x 17.27mm)	0.430" (10.92mm)	-40°C ~ 85°C	-	-
HX5200NLT XFRMR MODULE DUAL1GP 1:1 . BGA Pulse Electronics	300	-	RFQ	Datenblatt	HX5200NLT	Tape & Reel (TR)	Active	LAN 1G Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.580" L x 0.680" W (14.73mm x 17.27mm)	0.440" (11.18mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1... 5 6 7 8910 11 12...262 Next»
