Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
H5062NLT XFRMR MODULE GIGABIT 1PORT 1:1 Pulse Electronics	600	-	RFQ	Datenblatt	Star Magnetics™	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-
S37211 PULSE XFMR 1:1 225UH Newava Technology Inc.	13,079	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	225µH	-	1:1	Surface Mount	0.400" L x 0.440" W (10.16mm x 11.18mm)	0.305" (7.75mm)	-	-	-
749022011 TRANSFORMER LAN 10/100/1000 POE Würth Elektronik	1,545	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.720" L x 0.480" W (18.30mm x 12.20mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-

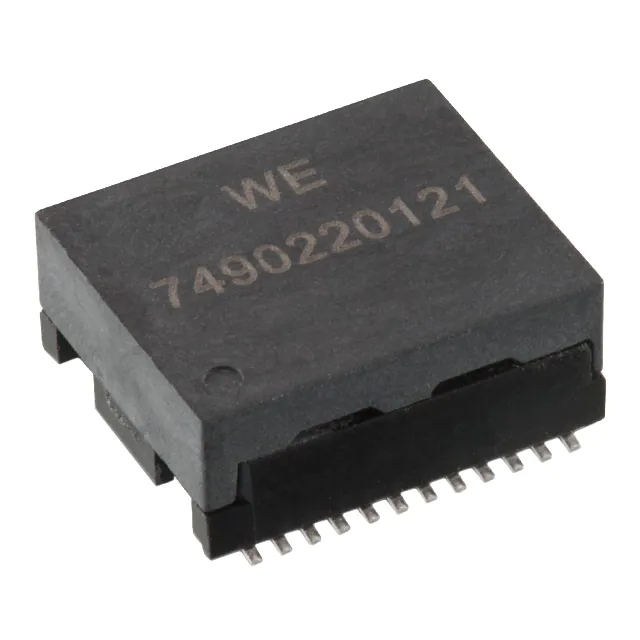

7490220121 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	829	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.283" (7.20mm)	-40°C ~ 85°C	-	-

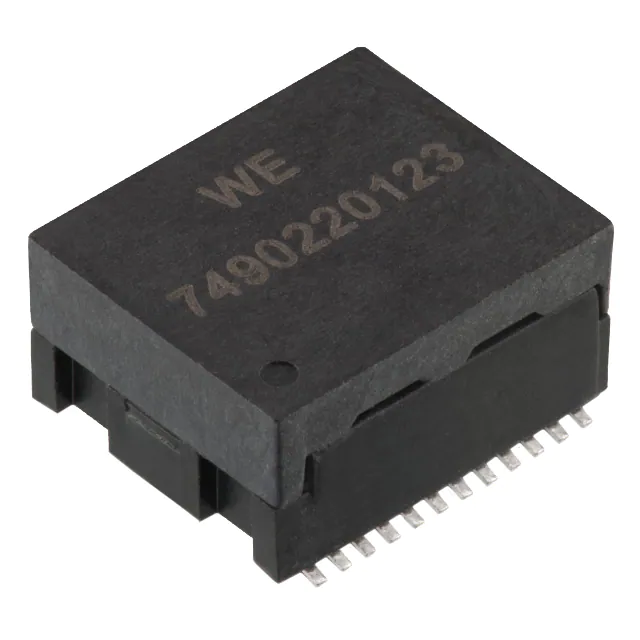

7490220123 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	633	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	180µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.346" (8.80mm)	-40°C ~ 85°C	-	-
HX1188FNL MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	9,453	-	RFQ	Datenblatt	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.241" (6.12mm)	-40°C ~ 85°C	-	-
749020100A WE-LAN 10/100/1000 BASE-T SMD Würth Elektronik	758	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.500" L x 0.339" W (12.70mm x 8.60mm)	0.128" (3.25mm)	-40°C ~ 105°C	-	-
S558-5999-AT-F XFRMR MOD LAN GIGABIT EXTEMP 24P Bel Fuse Inc.	275	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN	350µH	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
S558-5999-P3-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	1,520	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
749020011A TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	1,327	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.689" L x 0.559" W (17.50mm x 14.20mm)	0.256" (6.50mm)	-40°C ~ 85°C	-	-
749020010A TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	414	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.689" L x 0.559" W (17.50mm x 14.20mm)	0.236" (6.00mm)	-40°C ~ 85°C	-	-

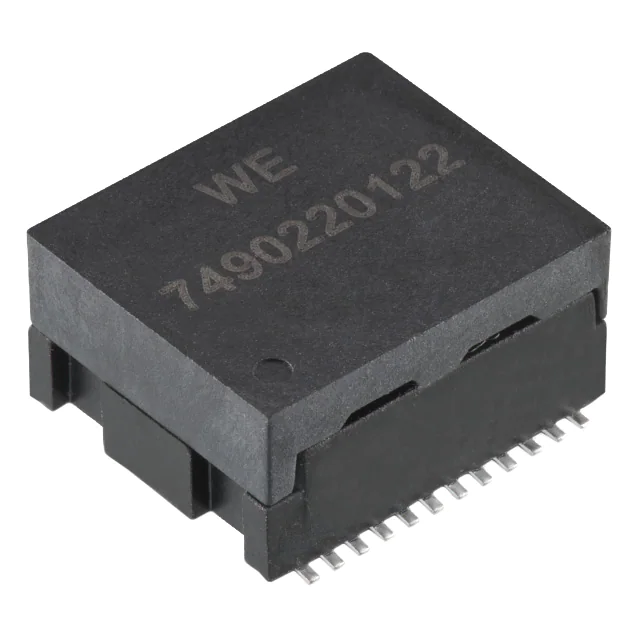

7490220122 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	147	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720" L x 0.579" W (18.29mm x 14.70mm)	0.346" (8.80mm)	-40°C ~ 85°C	-	-
749020310 WE-LAN AQ 10/100/1000 BASE-T SMD Würth Elektronik	668	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690" L x 0.575" W (17.53mm x 14.60mm)	0.177" (4.50mm)	-40°C ~ 105°C	-	-
T60403F5046X007 GATE DRIVE TRANSFORMER SMD 1:1:1 VACUUMSCHMELZE	3,515	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Gate Drive	1.4mH	85VµS	1:1:1	Through Hole	0.791" L x 0.591" W (20.10mm x 15.00mm)	0.413" (10.50mm)	-40°C ~ 100°C	-	-
HM0068ANLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	22,168	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.347" W (12.70mm x 8.81mm)	0.082" (2.08mm)	-40°C ~ 105°C	-	-
HM2100NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics	1,511	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.579" L x 0.459" W (14.70mm x 11.65mm)	0.136" (3.45mm)	-40°C ~ 125°C	-	-
T60403F5046X100 GATE DRIVE TRANSFORMER SMD 1:1.2 VACUUMSCHMELZE	3,308	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Gate Drive	1.4mH	80VµS	1:1.2:1.2	Through Hole	0.791" L x 0.630" W (20.10mm x 16.00mm)	0.472" (12.00mm)	-40°C ~ 85°C	-	-
H0013NLT MODULE MAGNETIC LAN 1:1 10/100 Pulse Electronics	1,190	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.078" (1.98mm)	0°C ~ 70°C	-	-
TM1102NL LAN XFMR 10/100 BASE-T SINGLE Taoglas Limited	2,588	-	RFQ	Datenblatt	Exos	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.506" L x 0.272" W (12.85mm x 6.90mm)	0.226" (5.75mm)	0°C ~ 70°C	-	-
HX2019NL MODULE MAGNETICS POE SINGLE VOIP Pulse Electronics	607	-	RFQ	Datenblatt	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1 2 3 4 567 8 9...262 Next»
