DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2890DC DC CONVERTER 4.5-20V 160W |
286 | - |
|
Datenblatt |
U3V70 | 9-DIP Module | - | Active | Non-Isolated PoL Module | 1 | 2.9V | 20V | 4.5 ~ 20V | - | - | - | 5A | 160 W | - | - | Adjustable Output | - | 95% | - | - | Through Hole | 1.60" L x 0.60" W x 0.22" H (40.6mm x 15.2mm x 5.6mm) | - | Enable, Active Floating | - | - |
|
EN5311QIDC DC CONVERTER 0.6-6V 6W |
13,321 | - |
|
Datenblatt |
Enpirion® 5300 | 20-PowerTQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.4V | 6.6V | 0.6 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.20" L x 0.16" W x 0.04" H (5.0mm x 4.0mm x 1.1mm) | 20-QFN (5x4) | Enable, Active High | - | - |
|
|
PT6651BDC DC CONVERTER 3.3V 17W |
0 | - |
|
Datenblatt |
PT6650 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 9V | 28V | 3.3V | - | - | - | 5A | - | - | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 80% | - | - | Surface Mount | 2.36" L x 1.22" W x 0.42" H (59.9mm x 31.0mm x 10.7mm) | - | - | - | - |
|
DH06D1215ADC DC CONVERTER +/-15V 6W |
111 | - |
|
Datenblatt |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
PTH12060WADDC DC CONVERTER 1.2-5.5V 55W |
1,566 | - |
|
Datenblatt |
PTH12060 (55W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 10A | 55 W | - | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) | - | - | - | - |
|
|
78SR174VCDC DC CONVERTER 7.15V |
0 | - |
|
Datenblatt |
78SR100 | 3-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 14.5V | 30V | 7.15V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.31" W x 0.94" H (22.9mm x 7.9mm x 23.9mm) | - | - | - | - |
|
|
78SR105TCDC DC CONVERTER 5V |
120 | - |
|
Datenblatt |
78SR100 | 3-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 7V | 30V | 5V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | - |
|
JCA0305S05DC DC CONVERTER 5V 3W |
196 | - |
|
Datenblatt |
JCA (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 74% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|

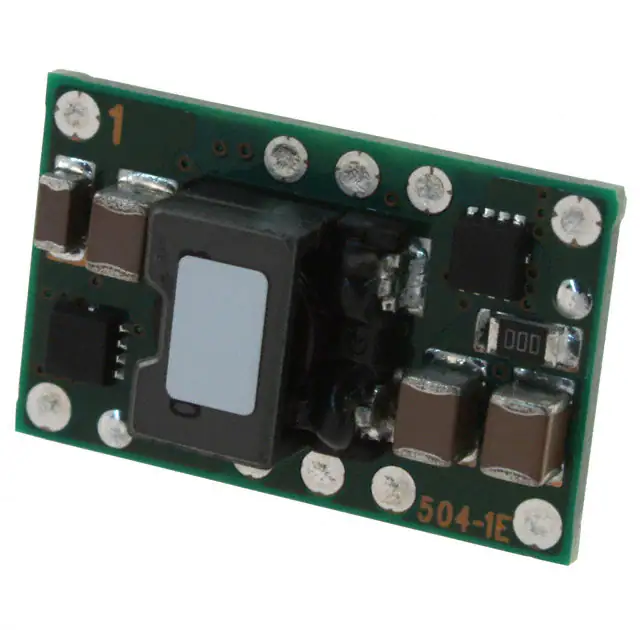

PTH12060YAZTDC DC CONVERTER 0.55-1.8V |
0 | - |
|
Datenblatt |
PTH12060 | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.55 ~ 1.8V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 83% | - | - | Surface Mount | 0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm) | - | - | - | - |
|
ITQ4815SDC DC CONVERTER +/-15V 6W |
588 | - |
|
Datenblatt |
ITQ (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
VAQE6W-Q24-S5-DDC DC CONVERTER 5V 6W |
135 | - |
|
Datenblatt |
VAQE6W-D (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 3 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

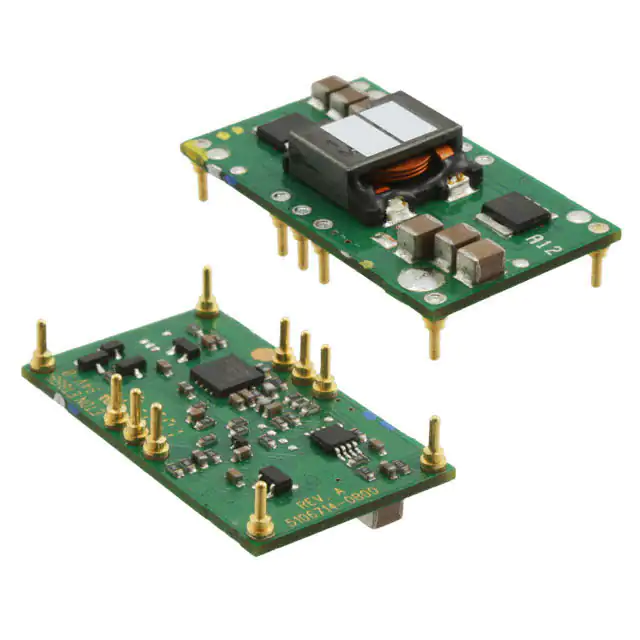

PTH12020WADDC DC CONVERTER 1.2-5.5V 99W |
240 | - |
|
Datenblatt |
PTH12020 (99W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 18A | 99 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) | - | - | - | - |
|
|
SQL48T20033-NDA0GDC DC CONVERTER 3.3V 66W |
0 | - |
|
Datenblatt |
SQL48T20033 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 20A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.30" L x 0.90" W x 0.37" H (58.4mm x 22.9mm x 9.4mm) | - | Enable, Active Low | - | - |
|
VLA106-24154DC DC CONVERTER 15V 4W |
200 | - |
|
Datenblatt |
- | 16-SIP Module, 9 Leads | Bulk | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 300mA | 4 W | 2.5 kV | ITE (Commercial) | - | -20°C ~ 70°C | 75% | - | - | Through Hole | 1.87" L x 0.71" W x 0.95" H (47.5mm x 18.0mm x 24.1mm) | - | - | - | - |
|
|
PT6702NDC DC CONVERTER 1.3-2.05V |
0 | - |
|
Datenblatt |
Excalibur™ PT6701 | 23-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 3.6V | 1.3 ~ 2.05V | - | - | - | 13A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.58" L x 0.67" W x 1.02" H (65.5mm x 17.0mm x 25.9mm) | - | - | - | - |
|
|
PT6701NDC DC CONVERTER 1.3-3.5V |
0 | - |
|
Datenblatt |
Excalibur™ PT6701 | 23-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 13A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - | - |
|
|
PT5071ADC DC CONVERTER 12V 1.5A |
0 | - |
|
Datenblatt |
Excalibur™ PT5071 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 7V | 16V | 12V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT6701ADC DC CONVERTER 1.3-3.5V |
0 | - |
|
Datenblatt |
Excalibur™ PT6701 | 23-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 13A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT6703ADC DC CONVERTER 1.1-1.85V |
0 | - |
|
Datenblatt |
Excalibur™ PT6703 | 23-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 1.1 ~ 1.85V | - | - | - | 13A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT6721NDC DC CONVERTER 1.3-3.5V |
260 | - |
|
Datenblatt |
Excalibur™ PT6721 | 23-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.3 ~ 3.5V | - | - | - | 14A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | - |
