DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YNS05S10-0DC DC CONVERTER 0.7525-3.63V 36W |
0 | - |
|
Datenblatt |
Y (36W) | 6-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.7525 ~ 3.63V | - | - | - | 10A | 36 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94.5% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.32" H (33.0mm x 13.5mm x 8.0mm) | - | Enable, Active High | - | - |
|
XR79120EL-FDC DC CONVERTER 0.6-5.5V |
0 | - |
|
Datenblatt |
- | 74-PowerBQFN Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 22V | 0.6 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.31" L x 0.31" W x 0.16" H (8.0mm x 8.0mm x 4.0mm) | 74-QFN (12x14) | - | - | - |
|
REC5-243.3SRWZ/H2/A/SMDDC DC CONVERTER 3.3V 5W |
285 | - |
|
Datenblatt |
ECONOLINE REC5 (5W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1A | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 76% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | - | - | - |
|
|
PQM3-D48-S12-M-TRDC DC CONVERTER 12V 3W |
0 | - |
|
Datenblatt |
PQM3-M (3W) | 16-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | - | - | EN | 55024; 55032 Class A |
|

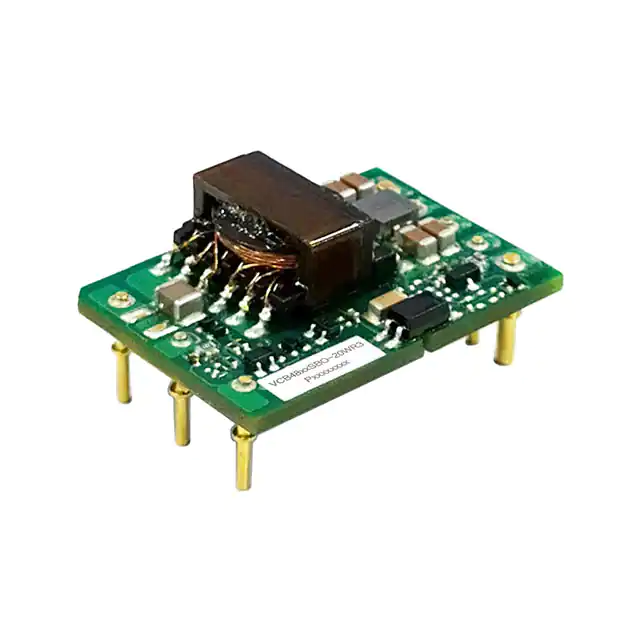

VCB4815SBO-20WR3DC DC CONVERTER, 20W, 15V |
329 | - |
|
Datenblatt |
VCB48_SBO-20WR3 (20W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 1.333A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | - | CE | 62368-1 |
|
|
PT6305RDC DC CONVERTER 3.3V 3A |
0 | - |
|
Datenblatt |
PT6305 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 70°C | 80% | - | - | Through Hole | - | - | - | - | - |
|
|
PT6405RDC DC CONVERTER 3.3V 3A |
0 | - |
|
Datenblatt |
PT6400 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | - |
|
|
PT6673EDC DC CONVERTER 12V 20W |
0 | - |
|
Datenblatt |
PT6670 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 3.6V | 12V | - | - | - | 1.25A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Surface Mount | 1.71" L x 1.22" W x 0.42" H (43.4mm x 31.0mm x 10.7mm) | - | - | - | - |
|

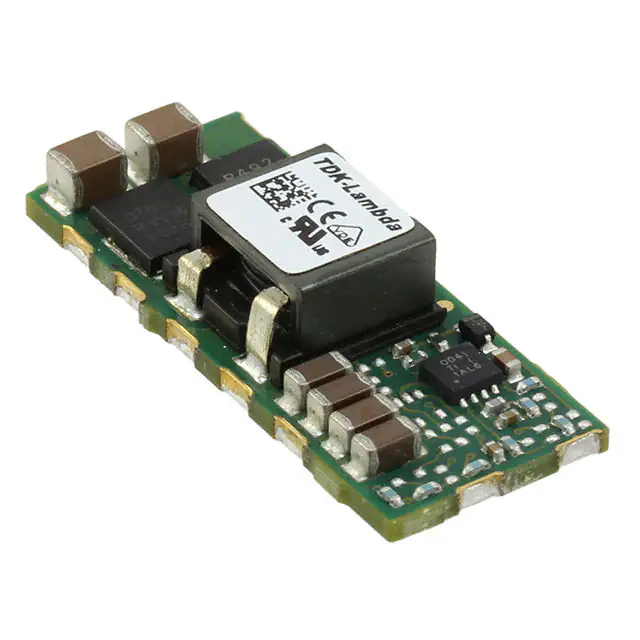

IAF05020A006V-003-RDC DC CONVERTER 0.6-3.63V |
247 | - |
|
Datenblatt |
iAF (110W) | Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.63V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off | -40°C ~ 115°C | 93.5% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.31" H (33.0mm x 13.5mm x 7.8mm) | - | Enable, Active Low | - | - |
|
|
IAF05020A006V-007-RDC DC CONVERTER 0.7-5.5V |
218 | - |
|
Datenblatt |
iAF (110W) | Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 115°C | 95% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.31" H (33.0mm x 13.5mm x 7.8mm) | - | Enable, Active Low | - | - |
|

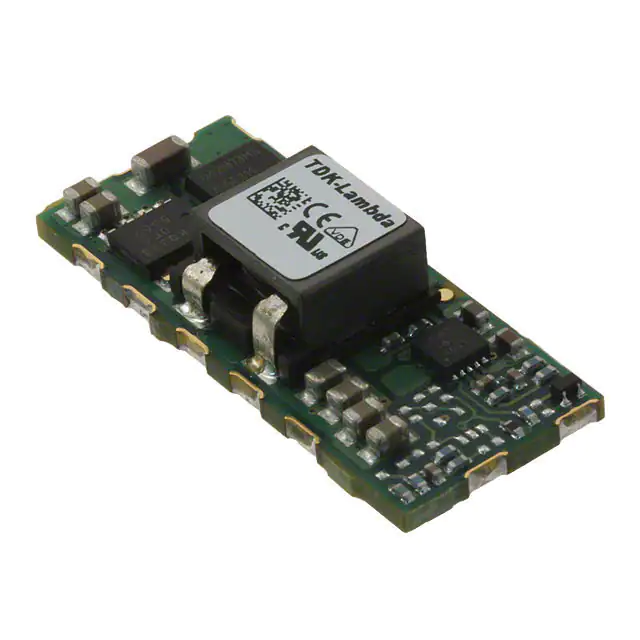

IAF12020A007V-007-RDC DC CONVERTER 0.7-5.5V |
198 | - |
|
Datenblatt |
iAF (110W) | Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 115°C | 95% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.31" H (33.0mm x 13.5mm x 7.8mm) | - | Enable, Active Low | - | - |
|
|
PT6645DDC DC CONVERTER -15V 1.5A |
0 | - |
|
Datenblatt |
PT6640 (24W) | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8V | 15V | -15V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT6645EDC DC CONVERTER -15V 24W |
0 | - |
|
Datenblatt |
PT6640 (24W) | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8V | 15V | -15V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Surface Mount | 1.71" L x 1.22" W x 0.42" H (43.4mm x 31.0mm x 10.7mm) | - | - | - | - |
|
YNS12S10-0GDC DC CONVERTER 0.7525-5.5V 55W |
290 | - |
|
Datenblatt |
Y (55W) | 6-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 9.6V | 14V | 0.7525 ~ 5.5V | - | - | - | 10A | 55 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.33" H (33.0mm x 13.5mm x 8.3mm) | - | Enable, Active High | - | - |
|
PTV03020WADDC DC CONVERTER 0.8-2.5V 45W |
118 | - |
|
Datenblatt |
PTV03020 (45W) | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 18A | 45 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm) | - | - | - | - |
|
|
DSP1N5S15DC DC CONVERTER 15V 1W |
0 | - |
|
Datenblatt |
DSP1 (1W) | 4-SIP Module | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 65mA | 1 W | 700 V | ITE (Commercial) | - | -40°C ~ 85°C | 73% | - | - | Through Hole | 0.77" L x 0.27" W x 0.40" H (19.6mm x 6.9mm x 10.2mm) | - | - | - | - |
|
|
DSP1N5D15DC DC CONVERTER +/-15V 1W |
0 | - |
|
- |
DSP1 (1W) | 5-SIP Module | Bulk | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 700 V | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.27" W x 0.40" H (19.6mm x 6.9mm x 10.2mm) | - | - | - | - |
|
JCA0248S03DC DC CONVERTER 3.3V 2W |
111 | - |
|
Datenblatt |
JCA (2W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 600mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 71% | - | - | Through Hole | 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm) | - | - | - | 62368-1 |
|

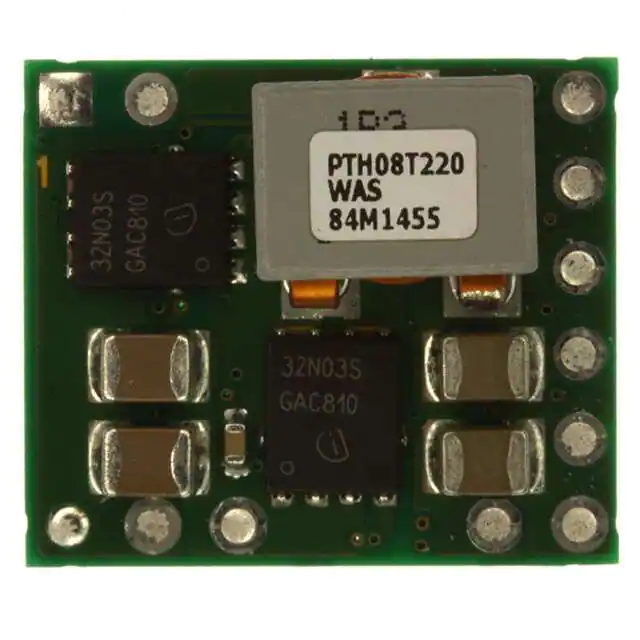

PTH08T220WASTDC DC CONVERTER 0.69-5.5V |
0 | - |
|
Datenblatt |
PTH08T220W | 11-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 16A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.87" L x 0.75" W x 0.36" H (22.1mm x 19.1mm x 9.1mm) | - | - | - | - |
|
URA4812YMD-30WR3DC DC CONVERTER +/-12V 30W |
151 | - |
|
Datenblatt |
URA4812YMD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | - | 62368-1 |
