DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTH04T240WAZDC DC CONVERTER 0.69-3.6V |
368 | - |
|
Datenblatt |
PTH04040W | 11-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.87" L x 0.62" W x 0.35" H (22.1mm x 15.8mm x 8.9mm) | - | - | - | - |
.JPG)
|

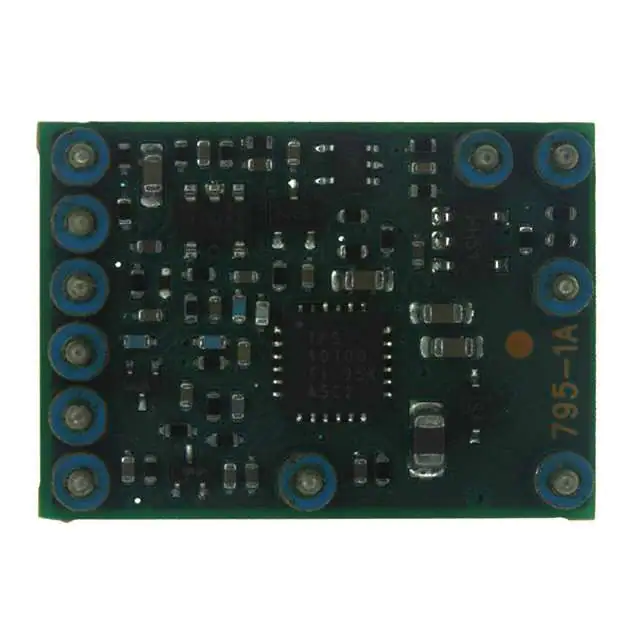

PTH04T241WAZTDC DC CONVERTER 0.69-3.6V |
150 | - |
|
Datenblatt |
PTH04T241W | 11-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.87" L x 0.62" W x 0.35" H (22.1mm x 15.7mm x 8.9mm) | - | - | - | - |
|

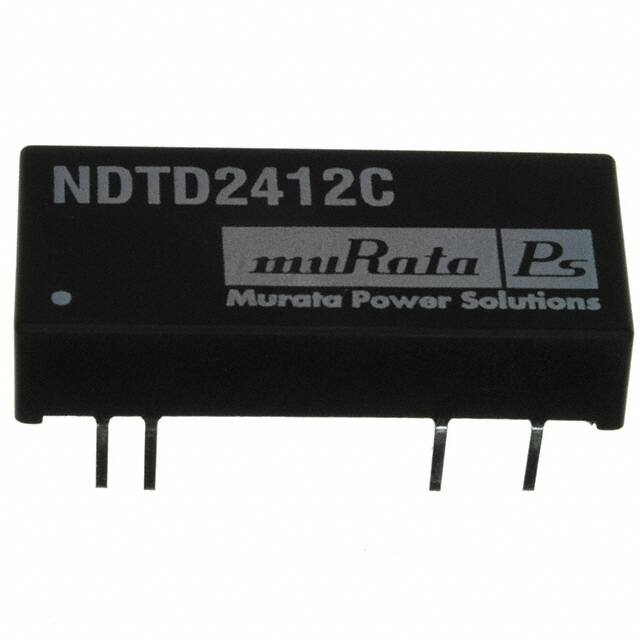

NDTD2412CDC DC CONVERTER +/-12V 3W |
473 | - |
|
Datenblatt |
NDTD (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|

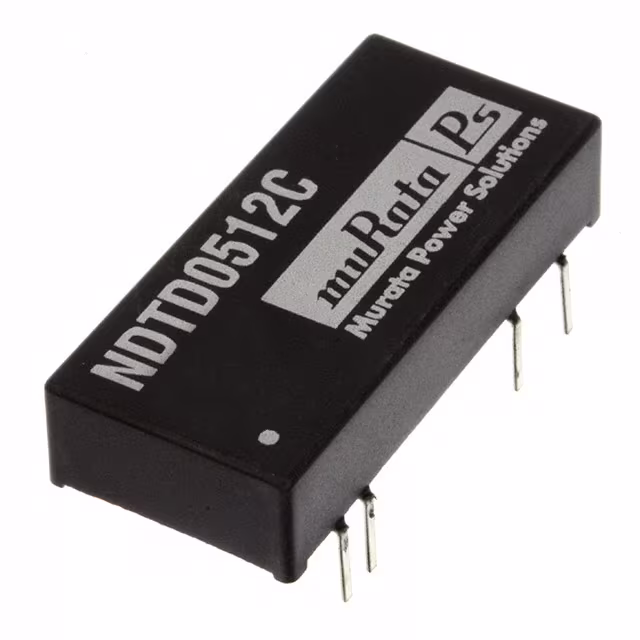

NDTD0512CDC DC CONVERTER +/-12V 3W |
451 | - |
|
Datenblatt |
NDTD (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|
NDTD1212CDC DC CONVERTER +/-12V 3W |
204 | - |
|
Datenblatt |
NDTD (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|
EC4AW02HDC DC CONVERTER 12V 5.6W |
354 | - |
|
Datenblatt |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 470mA | 5.6 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
NSD15-12S12DC DC CONVERTER 12V 15W |
158 | - |
|
Datenblatt |
NSD15-S (15W) | 8-DIP Module, 6 Leads | Tray | Active | Isolated Module | 1 | 9.4V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 81% | - | - | Through Hole | 2.00" L x 1.50" W x 0.39" H (50.8mm x 38.1mm x 9.8mm) | - | - | - | - |
|
RSO-2415SDC DC CONVERTER 15V 1W |
224 | - |
|
Datenblatt |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
171021501DC DC CONVERTER 2.5-15V |
460 | - |
|
Datenblatt |
MagI³C, VDRM | 41-PowerBQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7V | 50V | 2.5 ~ 15V | - | - | - | 2.5A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.43" L x 0.35" W x 0.11" H (11.0mm x 9.0mm x 2.8mm) | 41-BQFN (11x9) | Enable, Active High | - | - |
|
IP2412SADC DC CONVERTER 12V 3W |
109 | - |
|
Datenblatt |
IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
SUW30515CDC DC CONVERTER +/-15V |
423 | - |
|
Datenblatt |
SUW (3W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
IBH12020A007V-007-RDC DC CONVERTER 0.7-5.5V 110W |
1,046 | - |
|
Datenblatt |
iBH | 9-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 3.5V | 14V | 0.7 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off | -40°C ~ 115°C | 96% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.39" H (20.3mm x 11.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|
ICG12006A007V-003-RDC DC CONVERTER 0.7-5.5V 33W |
645 | - |
|
Datenblatt |
iCG (33W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 115°C | 94% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.33" H (12.2mm x 12.2mm x 8.5mm) | - | Enable, Active Low | - | - |
|
DJ06S2405ADC DC CONVERTER 5V 6W |
568 | - |
|
Datenblatt |
DJ06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
DH06D2415ADC DC CONVERTER +/-15V 6W |
178 | - |
|
Datenblatt |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
NID100-15DC DC CONVERTER 15V 98W |
229 | - |
|
Datenblatt |
NID100 (100W) | 13-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 20V | 53V | 15V | - | - | - | 6.5A | 98 W | - | ITE (Commercial) | Remote On/Off | -30°C ~ 85°C (With Derating) | 97% | - | - | Through Hole | 2.00" L x 0.47" W x 1.08" H (50.8mm x 12.0mm x 27.5mm) | - | - | CE, EAC | - |
|
IBF12012A007V-003-RDC DC CONVERTER 0.7-5.5V 66W |
200 | - |
|
Datenblatt |
iBF (66W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 115°C | 94% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
SUCW32415BDC DC CONVERTER +/-15V |
206 | - |
|
Datenblatt |
SUCW (3W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 130mA, 130mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm) | - | - | - | - |
|
RW2-0505S/BDC DC CONVERTER 5V 2W |
990 | - |
|
Datenblatt |
ECONOLINE RW2 (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 73% | - | - | Through Hole | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | - | - | - | - |
|
BTB24-05S60DDC DC CONVERTER 5V 3W |
129 | - |
|
Datenblatt |
BTB (3W) | Module | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
