DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DH06S2412ADC DC CONVERTER 12V 6W |
142 | - |
|
Datenblatt |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC4AB11HMDC DC CONVERTER 5V 5W |
127 | - |
|
Datenblatt |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | CE, cURus | - |
|
R24P209D/PDC DC CONVERTER +/-9V 2W |
343 | - |
|
Datenblatt |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
.JPG)
|

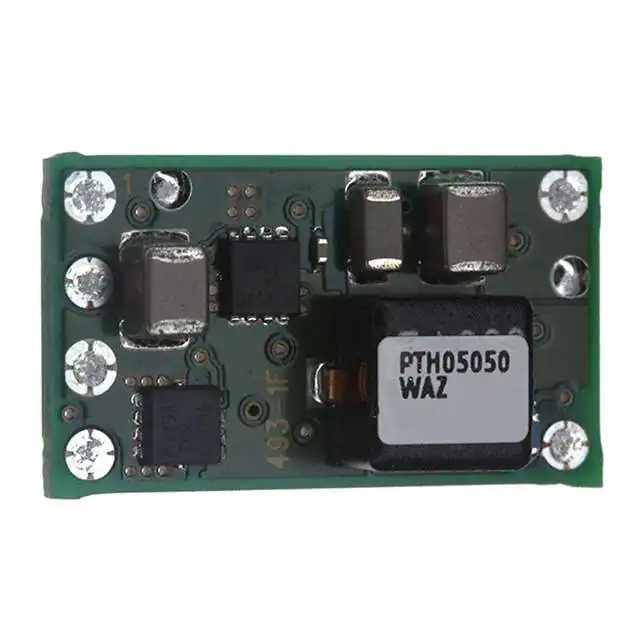

PTH05050WAZTDC DC CONVERTER 0.8-3.6V 6A |
675 | - |
|
Datenblatt |
PTH05050W | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
PTH05050WAZDC DC CONVERTER 0.8-3.6V 6A |
143 | - |
|
Datenblatt |
PTH05050W | 6-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
RV-0505SDC DC CONVERTER 5V 2W |
2,286 | - |
|
Datenblatt |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
SUW32412BDC DC CONVERTER +/-12V 24V 3.1W |
407 | - |
|
Datenblatt |
SUW (3W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
SUS32412BDC DC CONVERTER 12V |
266 | - |
|
Datenblatt |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUW32415BDC DC CONVERTER +/-15V 3W |
167 | - |
|
Datenblatt |
SUW (3W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUS31212BDC DC CONVERTER 12V |
101 | - |
|
Datenblatt |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|

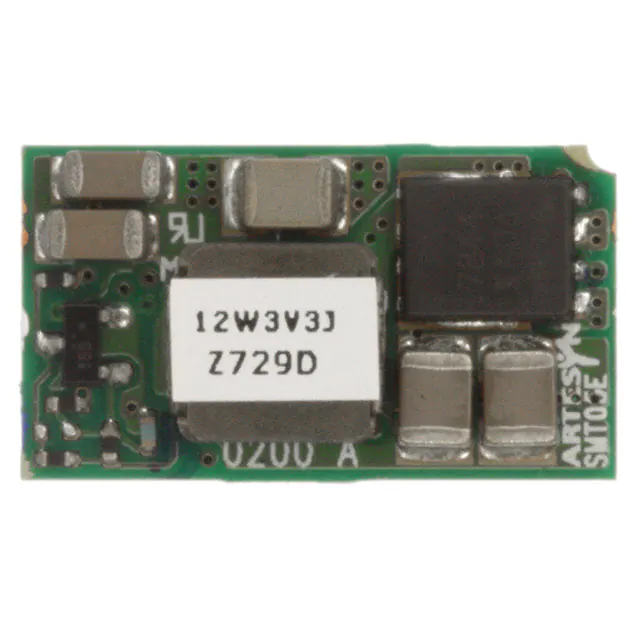

SMT05E-12W3V3JDC DC CONVERTER 0.8-3.63V 16W |
309 | - |
|
Datenblatt |
SMT05E (16W) | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 10V | 14V | 0.8 ~ 3.63V | - | - | - | 5A | 16 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 100°C | 91% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.24" H (20.3mm x 11.4mm x 6.1mm) | - | - | - | - |
|
TMR 1221DC DC CONVERTER +/-5V 2W |
184 | - |
|
Datenblatt |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | Module | - | - | - |
|
|
TMR 0522DC DC CONVERTER +/-12V 2W |
144 | - |
|
Datenblatt |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | Module | - | - | - |
|
RS3-1205SDC DC CONVERTER 5V 3W |
699 | - |
|
Datenblatt |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
EC4A15HMDC DC CONVERTER +/-15V 5.7W |
134 | - |
|
Datenblatt |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
PTH08T230WAZTDC DC CONVERTER 0.69-5.5V |
1,023 | - |
|
Datenblatt |
PTH08T230W | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|

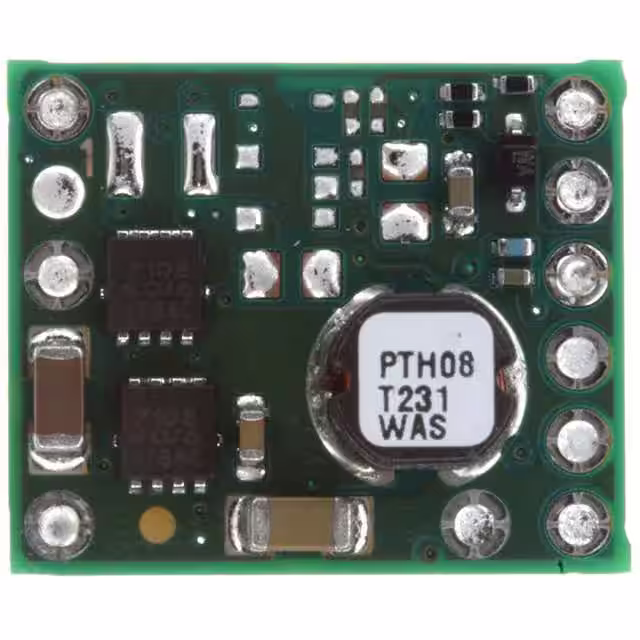

PTH08T231WASDC DC CONVERTER 0.69-5.5V |
108 | - |
|
Datenblatt |
PTH08T231W | 10-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) | - | - | - | - |
|
JTE0324D03DC DC CONVERTER +/-3.3V 3W |
122 | - |
|
Datenblatt |
JTE (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 3.3V | -3.3V | - | - | 450mA, 450mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | 62368-1 |
|
CC6-1203SF-EDC DC CONVERTER 3.3V 6W |
571 | - |
|
Datenblatt |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
CC6-2403SR-EDC DC CONVERTER 3.3V 6W |
165 | - |
|
Datenblatt |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
