Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
A3948SLBTR IC MOTOR DRIVER 4.5V-5.5V 24SOIC Allegro MicroSystems	-	RFQ	Datenblatt	-	24-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Obsolete	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Serial	DMOS	-	General Purpose	1.5A	4.5V ~ 5.5V	20V ~ 50V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-SOIC
A3964SLBTR IC MOTOR DRIVER BIPOLAR 20SOIC Allegro MicroSystems	-	RFQ	Datenblatt	-	20-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	-	General Purpose	800mA	4.75V ~ 5.25V	5V ~ 30V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	20-SOIC
BD6370GUL-E2 IC MTR DRV BIPOLR 2.7-5.5V 24CSP Rohm Semiconductor	-	RFQ	Datenblatt	-	24-UFBGA, CSPBGA	Tape & Reel (TR)	Obsolete	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (10)	Serial	CMOS	-	Camera	400mA	2.7V ~ 5.5V	2.7V ~ 5.5V	-25°C ~ 150°C (TJ)	-	-	Surface Mount	24-VCSP50L2 (2.6x2.6)
A4930METTR-T IC MOTOR DRIVER 8V-36V 28QFN Allegro MicroSystems	-	RFQ	Datenblatt	-	28-VFQFN Exposed Pad	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (2)	PWM	Power MOSFET	-	Fan Controller	-	8V ~ 36V	-	-20°C ~ 105°C (TA)	-	-	Surface Mount	28-QFN (5x5)
A4918KJPTR-3-T IC MTR DRV MULTPHS 4.5-50V 48QFP Allegro MicroSystems	-	RFQ	-	-	48-LQFP Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	SPI	NMOS	-	-	-	4.5V ~ 50V	-	-40°C ~ 150°C	Automotive	-	Surface Mount	48-LQFP-EP (7x7)
MAX22204ATU+T DUAL H-BRIDGE FOR STEPPER AND BR Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	38-WFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Step/Direction	NMOS	1/32, 1/64, 1/128	Stepper Motors	3.8A	4.5V ~ 65V	4.5V ~ 65V	-40°C ~ 125°C	-	-	Surface Mount	38-TQFN (5x7)
MAX22203ATU+T DUAL H-BRIDGE FOR STEPPER AND BR Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	38-WFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (8)	PWM	NMOS	-	General Purpose	1A	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 85°C	-	-	Surface Mount	38-TQFN (5x7)
MAX22205ATU+T DUAL H-BRIDGE FOR STEPPER AND BR Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	38-WFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	On/Off, PWM	NMOS	1, 1/2	DC Motors, General Purpose, Stepper Motors	7.6A	4.5V ~ 65V	4.5V ~ 65V	-40°C ~ 125°C	-	-	Surface Mount	38-TQFN (5x7)
A3983SLP IC MTR DRV BIPOLR 3-5.5V 24TSSOP Allegro MicroSystems	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/8	General Purpose	2A	3V ~ 5.5V	8V ~ 35V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-TSSOP-EP
A3984SLP IC MTR DRV BIPOLR 3-5.5V 24TSSOP Allegro MicroSystems	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/16	General Purpose	2A	3V ~ 5.5V	8V ~ 35V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-TSSOP-EP
A3984SLP-T IC MTR DRV BIPOLR 3-5.5V 24TSSOP Allegro MicroSystems	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/16	General Purpose	2A	3V ~ 5.5V	8V ~ 35V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-TSSOP-EP

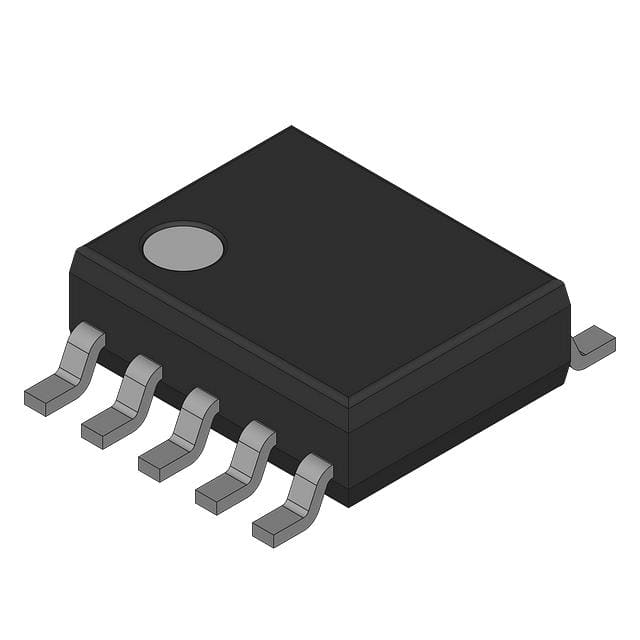

LB1830M-TLM-E IC MOTOR DRIVER 3V-9V 10MFPS onsemi	-	RFQ	Datenblatt	-	10-LSOP (0.173", 4.40mm Width)	Tape & Reel (TR)	Obsolete	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	Bipolar	-	General Purpose	500mA	3V ~ 9V	3V ~ 9V	-20°C ~ 80°C (TA)	-	-	Surface Mount	10-MFPS
DRV8425RGER IC MOTOR DRIVER Texas Instruments	-	RFQ	Datenblatt	-	24-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Step/Direction	Power MOSFET	1 ~ 1/256	Consumer, Industrial	2A	0V ~ 5.5V	4.5V ~ 33V	-40°C ~ 125°C (TA)	-	-	Surface Mount	24-VQFN (4x4)
BD6201FS-E2 IC MOTOR DRIVER 10V-18V 32SSOP Rohm Semiconductor	-	RFQ	-	-	-	Tape & Reel (TR)	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	-	Parallel	-	-	Appliance	-	10V ~ 18V	-	-40°C ~ 110°C (TA)	-	-	-	-

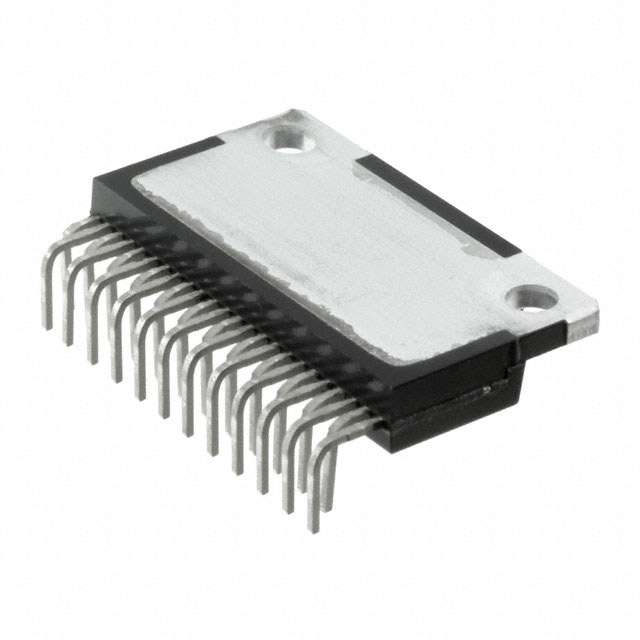

SLA6868MZ-LF2175 IC BRIDGE DRIVER PAR 24SIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	24-SSIP Exposed Pad, Formed Leads	Tube	Obsolete	-	Brushless DC (BLDC)	Driver	Half Bridge (3)	Logic	Power MOSFET	-	Home Appliance	2.5A	13.5V ~ 16.5V	500V (Max)	-20°C ~ 150°C (TJ)	-	-	Through Hole	24-ZIP LF2175

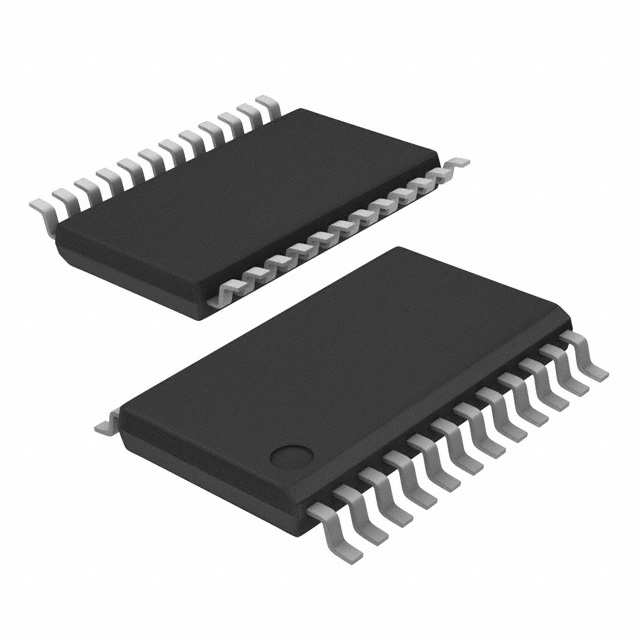

LV8712T-TLM-H IC MTR DRV BIPLR 2.7-5.5V 24SSOP onsemi	-	RFQ	Datenblatt	-	24-TFSOP (0.173", 4.40mm Width)	Tape & Reel (TR)	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bi-CMOS	-	General Purpose	800mA	2.7V ~ 5.5V	4V ~ 16V	-20°C ~ 85°C (TA)	-	-	Surface Mount	24-TSSOP
DRV8805DWR IC MTR DRV UNIPLR 8.2-60V 20SOIC Texas Instruments	-	RFQ	Datenblatt	-	20-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	Unipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Low Side (4)	Logic	Power MOSFET	1, 1/2	General Purpose	800mA	8.2V ~ 60V	8.2V ~ 60V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-SOIC
A3959SLPTR IC MOTOR DRVR 4.5V-5.5V 28TSSOP Allegro MicroSystems	-	RFQ	Datenblatt	-	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Obsolete	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	DMOS	-	General Purpose	3A	4.5V ~ 5.5V	9.5V ~ 50V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	28-TSSOP-EP
BA5825FP-E2 IC PWR DVR CD/DVD 28HSOP Rohm Semiconductor	-	RFQ	-	-	-	Tape & Reel (TR)	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
A3989SEVTR-T IC MTR DRVR BIPOLAR 3-5.5V 36QFN Allegro MicroSystems	-	RFQ	Datenblatt	-	36-VFQFN Exposed Pad	Tape & Reel (TR)	Obsolete	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (6)	Parallel	DMOS	1, 1/2, 1/4	General Purpose	1.2A, 2.4A	3V ~ 5.5V	8V ~ 36V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	36-QFN (6x6)
