Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
L6219R IC MTR DRV BIPLR 4.75-5.25V 24SO STMicroelectronics	-	RFQ	Datenblatt	-	24-SOIC (0.295", 7.50mm Width)	Tube	Obsolete	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	-	1, 1/2	General Purpose	500mA	4.75V ~ 5.25V	4.5V ~ 10V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-SO
DRV8703DQRHBRQ1 IC MOTOR DRIVER 5.5V-45V 32VQFN Texas Instruments	-	RFQ	Datenblatt	-	32-VFQFN Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	PWM	Power MOSFET	-	Brushed DC	-	5.5V ~ 45V	-	-40°C ~ 150°C (TJ)	Automotive	AEC-Q100	Surface Mount, Wettable Flank	32-VQFN (5x5)
MLX90411LLD-BAA-046-RE IC FAN DRIVER 40V 660MA 6UTDFN Melexis Technologies NV	-	RFQ	Datenblatt	-	6-DFN Exposed Pad	Tape & Reel (TR)	Active	-	-	Driver - Fully Integrated, Control and Power Stage	-	-	-	-	-	800mA	3.2V ~ 32V	-	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	6-UTDFN (2.5x2)

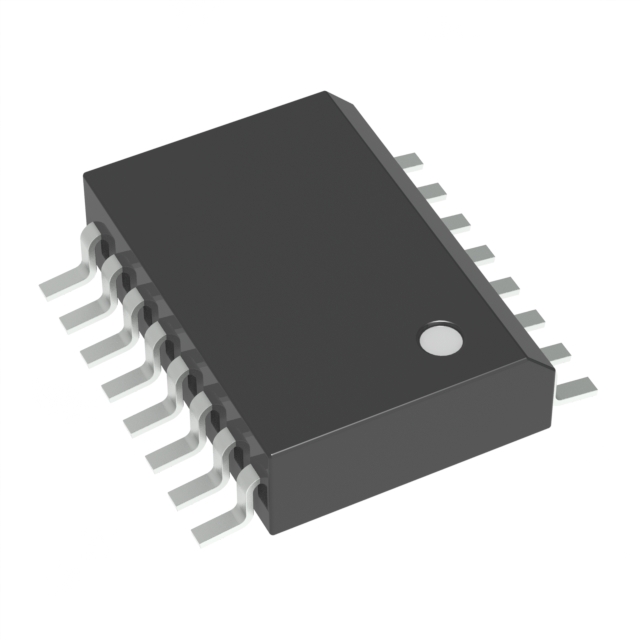

MC33030DWR2 IC MOTOR DRIVER 8V-36V 16SOIC onsemi	-	RFQ	-	-	16-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Obsolete	-	Servo DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Analog	Bipolar	-	General Purpose	1A	8V ~ 36V	-	-40°C ~ 150°C (TJ)	-	-	Surface Mount	16-SOIC
TLE95633QXJXUMA1 BLDC_DRIVER_IC Infineon Technologies	-	RFQ	-	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Pre-Driver - Half Bridge (3)	CAN, SPI	NMOS	-	-	-	3V ~ 28V	6V ~ 28V	-40°C ~ 150°C (TJ)	Automotive	AEC-Q100	Surface Mount	PG-VQFN-48-31
LB11660FV-TLM-H IC MOTOR DRIVER 4V-15V 16SSOP onsemi	-	RFQ	-	-	16-LSSOP (0.173", 4.40mm Width)	Tape & Reel (TR)	Obsolete	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	High Side (2)	Parallel, PWM	Bipolar	-	Fan Motor Driver	1.5A	4V ~ 15V	3V ~ 15V	-30°C ~ 90°C (TA)	-	-	Surface Mount	16-SSOP
MAX22211AUI+ MAX22211AUI+ Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Bulk	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	PWM	NMOS	-	General Purpose	3.8A	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 125°C	-	-	Surface Mount	28-TSSOP-EP
MAX22212AUI+ 36V , 3.8A DUAL BRUSHED/SINGLE S Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MLX90412LLW-BAC-042-RE IC FAN DRIVER 40V 2.2A 10DFN Melexis Technologies NV	-	RFQ	Datenblatt	-	10-DFN Exposed Pad	Tape & Reel (TR)	Active	-	-	Driver - Fully Integrated, Control and Power Stage	-	I2C, PWM	-	-	-	2.2A	3.5V ~ 32V	-	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount, Wettable Flank	10-DFN (3x3)
MLX90412LLW-BAA-045-RE IC FAN DRIVER 40V 1.5A 10DFN Melexis Technologies NV	-	RFQ	Datenblatt	-	10-DFN Exposed Pad	Tape & Reel (TR)	Active	-	-	Driver - Fully Integrated, Control and Power Stage	-	I2C, PWM	-	-	-	2.2A	3.5V ~ 32V	-	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount, Wettable Flank	10-DFN (3x3)

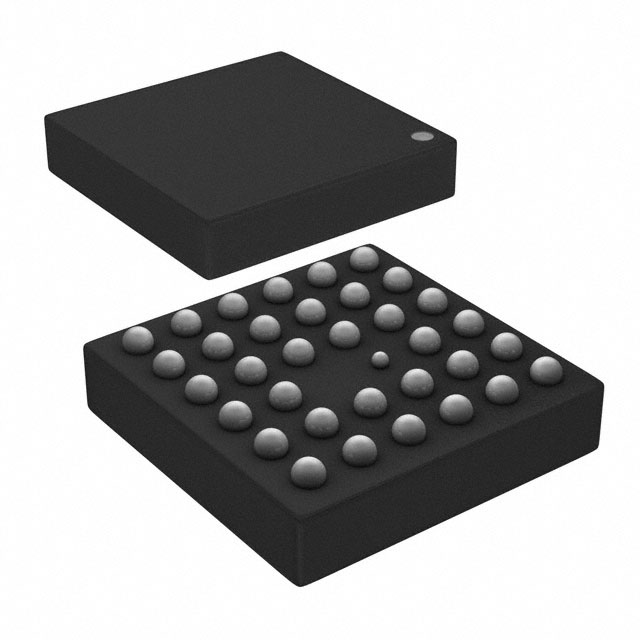

BD6373GW-E2 IC MTR DRV BIPLR 2.5-5.5V 32UCSP Rohm Semiconductor	-	RFQ	Datenblatt	-	34-VFBGA, CSPBGA	Tape & Reel (TR)	Last Time Buy	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (12)	Parallel	DMOS	-	Camera	500mA	2.5V ~ 5.5V	2.5V ~ 5.5V	-25°C ~ 150°C (TJ)	-	-	Surface Mount	UCSP75M2
A4960SJPTR-T IC FAN DRIVER BLDC QFP Allegro MicroSystems	-	RFQ	Datenblatt	-	32-LQFP Exposed Pad	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	SPI	Power MOSFET	-	General Purpose	-	3V ~ 5.5V	7V ~ 50V	-20°C ~ 85°C (TA)	-	-	Surface Mount	32-LQFP (7x7)
L293DNEE4 IC MTR DRV BIPOLAR 4.5-36V 16DIP Texas Instruments	-	RFQ	Datenblatt	-	16-DIP (0.300", 7.62mm)	Tube	Discontinued at Digi-Key	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	-	General Purpose	600mA	4.5V ~ 36V	4.5V ~ 36V	0°C ~ 70°C (TA)	-	-	Through Hole	16-PDIP
L293NEG4 IC MTR DRV BIPOLAR 4.5-36V 16DIP Texas Instruments	-	RFQ	Datenblatt	-	16-DIP (0.300", 7.62mm)	Tube	Discontinued at Digi-Key	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	-	General Purpose	1A	4.5V ~ 36V	4.5V ~ 36V	0°C ~ 70°C (TA)	-	-	Through Hole	16-PDIP
MLX90411LZE-BAL-043-RE IC FAN DRIVER 40V 330MA SOT23-6L Melexis Technologies NV	-	RFQ	Datenblatt	-	SOT-23-6	Tape & Reel (TR)	Active	-	-	Driver - Fully Integrated, Control and Power Stage	-	-	-	-	-	800mA	3.2V ~ 32V	-	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	SOT-23-6
MLX90411LZE-BAM-043-RE IC FAN DRIVER 40V 330MA SOT23-6L Melexis Technologies NV	-	RFQ	Datenblatt	-	SOT-23-6	Tape & Reel (TR)	Active	-	-	Driver - Fully Integrated, Control and Power Stage	-	-	-	-	-	800mA	3.2V ~ 32V	-	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	SOT-23-6
MLX90411LZE-BAB-043-RE IC FAN DRIVER 40V 330MA SOT23-6L Melexis Technologies NV	-	RFQ	Datenblatt	-	SOT-23-6	Tape & Reel (TR)	Active	-	-	Driver - Fully Integrated, Control and Power Stage	-	-	-	-	-	800mA	3.2V ~ 32V	-	-40°C ~ 150°C (TJ)	Automotive	-	Surface Mount	SOT-23-6
A4916KEVSR-J-1 IC MOTOR DRIVER MULTIPHASE 48QFN Allegro MicroSystems	-	RFQ	-	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Obsolete	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	SPI	NMOS	-	-	-	-	-	-40°C ~ 125°C	Automotive	-	Surface Mount	48-QFN-EP (7x7)

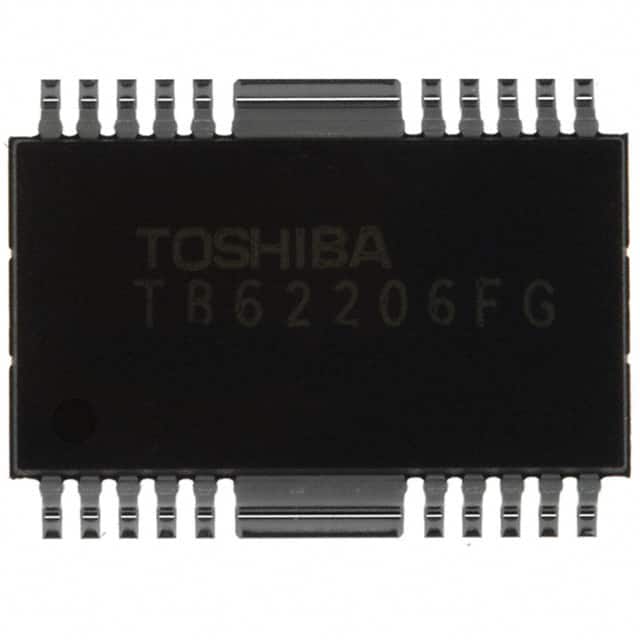

TB62206FG,EL IC MTR DRV BIPLR 4.5-5.5V 20HSOP Toshiba Semiconductor and Storage	-	RFQ	-	-	20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs	Tape & Reel (TR)	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	DMOS	1, 1/2	General Purpose	1.5A	4.5V ~ 5.5V	13V ~ 35V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-HSOP
UDQ2916LBTR IC MOTOR DRIVER BIPOLAR 24SOIC Allegro MicroSystems	-	RFQ	Datenblatt	-	24-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Obsolete	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	-	General Purpose	750mA	4.75V ~ 5.25V	10V ~ 45V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	24-SOIC

Total 4748 Record«Prev 1... 151 152 153 154155156 157 158...238 Next»
