Schaltwandler- und SMPS-Transformatoren

Schaltwandler- und SMPS-Transformatoren sind magnetische Komponenten, die in Schaltnetzteilen zur Energieübertragung, galvanischen Isolation und Spannungswandlung eingesetzt werden. Sie werden häufig in AC-DC-Netzteilen, DC-DC-Wandlern, Adaptern, Ladegeräten, industriellen Leistungsmodulen, LED-Treibern, Kommunikationsgeräten, Unterhaltungselektronik und Embedded-Systemen verwendet.

Diese Kategorie umfasst Flyback-Transformatoren, Forward-Converter-Transformatoren, Push-Pull-Transformatoren, isolierte DC-DC-Wandler-Transformatoren, Hochfrequenz-SMPS-Transformatoren und verwandte magnetische Komponenten. Die Auswahl erfolgt häufig nach Eingangsspannung, Ausgangsspannung, Leistung, Schaltfrequenz, Isolationsfestigkeit, Kernmaterial, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Schaltwandler- und SMPS-Transformatoren von anerkannten Herstellern wie Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Typ	Anwendungen	Vorgesehener Chipsatz	Chipsatzhersteller	Spannung - Primär	Spannung - Hilfsspannung	Spannung - Isolierung	Induktivität bei Frequenz	Frequenz	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Stellfläche	Stil
749196248 XFMR FLEX DC/DC CONV 6.6UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FLEX	Tape & Reel (TR)	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	6.6µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.472" L x 0.642" W (11.99mm x 16.31mm)	0.291" (7.40mm)	0.661" L x 0.642" W (16.79mm x 16.31mm)	-
VPH3-0055-R XFMR 9.3UH SMD Eaton - Electronics Division	-	RFQ	Datenblatt	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.673" L x 0.878" W (17.10mm x 22.30mm)	0.331" (8.40mm)	-	-
VPH3-0780-R XFMR 132UH SMD Eaton - Electronics Division	-	RFQ	Datenblatt	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.673" L x 0.878" W (17.10mm x 22.30mm)	0.331" (8.40mm)	-	-

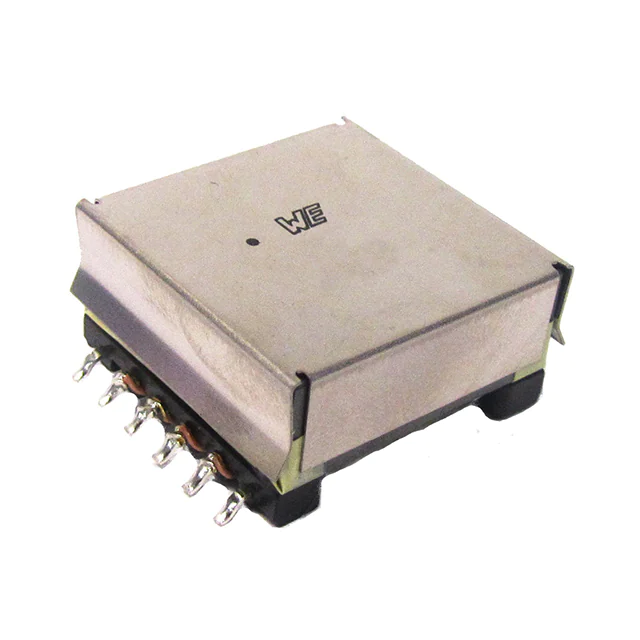

750316152 XFMR FLYBACK DC/DC CONV 12UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LM3481	Texas Instruments	5 ~ 32V	-	-	12µH @ 10kHz	130kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.555" (14.10mm)	1.064" L x 1.278" W (27.03mm x 32.46mm)	-
750311620 XFMR LED DR AC/DC CONV 1.9MH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-UNIT, MID-OLON	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCL30000	On Semiconductor	30 ~ 190V	19V @ 5mA	4500Vrms	1.9mH @ 10kHz	53 ~ 120kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.435" (11.05mm)	0.910" L x 1.020" W (23.11mm x 25.91mm)	-
PA0491NLT XFMR FWD P-P DC/DC CONV 140UH SM Pulse Electronics	-	RFQ	Datenblatt	Spyglass	Tape & Reel (TR)	Obsolete	For DC/DC Converters	Forward, Push-Pull Converters	LT1952	Linear Technology	36 ~ 72V	-	1500Vrms	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.790" L x 0.920" W (20.07mm x 23.37mm)	0.348" (8.85mm)	0.790" L x 0.920" W (20.07mm x 23.37mm)	Planar
750311593 XFMR FLYBACK DC/DC CONV 15UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	10V	1500Vrms	15µH @ 150kHz	150kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.544" (13.82mm)	1.064" L x 1.272" W (27.03mm x 32.31mm)	-
ECO2420SEO-D01V019 XFMR FLYBCK AC/DC CONV 4.72MH TH TDK Corporation	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	200 ~ 300V	5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA	2000Vrms	4.72mH @ 10kHz	-	-30°C ~ 120°C	-	-	Through Hole	1.122" L x 0.945" W (28.50mm x 24.00mm)	1.043" (26.50mm)	1.122" L x 0.945" W (28.50mm x 24.00mm)	-
ECO2420SEO-D02V019 XFMR FLYBACK AC/DC CONV 278UH TH TDK Corporation	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 138V	12.3V @ 3.3A	3000Vrms	278µH @ 10kHz	33kHz	-30°C ~ 120°C	-	-	Through Hole	1.122" L x 0.945" W (28.50mm x 24.00mm)	1.043" (26.50mm)	1.122" L x 0.945" W (28.50mm x 24.00mm)	-
ECO2425SEO-D02V016 XFMR FLYBACK AC/DC CONV 700UH TH TDK Corporation	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	96 ~ 276V	3.3V @ 700mA, 18V @ 500mA, 20V @ 200mA	3000Vrms	700µH @ 10kHz	-	-30°C ~ 120°C	-	-	Through Hole	1.122" L x 0.945" W (28.50mm x 24.00mm)	1.240" (31.50mm)	1.122" L x 0.945" W (28.50mm x 24.00mm)	-
ECO2425SEO-D01V019 XFMR FLYBCK AC/DC CONV 1.06MH TH TDK Corporation	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	264 ~ 373V	5V @ 140mA, 12.7V @ 1.18A, 20V @ 50mA, 20V @ 70mA	1250Vrms	1.06mH @ 10kHz	100kHz	-30°C ~ 120°C	-	-	Through Hole	1.400" L x 0.984" W (35.50mm x 25.00mm)	1.240" (31.50mm)	1.400" L x 0.984" W (35.50mm x 25.00mm)	-
ECO2425SEO-D04V017 XFMR FLYBACK AC/DC CONV 428UH TH TDK Corporation	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	169 ~ 312V	22V @ 1.5A	3000Vrms	428µH @ 10kHz	65kHz	-30°C ~ 120°C	-	-	Through Hole	1.240" L x 0.984" W (31.50mm x 25.00mm)	1.240" (31.50mm)	1.240" L x 0.984" W (31.50mm x 25.00mm)	-
ECO2420SEO-D03V018 XFMR FLYBACK AC/DC CONV 750UH TH TDK Corporation	-	RFQ	Datenblatt	ECO	Bulk	Active	For AC/DC Converters	Flyback Converters	-	-	169 ~ 312V	5V @ 200mA, 12V @ 2.5A	3000Vrms	750µH @ 100kHz	60kHz	-30°C ~ 120°C	-	-	Through Hole	1.240" L x 0.984" W (31.50mm x 25.00mm)	1.043" (26.50mm)	1.240" L x 0.984" W (31.50mm x 25.00mm)	-
750311303 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	9 ~ 30V	10V @ 20mA	1500Vrms	50µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750311304 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	9 ~ 30V	10V @ 20mA	1500Vrms	50µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750311456 XFMR FLYBACK DC/DC CONV 100UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	36V	8V @ 20mA	2500Vrms	100µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
750311422 XFMR FLYBACK DC/DC CONV 50UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	36V	10V @ 20mA	1500Vrms	50µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
750311600 XFMR FLYBACK DC/DC CONV 12UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	-	1500Vrms	12µH @ 10kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.150" W (23.11mm x 29.08mm)	-
750311267 XFMR FLYBACK AC/DC CONV 625UH TH Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-OLON	Tray	Active	For AC/DC Converters	Flyback Converters	NCP1652	On Semiconductor	-	-	3000Vrms	625µH @ 10kHz	-	-	-	-	Through Hole	1.400" L x 1.470" W (35.56mm x 37.34mm)	1.355" (34.42mm)	1.400" L x 1.470" W (35.56mm x 37.34mm)	-
750811042 XFMR FLYBACK AC/DC CONV 1.8MH TH Würth Elektronik	-	RFQ	Datenblatt	WE-UNIT, MID-OLON	Tray	Active	For AC/DC Converters	Flyback Converters	NCP1014	On Semiconductor	120 ~ 375V	-	4500Vrms	1.8mH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	-	0.635" (16.13mm)	0.800" L x 0.960" W (20.32mm x 24.38mm)	-

Total 1831 Record«Prev 1... 60 61 62 636465 66 67...92 Next»
