Schaltwandler- und SMPS-Transformatoren

Schaltwandler- und SMPS-Transformatoren sind magnetische Komponenten, die in Schaltnetzteilen zur Energieübertragung, galvanischen Isolation und Spannungswandlung eingesetzt werden. Sie werden häufig in AC-DC-Netzteilen, DC-DC-Wandlern, Adaptern, Ladegeräten, industriellen Leistungsmodulen, LED-Treibern, Kommunikationsgeräten, Unterhaltungselektronik und Embedded-Systemen verwendet.

Diese Kategorie umfasst Flyback-Transformatoren, Forward-Converter-Transformatoren, Push-Pull-Transformatoren, isolierte DC-DC-Wandler-Transformatoren, Hochfrequenz-SMPS-Transformatoren und verwandte magnetische Komponenten. Die Auswahl erfolgt häufig nach Eingangsspannung, Ausgangsspannung, Leistung, Schaltfrequenz, Isolationsfestigkeit, Kernmaterial, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Schaltwandler- und SMPS-Transformatoren von anerkannten Herstellern wie Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Typ	Anwendungen	Vorgesehener Chipsatz	Chipsatzhersteller	Spannung - Primär	Spannung - Hilfsspannung	Spannung - Isolierung	Induktivität bei Frequenz	Frequenz	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Stellfläche	Stil
750817015 XFMR FLYBACK AC/DC CONV 491UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-UNIT, MID-OLEE	Tape & Reel (TR)	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	16V @ 50mA	3000Vrms	491µH @ 10kHz	150kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.438" (11.13mm)	0.543" L x 0.941" W (13.80mm x 23.90mm)	-
TGM-380NARLTR ISO MOD DC MAX253 1C:2.67C 11VUS HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Not For New Designs	For DC/DC Converters	Isolated Buck Converters	MAX253, MAX845, MAX3535	Analog Devices, Inc	-	-	3000V	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.380" L x 0.350" W (9.65mm x 8.89mm)	0.250" (6.35mm)	-	Wirewound
TGM-440NFRL ISO MOD DC MAX253 1C:1.33C 11VUS HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Not For New Designs	For DC/DC Converters	-	MAX253, MAX845	Analog Devices, Inc	-	-	4500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.475" L x 0.455" W (12.07mm x 11.56mm)	0.340" (8.64mm)	-	Wirewound
TGM-450NFRL ISO MOD DC MAX253 1C:1C 11VUS 4. HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Not For New Designs	For DC/DC Converters	-	MAX253, MAX845	Analog Devices, Inc	-	-	4500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.475" L x 0.455" W (12.07mm x 11.56mm)	0.340" (8.64mm)	-	Wirewound
TGM-410NFRL ISO MOD DC MAX253 1C:0.5C 11VUS HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Not For New Designs	For DC/DC Converters	-	MAX253, MAX845	Analog Devices, Inc	-	-	4500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.475" L x 0.455" W (12.07mm x 11.56mm)	0.340" (8.64mm)	-	Wirewound
TGM-420NFRL ISO MOD DC MAX253 1C:0.375C 11VU HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Not For New Designs	For DC/DC Converters	-	MAX253, MAX845	Analog Devices, Inc	-	-	4500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.475" L x 0.455" W (12.07mm x 11.56mm)	0.340" (8.64mm)	-	Wirewound
TGM-430NFRL ISO MOD DC MAX253 1C:0.75C 11VUS HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Not For New Designs	For DC/DC Converters	-	MAX253, MAX845	Analog Devices, Inc	-	-	4500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.475" L x 0.455" W (12.07mm x 11.56mm)	0.340" (8.64mm)	-	Wirewound
750341379 XFMR FLYBACK DC/DC CONV 65UH SMD Würth Elektronik	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	ADP1050, ADP1051	Analog Devices, Inc	36 ~ 75V	12V @ 250mA	1000VDC	65µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.394" L x 0.475" W (10.00mm x 12.07mm)	-
750312750 XFMR ISOL BUCK DC/DC CON 23UH SM Würth Elektronik	-	RFQ	Datenblatt	MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	20 ~ 100V	-	1500Vrms	23µH @ 100kHz	-	-40°C ~ 85°C	-	-	Surface Mount	-	0.225" (5.72mm)	0.260" L x 0.325" W (6.60mm x 8.26mm)	-
750314441 XFMR ISOL BUCK DC/DC CON 80UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	17 ~ 36V	-	1500Vrms	80µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.394" L x 0.435" W (10.00mm x 11.05mm)	0.162" (4.11mm)	0.394" L x 0.559" W (10.00mm x 14.21mm)	-
750314442 XFMR ISOL BUCK DC/DC CON 45UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	16 ~ 36V	-	1500Vrms	45µH @ 10kHz	200kHz ~ 350kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.510" L x 0.500" W (12.95mm x 12.70mm)	-
750314459 XFMR ISOL BUCK DC/DC CON 45UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	16 ~ 36V	13V @ 40mA	1500Vrms	45µH @ 10kHz	200kHz ~ 350kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.510" L x 0.500" W (12.95mm x 12.70mm)	-
750314460 XFMR ISOL BUCK DC/DC CON 45UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	16 ~ 36V	13V @ 40mA	1500Vrms	45µH @ 10kHz	200kHz ~ 350kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.510" L x 0.500" W (12.95mm x 12.70mm)	-
750314461 XFMR ISOL BUCK DC/DC CON 45UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	16 ~ 36V	13V @ 40mA	1500Vrms	45µH @ 10kHz	200kHz ~ 350kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.510" L x 0.500" W (12.95mm x 12.70mm)	-
750314462 XFMR ISOL BUCK DC/DC CON 45UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	16 ~ 36V	-	1500Vrms	45µH @ 10kHz	200 ~ 350kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.510" L x 0.500" W (12.95mm x 12.70mm)	-

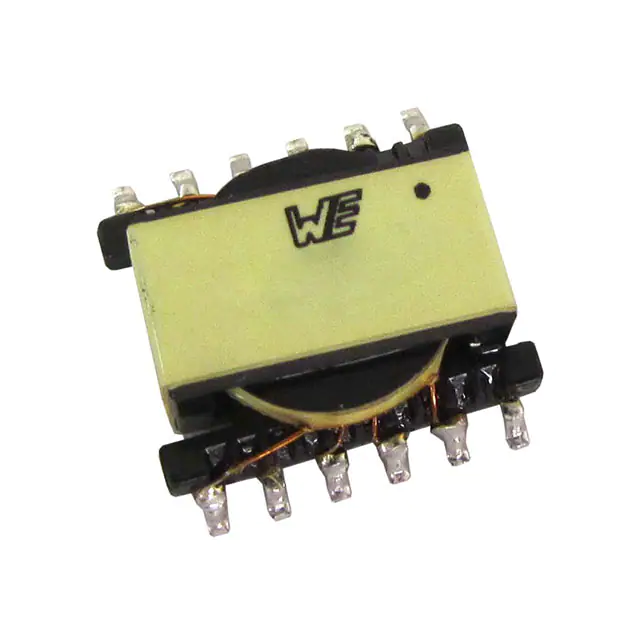

750314463 XFMR ISOL BUCK DC/DC CON 45UH SM Würth Elektronik	-	RFQ	Datenblatt	WE-FB, MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	16 ~ 36V	-	1500Vrms	45µH @ 10kHz	200 ~ 350kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.510" L x 0.500" W (12.95mm x 12.70mm)	-

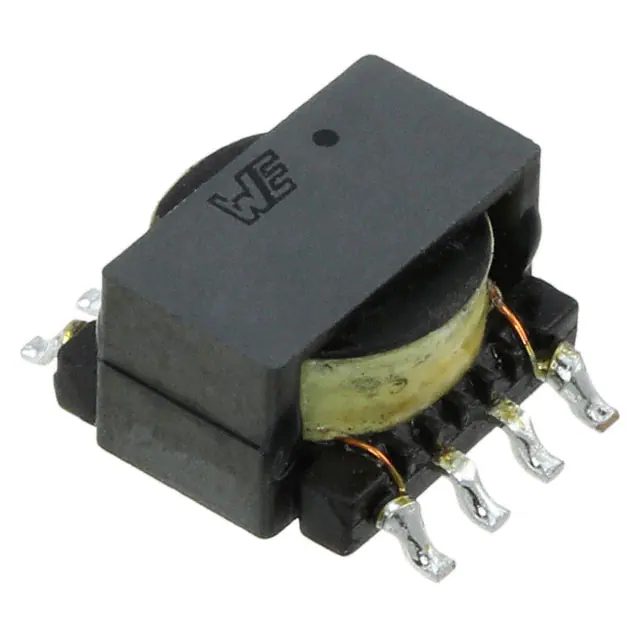

750342304 XFMR FLYBACK DC/DC CONV 260UH SM Würth Elektronik	-	RFQ	Datenblatt	MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	10 ~ 36V	7V @ 250mA	1750Vrms	260µH @ 50kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.240" (6.10mm)	0.394" L x 0.475" W (10.00mm x 12.07mm)	-
750315144 XFMR ISOL BUCK DC/DC CONV SMD Würth Elektronik	-	RFQ	Datenblatt	MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	-	-	500Vrms	-	300kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.197" (5.00mm)	-	-

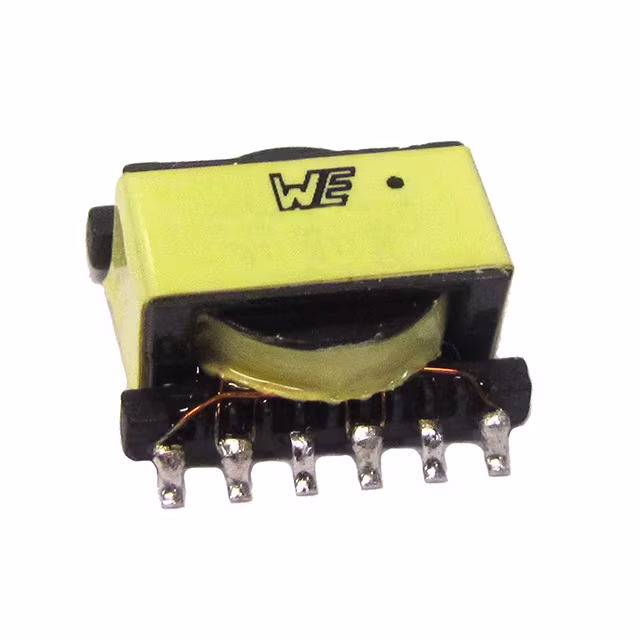

750315856 XFMR ISOL BUCK DC/DC 120UH SM Würth Elektronik	-	RFQ	Datenblatt	MID-IBTI	Tape & Reel (TR)	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	16 ~ 36V	-	-	120µH @ 10kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	-	-	-
TGMR-410V8LFTR ISO MOD DC 1C:0.5C 18VUS 4.5KV HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	MAX253, MAX845	Analog Devices, Inc	-	-	4500Vrms	-	-	-40°C ~ 85°C	-	-	Surface Mount	0.590" L x 0.475" W (14.99mm x 12.07mm)	0.340" (8.64mm)	-	Wirewound
