Schaltwandler- und SMPS-Transformatoren

Schaltwandler- und SMPS-Transformatoren sind magnetische Komponenten, die in Schaltnetzteilen zur Energieübertragung, galvanischen Isolation und Spannungswandlung eingesetzt werden. Sie werden häufig in AC-DC-Netzteilen, DC-DC-Wandlern, Adaptern, Ladegeräten, industriellen Leistungsmodulen, LED-Treibern, Kommunikationsgeräten, Unterhaltungselektronik und Embedded-Systemen verwendet.

Diese Kategorie umfasst Flyback-Transformatoren, Forward-Converter-Transformatoren, Push-Pull-Transformatoren, isolierte DC-DC-Wandler-Transformatoren, Hochfrequenz-SMPS-Transformatoren und verwandte magnetische Komponenten. Die Auswahl erfolgt häufig nach Eingangsspannung, Ausgangsspannung, Leistung, Schaltfrequenz, Isolationsfestigkeit, Kernmaterial, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Schaltwandler- und SMPS-Transformatoren von anerkannten Herstellern wie Würth Elektronik, Pulse Electronics, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, Eaton und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Typ	Anwendungen	Vorgesehener Chipsatz	Chipsatzhersteller	Spannung - Primär	Spannung - Hilfsspannung	Spannung - Isolierung	Induktivität bei Frequenz	Frequenz	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Stellfläche	Stil
750315371 XFMR FWD P-P DC/DC CONV 72UH SMD Würth Elektronik	6,728	-	RFQ	Datenblatt	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505B	Texas Instruments	4.5 ~ 5.5V	-	2500Vrms	72µH @ 100kHz	400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.327" L x 0.364" W (8.30mm x 9.25mm)	0.161" (4.10mm)	0.327" L x 0.496" W (8.30mm x 12.60mm)	-
750313626 XFMR FWD P-P DC/DC CONV 340UH SM Würth Elektronik	3,692	-	RFQ	Datenblatt	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	5000Vrms	340µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.305" (7.75mm)	0.360" L x 0.500" W (9.14mm x 12.70mm)	-
750313734 XFMR FWD P-P DC/DC CONV 340UH SM Würth Elektronik	3,029	-	RFQ	Datenblatt	WE-PP, MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	5000Vrms	340µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.305" (7.75mm)	0.360" L x 0.500" W (9.14mm x 12.70mm)	-
749196111 XFMR FLEXIBLE CONFIG DC/DC SMD Würth Elektronik	536	-	RFQ	Datenblatt	WE-FLEX	Tape & Reel (TR)	Active	Configurable (For DC/DC)	Flexible	-	-	-	-	500VDC	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.508" L x 0.362" W (12.90mm x 9.20mm)	0.244" (6.20mm)	0.508" L x 0.559" W (12.90mm x 14.20mm)	-
750313973 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	884	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8301	Linear Technology	8 ~ 32V	-	1500Vrms	40µH @ 10kHz	200 ~ 300kHz	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750313976 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	1,000	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8301	Linear Technology	8 ~ 32V	-	1500Vrms	40µH @ 10kHz	200 ~ 300kHz	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750313975 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	262	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8301	Linear Technology	8 ~ 32V	-	1500Vrms	40µH @ 10kHz	200 ~ 300kHz	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-

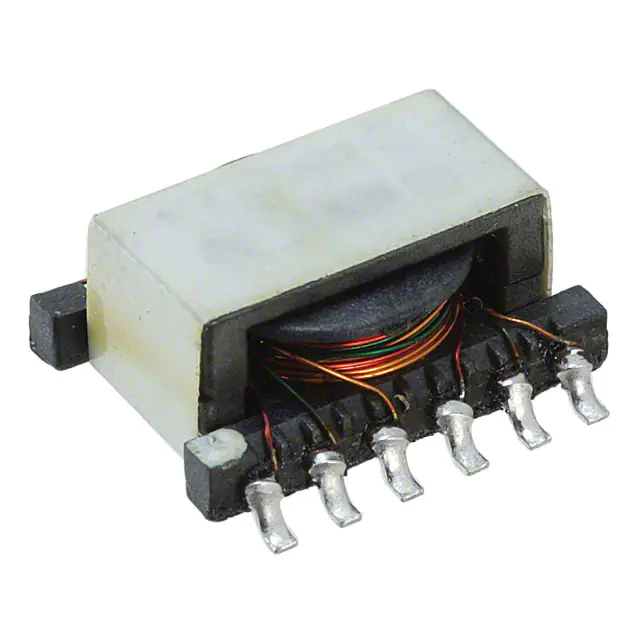

VPH1-0190-R XFMR 27.4UH SMD Eaton - Electronics Division	690	-	RFQ	Datenblatt	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.508" L x 0.512" W (12.90mm x 13.00mm)	0.244" (6.20mm)	-	-
750312504 XFMR CAP CHAR DC/DC 3.46UH SM Würth Elektronik	3,538	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Capacitor Charger	LTC3300-1, LTC6804-2, LTC3300ILXE-1, LTC6803IG-2	Linear Technology	-	-	500VDC	3.46µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
750032052 XFMR CAP CHAR DC/DC CONV 10UH SM Würth Elektronik	526	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Capacitor Charger	LT3751	Linear Technology	18 ~ 30V	-	1000Vrms	10µH @ 10kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.58mm)	0.865" L x 1.130" W (21.97mm x 28.70mm)	-
VP1-0190-R XFMR 12.2UH SMD Eaton - Electronics Division	14,404	-	RFQ	Datenblatt	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.508" L x 0.512" W (12.90mm x 13.00mm)	0.244" (6.20mm)	-	-
750313972 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	988	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8301	Linear Technology	18 ~ 42V	-	1500Vrms	40µH @ 10kHz	200 ~ 300kHz	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-
750313974 XFMR FLYBACK DC/DC CONV 40UH SMD Würth Elektronik	1,342	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8301	Linear Technology	8 ~ 32V	-	1500Vrms	40µH @ 10kHz	200 ~ 300kHz	-	-	-	Surface Mount	-	0.450" (11.43mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-

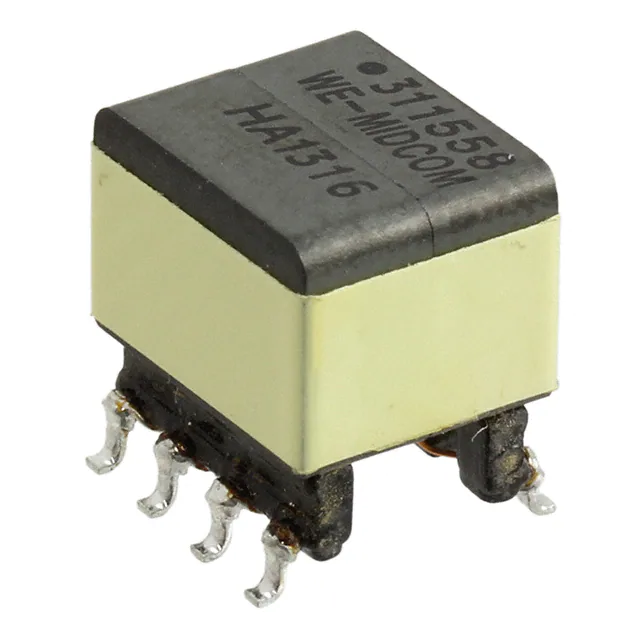

750311558 XFMR FLYBACK DC/DC CONV 300UH SM Würth Elektronik	646	-	RFQ	Datenblatt	WE-FB, MID-FLYLT	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	35 ~ 75V	5V	1500Vrms	300µH @ 10kHz	200 ~ 300kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.415" (10.54mm)	0.385" L x 0.360" W (9.78mm x 9.14mm)	-

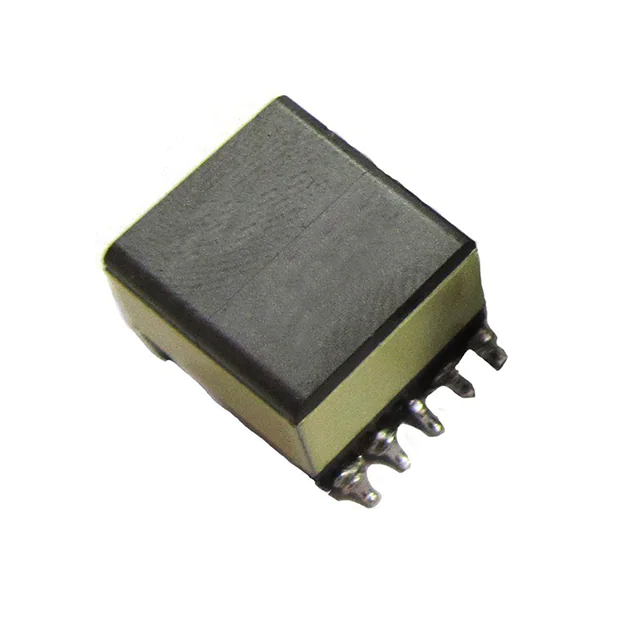

750314782 XFMR POE DC/DC CONV 37UH SMD Würth Elektronik	1,266	-	RFQ	Datenblatt	MID-POELT	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	Linear Technology	40 ~ 57V	-	3000Vrms	37µH @ 10kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	0.530" L x 0.699" W (13.46mm x 17.75mm)	0.500" (12.70mm)	-	-

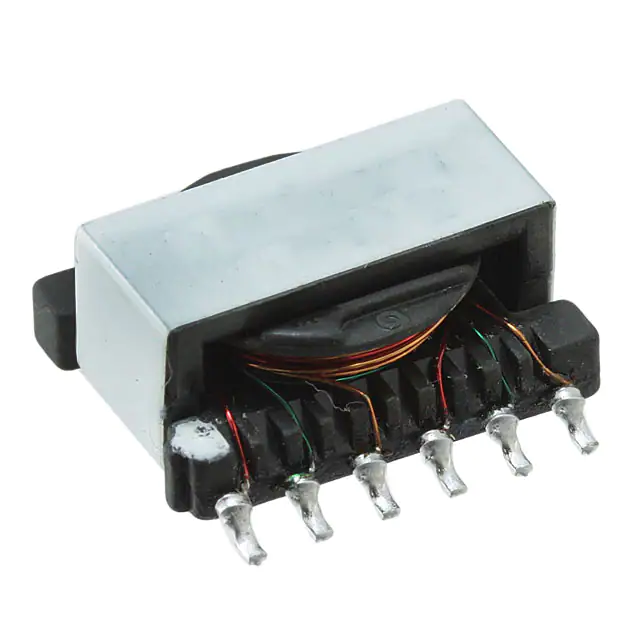

VPH2-0216-R XFMR 21.6UH SMD Eaton - Electronics Division	1,200	-	RFQ	Datenblatt	VERSA-PAC®	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.642" L x 0.661" W (16.30mm x 16.80mm)	0.307" (7.80mm)	-	-
750343725 XFMR DC/DC CONV 250UH SMD Würth Elektronik	1,514	-	RFQ	Datenblatt	MID-PPTI	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	Texas Instruments	5VDC	-	-	250µH @ 100kHz	420kHz	-40°C ~ 125°C	-	-	Surface Mount	0.360" L x 0.315" W (9.14mm x 8.00mm)	0.300" (7.62mm)	0.272" L x 0.480" W (6.91mm x 12.19mm)	Wirewound

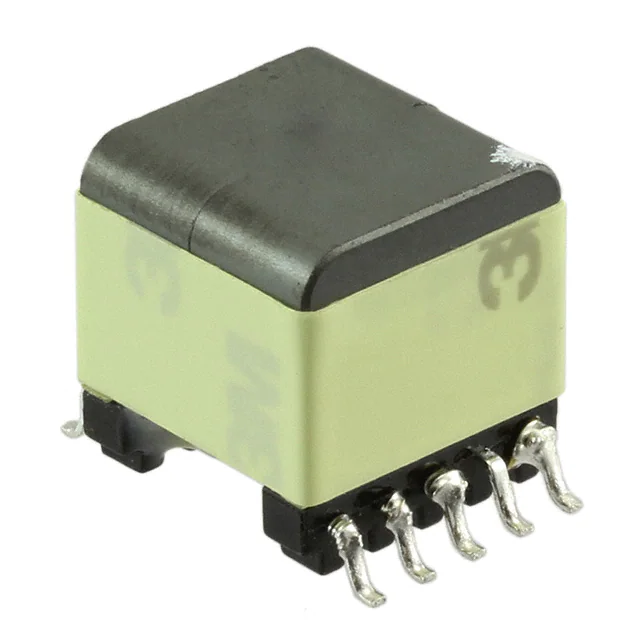

7491195112 XFMR POE DC/DC CONV 41UH SMD Würth Elektronik	1,038	-	RFQ	Datenblatt	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	10V	1500Vrms	41µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.591" W (14.00mm x 18.10mm)	-
VP5-0155-R XFMR 9.9UH SMD Eaton - Electronics Division	766	-	RFQ	Datenblatt	VERSA-PAC®	Bulk	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	-	-	Surface Mount	0.827" L x 1.122" W (21.00mm x 28.50mm)	0.425" (10.80mm)	-	-

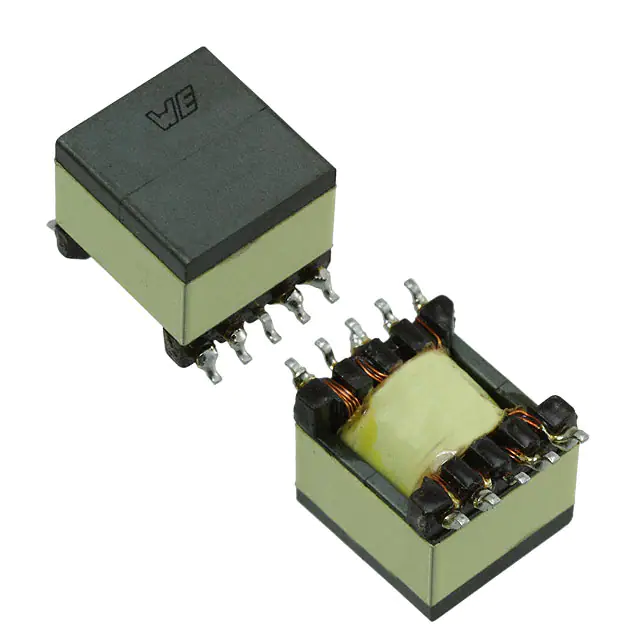

750311564 XFMR FLYBCK DC/DC CONV 9.07UH SM Würth Elektronik	9,904	-	RFQ	Datenblatt	WE-FB	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	10 ~ 40V	8V @ 20mA	1500Vrms	9.07µH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-

Total 1831 Record«Prev 123 4 5...92 Next»
