Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
H1664FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	75	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110" L x 0.608" W (28.19mm x 15.44mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
T5007NLT XFRMR ISDN-S 1:2/1:2 22MH SMD Pulse Electronics	96	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	22mH	-	1:2, 1:2	Surface Mount	0.950" L x 0.580" W (24.13mm x 14.73mm)	0.300" (7.62mm)	0°C ~ 70°C	-	-
H2009NL MODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics	99	-	RFQ	Datenblatt	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.518" L x 0.595" W (13.16mm x 15.11mm)	0.251" (6.37mm)	0°C ~ 70°C	-	-
HDX8006NL MDL,SIN, HDBASET, 140W, SMT Pulse Electronics	20	-	RFQ	Datenblatt	-	Tube	Active	HDBase-T	120µH	-	1:1	Surface Mount	0.715" L x 0.480" W (18.16mm x 12.20mm)	0.260" (6.60mm)	-40°C ~ 85°C	-	-
TX1475NL XFRMR OCTAL 1:2/1:1 1.2MH SMD Pulse Electronics	30	-	RFQ	Datenblatt	-	Tube	Active	T1/E1 (Octal)	1.2mH	-	1:2, 1:1	Surface Mount	1.000" L x 0.310" W (25.40mm x 7.87mm)	0.295" (7.49mm)	-40°C ~ 85°C	-	-
TX1193NL MODULE 1CT:2CT 1.2MH SMD Pulse Electronics	22	-	RFQ	Datenblatt	-	Tube	Active	T1/E1 (Dual)	1.2mH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	-40°C ~ 85°C	-	-

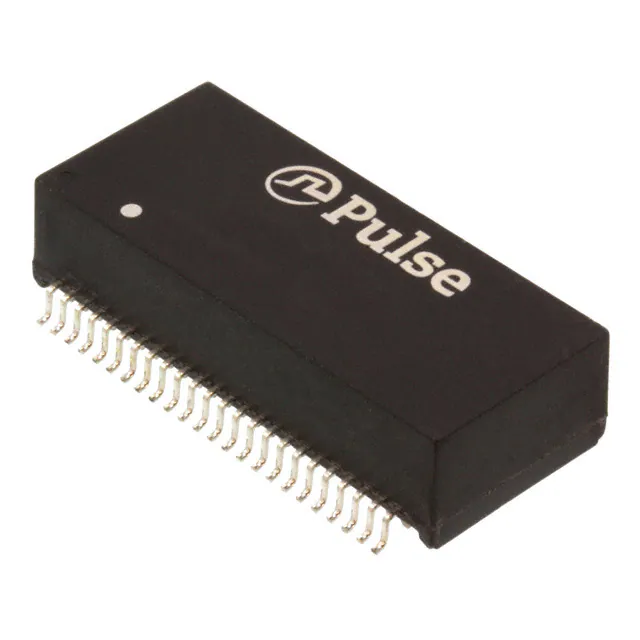

H5014NLT TRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics	48	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.295" (7.49mm)	0°C ~ 70°C	-	-
H2017NLT XFRMR MAGNT MOD 4PORT POE 10/100 Pulse Electronics	50	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	-	Surface Mount	1.120" L x 0.480" W (28.45mm x 12.19mm)	0.290" (7.36mm)	0°C ~ 70°C	-	-
H6101NL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	80	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.480" W (27.81mm x 12.19mm)	0.285" (7.24mm)	0°C ~ 70°C	-	-
MGDT100125-SM PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay Dale	67	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Gate Drive	240µH	-	1:1.25:1.25	Surface Mount	0.810" L x 0.725" W (20.57mm x 18.42mm)	0.450" (11.43mm)	-55°C ~ 125°C	-	-
R5033NL XFRMR ETHERNET MOD IND 1000B-T iNRCORE, LLC	39	-	RFQ	Datenblatt	-	Tube	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.600" L x 0.430" W (15.24mm x 10.92mm)	0.340" (8.64mm)	-40°C ~ 85°C	-	-

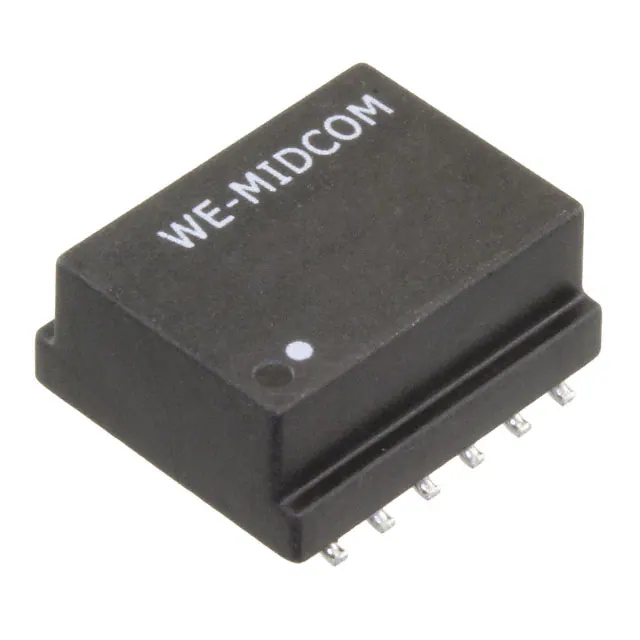

749014018 10/100 BASE-T SMD TRANSFORMER 1 Würth Elektronik	56	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.673" L x 0.581" W (17.10mm x 14.75mm)	0.341" (8.65mm)	0°C ~ 70°C	-	-
MTBAUGDT250102-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	19	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	Gate Drive	264µH	22.4VµS	1:1:1	Surface Mount	-	0.220" (5.59mm)	-55°C ~ 130°C	-	-
H6200NL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics	84	-	RFQ	Datenblatt	-	Tray	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.580" L x 0.680" W (14.73mm x 17.27mm)	0.440" (11.18mm)	0°C ~ 70°C	-	-
Q1553-24 TRANSFORMER PBC iNRCORE, LLC	16	-	RFQ	Datenblatt	-	Bulk	Active	MIL-STD-1553	-	-	1CT:2CT	Through Hole	0.500" L x 0.350" W (12.70mm x 8.89mm)	0.250" (6.35mm)	-	-	-
Q1553-51 TRANSFORMER PBC iNRCORE, LLC	18	-	RFQ	Datenblatt	-	Bulk	Active	MIL-STD-1553	-	-	1CT:1.79CT	Through Hole	0.500" L x 0.350" W (12.70mm x 8.89mm)	0.250" (6.35mm)	-	-	-
Q1553-1 TRANSFORMER PBC iNRCORE, LLC	8	-	RFQ	Datenblatt	-	Bulk	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.624" L x 0.624" W (15.86mm x 15.86mm)	0.250" (6.35mm)	-	-	-
78604/1C PULSE XFMR 2:1 2MH Murata Power Solutions Inc.	90	-	RFQ	Datenblatt	786	Tube	Active	General Purpose	2mH	20VµS	2:1	Through Hole	0.375" L x 0.354" W (9.52mm x 9.00mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
78602/16C TRANSFORMER 2:1 5000UH 28VUS Murata Power Solutions Inc.	84	-	RFQ	Datenblatt	786	Bulk	Active	General Purpose	4mH	28VµS	1:1:1	Through Hole	0.354" L x 0.375" W (9.00mm x 9.52mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
LAN1VSOD24351C2 MOD TRANS LAN 100B-T 2 PORT Eaton - Electronics Division	455	-	RFQ	Datenblatt	LAN	Tape & Reel (TR)	Active	LAN 100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.689" L x 0.480" W (17.50mm x 12.20mm)	0.244" (6.20mm)	-40°C ~ 85°C	-	-

Total 5221 Record«Prev 1... 64 65 66 676869 70 71...262 Next»
