Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
T9030NLT PULSE XFMR 1.2MH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Obsolete	T1/E1 (Octal)	1.2mH	-	-	Surface Mount	1.255" L x 0.712" W (31.88mm x 18.08mm)	0.305" (7.75mm)	-40°C ~ 85°C	-	-
H1190FNL PULSE XFMR 1CT:1CT 400UH Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100 Base-T	400µH	-	1CT:1CT	Surface Mount	0.300" L x 0.340" W (7.62mm x 8.64mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
H1164FNLT PULSE XFMR 1CT:1CT TX/RX 350UH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110" L x 0.608" W (28.19mm x 15.44mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
HM1188FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 105°C	-	-
HX1224NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	-	RFQ	-	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537" L x 0.570" W (13.64mm x 14.48mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

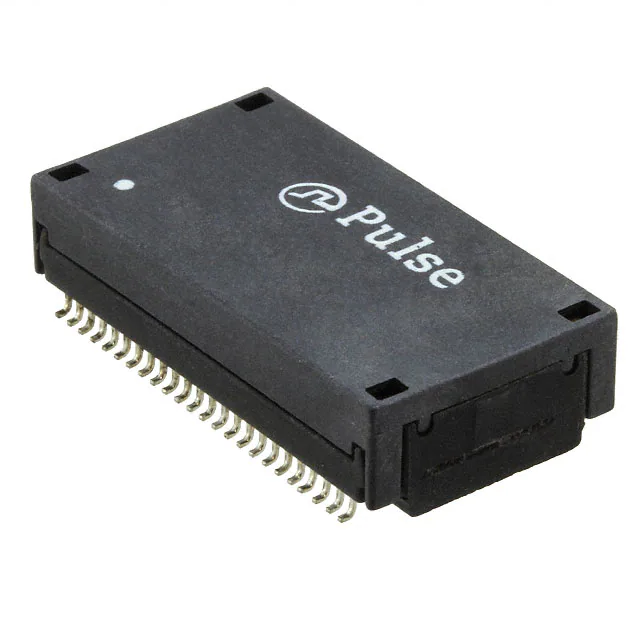

HX5012FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.590" W (27.81mm x 14.99mm)	0.285" (7.24mm)	-40°C ~ 85°C	-	-
PA0510NLT PULSE XFMR 2.5:1:1 1.2MH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	1.2mH	27.2VµS	2.5:1:1	Surface Mount	0.355" L x 0.340" W (9.02mm x 8.64mm)	0.300" (7.62mm)	-40°C ~ 130°C	-	-
PA1366NL PULSE XFMR 10UH Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Active	-	10µH	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-40°C ~ 125°C	-	-
PA2041NL PULSE XFMR IND CM 10 MH 0.2A 1:1 Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Obsolete	-	-	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-	-	-
PA2070NL PULSE XFMR 164UH Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Active	-	164µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
PA2454NL PULSE XFMR 24UH Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Obsolete	-	24µH	-	-	Surface Mount	0.515" L x 0.600" W (13.08mm x 15.24mm)	0.451" (11.45mm)	-40°C ~ 130°C	-	-
PH0400NL PULSE XFMR 2.5:1 1.75UH 2.5UH Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	-	1.75µH, 2.5µH	-	2.5:1	Surface Mount	0.402" L x 0.295" W (10.20mm x 7.50mm)	0.433" (11.00mm)	-	-	-
TLA-8T102WLF-T TRANSFORMER LAN 10/100/1000 T TDK Corporation	-	RFQ	Datenblatt	TLA	Tape & Reel (TR)	Obsolete	LAN 10/100/1000 Base-T	100µH	-	1CT:1CT, 1CT:1.5CT	Surface Mount	0.457" L x 0.268" W (11.60mm x 6.80mm)	0.232" (5.90mm)	-40°C ~ 95°C	-	-
TLA-8T104WLF-T PULSE XFMR 1 CT:1CT TX/RX 350UH TDK Corporation	-	RFQ	-	TLA-8T	Tape & Reel (TR)	Obsolete	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.457" L x 0.256" W (11.60mm x 6.50mm)	0.232" (5.90mm)	-40°C ~ 85°C	-	-
BX4285LNL PULSE XFMR 1.4:1 16MH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Obsolete	VDSL	16mH	-	1.4:1	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.388" (9.86mm)	-40°C ~ 85°C	-	-
BX4289LNL PULSE XFMR 1.4:1 100UH Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Obsolete	VDSL	100µH	-	1.4:1	Surface Mount	0.386" L x 0.354" W (9.80mm x 9.00mm)	0.425" (10.80mm)	-40°C ~ 85°C	-	-
C2567NL PULSE XFMR 1:1.7CT Pulse Electronics	-	RFQ	-	-	Tray	Obsolete	-	-	-	1:1.7CT	Surface Mount	0.169" L x 0.106" W (4.30mm x 2.70mm)	0.118" (3.00mm)	0°C ~ 70°C	-	-
C2580NL PULSE XFMR 1:1 Pulse Electronics	-	RFQ	-	-	Tray	Obsolete	-	-	-	1:1	Surface Mount	0.169" L x 0.106" W (4.30mm x 2.70mm)	0.118" (3.00mm)	0°C ~ 70°C	-	-
PA3855.003NL PULSE XFMR 41UH Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Active	-	41µH	-	-	Surface Mount	0.571" L x 0.695" W (14.50mm x 17.65mm)	0.551" (14.00mm)	-40°C ~ 130°C	-	-
MGPWT-00407-P EP13 XFRMR SMD JL 10 PIN TE Connectivity AMP Connectors	-	RFQ	-	*	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-

Total 5221 Record«Prev 1... 233 234 235 236237238 239 240...262 Next»
