Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
PA1132NLT XFRMR 12V 3W 521UH POE EP7 SMD Pulse Electronics	-	RFQ	Datenblatt	EP7	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	521µH	-	1:0.286:0.204	Surface Mount	0.420" L x 0.525" W (10.67mm x 13.34mm)	0.365" (9.27mm)	-40°C ~ 125°C	-	-
B8849NL PULSE XFMR ADSL ETSI-A Pulse Electronics	-	RFQ	Datenblatt	SmartER Splitter™	Tray	Active	ADSL, VDSL	-	-	-	Through Hole	0.512" L x 0.681" W (13.00mm x 17.30mm)	0.453" (11.50mm)	-	-	-
B8546ENL PULSE XFMR BT-SIN-346LP Pulse Electronics	-	RFQ	Datenblatt	SMART	Tray	Obsolete	ADSL	-	-	-	Through Hole	2.004" L x 0.634" W (50.90mm x 16.10mm)	0.620" (15.74mm)	0°C ~ 70°C	-	-
B8846NL PULSE XFMR ADSL2 ETSI-B Pulse Electronics	-	RFQ	Datenblatt	SmartER Splitter™	Tray	Active	ADSL, VDSL	-	-	-	Through Hole	0.512" L x 0.681" W (13.00mm x 17.30mm)	0.453" (11.50mm)	-	-	-
B8802NL PULSE XFMR ADSL/VDSL2 Pulse Electronics	-	RFQ	Datenblatt	SmartER Splitter™	Tray	Active	ADSL, VDSL	-	-	-	Through Hole	0.681" L x 0.512" W (17.30mm x 13.00mm)	0.551" (14.00mm)	-	-	-
78Z034CNL MODULE FILTER SINGLE LAN 16-DIL Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Through Hole	0.800" L x 0.400" W (20.32mm x 10.16mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
E2007QNL MODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000" L x 0.385" W (25.40mm x 9.78mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
E2003QNL MODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000" L x 0.385" W (25.40mm x 9.78mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
E2009QNL MODULE 10BASE-T INTRFACE 1:1.414 Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1.414	Surface Mount	1.000" L x 0.385" W (25.40mm x 9.78mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
E2001QNL MODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000" L x 0.385" W (25.40mm x 9.78mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
EX2001QNL MODULE 10BASE-T INTRFACE 1:1 SMD Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.930" L x 0.390" W (23.62mm x 9.91mm)	0.230" (5.84mm)	-40°C ~ 85°C	-	-
78Z1122B-01NL MODULE FILTER SINGLE LAN 16-DIL Pulse Electronics	-	RFQ	-	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Through Hole	1.000" L x 0.400" W (25.40mm x 10.16mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
PE-68515L XFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000" L x 0.350" W (25.40mm x 8.89mm)	0.370" (9.40mm)	0°C ~ 70°C	-	-
PA3000NL PULSE XFMR 1:1 Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Active	-	-	-	1:1	Through Hole	0.878" L x 0.748" W (22.30mm x 19.00mm)	0.492" (12.50mm)	-40°C ~ 125°C	-	-
TLA-6T214ALF-T TRANSFORMER LAN 10/100/1000 T TDK Corporation	-	RFQ	Datenblatt	TLA	Tape & Reel (TR)	Obsolete	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500" L x 0.330" W (12.70mm x 8.37mm)	0.083" (2.10mm)	0°C ~ 70°C	-	-
749014013 TRANSFORMER WE-LAN MED 10/100BT Würth Elektronik	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Obsolete	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.967" L x 0.669" W (24.55mm x 17.00mm)	0.427" (10.85mm)	0°C ~ 70°C	-	-
BX4107NL TRANSFORMER LINE 1.33:1 8MH Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Active	VDSL	8mH	-	1.33:1	Surface Mount	0.413" L x 0.276" W (10.50mm x 7.00mm)	0.433" (11.00mm)	-40°C ~ 85°C	-	-
E5017NL MODULE 10D 1:1 SIN SMD Pulse Electronics	-	RFQ	-	-	Tube	Obsolete	-	140µH	-	1:1	Surface Mount	0.495" L x 0.280" W (12.57mm x 7.11mm)	0.200" (5.08mm)	0°C ~ 70°C	-	-

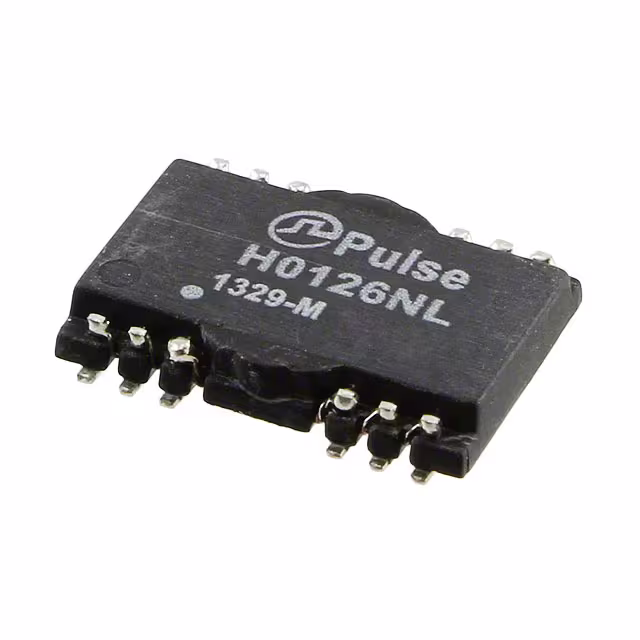

H0126NL MODULE 10/100BT PC SMD Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	-	-	-	-	Surface Mount	0.500" L x 0.357" W (12.70mm x 9.07mm)	0.093" (2.36mm)	-	-	-
PE-68041NLT TRANSFORMER 1500VRMS 112UH SMD Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	112µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.285" W (12.70mm x 7.24mm)	0.210" (5.33mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 226 227 228 229230231 232 233...262 Next»
