Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
T1137 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-

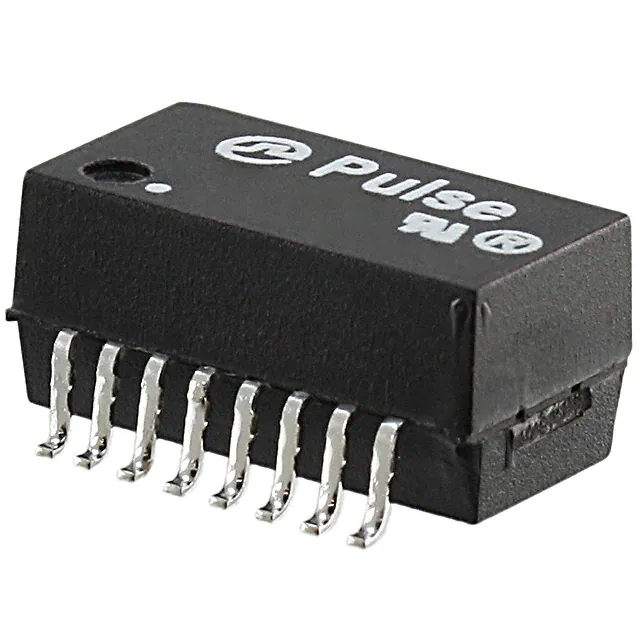

T1144 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T1/E1 (Dual)	1mH, 1mH	-	1CT:1CT, 1CT:2.4CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-	-	-
T1093 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1.15CT, 1CT:1.15CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
T1091 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH	-	1CT:2CT, 1:1.36CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
T1090 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1CT:2CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-

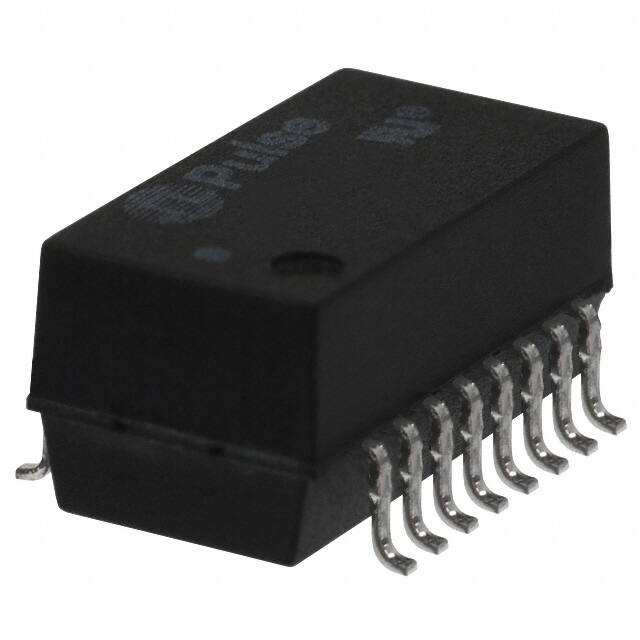

TX1287 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505" L x 0.280" W (12.83mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
PE-65967 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T3/E3 (Single)	40µH	-	1:1	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.245" (6.23mm)	0°C ~ 70°C	-	-
PE-65968 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T3/E3 (Single)	19µH	-	1:2CT	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.245" (6.23mm)	0°C ~ 70°C	-	-
T3001 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T3/E3 (Single)	100µH	-	1:1	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
T3002 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	T3/E3 (Single)	40µH	-	1:2CT	Surface Mount	0.300" L x 0.275" W (7.62mm x 7.00mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
H5004 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.235" (5.97mm)	0°C ~ 70°C	-	-
H5007 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.690" L x 0.480" W (17.53mm x 12.20mm)	0.227" (5.76mm)	0°C ~ 70°C	-	-

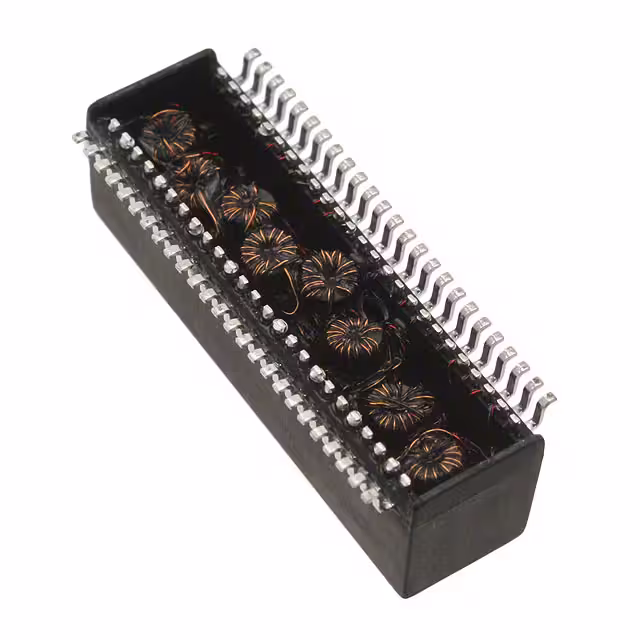

HX5020 MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	1.100" L x 0.297" W (27.94mm x 7.54mm)	0.341" (8.66mm)	-40°C ~ 85°C	-	-
H0009 MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.560" L x 0.560" W (14.22mm x 14.22mm)	0.082" (2.08mm)	0°C ~ 70°C	-	-
H1012 MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.000" L x 0.390" W (25.40mm x 9.91mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-

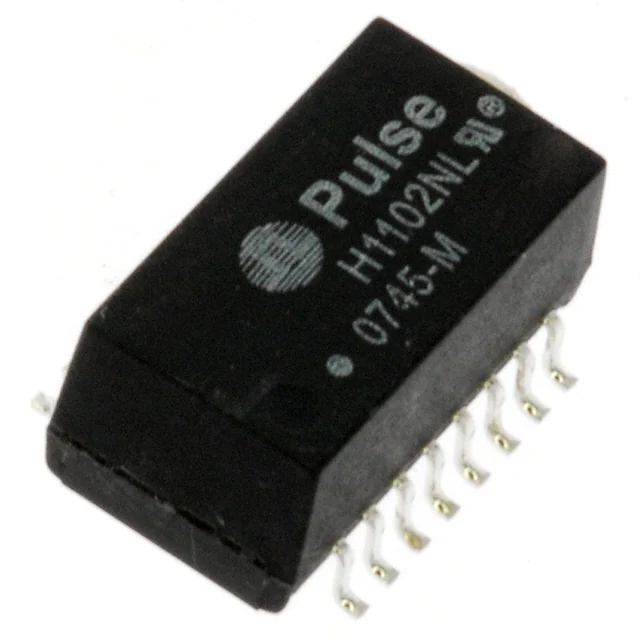

H1102 MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-
H1112 MODULE TRANSFMR SNGL LAN 12P SMD Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.583" L x 0.460" W (14.81mm x 11.68mm)	0.202" (5.13mm)	0°C ~ 70°C	-	-
HX1148 MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics	-	RFQ	Datenblatt	-	Tube	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	1.000" L x 0.390" W (25.40mm x 9.91mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
HX1188 MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics	-	RFQ	Datenblatt	-	Bulk	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
H1036L MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 217 218 219 220221222 223 224...262 Next»
