Impulstransformatoren

Hersteller	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
Abracon LLC Allied Components International Alpha & Omega Semiconductor Inc. Amgis, LLC Amphenol ICC (Commercial Products) AW Coil Bel Fuse Inc. Bourns Inc. Central Technologies COILCRAFT Eaton - Electronics Division EPCOS - TDK Electronics HALO Electronics, Inc. Hammond Manufacturing Holt Integrated Circuits Inc. iNRCORE, LLC IXYS MACOM Technology Solutions Mentech Technology USA Inc. Murata Power Solutions Inc. Newava Technology PCA Electronics, Inc. Premier Magnetics Premo S.L. Pulse Electronics Renco Electronics, Inc. Schaffner EMC, Inc. Schott Corporation SCHURTER Inc. Signal Transformer Sumida America Components Inc. TAI-TECH Tamura Taoglas Limited TDK Corporation TE Connectivity AMP Connectors TE Connectivity Passive Product Triad Magnetics TT Electronics / BI Technologies VACUUMSCHMELZE GmbH & Co. KG. Vigortronix Vishay Dale Würth Elektronik XFMRS	* - 1000 601 602 610 611 612 630 631 632 641 766 782482 786 786J AEL150-4739 AERL35-4736 AGDT-3738 AGST5009xx ALAN-1002 ALAN-101 ALAN-102 ALAN-134 ALAN-2201 ALAN-2202 ALAN-2204 ALAN-2301 ALAN-2302 ALAN-2401 ALAN-409 ALAN-505 ALAN-508 ALAN-516 ALAN110001-3 ALAN110001-4 ALAN1100X1 ALAN210001 ALAN310001 ALANC001G ALANC002G ALANC010G ALANC10001 ALANL10001 ALANL100X1-D ALANL100X1-E ALANS10001-3 ALANS10001-4 ALANS10002 ALANS100X1-1 ALANS100X1-2 ALT APT-106 AWLT45326P B7416A B78541A B82806D BM615xNL BMU6201NL BX615xNL CBM CEEH CEP CLP42B Copperhead™ CTLF10GDF CTLF24P1GF CTLF24S1GF CTLF2R5GF CTLF48S1GF CTLF5GF CTLFAMMF CTLFLPF CTLFPP10GF CTLFPP1GF CTLFPP2R5GF CTLFPP5GF CTLFSPF DA100 DA100J EP10 EP13 EP5 EP7 EPA EPG-SMT24 ETH1-230 ETH1-460 Exos Exos10G Exos1G G5 GDE25 H5200NLT H5201NLT H5400NLT H5401NLT H5610NL H6200NLT H6400NLT H6600NLT HB2 HB3 HB4 HB5 HB6 HCT HCT8 HM HM42 HX1188ENL HX1198ENL HX1332CNL HX5004NL HX5020HL HX5020HLT HX5164NL HX5200NLT HX5201NLT HX5400NLT HX5401NLT HX6135HL HX6135HLT HX6136HL HX6136HLT HX6164NL HX6400NL HX7028NL HX7137NL HXB HXE20xxHL ICI70CGI-102 ICI70CGI-222 IF II IL ILR IS ISRA IT ITNB ITNF ITRA ITRF IX LAN MID-AMT MID-DSLBCM MID-DSLIKN MID-DSLITL MID-PLC MTBAUGDT PA1134NL PA1137NL PA1138NL PA1276NL PA1277NL PA1281NL PFBR45 PH9185 PH9384 PH9385 PM2155.XXXNLT PM2180.XXXNL PM2185.XXXNL PM2190.XXXNL PMT9085.xxxNLT PT PulseChip™ SM SMART SmartER Splitter™ SPoE Star Magnetics™ Stratos TLA TLA-8T Transformer TTC TX02-4400 TXF TXF 4532 VGT VMT VST VTX-110 VTX-111 WBC WE-AMT, MID-AMT WE-AMT, MID-DAA WE-AMT, MID-PMA WE-BMS WE-DSL, MID-DSLITL WE-GDT WE-LAN WE-PLC WE-STST ZA9368-AE µCom	- Bag Box Bulk Cut Tape (CT) Strip Tape & Reel (TR) Tray Tube	Active Discontinued at Key Not For New Designs Obsolete	- 10/100 Base-T 1000 Base-T ADSL ADSL, HDSL, SHDSL, VDSL ADSL, VDSL Battery Management Data/Voice Coupling Economical Open Type Gate Drive General Purpose HDBase-T HDSL Interface Interface, MIL-STD-1553 Isolation and Data Interface (Encapsulated) LAN LAN 1/2.5 GBase-T, Power over Ethernet (PoE) LAN 1/2.5/5/10G Base-T LAN 1/2.5/5G Base-T LAN 1/5/10G Base-T LAN 1/5/10G Base-T, Power over Ethernet (PoE) LAN 10 Base-T LAN 10/100 Base-T LAN 10/100 Base-T, Power over Ethernet (PoE) LAN 10/100 Base-TX LAN 10/100/1000 Base-T LAN 10/100/1000 Base-T, Power over Ethernet (PoE) LAN 100 Base-T LAN 100 Base-T, Power over Ethernet (PoE) LAN 100 Base-TX LAN 100/1000 Base-T LAN 100/1000 Base-T, Power over Ethernet (PoE) LAN 1000 Base-T LAN 1000 Base-T, Power over Ethernet (PoE) LAN 10G Base-T LAN 10G Base-T, Power over Ethernet (PoE) LAN 1G Base-T LAN 1G Base-T, Power over Ethernet (PoE) LAN 2.5/5G Base-T LAN 2.5/5G Base-T, Power over Ethernet (PoE) LAN 2.5G Base-T LAN 2.5G Base-T, Power over Ethernet (PoE) LAN 5G Base-T LAN 5G Base-T, Power over Ethernet (PoE) LAN, Power over Ethernet (PoE) MIL-STD-1553 Power over Ethernet (PoE) SCR and Triac Trigger (Encapsulated) SHDSL T1/E1 (16) T1/E1 (Dual) T1/E1 (EE5) T1/E1 (Octal) T1/E1 (Quad) T1/E1 (Single) T3/E3 (Dual) T3/E3 (Octal) T3/E3 (Quad) T3/E3 (Single) T3/E3 (Twelve) VDSL	- 0.035µH 0.70µH 1.02mH 1.08mH 1.0mH 1.134mH 1.14mH 1.15mH 1.16mH 1.1mH 1.215mH 1.26mH 1.2mH 1.2mH, 1.2mH 1.2mH, 1.5mH 1.2mH, 600µH 1.2µH 1.35mH 1.3H, 1.3H 1.43mH 1.44mH 1.486mH 1.49mH 1.4mH 1.52mH 1.5H 1.5mH 1.5mH, 0.4mH 1.5mH, 1.5mH 1.5mH, 1.8mH 1.5µH 1.65µH 1.6mH 1.6mH, 1.6mH 1.71mH 1.75mH 1.75µH, 2.5µH 1.7mH 1.84mH 1.89mH 1.8mH 1.92mH 1.9mH 100.5µH 100mH 100µH 10mH 10mH, 10mH 10µH 11.3µH 11.5µH 11.7mH 110µH 112µH 115.5µH 11mH 12.7µH 1200µH 120µH 120µH, 350µH 123.3 CFM (3.45m³/min) 126.7µH 126µH 127µH 12mH 12mH, 3mH 130µH 135µH 137µH 139.5µH 14.4mH 140µH 140µH, 140µH 150µH 150µH, 450µH 152µH 155.5µH 155µH 15mH 15µH 16.3mH 16.4µH 16.5mH 160µH 160µH, 160µH 162µH 164µH 16mH 16µH 17.2mH 17.3µH 170µH 175µH 177µH 17mH 17µH 180µH 185mH 185µH 18µH, 60µH, 80µH, 175µH 190µH 19µH 1mH 1mH, 1mH 1µH 2.06mH 2.2mH 2.32mH 2.35mH 2.4mH 2.4µH 2.5mH 2.6mH 2.7mH 2.7µH 2.8mH 2.92mH 20.1µH 20.4µH 20.5µH 200nH 200µH 20mH 20µH 20µH, 100µH 215µH 219µH 21mH 21µH 220µH 225µH 22mH 230.4µH 230µH 23µH 24.5µH 240µH 24mH 24µH 25.2µH 250µH 253.4µH 253µH 256µH 25mH 25µH 260µH 264.1µH 264µH 26µH 28.5µH 28.9µH 280µH 28µH 28µH, 110µH 292µH 2mH 2µH 3.2mH 3.35mH 3.3mH 3.4mH 3.5mH 3.5mH, 6.5mH 3.65mH 3.6mH 3.75µH 3.78mH, 8.44mH 3.7mH 3.96mH 3.9mH 300nH 300µH 30mH 30µH 310µH 317µH 31µH 320µH 325µH 325µH, 350µH 32µH, 40µH 330µH 335.2µH 33µH 350nH 350µH 350µH, 400µH 35mH 35µH 35µH, 200µH 360µH 36µH 37.9µH 370µH 37µH 38.3µH 380µH 388µH 389µH 3mH 3µH 4.2mH 4.35mH 4.5µH 4.6mH 400µH 403µH 409.5µH 40µH 40µH, 100µH 40µH, 19µH 40µH, 40µH 40µH, 60µH, 80µH 41µH 420µH 429.3µH 430µH 437µH 441µH 450µH 45µH 45µH, 35µH 460µH 473µH 480µH 48µH 490µH 492µH 4mH 50.5µH 500nH 500µH 507µH 50nH 50µH 50µH, 200µH 521µH 530µH 538µH 53µH 54µH 560µH 56mH 57.6µH 58µH 5mH 5µH 6.1mH 6.5mH 6.6mH 6.7µH 600µH 60µH 617.4µH 62µH 650µH 656µH 65µH 66.1µH 67µH 680µH 68µH, 160µH 690µH 6mH 7.2µH 7.4mH 7.5µH 7.75mH 7.75µH 700nH 700µH 701µH 70µH 73.5µH 735µH 73µH 750µH 75µH 760µH 765µH 77.4µH 785µH 7mH 7µH 8.5mH, 16mH 8.6mH 8.8mH 800µH 80mH, 80mH 80µH 810µH 840nH 840µH 850µH 85µH 864µH 870µH 89.2µH 8mH 8µH 9.5H 9.5µH 90µH 910µH 950µH 970µH 980µH 9µH	- 1.1VµS 1.4VµS 1.5VµS 1.8VµS 10.5VµS 10.88VµS 100VµS 102VµS 108VµS 109VµS 10VµS 11.0VµS 11.2VµS 110VµS 12.7VµS 120VµS 126VµS 12VµS 130VµS 140VµS 14VµS 15.4VµS 1500VµS 150VµS 15VµS 16VµS 17.2VµS 17.5VµS 170VµS 2.4VµS 2.5VµS 200VµS 20VµS 21.7VµS 21VµS 22.4VµS 224VµS 22VµS 23.6VµS 23.8VµS 23VµS 24.5VµS 240VµS 24VµS 25.2VµS 25.8VµS 250VµS 252VµS 25VµS 260VµS 26VµS 27.2VµS 27VµS 28.6VµS 280VµS 285VµS 28VµS 29.4VµS 30.2VµS 30.6VµS 300VµS 30VµS 310VµS 31VµS 320VµS 33.6VµS 340VµS 350VµS 36VµS 375VµS 40.4VµS 40.8VµS 400VµS 42.4VµS 44VµS 45.1VµS 45.4VµS 45VµS 46VµS 47VµS 480VµS 482VµS 48VµS 4VµS 5.2VµS 5.5VµS 50.5VµS 500VµS 50VµS 52VµS 53VµS 540VµS 54VµS 550VµS 55VµS 56.5VµS 56VµS 570VµS 5VµS 600VµS 60VµS 63VµS 66VµS 6VµS 700VµS 70VµS 75VµS 77VµS 8.5VµS 800VµS 80VµS 84.7VµS 840VµS 85VµS 866VµS 89VµS 9.3VµS 9.7VµS 90VµS 95VµS 960VµS 98VµS 99VµS 9VµS	- 0.457:0.457:1 1.08:1 1.14CT:1 1.14CT:1CT 1.15CT:1, 1CT:2CT 1.1:1 1.25:1 1.25:1 Transmitter, 1:1 Receiver 1.25CT:1CT 1.25CT:1CT Transmitter, 1CT:1CT Receiver 1.25CT:1CT, 1.66CT:1CT 1.25CT:1CT, 1CT:1CT 1.26CS:1, 1:1:1.58 1.2:1 1.307:1, 1.125:1 1.31:1 1.33:1 1.41CT:1CT Transmitter, 1.41CT:1CT Receiver 1.41CT:1CT Transmitter, 1CT:1CT Receiver 1.4:1 1.4CT:1CT, 2CT:1CT 1.5:1 1.5:1:1 1.66CT:1 1.66CT:1CT 1.67:1 1.68:1 1.7:1 100:1 10:17 11.875:1 12:16:16 17:1:1 17:5:11:3:11:3 1:0.0625:0.271 1:0.07:0.07 1:0.083:0.208 1:0.125:0.208 1:0.167:0.639 1:0.182:0.682 1:0.1:0.1 1:0.222 1:0.222:0.555 1:0.273:0.682 1:0.286:0.204 1:0.292:0.208 1:0.3 1:0.444:0.388 1:0.47 1:0.470:0.294 1:0.500:0.167:0.167 1:0.5:0.5 1:0.6 1:0.682 1:0.682:0.682 1:0.7 1:0.75:0.75 1:00.1 1:1 1:1 Transmitter, 1.5:1 Receiver 1:1 Transmitter, 1:1 Receiver 1:1 Transmitter, 1:1.8 Receiver 1:1 Transmitter, 1:2 Receiver 1:1, 1.4:1, 1.4:1 1:1, 1:1 1:1, 1:1.5 1:1, 1:2 1:1, 1:2CT 1:1, 1CT:1CT 1:1, 2:1 1:1, 4.2:1 1:1.07:0.6 1:1.08 1:1.1 1:1.14 1:1.141 Transmitter, 1:1 Receiver 1:1.14CT 1:1.14CT Transmitter, 1:1.14CT Receiver 1:1.15 1:1.15 Transmitter, 1:1 Receiver 1:1.15 Transmitter, 1:1.15 Receiver 1:1.15 Transmitter, 1:2 Receiver 1:1.15 Transmitter, 1:2CT Receiver 1:1.15CT 1:1.15CT Transmitter, 1CT:1CT Receiver 1:1.15CT Transmitter, 1CT:2CT Receiver 1:1.15CT, 1:2CT 1:1.15CT, 1CT:2CT 1:1.224 1:1.25:1.25 1:1.26 1:1.266 1:1.26CT Transmitter, 1:1.26CT Receiver 1:1.27 1:1.2:1.2 1:1.3 1:1.33 1:1.36 1:1.36 Transmitter, 1:1.41 Receiver 1:1.36 Transmitter, 1:2CT Receiver 1:1.36, 1:2 1:1.36/1 1:1.36CT 1:1.36CT Transmitter, 1:1.36CT Receiver 1:1.4 1:1.41 1:1.41 Transmitter, 1:1 Receiver 1:1.41 Transmitter, 1:1.41 Receiver 1:1.414 1:1.414 Transmitter, 1:1 Receiver 1:1.41:1:1.41:1:1.41:1:1.41 1:1.5 1:1.58/2 1:1.5:1.5 1:1.5CT 1:1.65/1.65 1:1.67 1:1.75 1:1.7CT 1:1.8 1:1.95 1:1/1.26 1:1/1.26 Transmitter, 1:2CT Receiver 1:1/1.26, 1:1/1.26 1:1/1.26, 1:2CT 1:1000 1:1500 1:1:1 1:1:1 Ter 1:1:1, 1:2CS 1:1:1.22:1.22 1:1:1.26 Transmitter, 1CT:2CT Receiver 1:1:1/1 1:1:10.1 1:1:100 1:1:15 1:1:1:1 1:1:1:1.41:1:1.41:1:1.41 1:1:1:1:1 1:1:1:1:1:1:1:1 1:1:1:2 1:1:2 1:1:2:2 1:1:8.42 1:1:9 1:1CT 1:1CT Transmitter, 1:1CT Receiver 1:1CT Transmitter, 1CT:1CT Receiver 1:1CT, 1:1CT 1:2 1:2 Transmitter, 1:1 Receiver 1:2 Transmitter, 1:2 Receiver 1:2 Transmitter, 1:2CT Receiver 1:2, 1:1 1:2, 1:2 1:2.125 1:2.24 1:2.3CT 1:2.4 Transmitter, 1:1 Receiver 1:2.4, 1:1 1:2.42 1:2.42 Transmitter, 1:2.42 Receiver 1:2.42 Transmitter, 2.42:1 Receiver 1:2.42, 1:1 1:2.42CT 1:2.42CT Transmitter, 1:2.42CT Receiver 1:2.45CT Transmitter, 1:2.45CT Receiver 1:2.5 1:2.5 Transmitter, 1:2.5 Receiver 1:2.5, 1:2.5 1:2.5:2.5 1:2.7 1:2/2.4 Transmitter, 1:0.79/1 Receiver 1:2/2.4, 1:0.79/1 1:200 1:2:2 1:2:2CT 1:2CT 1:2CT Transmitter, 1:1 Receiver 1:2CT Transmitter, 1:1CT Receiver 1:2CT Transmitter, 1:2CT Receiver 1:2CT Transmitter, 1CT:2 Receiver 1:2CT, 1:1.36CT 1:2CT, 1:2CT 1:3 1:3 Transmitter, 2:3 Receiver 1:3.6 Transmitter, 2:3.6 Receiver 1:4 1:4 Transmitter, 1:2 Receiver 1:4.5:4.5:1 1:4:3 1:4CT 1:5.4 1:50 1:8 1:9 1:CT Transmitter, 1CT:1 Receiver 1CS:1CS 1CS:1CS Transmitter, 1CS:1CS Receiver 1CS:2 1CS:2CT 1CT: 1CT Transmitter, 1:1 Receiver 1CT:1 1CT:1 Transmitter, 1CT:1 Receiver 1CT:1 Transmitter, 1CT:1CT Receiver 1CT:1.14CT Transmitter, 1CT:1.14CT Receiver 1CT:1.15CT 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver 1CT:1.15CT Transmitter, 1CT:1CT Receiver 1CT:1.15CT Transmitter, 1CT:2CT Receiver 1CT:1.15CT, 1CT:1.15CT 1CT:1.15CT, 1CT:1CT 1CT:1.224CT 1CT:1.23CT Transmitter, 1CT:1CT Receiver 1CT:1.25 1CT:1.25CT 1CT:1.33CT 1CT:1.36CT 1CT:1.36CT Transmitter, 1:1 Receiver 1CT:1.36CT Transmitter, 1CT:1.36CT Receiver 1CT:1.36CT Transmitter, 1CT:1CT Receiver 1CT:1.36CT Transmitter, 1CT:2CT Receiver 1CT:1.41 Transmitter, 1:1 Receiver 1CT:1.414CT Transmitter, 1CT:1CT Receiver 1CT:1.41CT 1CT:1.41CT Transmitter, 1:1 Receiver 1CT:1.41CT Transmitter, 1CT:1.41CT Receiver 1CT:1.41CT Transmitter, 1CT:1CT Receiver 1CT:1.41CT, 1CT:1.41CT 1CT:1.41CT, 1CT:1CT 1CT:1.5CT 1CT:1.5CT Transmitter, 1CT:1CT Receiver 1CT:1.66CT 1CT:1.732CT 1CT:1.79CT 1CT:1:0.8, 1CT:1:0.8 1CT:1:1 Transmitter, 1CT:1:1 Receiver 1CT:1:1, 1CT:1:1 1CT:1:26CT Transmitter, 1CT:1:26CT Receiver 1CT:1CT 1CT:1CT Transmitter, 1:1 Receiver 1CT:1CT Transmitter, 1CT:1.36CT Receiver 1CT:1CT Transmitter, 1CT:1.41CT Receiver 1CT:1CT Transmitter, 1CT:1CT Receiver 1CT:1CT Transmitter, 1CT:2.4CT Receiver 1CT:1CT Transmitter, 1CT:2.5CT Receiver 1CT:1CT Transmitter, 1CT:2CT Receiver 1CT:1CT Transmitter, 1CT:5CT Receiver 1CT:1CT Transmitter, 2CT:1CT Receiver 1CT:1CT, 1.4CT:1CT 1CT:1CT, 1:1 1CT:1CT, 1CT:0.707CT 1CT:1CT, 1CT:1.41CT 1CT:1CT, 1CT:1.5CT 1CT:1CT, 1CT:1CT 1CT:1CT, 1CT:2.4CT 1CT:1CT, 1CT:2.5CT 1CT:1CT, 1CT:2CT 1CT:1CT, 1CT:3CT:1 1CT:2 1CT:2 Transmitter, 1:1 Receiver 1CT:2 Transmitter, 1:2CT Receiver 1CT:2 Transmitter, 1CT:1 Receiver 1CT:2, 1:2CT 1CT:2.12CT, 1CT:1.5CT 1CT:2.3CT Transmitter, 1CT:1CT Receiver 1CT:2.3CT, 1CT:2CT 1CT:2.4 Transmitter, 1:1CT Receiver 1CT:2.4/2, 1CT:1/0.79 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver 1CT:2.42CT, 1CT:2.42CT 1CT:2.45CT Transmitter, 1CT:2.45CT Receiver 1CT:2.4CT Transmitter, 1CT:1CT Receiver 1CT:2.4CT, 1CT:1CT 1CT:2.5CT 1CT:2.5CT Transmitter, 1:1 Receiver 1CT:2.5CT Transmitter, 1CT:1CT Receiver 1CT:2.5CT, 1CT:1.79CT 1CT:2.5CT, 1CT:2.5CT 1CT:2.7CT 1CT:2CT 1CT:2CT Transmitter, 1:1 Receiver 1CT:2CT Transmitter, 1:1.15 Receiver 1CT:2CT Transmitter, 1:1.36CT Receiver 1CT:2CT Transmitter, 1CT:1.36CT Receiver 1CT:2CT Transmitter, 1CT:1CT Receiver 1CT:2CT Transmitter, 1CT:2CT Receiver 1CT:2CT, 1:1 1CT:2CT, 1:1.36CT 1CT:2CT, 1CT:2CT 1CT:3.54CT, 1CT:2.5CT 1CT:3.75CT 1CT:3CT 1CT:3CT, 1CT:2.15CT 1CT:4CT 1CT:5CT 2.42CT:1 2.5:1 2.5:1:1 2:1 2:1 Transmitter, 1:1 Receiver 2:1:1 2:1:1 Ter 2:1:1:1 2:1CT 2CT:1 2CT:1 Transmitter, 2CT:1 Receiver 2CT:1/1.26, 2CT:1/1.26 2CT:1CT 2CT:1CT Transmitter, 1CT:1CT Receiver 2CT:1CT, 1CT:1CT 2CT:7CT 3.08:1:1 3.17:1 3:1 3:10 3:1:1 3:2 3:4 3:4CT 3:5 3:5CT 3:8 3:8CT 3CT:11CT 3CT:4CT 3CT:5CT 3CT:8CT 4.25:1 Transmitter, 1:1 Receiver 4.5:1 4:1CT 4:3 4:3CT 4CT:1CT 4CT:3CT 4CT:5CT 4CT:7CT 5:1 8:3 8:3CT 8:9 8:9CT 8CT:3CT 8CT:9CT 9:10	- Chassis Mount Surface Mount Through Hole	- 0.126" L x 0.126" W (3.20mm x 3.20mm) 0.138" L x 0.126" W (3.50mm x 3.20mm) 0.169" L x 0.106" W (4.30mm x 2.70mm) 0.173" L x 0.360" W (4.39mm x 9.14mm) 0.175" L x 0.165" W (4.45mm x 4.19mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.179" L x 0.280" W (4.55mm x 7.10mm) 0.181" L x 0.128" W (4.60mm x 3.25mm) 0.181" L x 0.134" W (4.60mm x 3.40mm) 0.185" L x 0.126" W (4.70mm x 3.20mm) 0.185" L x 0.127" W (4.70mm x 3.22mm) 0.185" L x 0.130" W (4.70mm x 3.30mm) 0.185" L x 0.134" W (4.70mm x 3.40mm) 0.205" L x 0.280" W (5.20mm x 7.10mm) 0.210" L x 0.330" W (5.33mm x 8.38mm) 0.217" L x 0.213" W (5.50mm x 5.40mm) 0.220" L x 0.230" W (5.59mm x 5.84mm) 0.230" L x 0.265" W (5.84mm x 6.73mm) 0.231" L x 0.211" W (5.86mm x 5.36mm) 0.240" L x 0.250" W (6.10mm x 6.35mm) 0.240" L x 0.265" W (6.10mm x 6.73mm) 0.240" L x 0.345" W (6.10mm x 8.76mm) 0.260" L x 0.260" W (6.60mm x 6.60mm) 0.260" L x 0.315" W (6.60mm x 8.00mm) 0.260" L x 0.319" W (6.60mm x 8.10mm) 0.260" L x 0.340" W (6.60mm x 8.64mm) 0.264" L x 0.240" W (6.70mm x 6.10mm) 0.265" L x 0.230" W (6.73mm x 5.84mm) 0.265" L x 0.340" W (6.73mm x 8.64mm) 0.266" L x 0.230" W (6.76mm x 5.84mm) 0.276" L x 0.335" W (7.00mm x 8.50mm) 0.280" L x 0.230" W (7.11mm x 5.84mm) 0.280" L x 0.236" W (7.10mm x 6.00mm) 0.280" L x 0.375" W (7.11mm x 9.52mm) 0.285" L x 0.230" W (7.24mm x 5.84mm) 0.290" L x 0.264" W (7.37mm x 6.71mm) 0.291" L x 0.248" W (7.40mm x 6.30mm) 0.291" L x 0.260" W (7.40mm x 6.60mm) 0.295" L x 0.198" W (7.49mm x 5.03mm) 0.299" L x 0.197" W (7.60mm x 5.00mm) 0.299" L x 0.268" W (7.60mm x 6.80mm) 0.299" L x 0.402" W (7.60mm x 10.20mm) 0.300" L x 0.265" W (7.62mm x 6.73mm) 0.300" L x 0.275" W (7.62mm x 7.00mm) 0.300" L x 0.276" W (7.62mm x 7.00mm) 0.300" L x 0.285" W (7.62mm x 7.24mm) 0.300" L x 0.300" W (7.62mm x 7.62mm) 0.300" L x 0.340" W (7.62mm x 8.64mm) 0.300" L x 0.365" W (7.62mm x 9.27mm) 0.300" L x 0.370" W (7.62mm x 9.40mm) 0.300" L x 0.390" W (7.62mm x 9.91mm) 0.310" L x 0.330" W (7.87mm x 8.38mm) 0.310" L x 0.355" W (7.87mm x 9.02mm) 0.310" L x 0.680" W (7.87mm x 17.27mm) 0.315" L x 0.272" W (8.00mm x 6.91mm) 0.315" L x 0.315" W (8.00mm x 8.00mm) 0.315" L x 0.319" W (8.00mm x 8.10mm) 0.319" L x 0.280" W (8.10mm x 7.10mm) 0.320" L x 0.280" W (8.13mm x 7.11mm) 0.321" L x 0.283" W (8.15mm x 7.20mm) 0.330" L x 0.230" W (8.38mm x 5.84mm) 0.330" L x 0.303" W (8.38mm x 7.69mm) 0.331" L x 0.335" W (8.40mm x 8.50mm) 0.335" L x 0.205" W (8.50mm x 5.20mm) 0.335" L x 0.524" W (8.50mm x 13.31mm) 0.335" L x 0.663" W (8.50mm x 16.84mm) 0.340" L x 0.265" W (8.64mm x 6.73mm) 0.340" L x 0.330" W (8.64mm x 8.38mm) 0.340" L x 0.430" W (8.64mm x 10.92mm) 0.340" L x 0.460" W (8.64mm x 11.68mm) 0.350" L x 0.299" W (8.90mm x 7.60mm) 0.350" L x 0.500" W (8.89mm x 12.70mm) 0.350" L x 0.500" W (8.90mm x 12.70mm) 0.354" L x 0.339" W (9.00mm x 8.60mm) 0.354" L x 0.375" W (9.00mm x 9.52mm) 0.354" L x 0.478" W (9.00mm x 12.15mm) 0.355" L x 0.340" W (9.01mm x 8.63mm) 0.355" L x 0.340" W (9.02mm x 8.64mm) 0.360" L x 0.385" W (9.14mm x 9.77mm) 0.360" L x 0.520" W (9.14mm x 13.21mm) 0.362" L x 0.323" W (9.20mm x 8.20mm) 0.362" L x 0.346" W (9.20mm x 8.80mm) 0.370" L x 0.181" W (9.40mm x 4.60mm) 0.374" L x 0.217" W (9.50mm x 5.50mm) 0.374" L x 0.374" W (9.50mm x 9.50mm) 0.375" L x 0.354" W (9.52mm x 9.00mm) 0.378" L x 0.250" W (9.78mm x 6.35mm) 0.378" L x 0.255" W (9.59mm x 6.48mm) 0.380" L x 0.350" W (9.65mm x 8.89mm) 0.385" L x 0.360" W (9.78mm x 9.14mm) 0.385" L x 0.650" W (9.78mm x 16.51mm) 0.386" L x 0.354" W (9.80mm x 9.00mm) 0.390" L x 0.310" W (9.91mm x 7.87mm) 0.390" L x 0.330" W (9.90mm x 8.38mm) 0.390" L x 0.394" W (9.91mm x 10.00mm) 0.394" L x 0.394" W (10.00mm x 10.00mm) 0.395" L x 0.350" W (10.03mm x 8.89mm) 0.400" L x 0.400" W (10.16mm x 10.16mm) 0.400" L x 0.440" W (10.16mm x 11.18mm) 0.402" L x 0.295" W (10.20mm x 7.50mm) 0.402" L x 0.394" W (10.20mm x 10.00mm) 0.409" L x 0.409" W (10.40mm x 10.40mm) 0.413" L x 0.276" W (10.50mm x 7.00mm) 0.413" L x 0.330" W (10.50mm x 8.38mm) 0.413" L x 0.413" W (10.50mm x 10.50mm) 0.417" L x 0.357" W (10.60mm x 9.08mm) 0.420" L x 0.370" W (10.67mm x 9.40mm) 0.420" L x 0.525" W (10.67mm x 13.34mm) 0.421" L x 0.525" W (10.70mm x 13.34mm) 0.425" L x 0.335" W (10.80mm x 8.50mm) 0.428" L x 0.372" W (10.87mm x 9.45mm) 0.430" L x 0.380" W (10.92mm x 9.65mm) 0.433" L x 0.280" W (11.00mm x 7.10mm) 0.445" L x 0.315" W (11.30mm x 8.00mm) 0.445" L x 0.406" W (11.30mm x 10.30mm) 0.445" L x 0.411" W (11.31mm x 10.43mm) 0.447" L x 0.360" W (11.36mm x 9.15mm) 0.449" L x 0.409" W (11.40mm x 10.40mm) 0.449" L x 0.449" W (11.40mm x 11.40mm) 0.450" L x 0.265" W (11.43mm x 6.73mm) 0.451" L x 0.346" W (11.45mm x 8.80mm) 0.451" L x 0.433" W (11.46mm x 11.00mm) 0.455" L x 0.275" W (11.56mm x 6.99mm) 0.455" L x 0.344" W (11.56mm x 8.74mm) 0.455" L x 0.375" W (11.56mm x 9.53mm) 0.457" L x 0.256" W (11.60mm x 6.50mm) 0.457" L x 0.268" W (11.60mm x 6.80mm) 0.457" L x 0.272" W (11.60mm x 6.91mm) 0.465" L x 0.340" W (11.81mm x 8.63mm) 0.465" L x 0.425" W (11.81mm x 10.80mm) 0.465" L x 0.520" W (11.80mm x 13.20mm) 0.472" L x 0.276" W (12.00mm x 7.00mm) 0.472" L x 0.285" W (12.00mm x 7.25mm) 0.472" L x 0.425" W (12.00mm x 10.80mm) 0.472" L x 0.472" W (12.00mm x 12.00mm) 0.475" L x 0.475" W (12.06mm x 12.06mm) 0.475" L x 0.566" W (12.07mm x 14.37mm) 0.478" L x 0.354" W (12.15mm x 9.00mm) 0.484" L x 0.425" W (12.30mm x 10.80mm) 0.485" L x 0.285" W (12.32mm x 7.24mm) 0.488" L x 0.365" W (12.40mm x 9.27mm) 0.490" L x 0.355" W (12.45mm x 9.02mm) 0.492" L x 0.287" W (12.50mm x 7.30mm) 0.492" L x 0.362" W (12.50mm x 9.20mm) 0.495" L x 0.280" W (12.57mm x 7.11mm) 0.495" L x 0.475" W (12.57mm x 12.07mm) 0.495" L x 0.490" W (12.57mm x 12.45mm) 0.496" L x 0.496" W (12.60mm x 12.60mm) 0.498" L x 0.350" W (12.65mm x 8.89mm) 0.500" L x 0.265" W (12.70mm x 6.73mm) 0.500" L x 0.268" W (12.70mm x 6.80mm) 0.500" L x 0.272" W (12.70mm x 6.90mm) 0.500" L x 0.272" W (12.70mm x 6.91mm) 0.500" L x 0.274" W (12.70mm x 6.95mm) 0.500" L x 0.275" W (12.70mm x 6.99mm) 0.500" L x 0.276" W (12.70mm x 7.00mm) 0.500" L x 0.280" W (12.70mm x 7.10mm) 0.500" L x 0.280" W (12.70mm x 7.11mm) 0.500" L x 0.281" W (12.70mm x 7.15mm) 0.500" L x 0.285" W (12.70mm x 7.24mm) 0.500" L x 0.290" W (12.70mm x 7.37mm) 0.500" L x 0.330" W (12.70mm x 8.37mm) 0.500" L x 0.339" W (12.70mm x 8.60mm) 0.500" L x 0.341" W (12.70mm x 8.66mm) 0.500" L x 0.341" W (12.70mm x 8.67mm) 0.500" L x 0.343" W (12.70mm x 8.70mm) 0.500" L x 0.346" W (12.70mm x 8.80mm) 0.500" L x 0.347" W (12.70mm x 8.81mm) 0.500" L x 0.350" W (12.70mm x 8.89mm) 0.500" L x 0.350" W (12.70mm x 8.90mm) 0.500" L x 0.357" W (12.70mm x 9.07mm) 0.500" L x 0.358" W (12.70mm x 9.09mm) 0.500" L x 0.365" W (12.70mm x 9.27mm) 0.500" L x 0.376" W (12.70mm x 9.55mm) 0.500" L x 0.380" W (12.70mm x 9.65mm) 0.500" L x 0.385" W (12.70mm x 9.78mm) 0.500" L x 0.470" W (12.70mm x 11.94mm) 0.500" L x 0.492" W (12.70mm x 12.50mm) 0.500" L x 0.500" W (12.70mm x 12.70mm) 0.500" L x 0.600" W (12.70mm x 15.24mm) 0.502" L x 0.280" W (12.75mm x 7.10mm) 0.504" L x 0.268" W (12.80mm x 6.80mm) 0.504" L x 0.272" W (12.80mm x 6.90mm) 0.504" L x 0.280" W (12.80mm x 7.11mm) 0.504" L x 0.281" W (12.80mm x 7.15mm) 0.504" L x 0.295" W (12.80mm x 7.50mm) 0.504" L x 0.346" W (12.80mm x 8.80mm) 0.505" L x 0.264" W (12.83mm x 6.70mm) 0.505" L x 0.280" W (12.83mm x 7.11mm) 0.506" L x 0.272" W (12.85mm x 6.90mm) 0.510" L x 0.280" W (12.95mm x 7.11mm) 0.510" L x 0.360" W (12.95mm x 9.15mm) 0.510" L x 0.370" W (12.95mm x 9.40mm) 0.510" L x 0.380" W (12.95mm x 9.65mm) 0.510" L x 0.385" W (12.95mm x 9.78mm) 0.510" L x 0.600" W (12.95mm x 15.24mm) 0.512" L x 0.500" W (13.08mm x 12.70mm) 0.512" L x 0.512" W (13.00mm x 13.00mm) 0.512" L x 0.598" W (13.00mm x 15.20mm) 0.512" L x 0.681" W (13.00mm x 17.30mm) 0.512" L x 0.748" W (13.00mm x 19.00mm) 0.515" L x 0.500" W (13.08mm x 12.70mm) 0.515" L x 0.574" W (13.08mm x 14.57mm) 0.515" L x 0.574" W (13.08mm x 14.58mm) 0.515" L x 0.600" W (13.08mm x 15.24mm) 0.516" L x 0.281" W (13.10mm x 7.15mm) 0.518" L x 0.595" W (13.16mm x 15.11mm) 0.518" L x 0.703" W (13.16mm x 17.86mm) 0.520" L x 0.299" W (13.20mm x 7.60mm) 0.520" L x 0.480" W (13.21mm x 12.19mm) 0.522" L x 0.600" W (13.26mm x 15.24mm) 0.524" L x 0.291" W (13.30mm x 7.40mm) 0.528" L x 0.409" W (13.40mm x 10.40mm) 0.530" L x 0.516" W (13.46mm x 13.11mm) 0.530" L x 0.555" W (13.46mm x 14.10mm) 0.530" L x 0.699" W (13.46mm x 17.75mm) 0.531" L x 0.697" W (13.50mm x 17.70mm) 0.531" L x 0.701" W (13.50mm x 17.80mm) 0.531" L x 0.839" W (13.50mm x 21.30mm) 0.534" L x 0.600" W (13.56mm x 15.24mm) 0.535" L x 0.335" W (13.60mm x 8.50mm) 0.535" L x 0.472" W (13.60mm x 12.00mm) 0.535" L x 0.480" W (13.60mm x 12.20mm) 0.535" L x 0.594" W (13.60mm x 15.10mm) 0.537" L x 0.390" W (13.64mm x 9.91mm) 0.537" L x 0.470" W (13.64mm x 11.94mm) 0.537" L x 0.470" W (13.65mm x 11.95mm) 0.537" L x 0.475" W (13.64mm x 12.07mm) 0.537" L x 0.480" W (13.64mm x 12.19mm) 0.537" L x 0.570" W (13.64mm x 14.48mm) 0.537" L x 0.600" W (13.64mm x 15.24mm) 0.537" L x 0.622" W (13.65mm x 15.80mm) 0.538" L x 0.599" W (13.67mm x 15.21mm) 0.538" L x 0.726" W (13.67mm x 18.44mm) 0.539" L x 0.480" W (13.70mm x 12.20mm) 0.539" L x 0.591" W (13.70mm x 15.00mm) 0.539" L x 0.600" W (13.70mm x 15.24mm) 0.540" L x 0.480" W (13.72mm x 12.19mm) 0.540" L x 0.480" W (13.72mm x 12.20mm) 0.540" L x 0.585" W (13.72mm x 14.86mm) 0.540" L x 0.600" W (13.72mm x 15.24mm) 0.540" L x 0.709" W (13.72mm x 18.01mm) 0.540" L x 0.780" W (13.72mm x 19.80mm) 0.542" L x 0.480" W (13.77mm x 12.19mm) 0.543" L x 0.598" W (13.80mm x 15.20mm) 0.545" L x 0.480" W (13.84mm x 12.19mm) 0.545" L x 0.591" W (13.84mm x 15.00mm) 0.545" L x 0.605" W (13.84mm x 15.37mm) 0.547" L x 0.535" W (13.89mm x 13.59mm) 0.549" L x 0.490" W (13.95mm x 12.45mm) 0.550" L x 0.472" W (13.97mm x 12.00mm) 0.550" L x 0.480" W (13.96mm x 12.20mm) 0.550" L x 0.495" W (13.97mm x 12.57mm) 0.550" L x 0.500" W (13.97mm x 12.00mm) 0.550" L x 0.525" W (13.97mm x 13.34mm) 0.550" L x 0.530" W (13.97mm x 13.46mm) 0.550" L x 0.532" W (13.97mm x 13.50mm) 0.550" L x 0.550" W (13.97mm x 13.97mm) 0.550" L x 0.600" W (13.97mm x 15.24mm) 0.550" L x 0.800" W (13.97mm x 20.32mm) 0.551" L x 0.492" W (14.00mm x 12.50mm) 0.551" L x 0.516" W (14.00mm x 13.11mm) 0.551" L x 0.520" W (14.00mm x 13.20mm) 0.551" L x 0.547" W (14.00mm x 13.90mm) 0.551" L x 0.551" W (14.00mm x 14.00mm) 0.551" L x 0.695" W (14.00mm x 17.65mm) 0.551" L x 0.996" W (14.00mm x 25.30mm) 0.557" L x 0.676" W (13.97mm x 17.17mm) 0.559" L x 0.417" W (14.20mm x 10.60mm) 0.559" L x 0.559" W (14.20mm x 14.20mm) 0.560" L x 0.300" W (14.22mm x 7.62mm) 0.560" L x 0.560" W (14.22mm x 14.22mm) 0.563" L x 0.374" W (14.30mm x 9.50mm) 0.570" L x 0.537" W (14.48mm x 13.64mm) 0.571" L x 0.695" W (14.50mm x 17.65mm) 0.579" L x 0.459" W (14.70mm x 11.65mm) 0.579" L x 0.478" W (14.70mm x 12.15mm) 0.580" L x 0.280" W (14.73mm x 7.11mm) 0.580" L x 0.680" W (14.73mm x 17.27mm) 0.583" L x 0.460" W (14.81mm x 11.68mm) 0.583" L x 0.461" W (14.81mm x 11.70mm) 0.583" L x 0.470" W (14.81mm x 11.94mm) 0.583" L x 0.580" W (14.81mm x 14.73mm) 0.590" L x 0.470" W (14.99mm x 11.94mm) 0.590" L x 0.475" W (14.99mm x 12.07mm) 0.591" L x 0.504" W (15.00mm x 12.80mm) 0.591" L x 0.539" W (15.00mm x 13.70mm) 0.591" L x 0.591" W (15.00mm x 15.00mm) 0.593" L x 0.593" W (15.06mm x 15.06mm) 0.594" L x 0.280" W (15.10mm x 7.10mm) 0.594" L x 0.394" W (15.10mm x 10.00mm) 0.594" L x 0.559" W (15.10mm x 14.20mm) 0.594" L x 0.579" W (15.10mm x 14.70mm) 0.595" L x 0.279" W (15.11mm x 7.09mm) 0.595" L x 0.518" W (15.11mm x 13.16mm) 0.598" L x 0.425" W (15.20mm x 10.80mm) 0.598" L x 0.500" W (15.20mm x 12.70mm) 0.598" L x 0.512" W (15.20mm x 13.00mm) 0.600" L x 0.300" W (15.24mm x 7.62mm) 0.600" L x 0.385" W (15.24mm x 9.78mm) 0.600" L x 0.430" W (15.24mm x 10.92mm) 0.600" L x 0.430" W (15.24mm x 10.93mm) 0.600" L x 0.470" W (15.25mm x 11.94mm) 0.600" L x 0.500" W (15.24mm x 12.70mm) 0.600" L x 0.515" W (15.24mm x 13.08mm) 0.600" L x 0.539" W (15.24mm x 13.70mm) 0.600" L x 0.540" W (15.24mm x 13.72mm) 0.600" L x 0.600" W (15.24mm x 15.24mm) 0.601" L x 0.541" W (15.26mm x 13.75mm) 0.605" L x 0.528" W (15.37mm x 13.41mm) 0.605" L x 0.547" W (15.37mm x 13.89mm) 0.606" L x 0.291" W (15.40mm x 7.40mm) 0.610" L x 0.280" W (15.49mm x 7.11mm) 0.610" L x 0.433" W (15.50mm x 11.00mm) 0.610" L x 0.480" W (15.49mm x 12.19mm) 0.610" L x 0.549" W (15.49mm x 13.95mm) 0.610" L x 0.610" W (15.50mm x 15.50mm) 0.614" L x 0.335" W (15.60mm x 8.50mm) 0.614" L x 0.343" W (15.60mm x 8.70mm) 0.615" L x 0.280" W (15.62mm x 7.11mm) 0.616" L x 0.433" W (15.65mm x 11.00mm) 0.620" L x 0.425" W (15.70mm x 10.08mm) 0.622" L x 0.599" W (15.80mm x 14.20mm) 0.623" L x 0.265" W (15.82mm x 6.74mm) 0.624" L x 0.624" W (15.86mm x 15.86mm) 0.630" L x 0.335" W (16.00mm x 8.50mm) 0.630" L x 0.472" W (16.00mm x 12.00mm) 0.630" L x 0.591" W (16.00mm x 15.00mm) 0.630" L x 0.630" W (16.00mm x 16.00mm) 0.646" L x 0.417" W (16.40mm x 10.60mm) 0.650" L x 0.354" W (16.50mm x 9.00mm) 0.650" L x 0.360" W (16.51mm x 9.14mm) 0.650" L x 0.365" W (16.51mm x 9.27mm) 0.650" L x 0.370" W (16.51mm x 9.41mm) 0.650" L x 0.406" W (16.50mm x 10.30mm) 0.650" L x 0.443" W (16.51mm x 11.25mm) 0.650" L x 0.620" W (16.51mm x 15.75mm) 0.650" L x 0.650" W (16.50mm x 16.50mm) 0.654" L x 0.354" W (16.60mm x 9.00mm) 0.654" L x 0.374" W (16.60mm x 9.50mm) 0.654" L x 0.520" W (16.60mm x 13.20mm) 0.654" L x 0.582" W (16.60mm x 14.80mm) 0.654" L x 0.583" W (16.60mm x 14.80mm) 0.655" L x 0.354" W (16.64mm x 8.99mm) 0.661" L x 0.335" W (16.80mm x 8.50mm) 0.661" L x 0.354" W (16.80mm x 9.00mm) 0.669" L x 0.390" W (17.00mm x 9.90mm) 0.669" L x 0.531" W (17.00mm x 13.50mm) 0.669" L x 0.591" W (17.00mm x 15.00mm) 0.669" L x 0.669" W (17.00mm x 17.00mm) 0.670" L x 0.492" W (17.02mm x 12.50mm) 0.670" L x 0.512" W (17.00mm x 13.00mm) 0.670" L x 0.770" W (17.02mm x 19.56mm) 0.672" L x 0.394" W (17.07mm x 10.00mm) 0.673" L x 0.581" W (17.10mm x 14.75mm) 0.675" L x 0.400" W (17.15mm x 10.16mm) 0.675" L x 0.455" W (17.15mm x 11.56mm) 0.675" L x 0.456" W (17.15mm x 11.58mm) 0.675" L x 0.560" W (17.15mm x 14.22mm) 0.680" L x 0.310" W (17.27mm x 7.87mm) 0.681" L x 0.512" W (17.30mm x 13.00mm) 0.685" L x 0.335" W (17.40mm x 8.50mm) 0.685" L x 0.688" W (17.40mm x 17.48mm) 0.689" L x 0.480" W (17.50mm x 12.20mm) 0.689" L x 0.559" W (17.50mm x 14.20mm) 0.689" L x 0.600" W (17.50mm x 15.24mm) 0.689" L x 0.728" W (17.50mm x 18.50mm) 0.690" L x 0.480" W (17.53mm x 12.19mm) 0.690" L x 0.480" W (17.53mm x 12.20mm) 0.690" L x 0.529" W (17.53mm x 13.44mm) 0.690" L x 0.575" W (17.53mm x 14.60mm) 0.690" L x 0.600" W (17.53mm x 15.24mm) 0.691" L x 0.480" W (17.55mm x 12.20mm) 0.693" L x 0.476" W (17.60mm x 12.10mm) 0.693" L x 0.480" W (17.60mm x 12.20mm) 0.693" L x 0.577" W (17.60mm x 14.65mm) 0.693" L x 0.657" W (17.60mm x 16.70mm) 0.694" L x 0.480" W (17.62mm x 12.20mm) 0.695" L x 0.480" W (17.65mm x 12.20mm) 0.695" L x 0.596" W (17.66mm x 15.14mm) 0.697" L x 0.480" W (17.65mm x 12.20mm) 0.697" L x 0.480" W (17.70mm x 12.20mm) 0.697" L x 0.496" W (17.70mm x 12.60mm) 0.698" L x 0.480" W (17.73mm x 12.19mm) 0.698" L x 0.585" W (17.73mm x 14.86mm) 0.698" L x 0.625" W (17.73mm x 15.88mm) 0.700" L x 0.380" W (17.78mm x 9.65mm) 0.700" L x 0.390" W (17.78mm x 9.91mm) 0.700" L x 0.410" W (17.78mm x 10.41mm) 0.700" L x 0.480" W (17.78mm x 12.19mm) 0.700" L x 0.490" W (17.78mm x 12.45mm) 0.700" L x 0.620" W (17.78mm x 15.75mm) 0.700" L x 0.625" W (17.78mm x 15.88mm) 0.701" L x 0.390" W (17.80mm x 9.91mm) 0.701" L x 0.480" W (17.80mm x 12.20mm) 0.701" L x 0.492" W (17.80mm x 12.50mm) 0.701" L x 0.669" W (17.80mm x 17.00mm) 0.701" L x 0.717" W (17.80mm x 18.20mm) 0.703" L x 0.364" W (17.85mm x 9.25mm) 0.703" L x 0.518" W (17.86mm x 13.16mm) 0.705" L x 0.480" W (17.91mm x 12.19mm) 0.705" L x 0.484" W (17.90mm x 12.30mm) 0.705" L x 0.551" W (17.91mm x 14.00mm) 0.705" L x 0.630" W (17.91mm x 16.00mm) 0.709" L x 0.500" W (18.00mm x 12.70mm) 0.710" L x 0.600" W (18.03mm x 15.24mm) 0.713" L x 0.480" W (18.10mm x 12.20mm) 0.715" L x 0.480" W (18.16mm x 12.19mm) 0.715" L x 0.480" W (18.16mm x 12.20mm) 0.715" L x 0.511" W (18.16mm x 12.98mm) 0.715" L x 0.595" W (18.16mm x 15.11mm) 0.715" L x 0.630" W (18.16mm x 16.01mm) 0.717" L x 0.478" W (18.20mm x 12.15mm) 0.717" L x 0.630" W (18.20mm x 16.00mm) 0.719" L x 0.600" W (18.25mm x 15.24mm) 0.720" L x 0.480" W (18.30mm x 12.20mm) 0.720" L x 0.511" W (18.28mm x 12.98mm) 0.720" L x 0.579" W (18.29mm x 14.70mm) 0.722" L x 0.485" W (18.33mm x 12.32mm) 0.722" L x 0.485" W (18.34mm x 12.32mm) 0.722" L x 0.487" W (18.34mm x 12.37mm) 0.724" L x 0.490" W (18.38mm x 12.44mm) 0.725" L x 0.480" W (18.42mm x 12.19mm) 0.725" L x 0.511" W (18.42mm x 12.98mm) 0.728" L x 0.520" W (18.50mm x 13.20mm) 0.728" L x 0.604" W (18.50mm x 15.34mm) 0.730" L x 0.600" W (18.54mm x 15.24mm) 0.732" L x 0.400" W (18.60mm x 10.16mm) 0.732" L x 0.512" W (18.60mm x 13.00mm) 0.733" L x 0.492" W (18.63mm x 12.50mm) 0.733" L x 0.500" W (18.00mm x 12.70mm) 0.743" L x 0.538" W (18.87mm x 13.67mm) 0.748" Dia (19.00mm) 0.750" L x 0.750" W (19.05mm x 19.05mm) 0.764" L x 0.580" W (19.40mm x 14.73mm) 0.768" L x 0.392" W (19.50mm x 9.96mm) 0.775" L x 0.940" W (19.68mm x 23.87mm) 0.780" L x 0.654" W (19.81mm x 16.62mm) 0.780" L x 0.655" W (19.81mm x 16.64mm) 0.780" L x 0.750" W (19.81mm x 19.05mm) 0.785" L x 0.551" W (19.94mm x 14.00mm) 0.787" L x 0.451" W (20.00mm x 11.46mm) 0.787" L x 0.787" W (20.00mm x 20.00mm) 0.790" L x 0.560" W (20.07mm x 14.22mm) 0.791" L x 0.591" W (20.10mm x 15.00mm) 0.791" L x 0.630" W (20.10mm x 16.00mm) 0.800" L x 0.285" W (20.32mm x 7.24mm) 0.800" L x 0.386" W (20.32mm x 9.80mm) 0.800" L x 0.400" W (20.32mm x 10.16mm) 0.800" L x 0.450" W (20.32mm x 11.43mm) 0.805" L x 0.540" W (20.45mm x 13.72mm) 0.810" L x 0.300" W (20.57mm x 7.62mm) 0.810" L x 0.480" W (20.57mm x 12.19mm) 0.810" L x 0.725" W (20.57mm x 18.42mm) 0.819" L x 0.402" W (17.30mm x 9.00mm) 0.819" L x 0.402" W (20.80mm x 10.20mm) 0.827" L x 0.803" W (21.00mm x 20.40mm) 0.839" L x 0.591" W (21.30mm x 15.00mm) 0.844" L x 0.630" W (21.45mm x 16.00mm) 0.854" L x 0.413" W (21.70mm x 10.50mm) 0.860" L x 1.150" W (21.84mm x 29.21mm) 0.866" L x 1.181" W (22.00mm x 30.00mm) 0.878" L x 0.748" W (22.30mm x 19.00mm) 0.878" L x 0.894" W (22.30mm x 22.70mm) 0.880" L x 0.540" W (22.35mm x 13.72mm) 0.886" L x 0.886" W (22.50mm x 22.50mm) 0.906" L x 0.906" W (23.00mm x 23.00mm) 0.920" L x 0.385" W (23.37mm x 9.78mm) 0.920" L x 0.500" W (23.37mm x 12.70mm) 0.920" L x 0.560" W (23.37mm x 14.22mm) 0.920" L x 0.960" W (23.37mm x 24.38mm) 0.930" L x 0.390" W (23.62mm x 9.91mm) 0.930" L x 0.630" W (23.62mm x 16.00mm) 0.930" L x 0.860" W (23.62mm x 21.84mm) 0.945" L x 0.492" W (24.00mm x 12.50mm) 0.945" L x 0.906" W (24.00mm x 23.00mm) 0.950" L x 0.580" W (24.13mm x 14.73mm) 0.950" L x 0.589" W (24.13mm x 14.96mm) 0.950" L x 0.600" W (24.13mm x 15.24mm) 0.961" L x 0.600" W (24.40mm x 15.24mm) 0.965" L x 0.608" W (24.52mm x 15.45mm) 0.967" L x 0.669" W (24.55mm x 17.00mm) 0.969" L x 0.776" W (24.60mm x 19.70mm) 0.972" L x 0.571" W (24.70mm x 14.50mm) 0.984" L x 0.787" W (25.00mm x 20.00mm) 0.988" L x 0.505" W (25.10mm x 12.83mm) 0.995" L x 0.395" W (25.28mmx 10.03mm) 1.000" L x 0.210" W (25.40mm x 5.33mm) 1.000" L x 0.300" W (25.40mm x 7.62mm) 1.000" L x 0.310" W (25.40mm x 7.87mm) 1.000" L x 0.350" W (25.40mm x 8.89mm) 1.000" L x 0.370" W (25.40mm x 9.40mm) 1.000" L x 0.385" W (25.40mm x 9.78mm) 1.000" L x 0.386" W (25.40mm x 9.80mm) 1.000" L x 0.390" W (25.40mm x 9.90mm) 1.000" L x 0.390" W (25.40mm x 9.91mm) 1.000" L x 0.394" W (25.40mm x 10.00mm) 1.000" L x 0.395" W (25.40mm x 10.03mm) 1.000" L x 0.400" W (25.40mm x 10.16mm) 1.000" L x 0.405" W (25.40mm x 10.29mm) 1.000" L x 0.430" W (25.40mm x 10.92mm) 1.000" L x 0.500" W (25.40mm x 12.70mm) 1.000" L x 0.505" W (25.40mm x 12.83mm) 1.000" L x 0.516" W (25.40mm x 13.10mm) 1.000" L x 0.677" W (25.40mm x 17.20mm) 1.000" L x 0.799" W (25.40mm x 20.30mm) 1.004" L x 1.004" W (25.50mm x 25.50mm) 1.006" L x 0.390" W (25.55mm x 9.90mm) 1.010" L x 0.400" W (25.65mm x 10.16mm) 1.012" L x 0.366" W (25.70mm x 9.30mm) 1.012" L x 0.374" W (25.70mm x 9.50mm) 1.012" L x 0.413" W (25.70mm x 10.50mm) 1.020" L x 0.480" W (25.90mm x 12.20mm) 1.045" L x 0.300" W (26.54mm x 7.62mm) 1.063" L x 0.886" W (27.00mm x 22.50mm) 1.063" L x 1.268" W (27.00mm x 32.20mm) 1.080" L x 0.480" W (27.43mm x 12.19mm) 1.085" L x 0.525" W (27.55mm x 13.34mm) 1.087" L x 1.083" W (27.60mm x 27.50mm) 1.090" L x 0.287" W (27.69mm x 7.29mm) 1.090" L x 0.600" W (27.69mm x 15.24mm) 1.090" L x 0.740" W (27.69mm x 18.80mm) 1.090" L x 0.750" W (27.69mm x 19.05mm) 1.091" L x 0.295" W (27.70mm x 7.50mm) 1.093" L x 0.287" W (27.75mm x 7.30mm) 1.094" L x 0.299" W (27.80mm x 7.60mm) 1.094" L x 0.480" W (27.80mm x 12.20mm) 1.095" L x 0.480" W (27.81mm x 12.19mm) 1.095" L x 0.590" W (27.81mm x 14.99mm) 1.095" L x 0.605" W (27.81mm x 15.37mm) 1.100" L x 0.297" W (27.94mm x 7.54mm) 1.100" L x 0.300" W (27.94mm x 7.62mm) 1.100" L x 0.395" W (27.94mm x 10.03mm) 1.100" L x 0.430" W (27.94mm x 10.92mm) 1.100" L x 0.476" W (27.94mm x 12.09mm) 1.100" L x 0.480" W (27.94mm x 12.19mm) 1.100" L x 0.625" W (27.94mm x 15.88mm) 1.100" L x 1.040" W (27.94mm x 26.42mm) 1.100" L x 1.150" W (27.94mm x 29.21mm) 1.102" L x 0.236" W (28.00mm x 6.00mm) 1.102" L x 0.469" W (28.00mm x 11.90mm) 1.102" L x 0.480" W (28.00mm x 12.20mm) 1.102" L x 0.492" W (28.00mm x 12.50mm) 1.102" L x 0.906" W (28.00mm x 23.00mm) 1.106" L x 0.433" W (28.10mm x 11.00mm) 1.106" L x 0.437" W (28.10mm x 11.10mm) 1.106" L x 0.469" W (28.10mm x 11.90mm) 1.106" L x 0.476" W (28.10mm x 12.10mm) 1.106" L x 0.480" W (28.10mm x 12.20mm) 1.110" L x 0.305" W (28.20mm x 7.75mm) 1.110" L x 0.480" W (28.19mm x 12.19mm) 1.110" L x 0.608" W (28.19mm x 15.44mm) 1.114" L x 0.500" W (28.30mm x 12.70mm) 1.114" L x 0.508" W (28.30mm x 12.90mm) 1.115" L x 0.500" W (28.32mm x 12.70mm) 1.120" L x 0.480" W (28.45mm x 12.19mm) 1.120" L x 0.680" W (28.45mm x 17.27mm) 1.122" L x 0.472" W (28.59mm x 12.00mm) 1.123" L x 0.488" W (28.52mm x 12.40mm) 1.125" L x 0.480" W (28.58mm x 12.19mm) 1.125" L x 0.485" W (28.58mm x 12.32mm) 1.125" L x 0.492" W (28.58mm x 12.50mm) 1.125" L x 0.500" W (28.57mm x 12.70mm) 1.126" L x 0.496" W (28.60mm x 12.60mm) 1.132" L x 0.600" W (28.75mm x 15.24mm) 1.142" L x 1.043" W (29.00mm x 26.50mm) 1.142" L x 1.090" W (29.01mm x 27.69mm) 1.145" L x 0.418" W (29.08mm x 10.62mm) 1.170" L x 0.500" W (29.72mm x 12.70mm) 1.171" L x 0.317" W (29.75mm x 8.05mm) 1.201" L x 0.500" W (30.5mm x 12.70mm) 1.220" L x 0.630" W (31.00mm x 16.00mm) 1.240" L x 0.492" W (31.50mm x 12.50mm) 1.255" L x 0.712" W (31.88mm x 18.08mm) 1.280" L x 0.335" W (32.50mm x 8.50mm) 1.291" L x 0.543" W (32.80mm x 13.80mm) 1.299" L x 0.772" W (33.00mm x 19.60mm) 1.307" L x 0.350" W (33.20mm x 8.90mm) 1.319" L x 1.142" W (33.50mm x 29.00mm) 1.343" L x 1.343" W (34.10mm x 34.10mm) 1.358" L x 0.748" W (34.50mm x 19.00mm) 1.417" Dia (36.00mm) 1.417" L x 1.102" W (36.00mm x 28.00mm) 1.772" L x 1.476" W (45.00mm x 37.50mm) 1.969" L x 1.969" W (50.00mm x 50.00mm) 2.004" L x 0.634" W (50.90mm x 16.10mm) 2.016" L x 0.634" W (51.20mm x 16.10mm) 2.060" L x 1.250" W (52.32mm x 31.75mm) 2.402" L x 2.217" W (61.00mm x 56.30mm)	- 0.073" (1.85mm) 0.078" (1.98mm) 0.079" (2.00mm) 0.082" (2.08mm) 0.083" (2.10mm) 0.084" (2.13mm) 0.085" (2.15mm) 0.085" (2.16mm) 0.087" (2.20mm) 0.088" (2.24mm) 0.089" (2.27mm) 0.090" (2.29mm) 0.091" (2.30mm) 0.093" (2.35mm) 0.093" (2.36mm) 0.094" (2.39mm) 0.098" (2.49mm) 0.098" (2.50mm) 0.100" (2.54mm) 0.105" (2.67mm) 0.108" (2.75mm) 0.110" (2.80mm) 0.111" (2.83mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.120" (3.04mm) 0.122" (3.10mm) 0.124" (3.15mm) 0.126" (3.20mm) 0.128" (3.25mm) 0.135" (3.43mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.140" (3.56mm) 0.145" (3.68mm) 0.145" (3.69mm) 0.148" (3.75mm) 0.150" (3.80mm) 0.155" (3.93mm) 0.155" (3.94mm) 0.157" (3.99mm) 0.157" (4.00mm) 0.158" (4.01mm) 0.159" (4.04mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.163" (4.14mm) 0.165" (4.19mm) 0.167" (4.25mm) 0.172" (4.37mm) 0.173" (4.39mm) 0.177" (4.50mm) 0.179" (4.55mm) 0.180" (4.57mm) 0.185" (4.70mm) 0.187" (4.75mm) 0.189" (4.80mm) 0.190" (4.82mm) 0.191" (4.85mm) 0.192" (4.88mm) 0.196" (4.98mm) 0.197" (5.00mm) 0.198" (5.03mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.202" (5.13mm) 0.203" (5.15mm) 0.205" (5.20mm) 0.207" (5.25mm) 0.209" (5.30mm) 0.210" (5.33mm) 0.212" (5.38mm) 0.213" (5.40mm) 0.215" (5.45mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.217" (5.51mm) 0.219" (5.55mm) 0.220" (5.59mm) 0.220" (5.60mm) 0.222" (5.65mm) 0.223" (5.67mm) 0.224" (5.70mm) 0.225" (5.71mm) 0.225" (5.72mm) 0.226" (5.73mm) 0.226" (5.74mm) 0.226" (5.75mm) 0.227" (5.76mm) 0.228" (5.79mm) 0.228" (5.80mm) 0.230" (5.84mm) 0.230" (5.85mm) 0.231" (5.87mm) 0.232" (5.90mm) 0.233" (5.91mm) 0.234" (5.95mm) 0.235" (5.97mm) 0.236" (5.99mm) 0.236" (6.00mm) 0.237" (6.02mm) 0.238" (6.05mm) 0.240" (6.09mm) 0.240" (6.10mm) 0.241" (6.12mm) 0.242" (6.15mm) 0.244" (6.20mm) 0.245" (6.22mm) 0.245" (6.23mm) 0.246" (6.25mm) 0.248" (6.30mm) 0.250" (6.35mm) 0.251" (6.37mm) 0.251" (6.38mm) 0.252" (6.40mm) 0.254" (6.45mm) 0.255" (6.47mm) 0.255" (6.48mm) 0.256" (6.50mm) 0.260" (6.60mm) 0.264" (6.70mm) 0.265" (6.73mm) 0.266" (6.75mm) 0.266" (6.80mm) 0.268" (6.80mm) 0.270" (6.85mm) 0.270" (6.86mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.280" (7.10mm) 0.280" (7.11mm) 0.283" (7.20mm) 0.284" (7.21mm) 0.285" (7.24mm) 0.285" (7.25mm) 0.287" (7.30mm) 0.290" (7.36mm) 0.290" (7.37mm) 0.291" (7.40mm) 0.295" (7.49mm) 0.295" (7.50mm) 0.299" (7.60mm) 0.300" (7.62mm) 0.304" (7.73mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.310" (7.87mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.319" (8.10mm) 0.320" (8.12mm) 0.320" (8.13mm) 0.323" (8.20mm) 0.326" (8.28mm) 0.328" (8.33mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.335" (8.50mm) 0.338" (8.59mm) 0.340" (8.63mm) 0.340" (8.64mm) 0.341" (8.65mm) 0.341" (8.66mm) 0.344" (8.74mm) 0.346" (8.80mm) 0.350" (8.89mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.360" (9.14mm) 0.365" (9.27mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.380" (9.65mm) 0.385" (9.77mm) 0.388" (9.86mm) 0.390" (9.90mm) 0.390" (9.91mm) 0.394" (10.00mm) 0.394" (10.01mm) 0.395" (10.03mm) 0.400" (10.15mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.404" (10.26mm) 0.406" (10.30mm) 0.409" (10.40mm) 0.410" (10.41mm) 0.413" (10.50mm) 0.415" (10.54mm) 0.417" (10.58mm) 0.417" (10.60mm) 0.420" (10.67mm) 0.425" (10.80mm) 0.427" (10.85mm) 0.429" (10.90mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.435" (11.05mm) 0.438" (11.12mm) 0.440" (11.18mm) 0.441" (11.20mm) 0.445" (11.30mm) 0.450" (11.43mm) 0.451" (11.45mm) 0.453" (11.50mm) 0.457" (11.60mm) 0.458" (11.63mm) 0.461" (11.70mm) 0.467" (11.85mm) 0.472" (11.99mm) 0.472" (12.00mm) 0.484" (12.30mm) 0.485" (12.32mm) 0.490" (12.45mm) 0.492" (12.50mm) 0.500" (12.70mm) 0.502" (12.75mm) 0.504" (12.80mm) 0.512" (13.00mm) 0.516" (13.10mm) 0.520" (13.20mm) 0.526" (13.36mm) 0.530" (13.46mm) 0.531" (13.50mm) 0.532" (13.50mm) 0.535" (13.60mm) 0.551" (14.00mm) 0.571" (14.50mm) 0.580" (14.73mm) 0.590" (14.99mm) 0.610" (15.50mm) 0.620" (15.74mm) 0.622" (15.80mm) 0.640" (16.25mm) 0.640" (16.26mm) 0.650" (16.50mm) 0.661" (16.80mm) 0.669" (17.00mm) 0.671" (17.05mm) 0.690" (17.53mm) 0.697" (17.70mm) 0.709" (18.00mm) 0.710" (18.03mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.752" (19.10mm) 0.787" (20.00mm) 0.795" (20.20mm) 0.810" (20.57mm) 0.820" (20.82mm) 0.820" (20.83mm) 0.821" (20.85mm) 0.827" (21.00mm) 0.886" (22.50mm) 0.933" (23.70mm) 0.992" (25.20mm) 1.000" (25.40mm) 1.004" (25.50mm) 1.050" (26.67mm) 1.181" (30.00mm) 1.190" (30.23mm) 1.200" (30.48mm) 1.378" (35.00mm) 12.45mm 2.362" (60.00mm)	- -20°C ~ 105°C -20°C ~ 125°C -20°C ~ 85°C -25°C ~ 100°C -25°C ~ 105°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 110°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 110°C -40°C ~ 120°C -40°C ~ 125°C -40°C ~ 130°C -40°C ~ 140°C -40°C ~ 150°C -40°C ~ 55°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -40°C ~ 90°C -40°C ~ 95°C -45°C ~ 125°C -45°C ~ 85°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 130°C -55°C ~ 85°C 0°C ~ 70°C 0°C ~ 85°C	- Automotive COTS	- AEC-Q200

Alles zurücksetzen

Alle anwenden

Ergebnis

Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
PA1135NLT XFRMR 12V 7W 264UH POE EP10 SMD Pulse Electronics	200	-	RFQ	Datenblatt	EP10	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	264.1µH	-	1:0.286:0.204	Surface Mount	0.515" L x 0.600" W (13.08mm x 15.24mm)	0.451" (11.45mm)	-40°C ~ 125°C	-	-

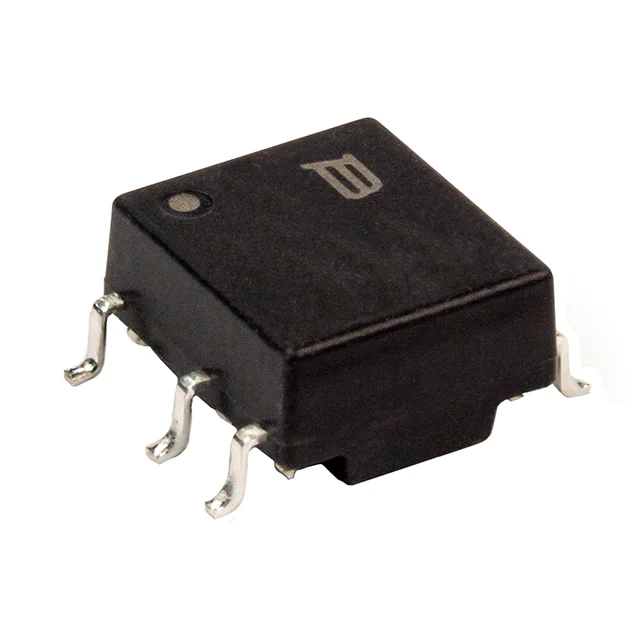

SM91508AL-E XFRMR PULSE 1:1 300UH SMD Bourns Inc.	3,468	-	RFQ	Datenblatt	SM	Tape & Reel (TR)	Active	-	300µH	-	1:1	Surface Mount	0.330" L x 0.303" W (8.38mm x 7.69mm)	0.167" (4.25mm)	-40°C ~ 150°C	Automotive	AEC-Q200
PA1276NLT XFRMR 12V 13.5W 77.4UH POE EP13 Pulse Electronics	108	-	RFQ	Datenblatt	EP13	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	77.4µH	-	1:0.682:0.682	Surface Mount	0.551" L x 0.695" W (14.00mm x 17.65mm)	0.500" (12.70mm)	-40°C ~ 130°C	-	-
B82804A0324A220 PULSE XFMR 2:1:1 317UH EPCOS - TDK Electronics	578	-	RFQ	Datenblatt	EP5	Tape & Reel (TR)	Active	Gate Drive	317µH	24.5VµS	2:1:1	Surface Mount	0.264" L x 0.240" W (6.70mm x 6.10mm)	0.213" (5.40mm)	-40°C ~ 125°C	-	-
7490100161A TRANSFORMER 10/100 BASE-T SMD Würth Elektronik	546	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500" L x 0.346" W (12.70mm x 8.80mm)	0.250" (6.35mm)	-40°C ~ 125°C	-	-
BX4550NL XFMR SGL G.FAST TOR 1CT:1CT Pulse Electronics	2,255	-	RFQ	Datenblatt	-	Tray	Active	-	-	-	-	-	-	-	-	-	-

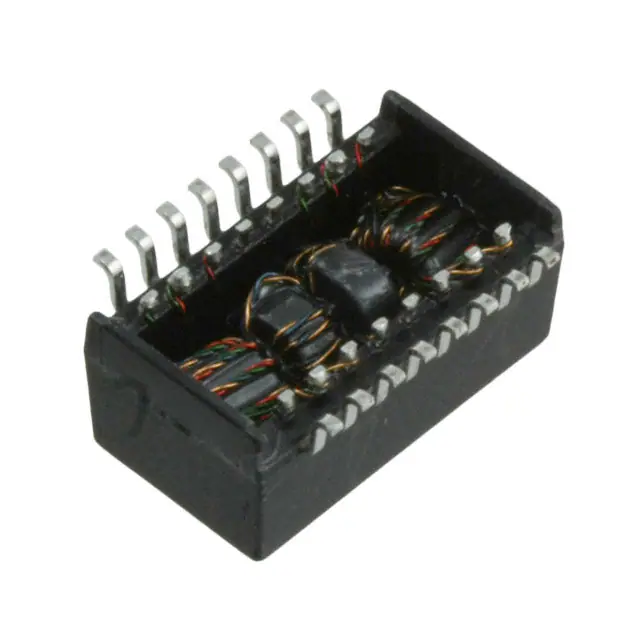

HX1260NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics	2,725	-	RFQ	Datenblatt	Star Magnetics™	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH, 400µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.235" (5.97mm)	-40°C ~ 85°C	-	-
IL-20-0001 IL5 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	205	-	RFQ	Datenblatt	IL	Bulk	Active	SCR and Triac Trigger (Encapsulated)	3mH	300VµS	1:1:1	Through Hole	1.102" L x 0.906" W (28.00mm x 23.00mm)	0.571" (14.50mm)	-25°C ~ 70°C	-	-
PA1528NLT XFRMR 15V 27W 28.9UH POE EP13 Pulse Electronics	884	-	RFQ	Datenblatt	EP13	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	28.9µH	-	1:0.470:0.294	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
PH9185.011NLT TRANSFORMER 750UH 1:1 SMD Pulse Electronics	6,383	-	RFQ	Datenblatt	PH9185	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-
PH9185.038NLT TRANSFORMER 310UH 3:8 SMD Pulse Electronics	974	-	RFQ	Datenblatt	PH9185	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-
HX2260NLT XFRMR MODUL 1PORT POE 1:1 10/100 Pulse Electronics	1,265	-	RFQ	Datenblatt	Star Magnetics™	Tape & Reel (TR)	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.245" (6.22mm)	-40°C ~ 85°C	-	-
PH9185.021NLT TRANSFORMER 880UH 2:1 SMD Pulse Electronics	436	-	RFQ	Datenblatt	PH9185	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-

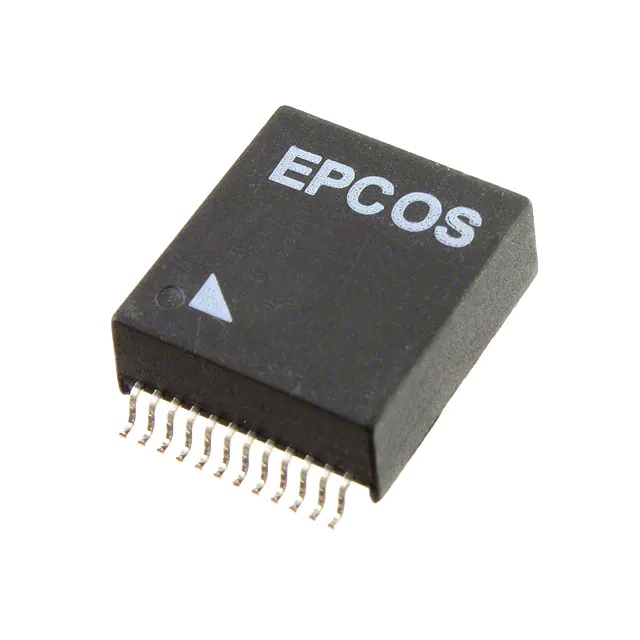

B78476A8135A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	1,599	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.543" L x 0.598" W (13.80mm x 15.20mm)	0.226" (5.75mm)	-40°C ~ 85°C	-	-

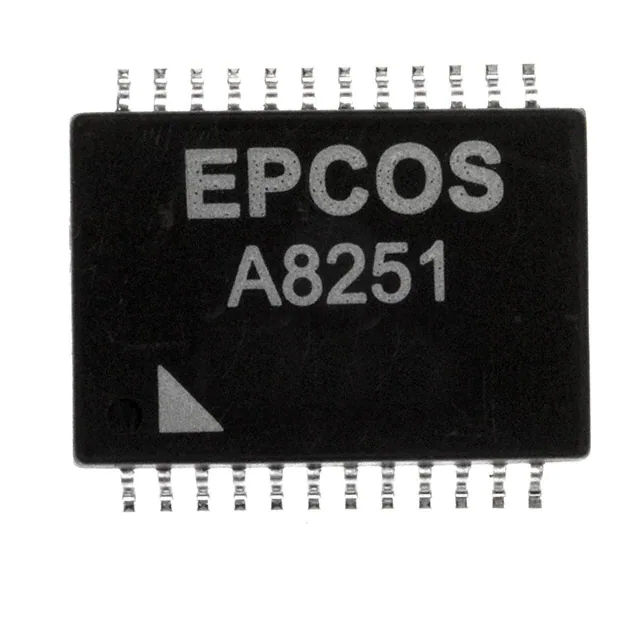

B78476A8251A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	692	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.693" L x 0.476" W (17.60mm x 12.10mm)	0.230" (5.85mm)	-40°C ~ 85°C	-	-
B78476A8317A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	625	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.693" L x 0.476" W (17.60mm x 12.10mm)	0.228" (5.80mm)	0°C ~ 70°C	-	-
750031353 TRANSFORMER SI3210 SI3211SMD Würth Elektronik	548	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	11.3µH	-	5:1	Surface Mount	0.530" L x 0.699" W (13.46mm x 17.75mm)	0.500" (12.70mm)	-	-	-
749012310 WE-LAN AQ 10/100 BASE-T SMT TRAN Würth Elektronik	800	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	150µH	-	1:1	Surface Mount	0.500" L x 0.341" W (12.70mm x 8.67mm)	0.157" (4.00mm)	-40°C ~ 85°C	-	-
7490100111 TRANSFORMER LAN 10/100 SMD Würth Elektronik	6,419	-	RFQ	Datenblatt	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.510" L x 0.280" W (12.95mm x 7.11mm)	0.210" (5.33mm)	-25°C ~ 105°C	-	-
SM91501ALO-E BMS TRANSFORMER/CMC, 12PIN, DUAL Bourns Inc.	2,000	-	RFQ	Datenblatt	SM	Tape & Reel (TR)	Active	-	150µH	-	1:1	Surface Mount	0.583" L x 0.460" W (14.81mm x 11.68mm)	0.197" (5.00mm)	-40°C ~ 125°C	-	-

Total 5221 Record«Prev 1... 11 12 13 141516 17 18...262 Next»
