Impulstransformatoren

Impulstransformatoren sind magnetische Komponenten, die zur Übertragung von Impulssignalen, zur galvanischen Isolation und zur zuverlässigen Signalkopplung in elektronischen Schaltungen eingesetzt werden. Sie werden häufig in Schaltnetzteilen, Gate-Drive-Schaltungen, Kommunikationsgeräten, industriellen Steuerungssystemen, Datenübertragung, Messtechnik, Automobilelektronik und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Signal-Impulstransformatoren, Gate-Drive-Transformatoren, isolierende Impulstransformatoren, LAN-Impulstransformatoren, Trigger-Transformatoren und verwandte Hochfrequenz-Magnetkomponenten. Die Auswahl erfolgt häufig nach Übersetzungsverhältnis, Isolationsspannung, Impulsbreite, Frequenzbereich, Impedanz, Bauform, Montageart und Anwendungsanforderungen.

TomatoElec liefert originale Impulstransformatoren von anerkannten Herstellern wie Pulse Electronics, Würth Elektronik, Bourns, TDK, Murata, Coilcraft, Triad Magnetics, TE Connectivity und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Transformatortyp	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur	Klasse	Qualifizierung
TGRSP-GHN2V8LF ISO MOD G.HN 1:2:2C 4KV SMD HALO Electronics, Inc.	-	RFQ	-	-	Tube	Active	General Purpose	12.7µH	-	1:2:2CT	Surface Mount	0.590" L x 0.475" W (14.99mm x 12.07mm)	0.340" (8.64mm)	-40°C ~ 85°C	-	-
HX1188T PULSE XFMR 1:1 TX 1:1 RX Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Obsolete	LAN 10/100 Base-T	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500" L x 0.280" W (12.70mm x 7.11mm)	0.235" (5.97mm)	-40°C ~ 85°C	-	-
HXE2009HL TRANSF ESS BMS 1500V 4.3KV Pulse Electronics	-	RFQ	Datenblatt	HXE20xxHL	Tube	Active	Battery Management	150µH	-	1:1	Surface Mount	0.733" L x 0.492" W (18.63mm x 12.50mm)	0.344" (8.74mm)	-40°C ~ 125°C	-	-
HXE2013HL TRANSF ESS BMS 1500V 5.0KV Pulse Electronics	-	RFQ	Datenblatt	HXE20xxHL	Tube	Active	Battery Management	150µH	-	1:1	Surface Mount	0.733" L x 0.492" W (18.63mm x 12.50mm)	0.344" (8.74mm)	-40°C ~ 125°C	-	-
HXE2017HL TRANSF ESS BMS 1500V 6.0KV Pulse Electronics	-	RFQ	Datenblatt	HXE20xxHL	Tube	Active	Battery Management	150µH	-	1:1	Surface Mount	0.733" L x 0.492" W (18.63mm x 12.50mm)	0.344" (8.74mm)	-40°C ~ 125°C	-	-
TG110-ESV01N6RL ISO MOD 10/100 SHOCK/VIB X-TEMP HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Not For New Designs	Isolation and Data Interface (Encapsulated)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.580" L x 0.280" W (14.73mm x 7.11mm)	0.250" (6.35mm)	-40°C ~ 85°C	-	-
TLA-6T103LF XFRMR FOR QS6611 CHIP SET 16SOP TDK Corporation	-	RFQ	Datenblatt	TLA	Tape & Reel (TR)	Obsolete	LAN	350µH	-	1CT:1CT	Surface Mount	1.012" L x 0.366" W (25.70mm x 9.30mm)	0.234" (5.95mm)	0°C ~ 70°C	-	-
PA0769NLT PULSE XFMR 89.2UH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	89.2µH	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-40°C ~ 125°C	-	-
PA1477NLT PULSE XFMR 38.3UH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	38.3µH	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-40°C ~ 125°C	-	-
PA2114NL PULSE XFMR 164UH Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Active	-	164µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
PA2114NLT PULSE XFMR 164UH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	164µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
ITNB-0239-D202 ITNB PULSE TRANSFORMER THT 0.17A SCHURTER Inc.	-	RFQ	Datenblatt	IT	Bulk	Active	SCR and Triac Trigger (Encapsulated)	1.8mH	350VµS	2:1	Through Hole	0.878" L x 0.894" W (22.30mm x 22.70mm)	0.535" (13.60mm)	-25°C ~ 100°C	-	-
TG1G-S031NYLF ISO MOD 1G 24P SMD HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.600" L x 0.540" W (15.24mm x 13.72mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
TG1G-S001NZLFTR ISO MOD 1G 24P SMD T/R HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.700" L x 0.480" W (17.78mm x 12.19mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-
TG74-1505NZLF ISO MOD T1 DUAL 1C:2C X-TEMP 24P HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Active	T1/E1 (Dual)	-	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.700" L x 0.480" W (17.78mm x 12.19mm)	0.230" (5.84mm)	-	-	-
TG1G-S035NYLFTR ISO MOD 1G 24P SMD T/R HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	LAN 10/100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.600" L x 0.540" W (15.24mm x 13.72mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-

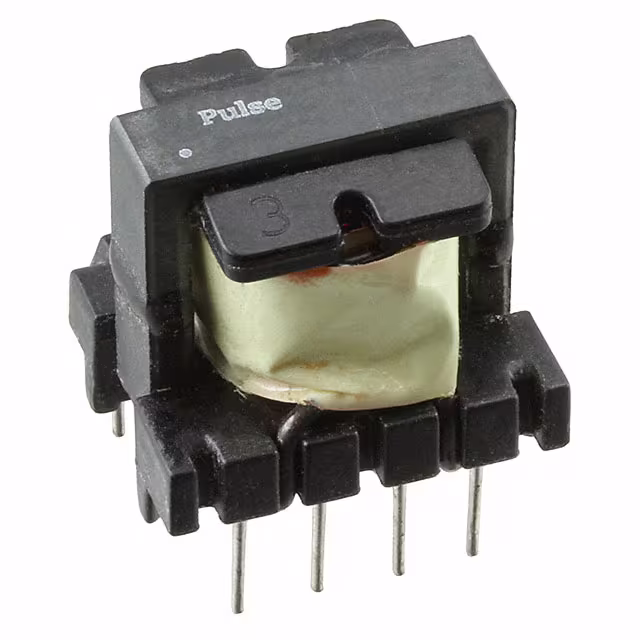

PA2531NL PULSE XFMR 4.5UH Pulse Electronics	-	RFQ	Datenblatt	-	Tray	Active	-	4.5µH	-	-	Through Hole	0.717" L x 0.630" W (18.20mm x 16.00mm)	0.709" (18.00mm)	-40°C ~ 130°C	-	-
PA2053NLT PULSE XFMR 292UH Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Active	-	292µH	-	-	Surface Mount	0.860" L x 1.150" W (21.84mm x 29.21mm)	0.450" (11.43mm)	-40°C ~ 125°C	-	-
H1138NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics	-	RFQ	Datenblatt	-	Tape & Reel (TR)	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000" L x 0.390" W (25.40mm x 9.91mm)	0.245" (6.22mm)	0°C ~ 70°C	-	-
TG1G-S001NZRL ISO MOD 1G 24P SMD HALO Electronics, Inc.	-	RFQ	Datenblatt	-	Tube	Not For New Designs	LAN 10/100 Base-TX	350µH	-	1CT:1CT	Surface Mount	0.700" L x 0.480" W (17.78mm x 12.19mm)	0.230" (5.84mm)	0°C ~ 70°C	-	-

Total 5221 Record«Prev 1... 130 131 132 133134135 136 137...262 Next»
