DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS-2409DDC DC CONVERTER +/-9V 2W |
21 | - |
|
Datenblatt |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TRV 2-0512M2 WATT ENCAPSULATED SIP-9 MEDICA |
20 | - |
|
Datenblatt |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 7V | 12V | - | - | - | 167mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|
|
TRV 2-0510M2 WATT ENCAPSULATED SIP-9 MEDICA |
10 | - |
|
Datenblatt |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 7V | 3.3V | - | - | - | 600mA | 1.98 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 78% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|
|
TRV 2-1213M2 WATT ENCAPSULATED SIP-9 MEDICA |
7 | - |
|
Datenblatt |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9.6V | 14.4V | 15V | - | - | - | 134mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|
NDS6S2412CDC DC CONVERTER 12V 6W |
15 | - |
|
Datenblatt |
NDS6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
|
NDS6S2415CDC DC CONVERTER 15V 6W |
15 | - |
|
Datenblatt |
NDS6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
NDS6D2405CDC DC CONVERTER 5-12V -5V 6W |
10 | - |
|
Datenblatt |
NDS6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5 ~ 12V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
|
RS-2415SZDC DC CONVERTER 15V 2W |
76 | - |
|
Datenblatt |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
.jpg)
|
RS-2409SZDC DC CONVERTER 9V 2W |
12 | - |
|
Datenblatt |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RSO-1215SZDC DC CONVERTER 15V 1W |
93 | - |
|
Datenblatt |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 78 ~ 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RSO-1212SZDC DC CONVERTER 12V 1W |
22 | - |
|
Datenblatt |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
EC4AW04DC DC CONVERTER +/-12V 5.5W |
14 | - |
|
Datenblatt |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 230mA, 230mA | 5.5 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
RW-1205SDC DC CONVERTER 5V 3W |
15 | - |
|
Datenblatt |
ECONOLINE RW-S (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 73% | - | - | Through Hole | 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm) | - | - | - | - |
|
RW-2405SDC DC CONVERTER 5V 3W |
15 | - |
|
Datenblatt |
ECONOLINE RW-S (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 78% | - | - | Through Hole | 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm) | - | - | - | - |
|
RW-2412SDC DC CONVERTER 12V 3W |
15 | - |
|
Datenblatt |
ECONOLINE RW-S (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 84% | - | - | Through Hole | 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm) | - | - | - | - |
|
|
RW-2415SDC DC CONVERTER 15V 3W |
15 | - |
|
Datenblatt |
ECONOLINE RW-S (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 85% | - | - | Through Hole | 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm) | - | - | - | - |
|

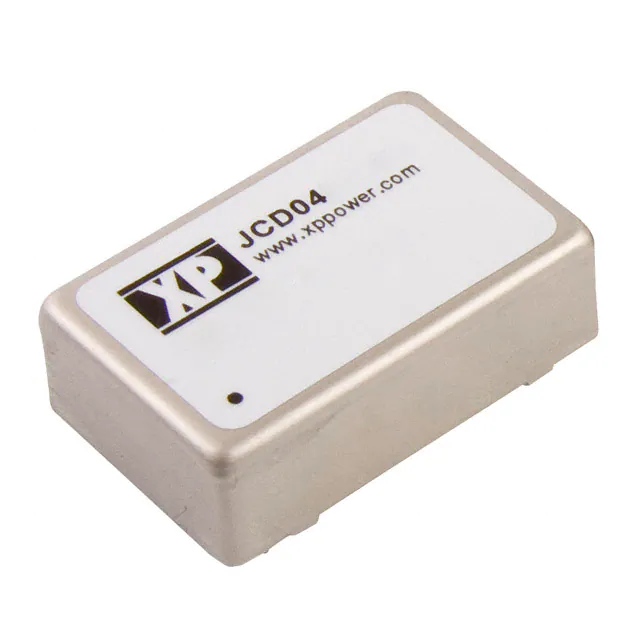

JCD0448S24DC DC CONVERTER 24V 4W |
44 | - |
|
Datenblatt |
JCD (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 24V | - | - | - | 166mA | 4 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|
|
JCD0424S05DC DC CONVERTER 5V 4W |
40 | - |
|
Datenblatt |
JCD (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 800mA | 4 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|
|
JCD0412S05DC DC CONVERTER 5V 4W |
20 | - |
|
Datenblatt |
JCD (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 800mA | 4 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|
JTE0624D12DC DC CONVERTER +/-12V 6W |
19 | - |
|
Datenblatt |
JTE (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
