DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2S8-1515DC DC CONVERTER 15V 2W |
39 | - |
|
Datenblatt |
ECONOLINE R2S (2W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
ITP0312S3V3DC DC CONVERTER 3.3V 2.3W |
20 | - |
|
Datenblatt |
ITP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 3.3V | - | - | - | 700mA | 2.3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 75% | - | - | Through Hole | 0.67" L x 0.38" W x 0.48" H (17.0mm x 9.5mm x 12.2mm) | - | - | - | - |
|
|
ITP0324S12DC DC CONVERTER 12V 3W |
19 | - |
|
Datenblatt |
ITP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 84% | - | - | Through Hole | 0.67" L x 0.38" W x 0.48" H (17.0mm x 9.5mm x 12.2mm) | - | - | - | - |
|
EC3SAW-24D15PDC DC CONVERTER +/-15V 3W |
12 | - |
|
Datenblatt |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | CE | 60950-1 |
|
|
EC3SAW-24D12PDC DC CONVERTER +/-12V 3W |
9 | - |
|
Datenblatt |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | CE | 60950-1 |
|
REC5A-0505SW/H2/X1DC DC CONVERTER 5V 5W |
30 | - |
|
Datenblatt |
REC5A (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 2 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 73.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
R05P05S/PDC DC CONVERTER 5V 1W |
18 | - |
|
Datenblatt |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
R24P209SDC DC CONVERTER 9V 2W |
60 | - |
|
Datenblatt |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R15P212SDC DC CONVERTER 12V 2W |
14 | - |
|
Datenblatt |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 167mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
RP-2405S/X2DC DC CONVERTER 5V 1W |
30 | - |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
MGW32415DC DC CONVERTER +/-15V |
90 | - |
|
Datenblatt |
MGW (3W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
|
MGW32412DC DC CONVERTER +/-12V 24V 3.1W |
66 | - |
|
Datenblatt |
MGW (3W) | 5-SIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
MGS3053R3DC DC CONVERTER 3.3V |
65 | - |
|
Datenblatt |
MGS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 800mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
MGS32415DC DC CONVERTER 15V |
62 | - |
|
Datenblatt |
MGS (3W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
EC3AB26DC DC CONVERTER +/-15V 3W |
34 | - |
|
Datenblatt |
EC3AB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | - | - |
|
MGS30512DC DC CONVERTER 12V |
32 | - |
|
Datenblatt |
MGS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
MGS32412DC DC CONVERTER 12V |
23 | - |
|
Datenblatt |
MGS (3W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
|
MGS31212DC DC CONVERTER 12V |
20 | - |
|
Datenblatt |
MGS (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|

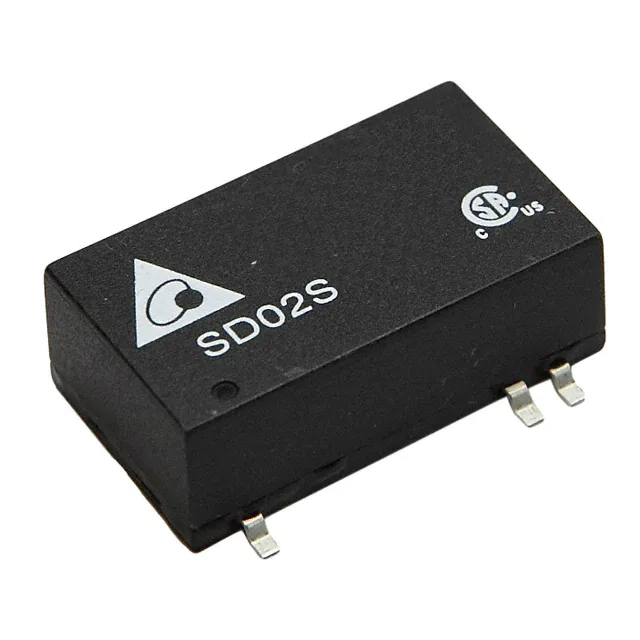

SD02S1205ADC DC CONVERTER 5V 2W |
17 | - |
|
Datenblatt |
SD02S/D (2W) | 16-SMD Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm) | - | - | - | - |
|
TRS 2-0915DC DC CONVERTER 24V 2W |
19 | - |
|
Datenblatt |
TRS 2 (2W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 24V | - | - | - | 83mA | 2 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Surface Mount | 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm) | - | - | - | - |
