DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM01HV12VP1KV2MAPDIP High Voltage - Non-Isolated |
26 | - |
|
Datenblatt |
- | 9-DIP Module | Tape & Box (TB) | Active | Non-Isolated PoL Module | 1 | 11V | 13V | 1000V | - | - | - | 2mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | 1.77" L x 0.91" W x 0.59" H (45.0mm x 23.0mm x 15.0mm) | - | - | - | - |
|
|
KDHM-A-24S200P-VDC DC CONVERTER 200V 250MW |
100 | - |
|
Datenblatt |
KDHM-A | 6-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ 200V | - | - | - | 1mA | 200 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
|
KDHM-A-24S200N-VDC DC CONVERTER -200V 250MW |
100 | - |
|
Datenblatt |
KDHM-A | 6-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ -200V | - | - | - | 1mA | 200 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
|
KDHM-A-24S300N-VDC DC CONVERTER -300V 250MW |
100 | - |
|
Datenblatt |
KDHM-A | 6-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ -300V | - | - | - | 1mA | 300 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
|
KDHM-A-24S300P-VDC DC CONVERTER 300V 250MW |
100 | - |
|
Datenblatt |
KDHM-A | 6-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ 300V | - | - | - | 1mA | 300 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
|
AHVR15V4KV2R5MAPI/O Proportional High Voltage |
30 | - |
|
Datenblatt |
- | 4-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 0V | 15V | 4000V | - | - | - | 2.5mA | - | 3.5 kV | ITE (Commercial) | Adjustable Output | -10°C ~ 70°C | 70% | - | - | Through Hole | 2.80" L x 1.70" W x 0.85" H (71.1mm x 43.2mm x 21.6mm) | 4-DIP Module | - | - | - |
|
|
AHVR12V500V20MAPI/O Proportional High Voltage |
30 | - |
|
Datenblatt |
- | 4-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 0V | 12V | 500V | - | - | - | 20mA | - | 3.5 kV | ITE (Commercial) | Adjustable Output | -10°C ~ 70°C | 70% | - | - | Through Hole | 2.80" L x 1.70" W x 0.85" H (71.1mm x 43.2mm x 21.6mm) | 4-DIP Module | - | - | - |
|
|
ACCHV12V6KV1MAWCapacitor Charging High Voltage |
100 | - |
|
Datenblatt |
- | Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 6000V | - | - | - | 1mA | - | - | ITE (Commercial) | Adjustable Output | -10°C ~ 55°C | 70% | - | - | - | 4.11" L x 2.36" W x 1.10" H (104.5mm x 60.0mm x 28.0mm) | - | - | - | - |
|
|
KDHM-A-24S400N-VDC DC CONVERTER -400V 250MW |
100 | - |
|
Datenblatt |
KDHM-A | 6-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ -400V | - | - | - | 500µA | 200 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
|
KDHM-A-24S500N-VDC DC CONVERTER -500V 250MW |
100 | - |
|
Datenblatt |
KDHM-A | 6-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ -500V | - | - | - | 500µA | 250 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
2S4E_0515S1UISOLATED MODULE DC DC CONVERTERS |
56 | - |
|
Datenblatt |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
TPS82084SILTDC DC CONVERTER 0.8-6V |
74 | - |
|
Datenblatt |
MicroSip™ | 8-LDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.5V | 6V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm) | 8-uSIP (3x2.8) | - | - | - |
|
TSR 1.5-2450E1.5 AMP POL CONVERTER, INDUSTRIA |
81 | - |
|
Datenblatt |
TSR 1.5E | 3-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 5V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.39" L x 0.25" W x 0.59" H (10.0mm x 6.5mm x 14.9mm) | 3-SIP Module | - | - | - |
|

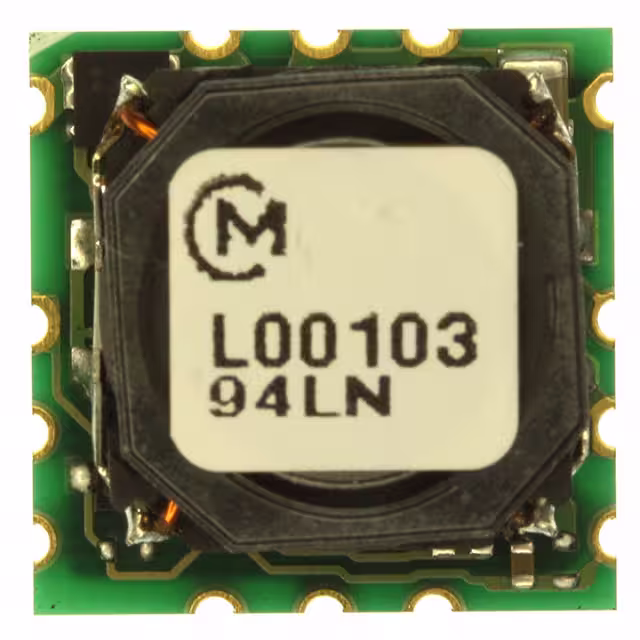

OKL-T/3-W12N-CDC DC CONVERTER 0.591-5.5V 15W |
33 | - |
|
Datenblatt |
Okami™ OKL-T/3-W12 | 12-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.591 ~ 5.5V | - | - | - | 3A | 15 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.25" H (12.2mm x 12.2mm x 6.4mm) | - | Enable, Active Low | - | - |
|
NKE1209SCDC DC CONVERTER 9V 1W |
70 | - |
|
Datenblatt |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
MTC1S2405MC-R13DC DC CONVERTER 5V 1W |
34 | - |
|
Datenblatt |
MTC1 (1W) | 6-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 100°C | 76.5% | - | - | Surface Mount | 0.59" L x 0.56" W x 0.44" H (15.0mm x 14.2mm x 11.2mm) | - | - | - | - |
|
NTE0512MCDC DC CONVERTER 12V 1W |
67 | - |
|
Datenblatt |
NTE (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm) | - | - | - | - |
|

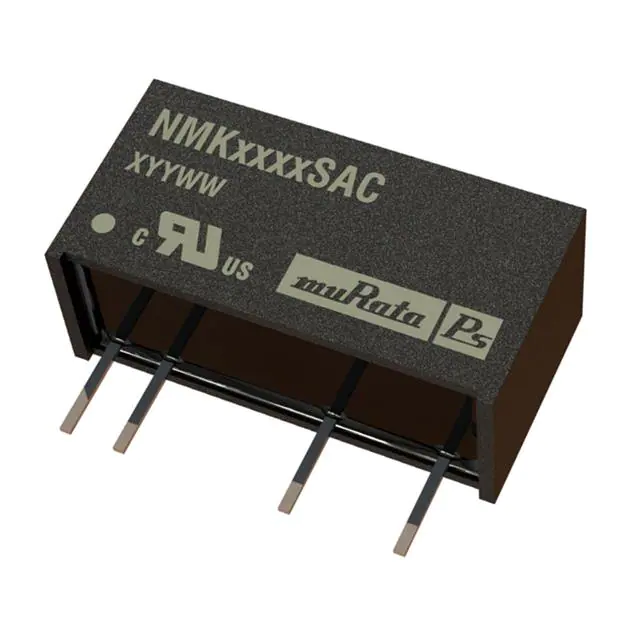

NMK1212SACDC DC CONVERTER 12V 2W |
82 | - |
|
Datenblatt |
NMK (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm) | - | - | - | - |
|
|
NMK2415SACDC DC CONVERTER 15V 2W |
38 | - |
|
Datenblatt |
NMK (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm) | - | - | - | - |
|
MGJ2D121505SCDC DC CONVERTER 15V -5V 2W |
84 | - |
|
Datenblatt |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -5V | - | - | 80mA, 40mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
