DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT3321NDC DC CONVERTER 3.3V 30W |
0 | - |
|
Datenblatt |
PT3320 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | - |
|
|
PT3324NDC DC CONVERTER 15V 30W |
0 | - |
|
Datenblatt |
PT3320 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | - |
|
|
PT3341ADC DC CONVERTER 3.3V 30W |
351 | - |
|
Datenblatt |
PT3340 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 60V | 3.3V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT3322NDC DC CONVERTER 5V 30W |
0 | - |
|
Datenblatt |
PT3320 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | - |
|
|
PT3327NDC DC CONVERTER 1.8V 30W |
284 | - |
|
Datenblatt |
PT3320 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.8V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | - | - | - | - | - |
|
|
PT7749NDC DC CONVERTER 1.3-3.5V 15A |
600 | - |
|
- |
PT7740 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3V | 5.5V | 1.3 ~ 3.5V | - | - | - | 18A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole, Vertical | - | - | - | - | - |
|
|
PT7743NDC DC CONVERTER 1.3-3.5V 20A |
0 | - |
|
Datenblatt |
PT7740 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 20A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole, Vertical | - | - | - | - | - |
|
|
PT4101CDC DC CONVERTER 5V 15W |
0 | - |
|
Datenblatt |
PT4100 (15W) | 6-SMD Module, 5 Leads | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm) | - | - | - | - |
|
|
PT4102ADC DC CONVERTER 12V 15W |
0 | - |
|
Datenblatt |
PT4100 (15W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm) | - | - | - | - |
|
|
PT4102CDC DC CONVERTER 12V 15W |
32 | - |
|
Datenblatt |
PT4100 (15W) | 8-SMD Module, 6 Leads | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Surface Mount | 1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm) | - | - | - | - |
|

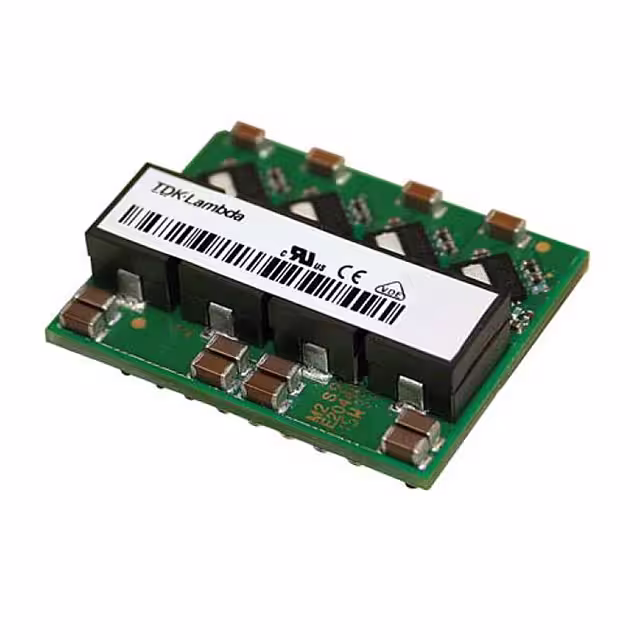

IJC12100A006V-003-RDC DC CONVERTER 0.6-1.5V 100W |
99 | - |
|
Datenblatt |
iJC (150W) | 38-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 8V | 14V | 0.6 ~ 1.5V | - | - | - | 100A | - | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 120°C | 91.5% | - | - | Surface Mount | 1.38" L x 1.10" W x 0.39" H (35.0mm x 28.0mm x 10.0mm) | - | Enable, Active Low | - | - |
|
PAE-29/3-D48NB-CDC DC CONVERTER 29.8V 100W |
346 | - |
|
Datenblatt |
PAE (100W) | 9-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 29.8V | - | - | - | 3.3A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 92.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.49" H (58.4mm x 36.8mm x 12.5mm) | - | Enable, Active Low | - | - |
|
PTB48560AAZDC DC CONVERTER 3.6-5.5V 30W |
0 | - |
|
Datenblatt |
PTB48560 (30W) | 11-SMD Module | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.6 ~ 5.5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 84% | - | - | Surface Mount | 2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm) | - | - | - | - |
|
|
PTB48560BAZDC DC CONVERTER 1.8-3.6V 30W |
0 | - |
|
Datenblatt |
PTB48560 (30W) | 11-SMD Module | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 1.8 ~ 3.6V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 82% | - | - | Surface Mount | 2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm) | - | - | - | - |
|
|
PYB15-Q48-D12DC DC CONVERTER +/-12V 15W |
43 | - |
|
Datenblatt |
PYB15 (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) | - | Enable, Active High | EN | 55024 |
|
|
ERS3033N030N25WE18-75Vin, 3.3V 30A , eighth bric |
46 | - |
|
Datenblatt |
ERS3 | Eighth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 30A | 99 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.30" L x 0.90" W x 0.42" H (58.4mm x 22.8mm x 10.6mm) | Eighth Brick | Enable, Active Low | CE, cURus | 62368-1 |
|

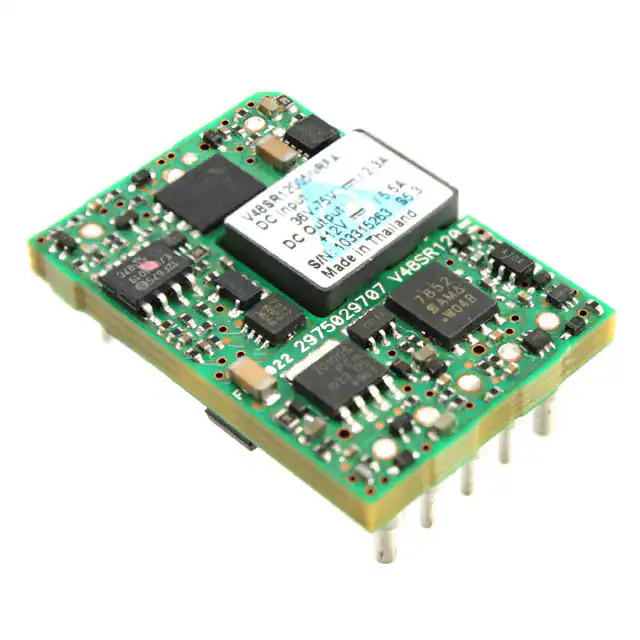

V48SR12005NRFADC DC CONVERTER 12V 66W |
102 | - |
|
- |
Delphi V48SR (66W) | 8-DIP Module, 1/16 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 5.5A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 120°C | 91% | - | - | Through Hole | 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.2mm) | - | Enable, Active Low | - | - |
|
|
ERS3050N020N25WE18-75Vin, 5V 20A , eighth brick |
54 | - |
|
Datenblatt |
ERS3 | Eighth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.42" H (58.4mm x 22.8mm x 10.6mm) | Eighth Brick | Enable, Active Low | CE, cURus | 62368-1 |
|
|
PTV08040WAHDC DC CONVERTER 0.8-3.6V 50A |
0 | - |
|
Datenblatt |
PTV08040W | 21-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8V | 14V | 0.8 ~ 3.6V | - | - | - | 50A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.36" L x 0.37" W x 0.95" H (59.9mm x 9.4mm x 24.1mm) | - | - | - | - |
|
|
EN6347QIDC DC CONVERTER 0.6-6.24V |
30,928 | - |
|
Datenblatt |
Enpirion® | 38-FQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.5V | 6.6V | 0.6 ~ 6.24V | - | - | - | 4A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.28" L x 0.16" W x 0.07" H (7.0mm x 4.0mm x 1.9mm) | 38-QFN (7x4) | Enable, Active High | - | - |
