DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM6000ARIZDC DC CONVERTER 3.3V 5V |
163 | - |
|
Datenblatt |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 3V | 5.5V | 3.3V, 5V | - | - | - | 80mA | - | 5 kV | Medical | OCP, OTP, UVLO | -40°C ~ 105°C | 31% | - | - | Surface Mount | 0.50" L x 0.29" W x 0.10" H (13.0mm x 7.5mm x 2.5mm) | 16-SOIC | - | - | - |
|
AG9903-MTBDC DC CONVERTER 3.3V 6W |
202 | - |
|
Datenblatt |
Ag9900 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 3.3V | - | - | - | 1.82A | 6 W | 1.5 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.84" L x 0.55" W x 0.51" H (21.0mm x 14.0mm x 13.0mm) | - | - | - | 60950-1 |
|
TSR 1-2418DC DC CONVERTER 1.8V 1.8W |
198 | - |
|
Datenblatt |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.6V | 36V | 1.8V | - | - | - | 1A | 1.8 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.1mm) | - | - | - | - |
|
RKZ-2405SDC DC CONVERTER 5V 2W |
597 | - |
|
Datenblatt |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RKZ-1215DDC DC CONVERTER +/-15V 2W |
538 | - |
|
Datenblatt |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RKZ-0515DDC DC CONVERTER +/-15V 2W |
233 | - |
|
Datenblatt |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RKZ-0505DDC DC CONVERTER +/-5V 2W |
170 | - |
|
Datenblatt |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
MYMGK1R812FRSR-H12A, NON-ISOLATED POL DC-DC CONV |
455 | - |
|
Datenblatt |
MonoBlock MYMGK | 37-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 8V | 0.7 ~ 1.8V | - | - | - | 12A | 21.6 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 92% | - | - | Surface Mount | 0.41" L x 0.35" W x 0.22" H (10.5mm x 9.0mm x 5.6mm) | - | Enable, Active High | - | - |
|
|
6S8W_1205S1.6RPDC-DC INDUSTRIAL |
115 | - |
|
Datenblatt |
6S8W_1.6RP (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
LMZ12001TZE-ADJ/NOPBDC DC CONVERTER 0.8-6V |
458 | - |
|
Datenblatt |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
ITW2405SADC DC CONVERTER 5V 1W |
173 | - |
|
Datenblatt |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | - | 62368-1 |
|
FS1412-0600-ALDC DC CONVERTER 600MV |
2,815 | - |
|
Datenblatt |
µPOL™ micro-POL | 22-PowerLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 16V | 600mV | - | - | - | 12A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, PMBus™ | -40°C ~ 125°C | - | - | - | Surface Mount | 0.23" L x 0.19" W x 0.06" H (5.8mm x 4.9mm x 1.6mm) | 22-LGA-SiP (5.8x4.9) | - | - | - |
|
|
R-78AA3.3-1.0SMDDC DC CONVERTER 3.3V 3W |
629 | - |
|
Datenblatt |
INNOLINE R-78AA-1.0 | 10-SMD Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 18V | 3.3V | - | - | - | 1A | 3 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.60" L x 0.38" W x 0.35" H (15.2mm x 9.7mm x 8.8mm) | - | Enable, Active High | - | - |
|
NMV1215SCDC DC CONVERTER +/-15V 1W |
2,278 | - |
|
Datenblatt |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
NMV0505DCDC DC CONVERTER +/-5V 1W |
910 | - |
|
Datenblatt |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71.5% | - | - | Through Hole | 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm) | - | - | - | - |
|
NMV1205SACDC DC CONVERTER 5V 1W |
870 | - |
|
Datenblatt |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|

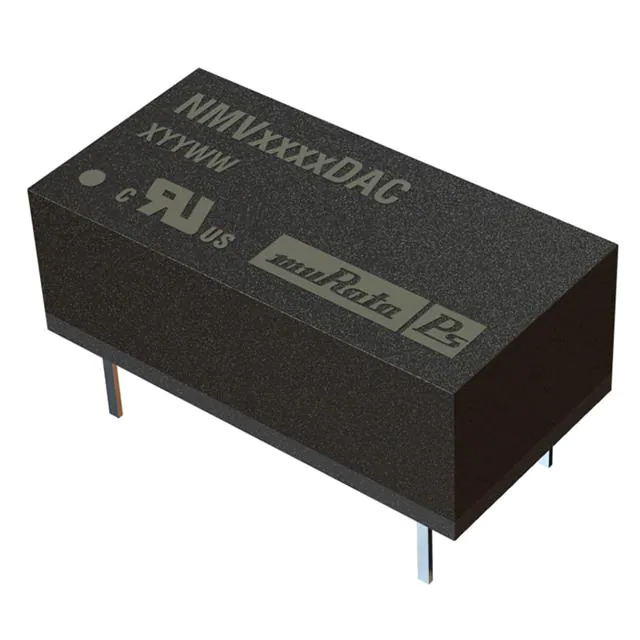

NMV0505DACDC DC CONVERTER 5V 1W |
521 | - |
|
Datenblatt |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm) | - | - | - | - |
|
|
NMV0505SCDC DC CONVERTER +/-5V 1W |
371 | - |
|
Datenblatt |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
MTC2S1212MC-R13DC DC CONVERTER 12V 2W |
290 | - |
|
Datenblatt |
MTC2 (2W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 105°C | 83.5% | - | - | Surface Mount | 0.59" L x 0.56" W x 0.44" H (15.0mm x 14.2mm x 11.2mm) | - | - | - | - |
|
|
NMV0512SACDC DC CONVERTER 12V 1W |
147 | - |
|
Datenblatt |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
