Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
A3922KLPTR-T IC MOTOR DRVR 5.5V-50V 28ETSSOP Allegro MicroSystems	6,627	-	RFQ	Datenblatt	-	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (2)	SPI	NMOS	-	-	-	5.5V ~ 50V	-	-40°C ~ 150°C (TA)	Automotive	-	Surface Mount	28-TSSOP-EP
MCT8316Z0TQRGFRQ1 AUTOMOTIVE 40-V MAX, 8-A PEAK, S Texas Instruments	1,964	-	RFQ	Datenblatt	-	40-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Hardware	NMOS	-	-	8A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	40-VQFN (7x5)

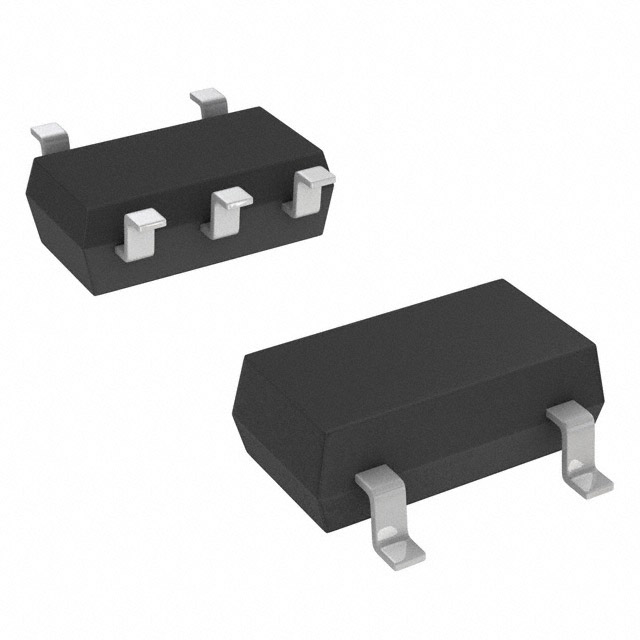

LTC1695CS5#TRPBF IC MOTOR DRVR 4.5V-5.5V SOT23-5 Analog Devices Inc.	2,136	-	RFQ	Datenblatt	-	SC-74A, SOT-753	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	High Side	I2C, SMBus	PMOS	-	Fan Motor Driver	180mA	4.5V ~ 5.5V	0V ~ 4.922V	0°C ~ 125°C (TJ)	-	-	Surface Mount	SOT-23-5
LTC1695CS5#TRMPBF IC MOTOR DRVR 4.5V-5.5V SOT23-5 Analog Devices Inc.	1,088	-	RFQ	Datenblatt	-	SC-74A, SOT-753	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	High Side	I2C, SMBus	PMOS	-	Fan Motor Driver	180mA	4.5V ~ 5.5V	0V ~ 4.922V	0°C ~ 125°C (TJ)	-	-	Surface Mount	SOT-23-5
IMC102TF064XUMA1 IC MOTOR DRIVER 3V-5.5V 64LQFP Infineon Technologies	598	-	RFQ	Datenblatt	iMOTION™	64-LQFP	Tape & Reel (TR)	Active	-	AC, Synchronous	Controller	-	Analog, PWM	-	-	Home Appliance	50mA	3V ~ 5.5V	-	-40°C ~ 105°C (TA)	-	-	Surface Mount	PG-LQFP-64-26
L6480H IC MTR DRV BIPLR 3.3/5V 38HTSSOP STMicroelectronics	284	-	RFQ	Datenblatt	STSPIN L64	38-TFSOP (0.173", 4.40mm Width) Exposed Pad	Tube	Active	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI	DMOS	1 ~ 1/128	General Purpose	-	3.3V, 5V	-	-40°C ~ 150°C (TJ)	-	-	Surface Mount	38-HTSSOP
L9958SBTR IC MTRDRV BIPLR 4.5-5.5V 16PWRSO STMicroelectronics	1,651	-	RFQ	Datenblatt	-	16-PowerBSOP (0.370", 9.40mm Width)	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	SPI	CMOS	-	General Purpose	8.6A	4.5V ~ 5.5V	4V ~ 28V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	PowerSO-16™
RAA2270634GNP#MA0 THREE PHASE 60V MOTOR DRIVER, 7X Renesas Electronics Corporation	1,248	-	RFQ	Datenblatt	-	48-WFQFN Exposed Pad	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	4.5V ~ 60V	-	-40°C ~ 125°C (TA)	-	-	Surface Mount	48-QFN (7x7)
L6480HTR IC MTR DRV BIPLR 3.3/5V 38HTSSOP STMicroelectronics	8,138	-	RFQ	Datenblatt	STSPIN L64	38-TFSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI	DMOS	1 ~ 1/128	General Purpose	-	3.3V, 5V	-	-40°C ~ 150°C (TJ)	-	-	Surface Mount	38-HTSSOP
MCT8316Z0RQRGFRQ1 AUTOMOTIVE 40-V MAX, 8-A PEAK, S Texas Instruments	1,849	-	RFQ	Datenblatt	-	40-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	SPI	NMOS	-	-	8A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	40-VQFN (7x5)
MC33937APEK IC MOTOR DRIVER 6V-58V 54SOIC NXP USA Inc.	26	-	RFQ	Datenblatt	-	54-SSOP (0.295", 7.50mm Width) Exposed Pad	Tube	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	SPI	NMOS	-	-	-	6V ~ 58V	-	-40°C ~ 135°C (TA)	Automotive	-	Surface Mount	54-SOIC-EP
DRV8350RHRGZT IC MTR DRV MULTIPHAS 6-95V 48QFN Texas Instruments	601	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Half Bridge (3)	Hardwired (HW)	Power MOSFET	-	Brushless DC (BLDC)	25mA	6V ~ 95V	9V ~ 75V	-40°C ~ 125°C (TA)	-	-	Surface Mount	48-VQFN (7x7)
DRV3256AEPAPRQ1 INTEGRATED 3-PHASE 48-V AUTOMOTI Texas Instruments	838	-	RFQ	Datenblatt	-	64-TQFP Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Controller - Current Management	Half Bridge (3)	SPI	NMOS	-	General Purpose	2.5A	20V ~ 90V	20V ~ 90V	-40°C ~ 150°C (TJ)	Automotive	AEC-Q100	Surface Mount	64-HTQFP (10x10)
BD64547MUV-E2 SYSTEM MOTOR DRIVER FOR PRINTERS Rohm Semiconductor	1,487	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Serial	Power MOSFET	1	Printer	2A	9V ~ 45V	3.7V ~ 50V	-25°C ~ 85°C	-	-	Surface Mount	VQFN048V7070
DRV8350RSRGZT IC MTR DRV MULTIPHAS 6-95V 48QFN Texas Instruments	676	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Half Bridge (3)	SPI	Power MOSFET	-	Brushless DC (BLDC)	25mA	6V ~ 95V	9V ~ 75V	-40°C ~ 125°C (TA)	-	-	Surface Mount	48-VQFN (7x7)
A3924KLVTR-T IC MOTOR DRVR 5.5V-50V 38-ETSSOP Allegro MicroSystems	3,186	-	RFQ	Datenblatt	-	38-TFSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (2)	SPI	NMOS	-	-	-	5.5V ~ 50V	-	-40°C ~ 150°C (TA)	Automotive	-	Surface Mount	38-eTSSOP
L6227PDTR IC MTR DRV BIPOLAR 8-52V 36PWRSO STMicroelectronics	160	-	RFQ	Datenblatt	STSPIN L62	36-PowerBSSOP (0.433", 11.00mm Width)	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	DMOS	-	General Purpose	1.4A	8V ~ 52V	8V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	PowerSO-36 Slug Up
MC33931EK IC MOTOR DRIVER 5V-28V 32SOIC NXP USA Inc.	189	-	RFQ	Datenblatt	-	32-SSOP (0.295", 7.50mm Width) Exposed Pad	Tube	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	CMOS	-	-	5A	5V ~ 28V	5V ~ 28V	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount	32-SOIC-EP
BD63800MUF-CE2 40V MAX, LOW-CONSUMPTION BIPOLAR Rohm Semiconductor	3,874	-	RFQ	Datenblatt	-	32-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Pre-Driver - Half Bridge (4)	SPI	DMOS	1, 1/2, 1/4, 1/8, 1/16	-	1.21A	6V ~ 28V	7V (Max)	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount, Wettable Flank	VQFN32FBV050
A4964KJPTR-T IC MOTOR DRIVER 5.5V-50V 32QFP Allegro MicroSystems	6,832	-	RFQ	Datenblatt	-	32-LQFP Exposed Pad	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	-	SPI	-	-	-	-	5.5V ~ 50V	-	-40°C ~ 150°C (TA)	Automotive	-	Surface Mount	32-QFP (7x7)
