Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
TMC261-PA-T IC MTR DRV BIPOLAR 3-5.25V 44QFP Analog Devices Inc./Maxim Integrated	-	RFQ	-	-	44-LQFP	Tape & Reel (TR)	Discontinued at Digi-Key	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	-	3V ~ 5.25V	9V ~ 59V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	44-PQFP (10x10)
TMC262-LA-T IC MTR DRVR BIPLR 3.3-5.5V 32QFN Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	32-VFQFN Exposed Pad	Tape & Reel (TR)	Discontinued at Digi-Key	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	-	3V ~ 5.25V	9V ~ 59V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	32-QFN (5x5)
TMC236A-PA IC MTR DRVR BIPOLAR 3-5.5V 44QFP Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	44-LQFP	Tray	Discontinued at Digi-Key	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI	HVCMOS	1, 1/2, 1/4, 1/8, 1/16	General Purpose	1.5A	3V ~ 5.5V	7V ~ 34V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	44-PQFP (10x10)
TMC246A-PA IC MTR DRVR BIPOLAR 3-5.5V 44QFP Analog Devices Inc./Maxim Integrated	-	RFQ	-	stallGuard™	44-LQFP	Tray	Discontinued at Digi-Key	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI	HVCMOS	1, 1/2, 1/4, 1/8, 1/16	General Purpose	1.5A	3V ~ 5.5V	7V ~ 34V	-40°C ~ 140°C (TJ)	-	-	Surface Mount	44-PQFP (10x10)
TMC248-LA IC MTR DRVR BIPOLAR 3-5.5V 28QFN Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	28-VFQFN Exposed Pad	Tray	Obsolete	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI	HVCMOS	1 ~ 1/64	General Purpose	-	3V ~ 5.5V	7V ~ 34V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	28-QFN (5x5)
TMC260-PA IC MTR DRV BIPOLAR 3-5.25V 44QFP Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	44-LQFP	Tray	Discontinued at Digi-Key	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	2A (Max)	3V ~ 5.25V	9V ~ 39V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	44-PQFP (10x10)
TMC261-PA IC MTR DRV BIPOLAR 3-5.25V 44QFP Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	44-LQFP	Tray	Discontinued at Digi-Key	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	-	3V ~ 5.25V	9V ~ 59V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	44-PQFP (10x10)
TMC262-LA IC MTR DRVR BIPLR 3.3-5.5V 32QFN Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	32-VFQFN Exposed Pad	Tray	Discontinued at Digi-Key	Bipolar	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (4)	SPI, Step/Direction	Power MOSFET	1 ~ 1/256	General Purpose	-	3V ~ 5.25V	9V ~ 59V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	32-QFN (5x5)
TMC603A-LA IC MOTOR DRIVER 3.3V-5V 52QFN Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	52-VFQFN Exposed Pad	Tray	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	PWM	Power MOSFET	-	General Purpose	-	3.3V ~ 5V	12V ~ 50V	-40°C ~ 125°C (TA)	-	-	Surface Mount	52-QFN (8x8)
TMC222-LI IC MTR DRVR BIPOLAR 3.3-5V 32QFN Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	32-VQFN Exposed Pad	Tray	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	I2C	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	570mA	3.3V ~ 5V	8V ~ 29V	-40°C ~ 85°C (TA)	-	-	Surface Mount	32-QFN (7x7)
TMC222-SI IC MTR DRV BIPOLAR 3.3-5V 20SOIC Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	20-SOIC (0.295", 7.50mm Width)	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	I2C	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	570mA	3.3V ~ 5V	8V ~ 29V	-40°C ~ 85°C (TA)	-	-	Surface Mount	20-SOIC

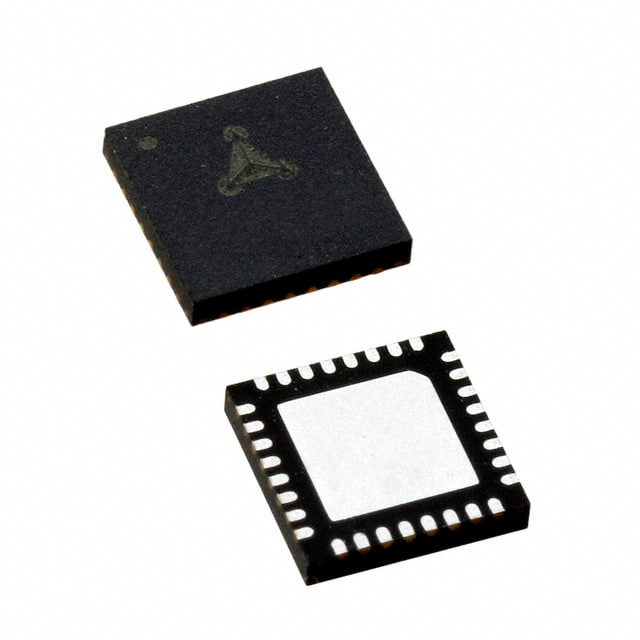

TMC223-LI IC MTR DRVR BIPOLAR 3.3-5V 32QFN Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	32-VQFN Exposed Pad	Tray	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	I2C	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	570mA	3.3V ~ 5V	8V ~ 29V	-40°C ~ 85°C (TA)	-	-	Surface Mount	32-QFN (7x7)
TMC223-SI IC MTR DRV BIPOLAR 3.3-5V 20SOIC Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	20-SOIC (0.295", 7.50mm Width)	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	I2C	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	570mA	3.3V ~ 5V	8V ~ 29V	-40°C ~ 85°C (TA)	-	-	Surface Mount	20-SOIC

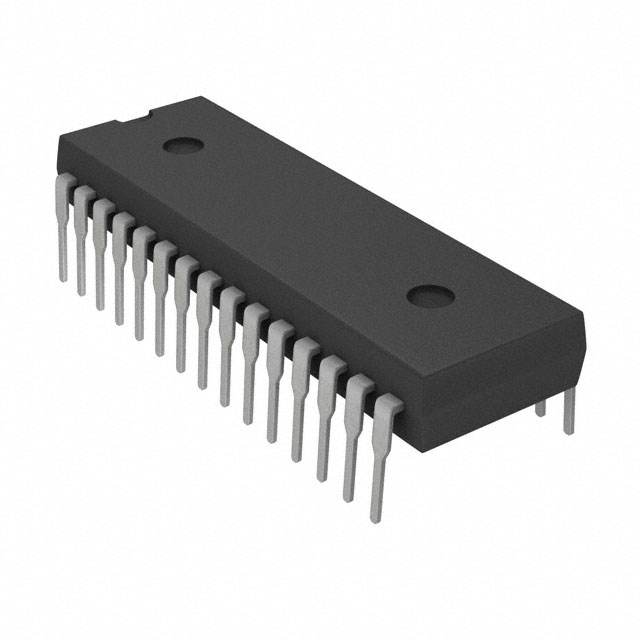

SI-7510 IC MTR DRV MULTPHAS 3-5.5V 30DIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	30-DIP (0.400", 10.16mm)	Tube	Obsolete	Multiphase	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (5)	Parallel	Power MOSFET	1, 1/2	General Purpose	6A	3V ~ 5.5V	10V ~ 42V	-10°C ~ 150°C (TJ)	-	-	Through Hole	30-DIP
SLA6870MZ IC BRIDGE DRIVER PAR 24SIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	24-SSIP Formed Leads	Tube	Obsolete	-	Brushless DC (BLDC)	Driver	Half Bridge (3)	Logic	Power MOSFET	-	Home Appliance	3A	13.5V ~ 16.5V	500V (Max)	-20°C ~ 150°C (TJ)	-	-	Through Hole	24-ZIP LF2171
SLA7061M IC MTR DRV UNIPOLAR 3-5.5V 21SIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	21-SSIP Exposed Tab, Formed Leads	Tube	Obsolete	Unipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	NMOS	1/2, 1/4, 1/8, 1/16	Printer	2A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 125°C (TJ)	-	-	Through Hole	21-SIP
SLA7067M IC MTR DRV UNIPOLAR 3-5.5V 21SIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	21-SSIP Exposed Tab, Formed Leads	Tube	Obsolete	Unipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	NMOS	1, 1/2, 1/4, 1/8	Printer	3A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 125°C (TJ)	-	-	Through Hole	21-SIP
SLA7072MR IC MTR DRV UNIPOLAR 3-5.5V 23ZIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	23-ESIP Formed Leads	Tube	Obsolete	Unipolar	-	Driver - Fully Integrated, Control and Power Stage	Low Side (4)	Parallel	Power MOSFET	1, 1/2	General Purpose	2A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 150°C (TJ)	-	-	Through Hole	23-ZIP (SLA)
SLA7073MR IC MTR DRV UNIPOLAR 3-5.5V 23ZIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	23-ESIP Formed Leads	Tube	Obsolete	Unipolar	-	Driver - Fully Integrated, Control and Power Stage	Low Side (4)	Parallel	Power MOSFET	1, 1/2	General Purpose	3A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 150°C (TJ)	-	-	Through Hole	23-ZIP (SLA)
SLA7077MR IC MTR DRV UNIPOLAR 3-5.5V 23ZIP Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	23-ESIP Formed Leads	Tube	Obsolete	Unipolar	-	Driver - Fully Integrated, Control and Power Stage	Low Side (4)	Parallel	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	2A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 150°C (TJ)	-	-	Through Hole	23-ZIP (SLA)

Total 4748 Record«Prev 1... 211 212 213 214215216 217 218...238 Next»
