Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
SLA7052M IC MTR DRV UNIPOLAR 3-5.5V 18ZIP Sanken Electric USA Inc.	0	-	RFQ	Datenblatt	-	18-SSIP Formed Leads	Tube	Obsolete	Unipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	NMOS	1, 1/2	Printer	3A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 150°C (TJ)	-	-	Through Hole	18-ZIP
SLA7066M IC MTR DRV UNIPOLAR 3-5.5V 21SIP Sanken Electric USA Inc.	0	-	RFQ	Datenblatt	-	21-SSIP Exposed Tab, Formed Leads	Tube	Obsolete	Unipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	NMOS	1, 1/2, 1/4, 1/8	Printer	2A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 125°C (TJ)	-	-	Through Hole	21-SIP
DRV8886RHRT IC MOTOR DRVR BIPOLAR 5.3V 28QFN Texas Instruments	0	-	RFQ	Datenblatt	-	28-WFQFN Exposed Pad	Tape & Reel (TR)	Last Time Buy	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	Power MOSFET	1 ~ 1/16	General Purpose	2A	0V ~ 5.3V	8V ~ 37V	-40°C ~ 125°C (TA)	-	-	Surface Mount	28-WQFN (5.5x3.5)
UDN2916LBTR-T IC MOTOR DRIVER BIPOLAR 24SOIC Allegro MicroSystems	0	-	RFQ	Datenblatt	-	24-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Obsolete	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	-	General Purpose	750mA	4.75V ~ 5.25V	10V ~ 45V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	24-SOIC
BD7763EFV-E2 IC MTR DRVR 4.3-13.2V 54HTSSOP-B Rohm Semiconductor	4	-	RFQ	-	-	54-VSSOP (0.295", 7.50mm Width) Exposed Pad	Tape & Reel (TR)	Obsolete	-	-	Driver	-	Logic	Power MOSFET	-	DVD, Blu-Ray	2.5A	4.3V ~ 13.2V	-	-20°C ~ 75°C (TA)	-	-	Surface Mount	54-HTSSOP-B
BA6868FM-E2 IC MOTOR DRIVER 4.5V-6V 28HSOP Rohm Semiconductor	0	-	RFQ	Datenblatt	-	28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	-	-	General Purpose	1.8A	4.5V ~ 6V	4V ~ 12V	-25°C ~ 150°C (TJ)	-	-	Surface Mount	28-HSOP-M
MC33887PEKR2 IC MOTOR DRIVER 5V-28V 54SOIC NXP USA Inc.	0	-	RFQ	-	-	54-SSOP (0.295", 7.50mm Width) Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	Power MOSFET	-	General Purpose	5A	5V ~ 28V	5V ~ 28V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	54-SOIC-EP
SLA7077MPRT IC MTR DRV UNIPOLAR 3-5.5V 23ZIP Sanken Electric USA Inc.	0	-	RFQ	Datenblatt	-	23-ESIP Formed Leads	Tube	Active	Unipolar	-	Driver - Fully Integrated, Control and Power Stage	Low Side (4)	Parallel	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	2A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 150°C (TJ)	-	-	Through Hole	23-ZIP (SLA)
A3977KED-T IC MTR DRVR BIPOLR 3-5.5V 44PLCC Allegro MicroSystems	0	-	RFQ	Datenblatt	-	44-LCC (J-Lead)	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	DMOS	1, 1/2, 1/4, 1/8	General Purpose	2.5A	3V ~ 5.5V	8V ~ 35V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	44-PLCC (16.59x16.59)
TPIC0108BDWPR IC MOTOR DRVR 6V-18V 20SOPWRPAD Texas Instruments	0	-	RFQ	Datenblatt	-	20-SOIC (0.295", 7.50mm Width) Exposed Pad	Tape & Reel (TR)	Obsolete	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	DMOS	-	General Purpose	-	6V ~ 18V	6V ~ 18V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-HSOIC

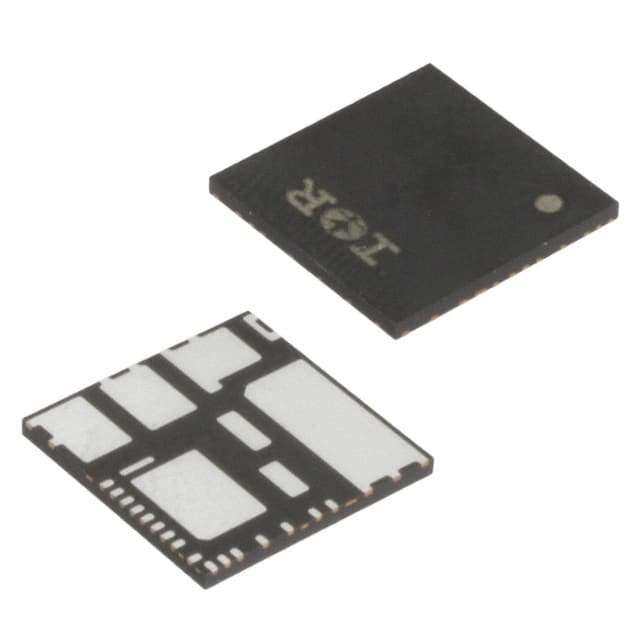

IRSM836-035MBTR IC MTR DRIVER 13.5V-16.5V 27PQFN Infineon Technologies	0	-	RFQ	Datenblatt	-	31-PowerVQFN	Tape & Reel (TR)	Active	-	AC, Synchronous	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	UMOS	-	Appliance	3A	13.5V ~ 16.5V	400V (Max)	-40°C ~ 150°C (TJ)	-	-	Surface Mount	27-PQFN (12x12)
MCZ33937AEK IC MOTOR DRIVER 6V-58V 54SOIC NXP USA Inc.	0	-	RFQ	Datenblatt	-	54-SSOP (0.295", 7.50mm Width) Exposed Pad	Tube	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	SPI	NMOS	-	-	-	6V ~ 58V	-	-40°C ~ 135°C (TA)	Automotive	-	Surface Mount	54-SOIC-EP
MCZ33937EK IC MOTOR DRIVER 6V-58V 54SOIC NXP USA Inc.	0	-	RFQ	Datenblatt	-	54-SSOP (0.295", 7.50mm Width) Exposed Pad	Tube	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	SPI	NMOS	-	-	-	6V ~ 58V	-	-40°C ~ 135°C (TA)	Automotive	-	Surface Mount	54-SOIC-EP
DRV8301QDCARQ1 IC MOTOR DRIVER 6V-60V 56HTSSOP Texas Instruments	0	-	RFQ	Datenblatt	-	56-PowerTFSOP (0.240", 6.10mm Width)	Tape & Reel (TR)	Not For New Designs	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	SPI	Power MOSFET	-	-	-	6V ~ 60V	-	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	56-HTSSOP
IM111X6Q1BXUMA1 CIPOS NANO PG-IQFN-37 Infineon Technologies	0	-	RFQ	-	-	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IRDM982-025MBTR IC MTR DRIVER 13.5V-16.5V 40PQFN Infineon Technologies	0	-	RFQ	Datenblatt	-	40-PowerVQFN	Tape & Reel (TR)	Obsolete	-	AC, Synchronous	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	Power MOSFET	-	-	-	13.5V ~ 16.5V	100V ~ 450V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	40-PQFN (12x12)

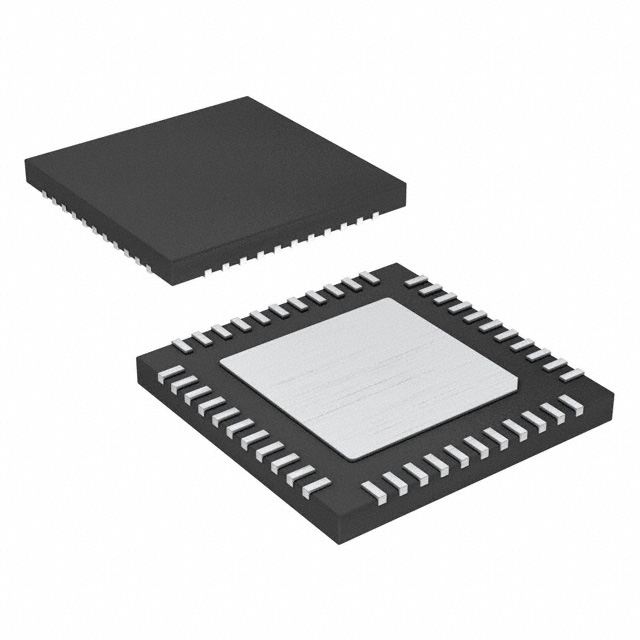

BU24025MWV-E2 IC MTR DRVR BIPLR 2.7-3.6V 44QFN Rohm Semiconductor	0	-	RFQ	-	-	44-VFQFN Exposed Pad	Tape & Reel (TR)	Not For New Designs	Bipolar	Brushed DC, Voice Coil Motor	Driver - Fully Integrated, Control and Power Stage	Half Bridge (14)	Serial	Power MOSFET	1, 1/2	Camera	500mA	2.7V ~ 3.6V	2.7V ~ 5.5V	-10°C ~ 85°C (TA)	-	-	Surface Mount	UQFN044V6060
AMIS30624C6245G IC MTR DRV BIPLR 4.75-5.5V 32QFP onsemi	0	-	RFQ	Datenblatt	-	32-VQFN Exposed Pad	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	I2C	Power MOSFET	1/2, 1/4, 1/8, 1/16	General Purpose	570mA	4.75V ~ 5.5V	6.5V ~ 29V	-40°C ~ 165°C (TJ)	-	-	Surface Mount	32-NQFP (7x7)
SLA7078MPRT IC MTR DRV UNIPOLAR 3-5.5V 23ZIP Sanken Electric USA Inc.	0	-	RFQ	Datenblatt	-	23-ESIP Formed Leads	Tube	Active	Unipolar	-	Driver - Fully Integrated, Control and Power Stage	Low Side (4)	Parallel	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	3A	3V ~ 5.5V	10V ~ 44V	-20°C ~ 150°C (TJ)	-	-	Through Hole	23-ZIP (SLA)
SMA6822MH IC MOTOR DRVR 13.5V-16.5V 24ZIP Sanken Electric USA Inc.	0	-	RFQ	Datenblatt	-	24-SSIP Formed Leads	Tube	Active	-	AC, Synchronous	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	Power MOSFET	-	Appliance	1.5A	13.5V ~ 16.5V	400V (Max)	-20°C ~ 150°C (TJ)	-	-	Through Hole	24-ZIP (SMA-24)

Total 4748 Record«Prev 1... 181 182 183 184185186 187 188...238 Next»
