Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
MAX22205AUU+T DUAL H-BRIDGE FOR STEPPER AND BR Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	38-TFSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	On/Off, PWM	NMOS	1, 1/2	General Purpose	7.6A	4.5V ~ 65V	4.5V ~ 65V	-40°C ~ 125°C	-	-	Surface Mount	38-TSSOP-EP
MAX22203AUU+T DUAL H-BRIDGE FOR STEPPER AND BR Analog Devices Inc./Maxim Integrated	-	RFQ	Datenblatt	-	38-TFSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	-	NMOS	-	Fan Motor Driver	3.8A	4.5V ~ 65V	4.5V ~ 65V	-40°C ~ 125°C	-	-	Surface Mount	38-TSSOP-EP
A3930KJP-T IC MOTOR DRIVER 5.5V-50V 48LQFP Allegro MicroSystems	-	RFQ	Datenblatt	-	48-LQFP Exposed Pad	Tray	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel	Power MOSFET	-	-	-	5.5V ~ 50V	-	-40°C ~ 150°C (TA)	Automotive	-	Surface Mount	48-LQFP-EP (7x7)
A3931KJP-T IC MOTOR DRIVER 5.5V-50V 48LQFP Allegro MicroSystems	-	RFQ	Datenblatt	-	48-LQFP Exposed Pad	Tray	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel	Power MOSFET	-	-	-	5.5V ~ 50V	-	-40°C ~ 150°C (TA)	Automotive	-	Surface Mount	48-LQFP-EP (7x7)

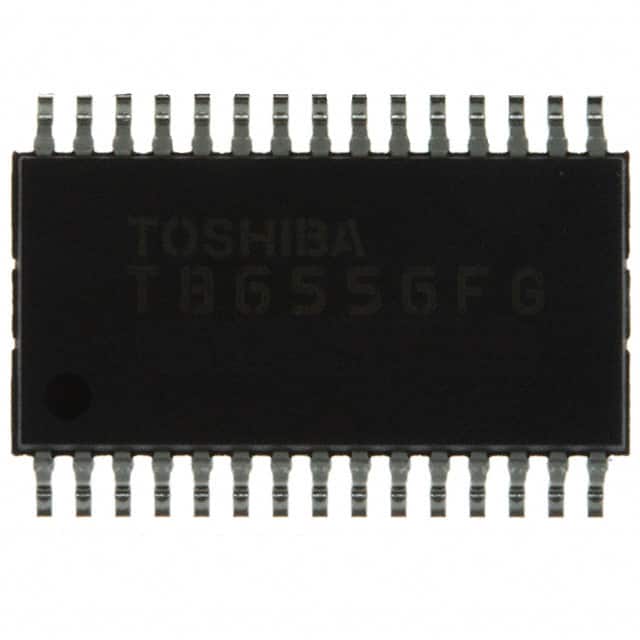

TB6556FG,8,EL,DRY IC MOTOR CONTROLLER PAR 30SSOP Toshiba Semiconductor and Storage	-	RFQ	-	-	30-BSOP (0.295", 7.50mm Width)	Cut Tape (CT)	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Half Bridge (3)	Parallel	Bi-CMOS	-	Fan Controller	-	6V ~ 10V	-	-30°C ~ 115°C (TA)	-	-	Surface Mount	30-SSOP
TB62214AFTG,C8,EL IC MTRDRV BIPLR 4.75-5.25V 48QFN Toshiba Semiconductor and Storage	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	DMOS	1, 1/2, 1/4	General Purpose	2A	4.75V ~ 5.25V	10V ~ 38V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	48-QFN (7x7)
NJM3771FM2 IC MOTOR DRIVER BIPOLAR 28PLCC Nisshinbo Micro Devices Inc.	-	RFQ	Datenblatt	-	28-LCC (J-Lead)	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	1, 1/2	General Purpose	650mA	4.75V ~ 5.25V	10V ~ 40V	-20°C ~ 125°C (TJ)	-	-	Surface Mount	28-PLCC (11.51x11.51)
NJM3772FM2 IC MOTOR DRIVER BIPOLAR 28PLCC Nisshinbo Micro Devices Inc.	-	RFQ	Datenblatt	-	28-LCC (J-Lead)	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	-	General Purpose	1A	4.75V ~ 5.25V	10V ~ 40V	-20°C ~ 125°C (TJ)	-	-	Surface Mount	28-PLCC (11.51x11.51)
TPIC0108BDWP IC MOTOR DRVR 6V-18V 20SOPWRPAD Texas Instruments	-	RFQ	Datenblatt	-	20-SOIC (0.295", 7.50mm Width) Exposed Pad	Tube	Obsolete	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	DMOS	-	General Purpose	-	6V ~ 18V	6V ~ 18V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	20-HSOIC
A3935KJP IC MOTOR DRVR 4.75V-5.25V 48LQFP Allegro MicroSystems	-	RFQ	Datenblatt	-	48-LQFP Exposed Pad	Tube	Obsolete	-	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel	Power MOSFET	-	-	-	4.75V ~ 5.25V	7V ~ 40V	-40°C ~ 135°C (TA)	Automotive	-	Surface Mount	48-LQFP-EP (7x7)
A3935KJP-T IC MOTOR DRVR 4.75V-5.25V 48LQFP Allegro MicroSystems	-	RFQ	Datenblatt	-	48-LQFP Exposed Pad	Tube	Obsolete	-	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel	Power MOSFET	-	-	-	4.75V ~ 5.25V	7V ~ 40V	-40°C ~ 135°C (TA)	Automotive	-	Surface Mount	48-LQFP-EP (7x7)
LV8324CGR2G IC BLDC MOTOR DRIVER 14TSSOP onsemi	-	RFQ	Datenblatt	-	14-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Pre-Driver - Half Bridge (2)	PWM	NMOS	-	Fan Motor Driver	1A	6V ~ 34V	14V ~ 34V	-40°C ~ 105°C	-	-	Surface Mount	14-TSSOP-EP

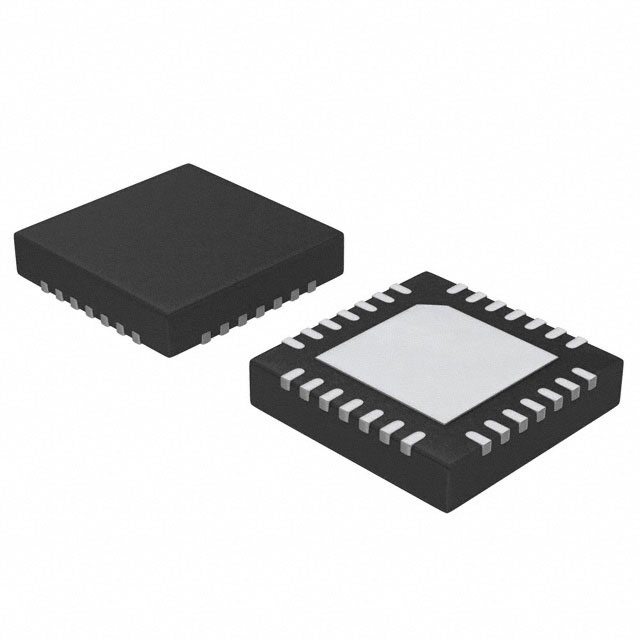

BD63002MUV-E2 IC MOTOR DRIVER 8V-26.4V 28VQFN Rohm Semiconductor	-	RFQ	Datenblatt	-	28-VFQFN Exposed Pad	Tape & Reel (TR)	Not For New Designs	-	Brushless DC (BLDC)	Driver	Pre-Driver - Half Bridge (3)	Logic	Power MOSFET	-	General Purpose	5mA	8V ~ 26.4V	8V ~ 26.4V	-40°C ~ 85°C (TA)	-	-	Surface Mount	VQFN028V5050
A3935KLQ IC MOTOR DRVR 4.75V-5.25V 36QSOP Allegro MicroSystems	-	RFQ	Datenblatt	-	36-BSOP (0.295", 7.50mm Width)	Tube	Obsolete	-	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel	Power MOSFET	-	-	-	4.75V ~ 5.25V	7V ~ 40V	-40°C ~ 135°C (TA)	Automotive	-	Surface Mount	36-QSOP
A3935KLQ-T IC MOTOR DRVR 4.75V-5.25V 36QSOP Allegro MicroSystems	-	RFQ	Datenblatt	-	36-BSOP (0.295", 7.50mm Width)	Tube	Obsolete	-	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel	Power MOSFET	-	-	-	4.75V ~ 5.25V	7V ~ 40V	-40°C ~ 135°C (TA)	Automotive	-	Surface Mount	36-QSOP
SPF7302 FULL BRIDGE DC BRUSH MOTOR DRIVE Sanken Electric USA Inc.	-	RFQ	Datenblatt	-	16-SOIC (0.295", 7.50mm Width) Exposed Pad	Bulk	Not For New Designs	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	On/Off	DMOS	-	General Purpose	3A	6V ~ 18V	6V ~ 18V	-40°C ~ 105°C (TA)	-	-	Surface Mount	16-HSOP
MC34932SEK IC HALF-BRIDGE DRVR 4 CH 32SOIC NXP USA Inc.	-	RFQ	Datenblatt	-	54-SSOP (0.295", 7.50mm Width) Exposed Pad	Tube	Active	-	Brushed DC, DC Servo	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Logic	Power MOSFET	-	DC Motors, General Purpose	5A	5V ~ 36V	5V ~ 36V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	54-SOIC-EP
LV8731V-TLM-H IC MTR DRV BIPOLAR 0-5.5V 44SSOP onsemi	-	RFQ	Datenblatt	-	44-LSSOP (0.220", 5.60mm Width) Exposed Pad	Tape & Reel (TR)	Obsolete	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	BiCDMOS	1, 1/2, 1/4, 1/16	General Purpose	2A	0V ~ 5.5V	8V ~ 32V	-40°C ~ 85°C (TA)	-	-	Surface Mount	44-SSOPK
DRV83055PHP IC MTR DRV MULTI 4.4-45V 48HTQFP Texas Instruments	-	RFQ	Datenblatt	-	48-PowerTQFP	Tray	Active	Multiphase	-	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	PWM, SPI	Power MOSFET	-	Three-Phase BLDC, PMSM Motors	-	4.4V ~ 45V	-	-40°C ~ 125°C (TA)	-	-	Surface Mount	48-HTQFP (7x7)
BA6920FP-YE2 IC MOTOR DRIVER 6.5V-34V 25HSOP Rohm Semiconductor	-	RFQ	Datenblatt	-	25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs	Tape & Reel (TR)	Not For New Designs	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	On/Off	Bipolar	-	Media Player	1A	6.5V ~ 34V	6.5V ~ 34V	-30°C ~ 150°C (TJ)	-	-	Surface Mount	25-HSOP

Total 4748 Record«Prev 1... 165 166 167 168169170 171 172...238 Next»
