Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket
TC649EUA IC MOTOR DRIVER 3V-5.5V 8MSOP Microchip Technology	-	RFQ	Datenblatt	FanSense™	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)	Tube	Active	-	Brushless DC (BLDC)	Controller - Speed	Pre-Driver - Low Side	Parallel	-	-	Fan Controller	-	3V ~ 5.5V	-	-40°C ~ 85°C (TA)	-	-	Surface Mount	8-MSOP

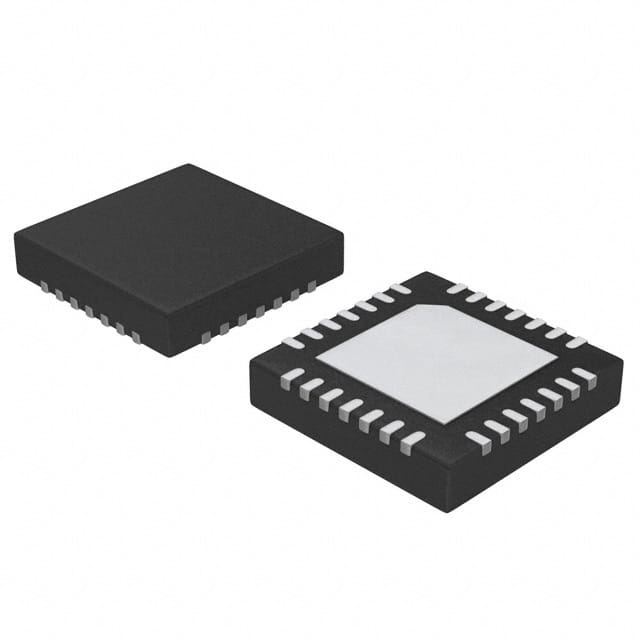

A4931MET-T IC MOTOR DRIVER 8V-37.5V 28QFN Allegro MicroSystems	-	RFQ	Datenblatt	-	28-VFQFN Exposed Pad	Tray	Obsolete	-	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	Parallel	Power MOSFET	-	General Purpose	-	8V ~ 37.5V	-	-20°C ~ 105°C (TA)	-	-	Surface Mount	28-QFN (5x5)

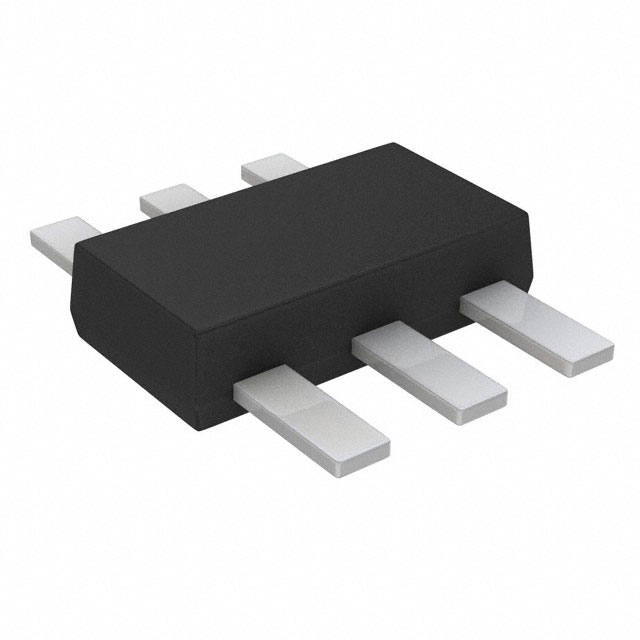

BU6909AGFT-TL IC MOTOR DRIVER 1.8V-5.5V TSSOF6 Rohm Semiconductor	-	RFQ	Datenblatt	-	6-SMD, Flat Leads	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	PWM	Power MOSFET	-	Fan Motor Driver	800mA	1.8V ~ 5.5V	1.8V ~ 5.5V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	6-TSSOF
TEA3718SDP IC MOTOR DRVR BIPOLAR 16POWERDIP STMicroelectronics	-	RFQ	Datenblatt	-	16-DIP (0.300", 7.62mm)	Tube	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Parallel	Bipolar	1, 1/2	General Purpose	1.5A	4.75V ~ 5.25V	10V ~ 45V	0°C ~ 150°C (TJ)	-	-	Through Hole	16-PowerDIP
MP6537GV-P 100V, THREE-PHASE BLDC MOTOR PRE Monolithic Power Systems Inc.	-	RFQ	Datenblatt	MP	28-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Controller - Current Management	Half Bridge (3)	On/Off, PWM	Power MOSFET	-	General Purpose	-	8V ~ 100V	8V ~ 100V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	28-QFN (4x5)
TC649VOA IC MOTOR DRIVER 3V-5.5V 8SOIC Microchip Technology	-	RFQ	Datenblatt	FanSense™	8-SOIC (0.154", 3.90mm Width)	Tube	Active	-	Brushless DC (BLDC)	Controller - Speed	Pre-Driver - Low Side	Parallel	-	-	Fan Controller	-	3V ~ 5.5V	-	0°C ~ 85°C (TA)	-	-	Surface Mount	8-SOIC
TC647VOATR IC MOTOR DRIVER 3V-5.5V 8SOIC Microchip Technology	-	RFQ	Datenblatt	FanSense™	8-SOIC (0.154", 3.90mm Width)	Tape & Reel (TR)	Active	-	Brushless DC (BLDC)	Controller - Speed	Pre-Driver - Low Side	Parallel	-	-	Fan Controller	-	3V ~ 5.5V	-	0°C ~ 85°C (TA)	-	-	Surface Mount	8-SOIC
MAX1749EUK-T IC MOTOR DRVR 2.5V-6.5V SOT23-5 Analog Devices Inc./Maxim Integrated	-	RFQ	-	-	SC-74A, SOT-753	Tape & Reel (TR)	Obsolete	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	High Side	On/Off	PMOS	-	Haptic Feedback	120mA	2.5V ~ 6.5V	1.13V ~ 1.37V	-40°C ~ 85°C (TA)	-	-	Surface Mount	SOT-23-5
DRV8833CRTER IC MOTOR DRIVER Texas Instruments	-	RFQ	Datenblatt	-	16-WFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	PWM	Power MOSFET	-	DC Motors, General Purpose, Solenoids	600mA	2.7V ~ 10.8V	2.7V ~ 10.8V	-40°C ~ 150°C (TJ)	-	-	Surface Mount	16-WQFN (3x3)
A5990GEVSR-T IC MTR DRVR BIPOLAR 8V-40V 40QFN Allegro MicroSystems	-	RFQ	Datenblatt	-	40-VFQFN Exposed Pad	Tape & Reel (TR)	Obsolete	Bipolar	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (8)	PWM	DMOS	-	General Purpose	1.6A	8V ~ 40V	8V ~ 40V	-40°C ~ 105°C (TA)	-	-	Surface Mount	40-QFN-EP (6x6)
A3966ELBTR-T IC MTRDRV BIPLR 4.75-5.5V 16SOIC Allegro MicroSystems	-	RFQ	Datenblatt	-	16-PowerSOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Obsolete	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Bipolar	-	General Purpose	650mA	4.75V ~ 5.5V	4.75V ~ 30V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	16-SOIC
DRV2604LDGSR IC MOTOR DRIVER 2V-5.5V 10VSSOP Texas Instruments	-	RFQ	Datenblatt	-	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)	Tape & Reel (TR)	Active	-	ERM, LRA	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	I2C	Power MOSFET	-	Haptic Feedback	-	2V ~ 5.5V	2V ~ 5.5V	-40°C ~ 85°C (TA)	-	-	Surface Mount	10-VSSOP

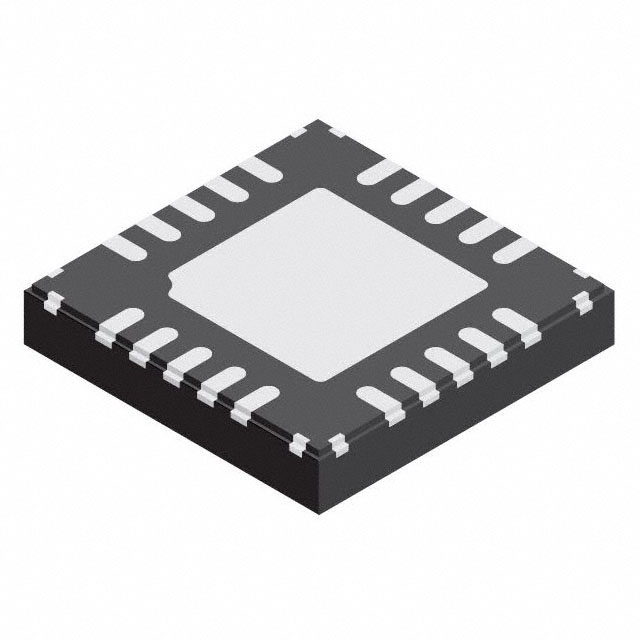

A5957GESTR-T IC MOTOR DRIVER 5.5V-50V 20QFN Allegro MicroSystems	-	RFQ	Datenblatt	-	20-WFQFN Exposed Pad	Tape & Reel (TR)	Obsolete	-	Brushed DC	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (2)	Parallel	NMOS	-	General Purpose	-	5.5V ~ 50V	-	-40°C ~ 105°C (TA)	-	-	Surface Mount	20-QFN-EP (4x4)
MPC17531AEV IC MTR DRV BIPLR 2.7-3.6V 20VMFP NXP USA Inc.	-	RFQ	Datenblatt	-	20-SSOP (0.209", 5.30mm Width)	Tube	Obsolete	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Power MOSFET	-	Battery Powered	700mA	2.7V ~ 3.6V	2V ~ 8.6V	-20°C ~ 150°C (TJ)	-	-	Surface Mount	20-VMFP

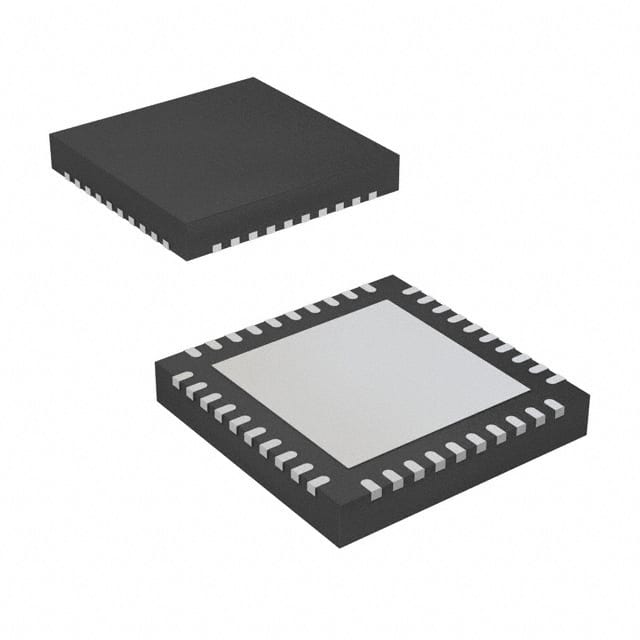

MP6534GU-Z IC MTR DRVR MULTPHAS 5-55V 40QFN Monolithic Power Systems Inc.	-	RFQ	Datenblatt	-	40-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	PWM	Power MOSFET	-	General Purpose	-	5V ~ 55V	-	-40°C ~ 125°C (TJ)	-	-	Surface Mount	40-QFN (5x5)
MP6535GU-Z IC MTR DRVR MULTPHAS 5-55V 40QFN Monolithic Power Systems Inc.	-	RFQ	Datenblatt	-	40-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Controller - Commutation, Direction Management	Pre-Driver - Half Bridge (3)	PWM	Power MOSFET	-	General Purpose	-	5V ~ 55V	-	-40°C ~ 125°C (TJ)	-	-	Surface Mount	40-QFN (5x5)
TB62210FNG,C8,EL STEPPER MOTOR DRIVER IC, 40V/1.0 Toshiba Semiconductor and Storage	-	RFQ	Datenblatt	-	24-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver	Half Bridge (2)	PWM	DMOS	-	General Purpose	1A	2V ~ 5.5V	10V ~ 38V	-20°C ~ 85°C (TA)	-	-	Surface Mount	24-HTSSOP
DRV8411PWPR DRV8411PWPR Texas Instruments	-	RFQ	Datenblatt	-	16-PowerTSSOP (0.173", 4.40mm Width)	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	PWM	NMOS	-	General Purpose	4A	1.65V ~ 11V	1.65V ~ 11V	-40°C ~ 125°C (TA)	-	-	Surface Mount	16-HTSSOP
MLX90297LLW-ABF-206-SP 1-COIL PWM 3.3 18V 680MA CURRENT Melexis Technologies NV	-	RFQ	Datenblatt	-	10-VFDFN Exposed Pad	Bulk	Not For New Designs	-	Brushless DC (BLDC)	Driver	-	PWM	-	-	Fan Motor Driver	600mA	3.3V ~ 18V	-	-	Automotive	AEC-Q100	Surface Mount	10-DFN (3x3)
TC642VUA IC MOTOR DRIVER 3V-5.5V 8MSOP Microchip Technology	-	RFQ	Datenblatt	FanSense™	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)	Tube	Active	-	Brushless DC (BLDC)	Controller - Speed	Pre-Driver - Low Side	Parallel	-	-	Fan Controller	-	3V ~ 5.5V	-	0°C ~ 85°C (TA)	-	-	Surface Mount	8-MSOP

Total 4748 Record«Prev 1... 138 139 140 141142143 144 145...238 Next»
