Photonik – Zähler, Detektoren, SPCM (Single Photon Counting Module)
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Photonenerkennungseffizienz | Wellenlängenbereich | Dunkelzählrate | Wellenlänge – Spitze | Maximale Zählrate | Totzeit | Spannung - Versorgung | Ausgang | Detektortyp | Aktiver Bereich | Funktionen | Betriebstemperatur |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPCM-AQRH-16-FCPHOTON COUNT MODULE <25CPS FC |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-QC4 FIBERSPCM-QC4 MULTIMODE 62.5 |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPCM-AQRH-11PHOTON COUNT MODULE 1000CPS |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1000cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|

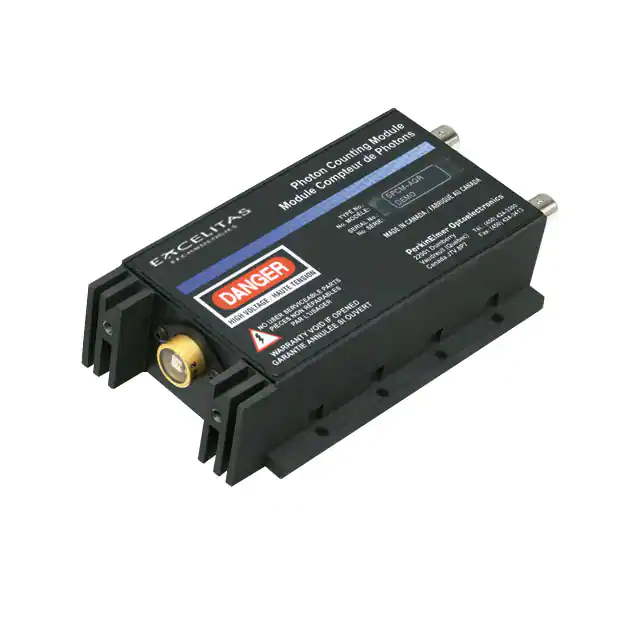

SPCM-AQRH-12PHOTON COUNT MODULE 500CPS |
1 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
1342-1POWER CABLE CIPRM MODULES |
0 | - |
|
Datenblatt |
CIPRM | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1342-2SHIELDED POWER CABLE |
0 | - |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPCM-AQRH-20PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-30PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-40PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-50PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-60PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-BR1PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-BR2PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-20-BR1PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-20-BR2PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-30-BR1PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-30-BR2PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-40-BR1PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-40-BR2PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-50-BR1PHOTON COUNTING MODULE |
0 | - |
|
Datenblatt |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
