IGBT-Module

TomatoElec liefert IGBT-Module für Industrie, Automotive, Leistungssteuerung, Motorantriebe und Energieanwendungen. Unsere Beschaffungsunterstützung umfasst Bipolartransistor-Module mit isoliertem Gate, die in Schalt-, Leistungswandlungs- und hocheffizienten Steuerungsschaltungen eingesetzt werden.

Wir unterstützen flexible RFQ-Services für die Beschaffung von IGBT-Modulen und helfen Kunden, ihre Einkaufseffizienz für reguläre Bedarfe, dringende Anforderungen und ausgewählte schwer beschaffbare Teile zu verbessern.

Mit Zugang zu mehreren Versorgungskanälen möchte TomatoElec Kunden zuverlässige Unterstützung bei der Beschaffung von IGBT-Modulen, schnelle Angebotsabgabe und weltweite Lieferung bieten.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	IGBT-Typ	Konfiguration	Spannung - Kollektor-Emitter-Durchbruch (Max)	Strom - Kollektor (Ic) (Max)	Leistung – Max	Vce(ein) (Max) @ Vge, Ic	Strom - Kollektor-Abschaltung (Max)	Eingangskapazität (Cies) @ Vce	Eingang	NTC-Thermistor	Betriebstemperatur	Montageart	Lieferant Gerätepaket
MIP40R12E1TN-BP IGBT MODULES Micro Commercial Co	4,035	-	RFQ	-	-	Module	Tape & Reel (TR)	Active	-	Three Phase Inverter	1200 V	40 A	227 W	2.05V @ 15V, 40A	1 mA	2250 pF @ 25 V	Three Phase Bridge Rectifier	Yes	175°C (TJ)	Chassis Mount	-
APTGT200DA170D3G IGBT MODULE 1700V 400A 1250W D3 Microsemi Corporation	4,759	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1700 V	400 A	1250 W	2.4V @ 15V, 200A	5 mA	17 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
APTGT200SK170D3G IGBT MODULE 1700V 400A 1250W D3 Microsemi Corporation	9,693	-	RFQ	-	-	D-3 Module	Bulk	Obsolete	Trench Field Stop	Single	1700 V	400 A	1250 W	2.4V @ 15V, 200A	5 mA	17 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
MG12150S-BN2MM IGBT MODULE 1200V 200A 625W S3 Littelfuse Inc.	8,187	-	RFQ	-	-	S-3 Module	Bulk	Obsolete	Trench Field Stop	Half Bridge	1200 V	200 A	625 W	1.7V @ 15V, 150A (Typ)	1 mA	10.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	S3
APTGF75H120TG IGBT MODULE 1200V 100A 500W SP4 Microchip Technology	9,859	-	RFQ	-	-	SP4	Bulk	Obsolete	NPT	Full Bridge Inverter	1200 V	100 A	500 W	3.7V @ 15V, 75A	250 µA	5.1 nF @ 25 V	Standard	Yes	-	Chassis Mount	SP4
CM150DUS-12F IGBT MOD 600V 150A 520W Powerex Inc.	6,731	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	Trench	Half Bridge	600 V	150 A	520 W	2.7V @ 15V, 150A	1 mA	41 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTCV60TLM99T3G IGBT MODULE 600V 50A 90W SP3 Microchip Technology	2,080	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Three Level Inverter - IGBT, FET	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3
FF75R12RT4HOSA1 IGBT MOD 1200V 75A 395W Infineon Technologies	4,209	-	RFQ	-	PrimePACK™2	Module	Tray	Obsolete	Trench Field Stop	2 Independent	1200 V	75 A	395 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
MG12100D-BA1MM IGBT MODULE 1200V 160A 1000W D3 Littelfuse Inc.	4,803	-	RFQ	-	-	Module	Bulk	Obsolete	-	Half Bridge	1200 V	160 A	1000 W	1.8V @ 15V, 100A (Typ)	1 mA	8.58 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	D3
CM200EXS-24S IGBT MOD 1200V 200A 1500W Powerex Inc.	9,390	-	RFQ	-	-	Module	Bulk	Discontinued at Digi-Key	-	Single	1200 V	200 A	1500 W	2.15V @ 15V, 200A	1 mA	20 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-	Module
IFS75B12N3E4B31BOSA1 IGBT MOD 1200V 150A 385W Infineon Technologies	6,541	-	RFQ	-	MIPAQ™	Module	Tray	Active	Trench Field Stop	Full Bridge	1200 V	150 A	385 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
MDI200-12A4 IGBT MOD 1200V 270A 1130W Y3DCB IXYS	2,536	-	RFQ	-	-	Y3-DCB	Box	Obsolete	NPT	Single	1200 V	270 A	1130 W	2.7V @ 15V, 150A	10 mA	11 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Y3-DCB
APTGT50A170T1G IGBT MODULE 1700V 75A 312W SP1 Microchip Technology	7,055	-	RFQ	-	-	SP1	Bulk	Active	Trench Field Stop	Half Bridge	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	SP1
IFF300B12N2E4PB11BPSA1 IGBT MOD 1200V 600A 20MW Infineon Technologies	9,670	-	RFQ	-	MIPAQ™	Module	Tray	Active	Trench Field Stop	Half Bridge	1200 V	600 A	-	2.1V @ 15V, 300A	1 mA	18.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
CM50BU-24H IGBT MOD 1200V 50A 400W Powerex Inc.	9,184	-	RFQ	-	IGBTMOD™	Module	Bulk	Obsolete	-	Full Bridge Inverter	1200 V	50 A	400 W	3.7V @ 15V, 50A	1 mA	7.5 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Module
APTGLQ50H65T3G IGBT MODULE 650V 70A 175W SP3F Microchip Technology	6,912	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Full Bridge	650 V	70 A	175 W	2.3V @ 15V, 50A	50 µA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	SP3F

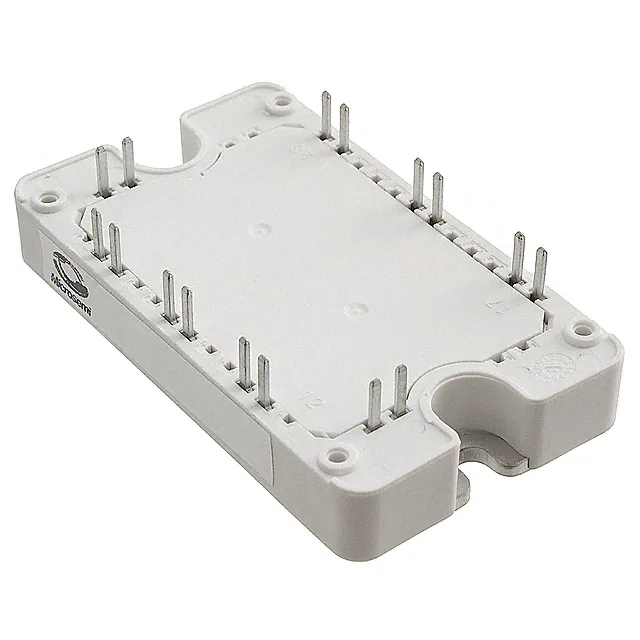

APTGT100BB60T3G IGBT MODULE 600V 150A 340W SP3 Microchip Technology	5,006	-	RFQ	-	-	SP3	Bulk	Active	Trench Field Stop	Half Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole	SP3

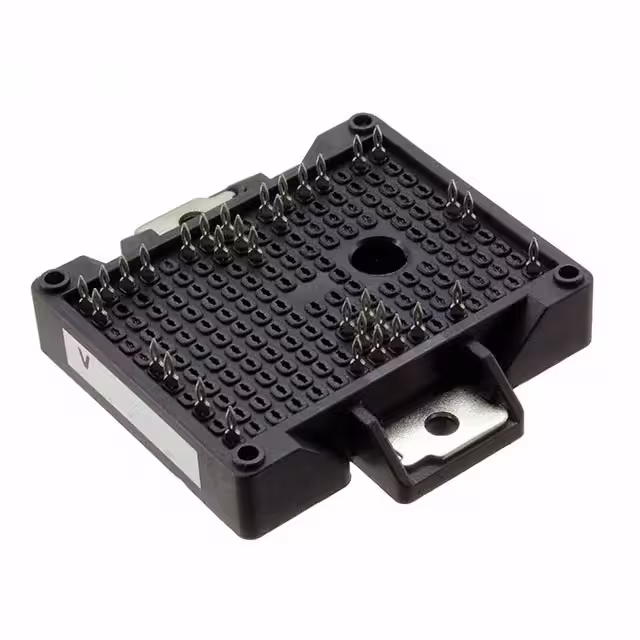

VS-ETF075Y60U IGBT MOD 600V 109A EMIPAK-2B Vishay General Semiconductor - Diodes Division	2,295	-	RFQ	-	-	EMIPAK-2B	Bulk	Obsolete	Trench	Three Level Inverter	600 V	100 A	294 W	1.93V @ 15V, 75A	100 µA	4.44 nF @ 30 V	Standard	Yes	175°C (TJ)	Chassis Mount	EMIPAK-2B
MIP50R12E2TN-BP IGBT MODULES Micro Commercial Co	2,458	-	RFQ	-	-	Module	Tape & Reel (TR)	Active	-	Three Phase Inverter	1200 V	35 A	227 W	1.95V @ 15V, 35A	1 mA	2000 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	-
FP100R12N2T7B11BPSA1 LOW POWER ECONO Infineon Technologies	3,407	-	RFQ	-	EconoPIM™ 2	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	100 A	-	1.5V @ 15V, 100A	10 µA	21.7 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO2B

Total 2945 Record«Prev 1... 80 81 82 838485 86 87...148 Next»
