IGBT-Module

TomatoElec liefert IGBT-Module für Industrie, Automotive, Leistungssteuerung, Motorantriebe und Energieanwendungen. Unsere Beschaffungsunterstützung umfasst Bipolartransistor-Module mit isoliertem Gate, die in Schalt-, Leistungswandlungs- und hocheffizienten Steuerungsschaltungen eingesetzt werden.

Wir unterstützen flexible RFQ-Services für die Beschaffung von IGBT-Modulen und helfen Kunden, ihre Einkaufseffizienz für reguläre Bedarfe, dringende Anforderungen und ausgewählte schwer beschaffbare Teile zu verbessern.

Mit Zugang zu mehreren Versorgungskanälen möchte TomatoElec Kunden zuverlässige Unterstützung bei der Beschaffung von IGBT-Modulen, schnelle Angebotsabgabe und weltweite Lieferung bieten.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	IGBT-Typ	Konfiguration	Spannung - Kollektor-Emitter-Durchbruch (Max)	Strom - Kollektor (Ic) (Max)	Leistung – Max	Vce(ein) (Max) @ Vge, Ic	Strom - Kollektor-Abschaltung (Max)	Eingangskapazität (Cies) @ Vce	Eingang	NTC-Thermistor	Betriebstemperatur	Montageart	Lieferant Gerätepaket
STGE50NC60WD IGBT MOD 600V 100A 260W ISOTOP STMicroelectronics	9,630	-	RFQ	-	PowerMESH™	SOT-227-4, miniBLOC	Tube	Obsolete	-	Single	600 V	100 A	260 W	2.6V @ 15V, 40A	500 µA	4.7 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	ISOTOP
APT100GF60JU2 IGBT MOD 600V 120A 416W SOT227 Microchip Technology	4,444	-	RFQ	-	-	ISOTOP	Bulk	Obsolete	NPT	Single	600 V	120 A	416 W	2.5V @ 15V, 100A	250 µA	12.3 nF @ 25 V	Standard	Yes	-	Chassis Mount	SOT-227
APT100GF60JU3 IGBT MOD 600V 120A 416W SOT227 Microchip Technology	7,333	-	RFQ	-	-	ISOTOP	Bulk	Obsolete	NPT	Single	600 V	120 A	416 W	2.5V @ 15V, 100A	100 µA	4.3 nF @ 25 V	Standard	No	-	Chassis Mount	SOT-227
APT100GT60JR IGBT MOD 600V 148A 500W ISOTOP Microchip Technology	5,331	-	RFQ	-	Thunderbolt IGBT®	ISOTOP	Tube	Obsolete	NPT	Single	600 V	148 A	500 W	2.5V @ 15V, 100A	25 µA	5.15 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	ISOTOP®
IX526119 ITF40PF1200DHGTLB-TRR IXYS	2,656	-	RFQ	-	-	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
IX526112 ITF40PF1200DHGTLB-TUB IXYS	3,286	-	RFQ	-	-	-	Tube	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
HGT1N30N60A4D IGBT MOD 600V 96A 255W SOT227B onsemi	6,466	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	-	Single	600 V	96 A	255 W	2.7V @ 15V, 30A	250 µA	-	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
IXGN120N60A3 IGBT MOD 600V 200A 595W SOT227B IXYS	4,470	-	RFQ	-	GenX3™	SOT-227-4, miniBLOC	Tube	Obsolete	PT	Single	600 V	200 A	595 W	1.35V @ 15V, 100A	50 µA	14.8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
APT75GN120JDQ3G IGBT MOD 1200V 124A 379W ISOTOP Microsemi Corporation	8,954	-	RFQ	-	-	ISOTOP	Tube	Discontinued at Digi-Key	Trench Field Stop	Single	1200 V	124 A	379 W	2.1V @ 15V, 75A	200 µA	4.8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	ISOTOP®
IXGN50N60BD3 IGBT MOD 600V 75A 250W SOT227B IXYS	5,358	-	RFQ	-	HiPerFAST™	SOT-227-4, miniBLOC	Tube	Obsolete	-	Single	600 V	75 A	250 W	2.5V @ 15V, 50A	200 µA	4.1 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
MIXA10W1200TMH IGBT MOD 1200V 17A 65W MINIPACK2 IXYS	5,930	-	RFQ	-	-	MiniPack2	Box	Obsolete	PT	Three Phase Inverter	1200 V	17 A	65 W	2.1V @ 15V, 9A	150 µA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	MiniPack2
IXGN400N30A3 IGBT MOD 300V 400A 735W SOT227B IXYS	3,575	-	RFQ	-	GenX3™	SOT-227-4, miniBLOC	Tube	Obsolete	PT	Single	300 V	400 A	735 W	1.15V @ 15V, 100A	50 µA	19 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
MIXA80R1200VA IGBT MOD 1200V 120A 390W V1A-PAK IXYS	6,088	-	RFQ	-	-	V1A-PAK	Box	Active	PT	Single	1200 V	120 A	390 W	2.2V @ 15V, 77A	200 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	V1A-PAK
IXGN100N120 IGBT MODULE 1200V 160A SOT227B IXYS	9,715	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	-	Single	1200 V	160 A	-	-	-	-	Standard	No	-	Chassis Mount	SOT-227B
FS30R06W1E3B11BOMA1 IGBT MODULE 600V 45A 150W Infineon Technologies	4,312	-	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	600 V	45 A	150 W	2V @ 15V, 30A	1 mA	1.65 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
STGE50NC60VD IGBT MODULE 600V 90A 260W ISOTOP STMicroelectronics	6,414	-	RFQ	-	PowerMESH™	SOT-227-4, miniBLOC	Tube	Obsolete	-	Single	600 V	90 A	260 W	2.5V @ 15V, 40A	150 µA	4.55 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	ISOTOP

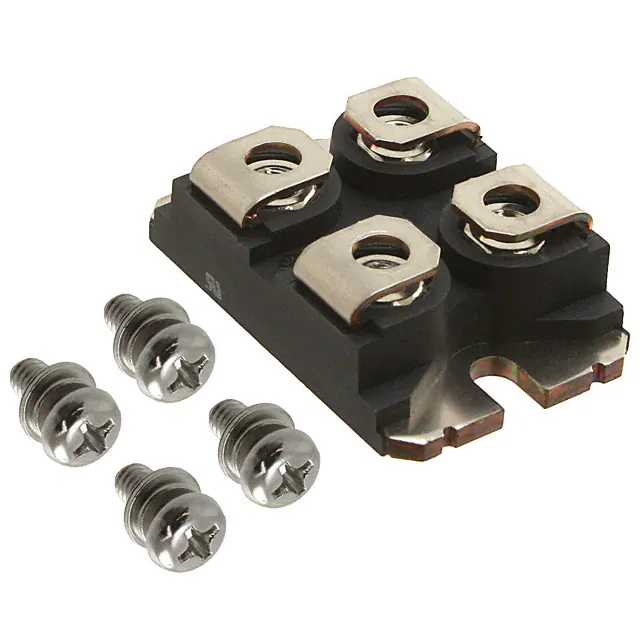

IXGN120N60A3D1 IGBT MOD 600V 200A 595W SOT227B IXYS	9,137	-	RFQ	-	GenX3™	SOT-227-4, miniBLOC	Tube	Obsolete	PT	Single	600 V	200 A	595 W	1.35V @ 15V, 100A	650 µA	14.8 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount	SOT-227B
APT50GLQ65JU2 IGBT MODULE 650V 80A 220W ISOTOP Microchip Technology	8,440	-	RFQ	-	-	SOT-227-4, miniBLOC	Tube	Obsolete	Trench Field Stop	Boost Chopper	650 V	80 A	220 W	2.3V @ 15V, 50A	50 µA	3.1 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount	ISOTOP®
VS-GB75DA120UP IGBT MODULE 1200V 658W SOT227 Vishay General Semiconductor - Diodes Division	4,793	-	RFQ	-	-	SOT-227-4, miniBLOC	Bulk	Obsolete	NPT	Single	1200 V	-	658 W	3.8V @ 15V, 75A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
CPV363M4F IGBT MODULE 600V 16A 36W IMS-2 Vishay General Semiconductor - Diodes Division	4,644	-	RFQ	-	-	19-SIP (13 Leads), IMS-2	-	Obsolete	-	Three Phase Inverter	600 V	16 A	36 W	1.63V @ 15V, 16A	250 µA	1.1 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole	IMS-2

Total 2945 Record«Prev 1... 58 59 60 616263 64 65...148 Next»
