IGBT-Module

TomatoElec liefert IGBT-Module für Industrie, Automotive, Leistungssteuerung, Motorantriebe und Energieanwendungen. Unsere Beschaffungsunterstützung umfasst Bipolartransistor-Module mit isoliertem Gate, die in Schalt-, Leistungswandlungs- und hocheffizienten Steuerungsschaltungen eingesetzt werden.

Wir unterstützen flexible RFQ-Services für die Beschaffung von IGBT-Modulen und helfen Kunden, ihre Einkaufseffizienz für reguläre Bedarfe, dringende Anforderungen und ausgewählte schwer beschaffbare Teile zu verbessern.

Mit Zugang zu mehreren Versorgungskanälen möchte TomatoElec Kunden zuverlässige Unterstützung bei der Beschaffung von IGBT-Modulen, schnelle Angebotsabgabe und weltweite Lieferung bieten.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	IGBT-Typ	Konfiguration	Spannung - Kollektor-Emitter-Durchbruch (Max)	Strom - Kollektor (Ic) (Max)	Leistung – Max	Vce(ein) (Max) @ Vge, Ic	Strom - Kollektor-Abschaltung (Max)	Eingangskapazität (Cies) @ Vce	Eingang	NTC-Thermistor	Betriebstemperatur	Montageart	Lieferant Gerätepaket
VS-GB100TP120N IGBT MOD 1200V 200A INT-A-PAK Vishay General Semiconductor - Diodes Division	7,106	-	RFQ	-	-	INT-A-Pak	Bulk	Obsolete	-	Half Bridge	1200 V	200 A	650 W	2.2V @ 15V, 100A	5 mA	7.43 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	INT-A-PAK
VS-GB100TS60NPBF IGBT MOD 600V 108A INT-A-PAK Vishay General Semiconductor - Diodes Division	3,722	-	RFQ	-	-	INT-A-Pak	Bulk	Obsolete	NPT	Half Bridge	600 V	108 A	390 W	2.85V @ 15V, 100A	100 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	INT-A-PAK
VS-GB150TH120N IGBT MOD 1200V 300A INT-A-PAK Vishay General Semiconductor - Diodes Division	3,293	-	RFQ	-	-	Double INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Half Bridge	1200 V	300 A	1008 W	2.35V @ 15V, 150A	5 mA	11 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB15XP120KTPBF IGBT MODULE 1200V 30A 187W MTP Vishay General Semiconductor - Diodes Division	3,300	-	RFQ	-	-	12-MTP Module	Bulk	Active	NPT	Three Phase Inverter	1200 V	30 A	187 W	3.66V @ 15V, 30A	250 µA	1.95 nF @ 30 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	MTP
VS-GB200TH120N IGBT MOD 1200V 360A INT-A-PAK Vishay General Semiconductor - Diodes Division	4,623	-	RFQ	-	-	Double INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Half Bridge	1200 V	360 A	1136 W	2.35V @ 15V, 200A	5 mA	14.9 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB200TH120U IGBT MOD 1200V 330A INT-A-PAK Vishay General Semiconductor - Diodes Division	3,214	-	RFQ	-	-	Double INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Half Bridge	1200 V	330 A	1316 W	3.6V @ 15V, 200A	5 mA	16.9 nF @ 30 V	Standard	No	150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB300AH120N IGBT MOD 1200V 620A INT-A-PAK Vishay General Semiconductor - Diodes Division	8,200	-	RFQ	-	-	Double INT-A-PAK (5)	Bulk	Obsolete	-	Single	1200 V	620 A	2500 W	1.9V @ 15V, 300A (Typ)	5 mA	21 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB300LH120N IGBT MOD 1200V 500A INT-A-PAK Vishay General Semiconductor - Diodes Division	5,360	-	RFQ	-	-	Double INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Single	1200 V	500 A	1645 W	2V @ 15V, 300A (Typ)	5 mA	21.2 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB300TH120N IGBT MOD 1200V 500A INT-A-PAK Vishay General Semiconductor - Diodes Division	8,201	-	RFQ	-	-	Double INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Half Bridge	1200 V	500 A	1645 W	2.45V @ 15V, 300A	5 mA	21.2 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB400TH120N IGBT MOD 1200V 800A INT-A-PAK Vishay General Semiconductor - Diodes Division	6,923	-	RFQ	-	-	Double INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Half Bridge	1200 V	800 A	2604 W	1.9V @ 15V, 400A (Typ)	5 mA	32.7 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB50TP120N IGBT MOD 1200V 100A INT-A-PAK Vishay General Semiconductor - Diodes Division	8,014	-	RFQ	-	-	INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Half Bridge	1200 V	100 A	446 W	2.15V @ 15V, 50A	5 mA	4.29 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	INT-A-PAK
VS-GB50YF120N IGBT MOD 1200V 66A ECONO2 4PACK Vishay General Semiconductor - Diodes Division	9,302	-	RFQ	-	-	Module	Bulk	Obsolete	-	-	1200 V	66 A	330 W	4.5V @ 15V, 75A	250 µA	-	Standard	No	150°C (TJ)	Chassis Mount	ECONO2 4PACK
VS-GB600AH120N IGBT MOD 1200V 910A INT-A-PAK Vishay General Semiconductor - Diodes Division	4,468	-	RFQ	-	-	Double INT-A-PAK (5)	Bulk	Obsolete	-	Single	1200 V	910 A	3125 W	1.9V @ 15V, 600A (Typ)	5 mA	41 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	Double INT-A-PAK
VS-GB75TP120N IGBT MOD 1200V 150A INT-A-PAK Vishay General Semiconductor - Diodes Division	8,436	-	RFQ	-	-	INT-A-PAK (3 + 4)	Bulk	Obsolete	-	Half Bridge	1200 V	150 A	543 W	2.35V @ 15V, 75A	5 mA	5.52 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	INT-A-PAK
VS-GB75YF120N IGBT MOD 1200V 100A ECONO2 4PACK Vishay General Semiconductor - Diodes Division	2,777	-	RFQ	-	-	Module	Bulk	Obsolete	-	-	1200 V	100 A	480 W	4.5V @ 15V, 100A	250 µA	-	Standard	No	150°C (TJ)	Chassis Mount	ECONO2 4PACK
VS-GB75YF120UT IGBT MOD 1200V 100A ECONO2 4PACK Vishay General Semiconductor - Diodes Division	2,577	-	RFQ	-	-	Module	Bulk	Obsolete	-	-	1200 V	100 A	480 W	4.5V @ 15V, 100A	250 µA	-	Standard	Yes	150°C (TJ)	Chassis Mount	ECONO2 4PACK
VS-GB90DA120U IGBT MOD 1200V 149A 862W SOT227 Vishay General Semiconductor - Diodes Division	2,552	-	RFQ	-	-	SOT-227-4, miniBLOC	Bulk	Obsolete	NPT	Single	1200 V	149 A	862 W	3.8V @ 15V, 75A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GT100TP120N IGBT MOD 1200V 180A INT-A-PAK Vishay General Semiconductor - Diodes Division	3,031	-	RFQ	-	-	INT-A-PAK (3 + 4)	Bulk	Obsolete	Trench	Half Bridge	1200 V	180 A	652 W	2.35V @ 15V, 100A	5 mA	12.8 nF @ 30 V	Standard	No	175°C (TJ)	Chassis Mount	INT-A-PAK

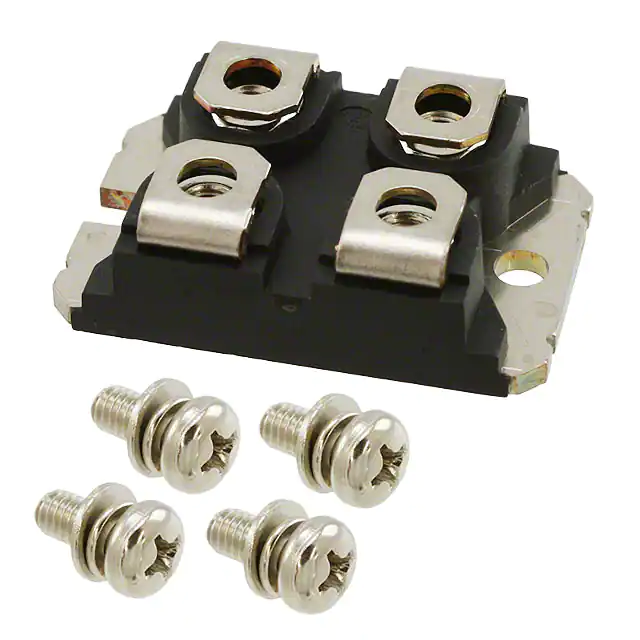

VS-GT175DA120U IGBT MOD 1200V 288A 1087W SOT227 Vishay General Semiconductor - Diodes Division	5,501	-	RFQ	-	-	SOT-227-4, miniBLOC	Bulk	Obsolete	Trench	Single	1200 V	288 A	1087 W	2.1V @ 15V, 100A	100 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	SOT-227
VS-GT400TH120N IGBT MOD 1200V 600A INT-A-PAK Vishay General Semiconductor - Diodes Division	8,411	-	RFQ	-	-	Double INT-A-PAK (3 + 8)	Bulk	Obsolete	Trench	Half Bridge	1200 V	600 A	2119 W	2.15V @ 15V, 400A	5 mA	28.8 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount	Double INT-A-PAK

Total 2945 Record«Prev 1... 124 125 126 127128129 130 131...148 Next»
