IGBT-Module

TomatoElec liefert IGBT-Module für Industrie, Automotive, Leistungssteuerung, Motorantriebe und Energieanwendungen. Unsere Beschaffungsunterstützung umfasst Bipolartransistor-Module mit isoliertem Gate, die in Schalt-, Leistungswandlungs- und hocheffizienten Steuerungsschaltungen eingesetzt werden.

Wir unterstützen flexible RFQ-Services für die Beschaffung von IGBT-Modulen und helfen Kunden, ihre Einkaufseffizienz für reguläre Bedarfe, dringende Anforderungen und ausgewählte schwer beschaffbare Teile zu verbessern.

Mit Zugang zu mehreren Versorgungskanälen möchte TomatoElec Kunden zuverlässige Unterstützung bei der Beschaffung von IGBT-Modulen, schnelle Angebotsabgabe und weltweite Lieferung bieten.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	IGBT-Typ	Konfiguration	Spannung - Kollektor-Emitter-Durchbruch (Max)	Strom - Kollektor (Ic) (Max)	Leistung – Max	Vce(ein) (Max) @ Vge, Ic	Strom - Kollektor-Abschaltung (Max)	Eingangskapazität (Cies) @ Vce	Eingang	NTC-Thermistor	Betriebstemperatur	Montageart	Lieferant Gerätepaket
FZ2400R12HE4PB9HPSA1 IGBT MODULE 1200V 2400A Infineon Technologies	3,229	-	RFQ	-	IHM-B	Module	Tray	Active	Trench Field Stop	Full Bridge	1200 V	2400 A	-	2.1V @ 15V, 2400A	5 mA	150 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
FF1400R17IP4B60BOSA1 PP IHM I Infineon Technologies	7,267	-	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Half Bridge Inverter	1700 V	1400 A	9550 W	2.2V @ 15V, 1.4kA	5 mA	110000 pF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	-
FZ2400R17HE4PB9HPSA1 IGBT MODULE 1700V 2400A Infineon Technologies	8,649	-	RFQ	-	IHM-B	Module	Tray	Active	Trench Field Stop	Single Switch	1700 V	2400 A	-	2.3V @ 15V, 2400A	5 mA	195 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
FF2400RB12IP7BPSA1 PP IHM I XHP 1 7KV AG-PRIME3+-7 Infineon Technologies	1	-	RFQ	-	PrimePACK™3	-	Tray	Active	-	2 Independent	750 V	2400 A	-	-	-	-	Standard	No	-	-	-
FF1200R17KE3NOSA1 IGBT MODULE VCES 1700V 1200A Infineon Technologies	3,445	-	RFQ	-	-	Module	Tray	Not For New Designs	-	Single Chopper	1700 V	-	595000 W	2.45V @ 15V, 1200A	5 mA	110 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount	Module
CM1400DUC-24NF IGBT MOD 1200V 1400A 8900W Powerex Inc.	5,276	-	RFQ	-	IGBTMOD™	Module	Bulk	Discontinued at Digi-Key	-	Half Bridge	1200 V	1400 A	8900 W	2.5V @ 15V, 1400A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-	Module
FZ3600R12HP4PHPSA1 IGBT MOD 1200V 4930A AGIHMB190-2 Infineon Technologies	6,049	-	RFQ	-	IHM-B	Module	Tray	Active	Trench	Single Switch	1200 V	4930 A	19000 W	2.05V @ 15V, 3.6kA	5 mA	-	Standard	No	-40°C ~ 150°C	Chassis Mount	AG-IHMB190-2
FD800R17KE3B2NOSA1 IGBT MODULE 1700V 800A Infineon Technologies	4,417	-	RFQ	-	IHM-B	Module	Bulk	Not For New Designs	-	Single Chopper	1700 V	1200 A	5200 W	2.45V @ 15V, 800A	5 mA	72 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	Module
FF200R33KF2CNOSA1 IGBT MOD 3300V 330A 2200W Infineon Technologies	9,939	-	RFQ	-	-	Module	Bulk	Obsolete	-	2 Independent	3300 V	330 A	2200 W	4.25V @ 15V, 200A	5 mA	25 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount	Module
FF450R33T3E3BPSA1 IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies	2,444	-	RFQ	-	XHP™3	Module	Tray	Discontinued at Digi-Key	Trench Field Stop	Half Bridge	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	-	Standard	No	-40°C ~ 150°C	Chassis Mount	AG-XHP100-3
FF450R33T3E3P2BPSA1 IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies	4,405	-	RFQ	-	XHP™3	Module	Tray	Active	Trench Field Stop	Half Bridge	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	-	Standard	No	-40°C ~ 150°C	Chassis Mount	AG-XHP100-3
FF450R33T3E3P3BPMA1 IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies	4,690	-	RFQ	-	XHP™3	Module	Tray	Active	Trench Field Stop	Half Bridge	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	-	Standard	No	-40°C ~ 150°C	Chassis Mount	AG-XHP100-3
FZ3600R17HE4HOSA2 IGBT MODULE 1700V 7200A Infineon Technologies	8,239	-	RFQ	-	IHM-B	Module	Tray	Discontinued at Digi-Key	-	Single Switch	1700 V	7200 A	21000 W	2.3V @ 15V, 3600A	5 mA	295 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
FF450R33T3E3P4BPMA1 IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies	9,122	-	RFQ	-	XHP™3	Module	Tray	Active	Trench Field Stop	Half Bridge	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	-	Standard	No	-40°C ~ 150°C	Chassis Mount	AG-XHP100-3
MIO1200-25E10 IGBT MODULE 2500V 1200A E10 IXYS	2,896	-	RFQ	-	-	E10	Box	Obsolete	NPT	Single Switch	2500 V	1200 A	-	2.5V @ 15V, 1200A	120 mA	186 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount	E10
FF450R33T3E3P6BPMA1 IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies	9,116	-	RFQ	-	XHP™3	Module	Tray	Active	Trench Field Stop	Half Bridge	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	-	Standard	No	-40°C ~ 150°C	Chassis Mount	AG-XHP100-3

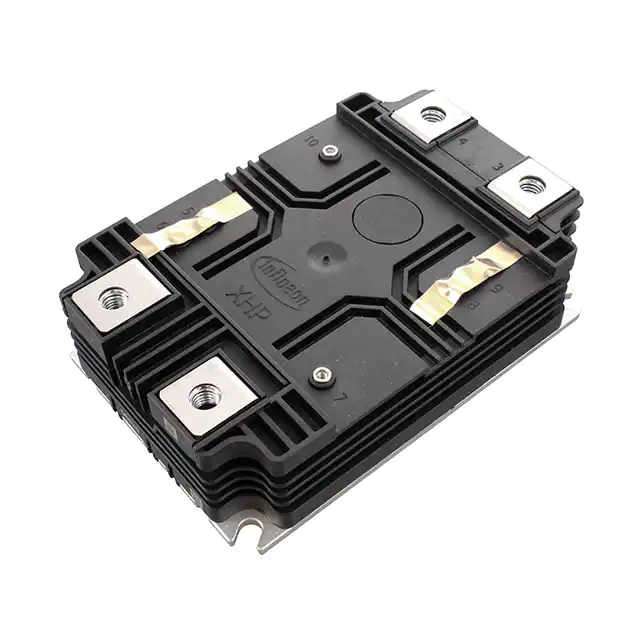

FF450R33T3E3B5BPSA1 IGBT MOD 3300V 450A AGXHP100-6 Infineon Technologies	1	-	RFQ	-	XHP™3	Module	Tray	Discontinued at Digi-Key	Trench Field Stop	Half Bridge Inverter	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	84 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	AG-XHP100-6
FZ1600R17KF6CB2S1NOSA1 IGBT MODULE Infineon Technologies	1	-	RFQ	-	-	Module	Bulk	Active	Trench Field Stop	Single Switch	1700 V	1600 A	10500 W	2.25V @ 15V, 1.6kA	5 mA	130 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	AG-IHMB130-2-1
FF450R33T3E3B5P2BPSA1 IHV IHM T XHP 3 3-6 5K Infineon Technologies	2,889	-	RFQ	-	XHP™3	Module	Tray	Active	Trench Field Stop	2 Independent	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	84 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	AG-XHP100-6
FF450R33T3E3B5P3BPMA1 IHV IHM T XHP 3 3-6 5K AG-XHP3K3 Infineon Technologies	9,099	-	RFQ	-	XHP™3	Module	Tray	Active	Trench Field Stop	2 Independent	3300 V	450 A	1000 W	2.75V @ 15V, 450A	5 mA	84 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount	AG-XHP3K33

Total 2945 Record«Prev 1... 111 112 113 114115116 117 118...148 Next»
