Startseite > Produkte > Relais > Hochfrequenzrelais (RF)

Hochfrequenzrelais (RF)

Hersteller	Serie	Verpackung	Produktstatus	Spulentyp	Spulenstrom	Spulenspannung	Kontaktform	Kontaktleistung (Strom)	Schaltspannung	Muss Betriebsspannung	Muss Freigabespannung	Betriebszeit	Freigabezeit	Funktionen	Montageart	Anschlussart	Betriebstemperatur
Coto Technology Omron Electronics Inc-EMC Div Panasonic Electric Works Pasternack Standex-Meder Electronics TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity AMP Connectors TE Connectivity Potter & Brumfield Relays	* - 2200 2300 2600 2900 9000 9200 9270 9290 9400 9800 9853 9900 ARA ARE ARJ ARN ARS ARX ARXP B10 B40 B41 CRF G5Y-1 G6K G6K-RF G6W G6Y G6Z G9YA HF HF3, AXICOM HF3S, AXICOM HF6, AXICOM MW3S, CII MW4HP, CII MW6, CII MW6HP, CII MW6S, CII RK RP	- Box Bulk Retail Package Tape & Reel (TR) Tray Tube	Active Discontinued at Key Not For New Designs Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 100 mA 11.3 mA 11.7 mA 12 mA 12.5 mA 13.3 mA 13.5 mA 133 mA 133.3 mA 14 mA 14.3 mA 14.5 mA 15 mA 15.5 mA 15.6 mA 15.7 mA 155 mA 16 mA 16.7 mA 17.6 mA 17.9 mA 18.5 mA 20 mA 21.1 mA 21.7 mA 22.2 mA 23.2 mA 23.3 mA 23.4 mA 24 mA 25 mA 26.7 mA 28 mA 28.1 mA 28.6 mA 29.2 mA 30 mA 31 mA 31.1 mA 31.3 mA 33 mA 33.3 mA 4.2 mA 4.6 mA 40 mA 41.7 mA 43 mA 44.4 mA 45.5 mA 46.7 mA 46.9 mA 47 mA 47.1 mA 47.9 mA 48 mA 5.8 mA 50 mA 58.5 mA 6.3 mA 60 mA 66.7 mA 7.8 mA 71.1 mA 72 mA 8 mA 8.3 mA 80 mA 88.9 mA 9.1 mA 93.8 mA	- 1.5VDC 12VDC 18VDC 24VDC 28VDC 3.3VDC 3VDC 4.5VDC 48VDC 5VDC 6VDC 9VDC	- 6PST-NO (6 Form A) DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 4	- 1 A 1.5 A 10 mA 100 mA 140 mA 2 A 250 mA 300 mA 500 mA	- 100VAC, 100VDC - Max 125VAC, 125VDC - Max 125VAC, 60VDC - Max 12VDC - Nom 150VAC, 150VDC - Max 170VAC, 170VDC - Max 200VAC, 200VDC - Max 200VDC - Max 250VAC - Max 250VAC, 220VDC - Max 28VDC - Nom 30VAC, 30VDC - Max 30VDC - Max 30VDC - Nom 500VAC, 500VDC - Max 50VAC, 50VDC - Max	- 1.13 VDC 10.5 VDC 13.4 VDC 16.8 VDC 18 VDC 19.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.7 VDC 22.4 VDC 3.38 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 36 VDC 4 VDC 4.5 VDC 4.8 VDC 6.7 VDC 6.75 VDC 7.2 VDC 8.4 VDC 9 VDC 9.6 VDC	- 0.15 VDC 0.22 VDC 0.3 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.6 VDC 0.75 VDC 0.9 VDC 1 VDC 1.2 VDC 1.8 VDC 2 VDC 2.4 VDC 3.6 VDC 4.8 VDC	- 0.1 ms 0.25 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- 0.02 ms 0.03 ms 0.05 ms 0.1 ms 0.15 ms 0.2 ms 0.5 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- Diode Diode, Magnetic Shield Magnetic Shield Sealed - Flux Protection Sealed - Fully Sealed - Hermetically TTL Driven	- Chassis Mount Surface Mount Through Hole	- Axial BGA Gull Wing J Lead PC Pin SMD (SMT) Tab Solder Lug	- -20°C ~ 125°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -30°C ~ 70°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 85°C -65°C ~ 125°C

Alles zurücksetzen

Alle anwenden

Ergebnis

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Spulentyp	Spulenstrom	Spulenspannung	Kontaktform	Kontaktleistung (Strom)	Schaltspannung	Muss Betriebsspannung	Muss Freigabespannung	Betriebszeit	Freigabezeit	Funktionen	Montageart	Anschlussart	Betriebstemperatur
ARE134H RELAY RF SPDT 500MA 4.5V Panasonic Electric Works	-	RFQ	Datenblatt	ARE	Tube	Obsolete	Non Latching	44.4 mA	4.5VDC	SPDT (1 Form C)	500 mA	30VDC - Max	3.38 VDC	0.45 VDC	10 ms	5 ms	-	Through Hole	PC Pin	-40°C ~ 70°C
ARE13A12 RELAY RF SPDT 500MA 12V Panasonic Electric Works	-	RFQ	Datenblatt	ARE	Tube	Obsolete	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	10 ms	5 ms	-	Surface Mount	Gull Wing	-40°C ~ 70°C
G6Z-1P DC12 RELAY RF SPDT 10MA 12V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	9 VDC	1.2 VDC	10 ms	10 ms	Sealed - Fully	Through Hole	PC Pin	-40°C ~ 70°C
G6Z-1P DC24 RELAY RF SPDT 10MA 24V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	18 VDC	2.4 VDC	10 ms	10 ms	Sealed - Fully	Through Hole	PC Pin	-40°C ~ 70°C
G6Z-1PE DC5 RELAY RF SPDT 10MA 5V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	40 mA	5VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	3.75 VDC	0.5 VDC	10 ms	10 ms	Sealed - Fully	Through Hole	PC Pin	-40°C ~ 70°C
G6Z-1PE DC12 RELAY RF SPDT 10MA 12V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	9 VDC	1.2 VDC	10 ms	10 ms	Sealed - Fully	Through Hole	PC Pin	-40°C ~ 70°C
G6Z-1PE DC24 RELAY RF SPDT 10MA 24V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	18 VDC	2.4 VDC	10 ms	10 ms	Sealed - Fully	Through Hole	PC Pin	-40°C ~ 70°C
G6Z-1F DC5 RELAY RF SPDT 10MA 5V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	40 mA	5VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	3.75 VDC	0.5 VDC	10 ms	10 ms	Sealed - Fully	Surface Mount	Gull Wing	-40°C ~ 70°C
G6Z-1F DC12 RELAY RF SPDT 10MA 12V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	9 VDC	1.2 VDC	10 ms	10 ms	Sealed - Fully	Surface Mount	Gull Wing	-40°C ~ 70°C
G6Z-1FE DC5 RELAY RF SPDT 10MA 5V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	40 mA	5VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	3.75 VDC	0.5 VDC	10 ms	10 ms	Sealed - Fully	Surface Mount	Gull Wing	-40°C ~ 70°C
G6Z-1FE DC12 RELAY RF SPDT 10MA 12V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	16.7 mA	12VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	9 VDC	1.2 VDC	10 ms	10 ms	Sealed - Fully	Surface Mount	Gull Wing	-40°C ~ 70°C
G6Z-1FE DC24 RELAY RF SPDT 10MA 24V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Tube	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	18 VDC	2.4 VDC	10 ms	10 ms	Sealed - Fully	Surface Mount	Gull Wing	-40°C ~ 70°C

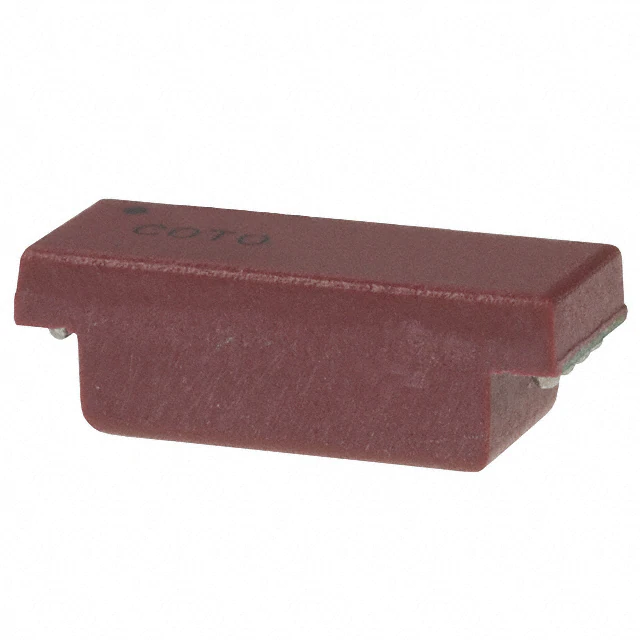

B10-05B RELAY RF SPST-NO 250MA 5V Coto Technology	-	RFQ	Datenblatt	B10	Tube	Obsolete	Non Latching	33.3 mA	5VDC	SPST-NO (1 Form A)	250 mA	125VAC, 125VDC - Max	3.8 VDC	0.4 VDC	0.1 ms	0.03 ms	-	Surface Mount	BGA	-20°C ~ 85°C

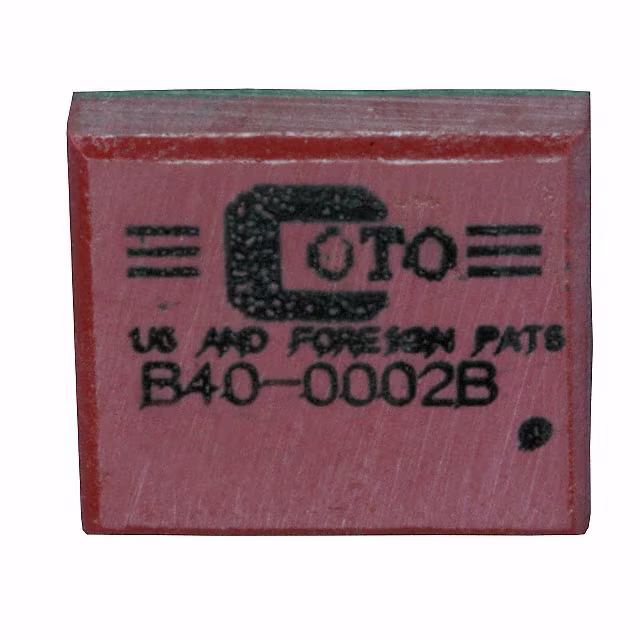

B40-0002B RELAY RF SPST-NO X 4 250MA 3.3V Coto Technology	-	RFQ	Datenblatt	B40	Tube	Obsolete	Non Latching	60 mA	3.3VDC	SPST-NO (1 Form A) x 4	250 mA	125VAC, 125VDC - Max	2.4 VDC	0.4 VDC	0.1 ms	0.03 ms	-	Surface Mount	BGA	-20°C ~ 85°C

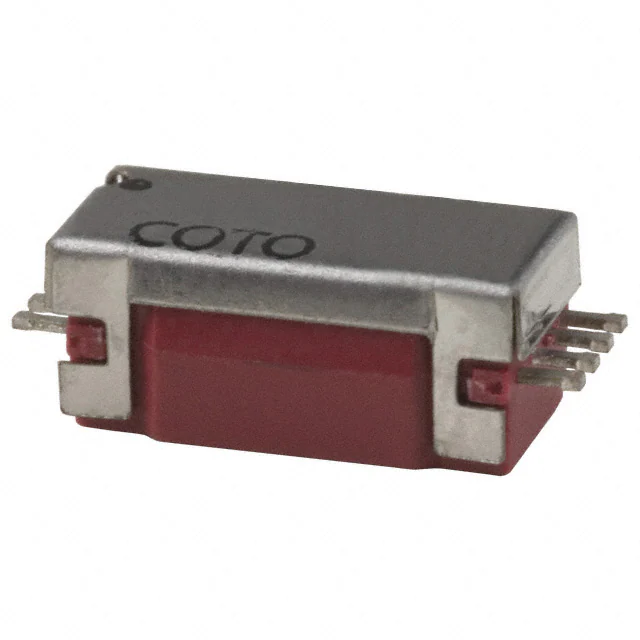

9814-03-10 RELAY RF SPST-NO 250MA 3.3V Coto Technology	-	RFQ	Datenblatt	9800	Tube	Obsolete	Non Latching	47.1 mA	3.3VDC	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	2.5 VDC	0.4 VDC	0.25 ms	0.05 ms	Magnetic Shield	Surface Mount	Axial	-20°C ~ 85°C
9814-05-10 RELAY RF SPST-NO 250MA 5V Coto Technology	-	RFQ	Datenblatt	9800	Tube	Obsolete	Non Latching	33.3 mA	5VDC	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	3.8 VDC	0.4 VDC	0.25 ms	0.05 ms	Magnetic Shield	Surface Mount	Axial	-20°C ~ 85°C
9852-03-00 RELAY RF SPDT 100MA 3.3V Coto Technology	-	RFQ	Datenblatt	9800	Tube	Obsolete	Non Latching	47.1 mA	3.3VDC	SPDT (1 Form C)	100 mA	30VAC, 30VDC - Max	2.5 VDC	0.4 VDC	1 ms	1 ms	Magnetic Shield	Surface Mount	Gull Wing	-20°C ~ 85°C
9852-03-20 RELAY RF SPDT 100MA 3.3V Coto Technology	-	RFQ	Datenblatt	9800	Tube	Obsolete	Non Latching	47.1 mA	3.3VDC	SPDT (1 Form C)	100 mA	30VAC, 30VDC - Max	2.5 VDC	0.4 VDC	1 ms	1 ms	Magnetic Shield	Surface Mount	J Lead	-20°C ~ 85°C
9852-05-10 RELAY RF SPDT 100MA 5V Coto Technology	-	RFQ	Datenblatt	9800	Tube	Obsolete	Non Latching	45.5 mA	5VDC	SPDT (1 Form C)	100 mA	30VAC, 30VDC - Max	3.8 VDC	0.4 VDC	1 ms	1 ms	Magnetic Shield	Surface Mount	Axial	-20°C ~ 85°C
G6Z-1FE-A DC24 RELAY RF SPDT 10MA 24V Omron Electronics Inc-EMC Div	-	RFQ	Datenblatt	G6Z	Bulk	Obsolete	Non Latching	8.3 mA	24VDC	SPDT (1 Form C)	10 mA	30VAC, 30VDC - Max	18 VDC	2.4 VDC	10 ms	10 ms	Sealed - Fully	Surface Mount	Gull Wing	-40°C ~ 70°C

Total 995 Record«Prev 1... 37 38 39 404142 43 44...50 Next»
