Doppelschichtkondensatoren (EDLC), Superkondensatoren

Doppelschichtkondensatoren (EDLC), auch Superkondensatoren genannt, sind Energiespeicherkomponenten mit hoher Kapazität, schneller Lade- und Entladefähigkeit sowie langer Lebensdauer. Sie werden häufig für Backup-Stromversorgung, Spitzenstromunterstützung, Energiepufferung, regenerative Energiespeicherung, Speicher-Backup, industrielle Steuerungen, Smart Meter, Automobilelektronik und erneuerbare Energiesysteme eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert EDLC- und Superkondensator-Produkte von führenden Herstellern wie KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay und Maxwell Technologies. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Superkondensatoren einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Kapazität	Toleranz	Spannung - Nenn	ESR (Äquivalenter Serienwiderstand)	Lebensdauer bei Temperatur	Anschluss	Montageart	Paket/Gehäuse	Leitungsabstand	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur
PHV-5R4H255-R CAP 2.5F -10% +30% 5.4V T/H Eaton - Electronics Division	399	-	RFQ	Datenblatt	PHV	Bulk	Active	2.5 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.209" (5.30mm)	0.906" L x 0.839" W (23.00mm x 21.30mm)	0.433" (11.00mm)	-40°C ~ 65°C
PM-5R0H105-R CAP 1F -20% +80% 5V T/H Eaton - Electronics Division	1,704	-	RFQ	Datenblatt	PM	Bulk	Active	1 F	-20%, +80%	5 V	200mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.465" (11.80mm)	0.866" L x 0.681" W (22.00mm x 17.30mm)	0.354" (9.00mm)	-40°C ~ 60°C
PHV-5R4H505-R CAP 5F -10% +30% 5.4V T/H Eaton - Electronics Division	1,467	-	RFQ	Datenblatt	PHV	Bulk	Active	5 F	-10%, +30%	5.4 V	70mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.209" (5.30mm)	1.280" L x 0.839" W (32.50mm x 21.30mm)	0.433" (11.00mm)	-40°C ~ 65°C
PHB-5R0V505-R CAP 5F -10% +30% 5V T/H Eaton - Electronics Division	2,489	-	RFQ	Datenblatt	PHB	Bulk	Active	5 F	-10%, +30%	5 V	130mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	1.280" (32.50mm)	-25°C ~ 70°C
MAL219691154E3 CAP 4F -20% +80% 5.6V SMD Vishay Beyschlag/Draloric/BC Components	764	-	RFQ	Datenblatt	ENYCAP™ 196HVC	Tray	Last Time Buy	4 F	-20%, +80%	5.6 V	10Ohm @ 1kHz	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.551" L x 0.551" W (14.00mm x 14.00mm)	0.150" (3.80mm)	-20°C ~ 70°C
MAL219691254E3 CAP 15F -20% +80% 5.6V SMD Vishay Beyschlag/Draloric/BC Components	373	-	RFQ	Datenblatt	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	5.6 V	2.4Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.945" L x 0.945" W (24.00mm x 24.00mm)	0.150" (3.80mm)	-20°C ~ 85°C
KR-5R5V155-R CAP 1.5F -20% +80% 5.5V T/H Eaton - Electronics Division	974	-	RFQ	Datenblatt	KR	Bulk	Active	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.768" (19.50mm)	-25°C ~ 70°C
HV1860-2R7107-R CAP 100F -10% +30% 2.7V T/H Eaton - Electronics Division	365	-	RFQ	Datenblatt	HV	Bulk	Active	100 F	-10%, +30%	2.7 V	12mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.382" (60.50mm)	-40°C ~ 65°C
MAL219691253E3 CAP 15F -20% +80% 4.2V SMD Vishay Beyschlag/Draloric/BC Components	220	-	RFQ	Datenblatt	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	4.2 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals Same Side	-	0.945" L x 0.866" W (24.00mm x 22.00mm)	0.150" (3.80mm)	-20°C ~ 85°C
TPLC-3R8/220MR16X25 CAP LITH HYBRID 220F 3.8V T/H Tecate Group	682	-	RFQ	Datenblatt	TPLC	Tray	Active	220 F	±20%	3.8 V	65mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.630" Dia (16.00mm)	1.063" (27.00mm)	-15°C ~ 70°C
PHV-5R4V505-R CAP 5F -10% +30% 5.4V T/H Eaton - Electronics Division	722	-	RFQ	Datenblatt	PHV	Bulk	Active	5 F	-10%, +30%	5.4 V	70mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can	0.209" (5.30mm)	0.839" L x 0.433" W (21.30mm x 11.00mm)	1.280" (32.50mm)	-40°C ~ 65°C
PHV-5R4H305-R CAP 3F -10% +30% 5.4V T/H Eaton - Electronics Division	405	-	RFQ	Datenblatt	PHV	Bulk	Active	3 F	-10%, +30%	5.4 V	80mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can, Horizontal	0.465" (11.80mm)	1.280" L x 0.681" W (32.50mm x 17.30mm)	0.354" (9.00mm)	-40°C ~ 65°C
TPLH-3R0/450SS35X71 CAP 450F 3V THROUGH HOLE Tecate Group	1,022	-	RFQ	Datenblatt	TPLH-Snap-In	Bulk	Active	450 F	-	3 V	3.6mOhm	1500 Hrs @ 65°C	PC Pins	Through Hole	Radial, Can - Snap-In - 4 Lead	0.902" (22.90mm)	1.378" Dia (35.00mm)	2.874" (73.00mm)	-40°C ~ 65°C
SC0350-270-RSS CAPACITOR 350F 0%/20% 2.7V TH LICAP Technologies, Inc.	208	-	RFQ	Datenblatt	-	Box	Active	350 F	0%, +20%	2.7 V	2.8mOhm	1500 Hrs @ 65°C	Solder Lug	Through Hole	Radial, Can - Solder Lug - 4 Lead	-	1.254" Dia (31.85mm)	2.421" (61.50mm)	-50°C ~ 65°C
SCAP,PBLS-1.25/21.6 CAP 1.25F -10% +20% 21.6V UCAP Tecate Group	482	-	RFQ	Datenblatt	PBLS	Bulk	Active	1.25 F	-10%, +20%	21.6 V	540mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	1.693" L x 0.866" W (43.00mm x 22.00mm)	1.417" (36.00mm)	-40°C ~ 65°C
MAL219691216E3 CAP 15F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	112	-	RFQ	Datenblatt	ENYCAP™ 196HVC	Tray	Last Time Buy	15 F	-20%, +80%	8.4 V	3.6Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Horizontal	0.630" (16.00mm)	0.472" Dia x 0.591" L (12.00mm x 15.00mm)	0.472" (12.00mm)	-20°C ~ 85°C

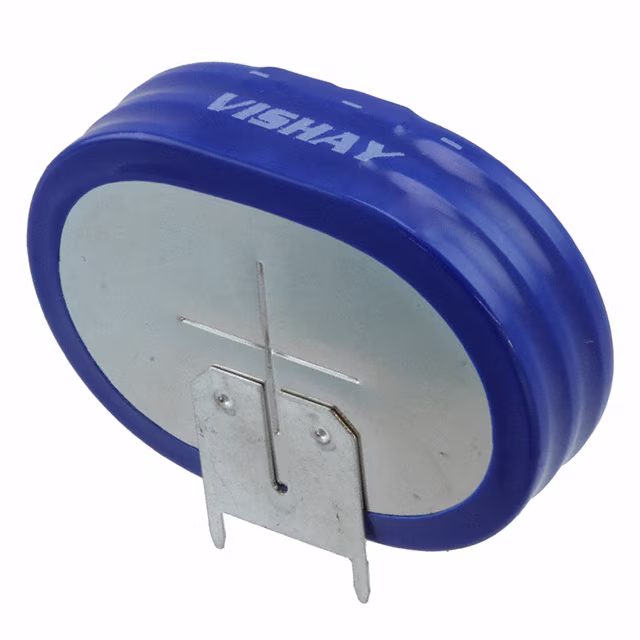

MAL219690101E3 CAP 90F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	173	-	RFQ	Datenblatt	ENYCAP™ 196HVC	Tray	Last Time Buy	90 F	-20%, +80%	4.2 V	40mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	Coin, Stacked Vertical	0.394" (10.00mm)	1.378" L x 0.984" W (35.00mm x 25.00mm)	0.394" (10.00mm)	-20°C ~ 85°C
SCAP,PBLS-4.5/27 CAP 4.5F -10% +20% 27V UCAP PACK Tecate Group	137	-	RFQ	Datenblatt	PBLS	Bulk	Active	4.5 F	-10%, +20%	27 V	220mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	Module, Wire Leads	-	2.598" L x 1.083" W (66.00mm x 27.50mm)	2.402" (61.00mm)	-40°C ~ 65°C
XL60-3R0308W-R CAP 3V 3000F WELD Eaton - Electronics Division	444	-	RFQ	Datenblatt	XL60	Bulk	Active	3000 F	0%, +20%	3 V	0.23mOhm	1500 Hrs @ 65°C	Weld Stud	Chassis Mount	Axial, Can	-	2.390" Dia x 5.433" L (60.70mm x 138.00mm)	-	-40°C ~ 65°C
SC3000-300-ASC CAP 3V 3000F AXIAL SCREW TERMINA LICAP Technologies, Inc.	43	-	RFQ	Datenblatt	-	Box	Active	3000 F	0%, +20%	3 V	0.29mOhm	1500 Hrs @ 65°C	Screw Terminals	Chassis Mount	Axial, Can - Screw Terminals	-	2.402" Dia x 5.413" L (61.00mm x 137.50mm)	-	-40°C ~ 65°C

Total 2853 Record«Prev 1... 14 15 16 171819 20 21...143 Next»
