Doppelschichtkondensatoren (EDLC), Superkondensatoren

Doppelschichtkondensatoren (EDLC), auch Superkondensatoren genannt, sind Energiespeicherkomponenten mit hoher Kapazität, schneller Lade- und Entladefähigkeit sowie langer Lebensdauer. Sie werden häufig für Backup-Stromversorgung, Spitzenstromunterstützung, Energiepufferung, regenerative Energiespeicherung, Speicher-Backup, industrielle Steuerungen, Smart Meter, Automobilelektronik und erneuerbare Energiesysteme eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert EDLC- und Superkondensator-Produkte von führenden Herstellern wie KYOCERA AVX, KEMET, Eaton, Cornell Dubilier, Panasonic, Nichicon, Vishay und Maxwell Technologies. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Superkondensatoren einreichen.

Hersteller-Teilenr.	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Kapazität	Toleranz	Spannung - Nenn	ESR (Äquivalenter Serienwiderstand)	Lebensdauer bei Temperatur	Anschluss	Montageart	Paket/Gehäuse	Leitungsabstand	Größe/Abmessung	Höhe - Sitz (Max)	Betriebstemperatur
EEC-S0HD223V CAP 22MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	SD	Bulk	Obsolete	22 mF	-20%, +80%	5.5 V	150Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-S0HD473V CAP 47MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	SD	Bulk	Obsolete	47 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-S0HD224V CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	SD	Bulk	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-F5R5U155 CAP 1.5F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	NF	Bulk	Obsolete	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.846" Dia (21.50mm)	0.315" (8.00mm)	-25°C ~ 70°C
EEC-S0HD334H CAP 330MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	SD	Bulk	Obsolete	330 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.394" (10.00mm)	0.413" Dia (10.50mm)	0.256" (6.50mm)	-25°C ~ 70°C
EEC-S0HD334V CAP 330MF -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	SD	Bulk	Obsolete	330 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.413" Dia (10.50mm)	0.453" (11.50mm)	-25°C ~ 70°C
EEC-S5R5H155 CAP 1.5F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	SG	Bulk	Obsolete	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Horizontal	0.787" (20.00mm)	0.748" Dia (19.00mm)	0.256" (6.50mm)	-25°C ~ 70°C

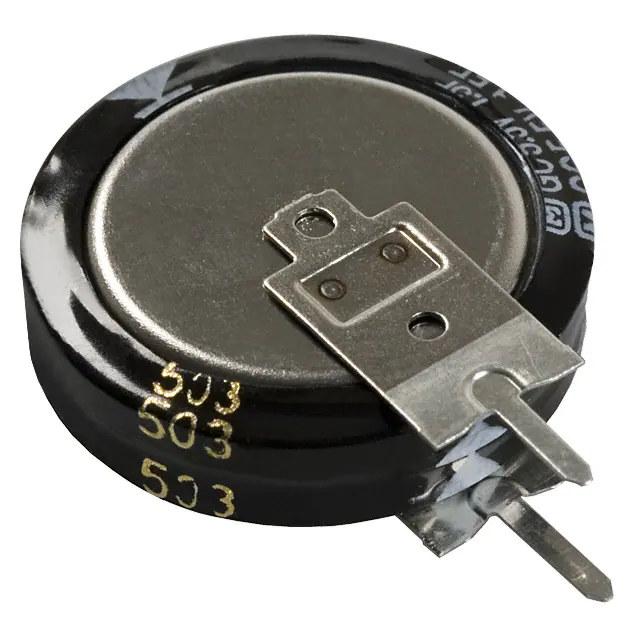

EEC-S5R5V155 CAP 1.5F -20% +80% 5.5V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	SG	Bulk	Obsolete	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Axial, Can - Vertical	0.197" (5.00mm)	0.748" Dia (19.00mm)	0.827" (21.00mm)	-25°C ~ 70°C
EEC-HW0D475 CAP 4.7F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	HW	Bulk	Obsolete	4.7 F	-20%, +40%	2.3 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.984" (25.00mm)	-25°C ~ 70°C
EEC-HW0D106 CAP 10F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	HW	Bulk	Obsolete	10 F	-20%, +40%	2.3 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	1.457" (37.00mm)	-25°C ~ 70°C
EEC-HW0D226 CAP 22F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	-	HW	Bulk	Obsolete	22 F	-20%, +40%	2.3 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.457" (37.00mm)	-25°C ~ 70°C

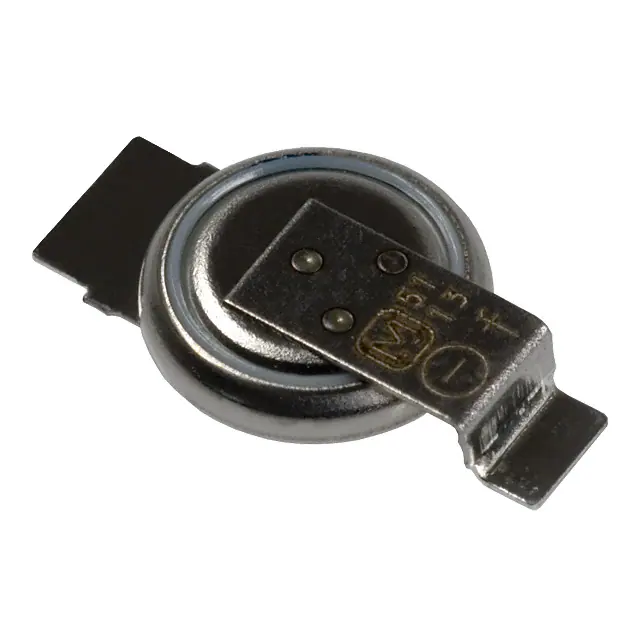

EEC-EN0F204A CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	Datenblatt	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.073" (1.85mm)	-10°C ~ 60°C
EEC-HW0D335 CAP 3.3F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	HW	Bulk	Obsolete	3.3 F	-20%, +40%	2.3 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	Radial, Can	0.197" (5.00mm)	0.492" Dia (12.50mm)	0.984" (25.00mm)	-25°C ~ 70°C
EEC-HW0D306 CAP 30F -20% +40% 2.3V T/H Panasonic Electronic Components	-	RFQ	-	HW	Bulk	Obsolete	30 F	-20%, +40%	2.3 V	100mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	1.457" (37.00mm)	-25°C ~ 60°C
EEC-HW0D706 CAP 70F -20% +40% 2.1V T/H Panasonic Electronic Components	-	RFQ	Datenblatt	HW	Bulk	Obsolete	70 F	-20%, +40%	2.1 V	100mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	Radial, Can	0.295" (7.50mm)	0.709" Dia (18.00mm)	2.047" (52.00mm)	-25°C ~ 60°C
EEC-EN0F204B CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	Datenblatt	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Thin Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
EEC-EN0F204RL CAP 200MF -20% +80% 3.3V SMD Panasonic Electronic Components	-	RFQ	Datenblatt	EN	Tape & Reel (TR)	Obsolete	200 mF	-20%, +80%	3.3 V	200mOhm @ 1kHz	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	Coin, Wide Terminals - Opposite Sides	-	0.268" Dia (6.80mm)	0.071" (1.80mm)	-10°C ~ 60°C
B48621A7205Q018 CAP 200F -10% +30% 42V CHAS MT EPCOS - TDK Electronics	-	RFQ	Datenblatt	UltraCap®	Bulk	Obsolete	200 F	-10%, +30%	42 V	3mOhm @ 1kHz	90000 Hrs @ 25°C	Screw Terminals	Chassis Mount	Module, Screw Terminals	-	21.732" L x 10.512" W (552.00mm x 267.00mm)	6.614" (168.00mm)	-30°C ~ 70°C
B48621A9115Q024 CAP 110F -10% +30% 56V CHAS MT EPCOS - TDK Electronics	-	RFQ	Datenblatt	UltraCap®	Bulk	Obsolete	110 F	-10%, +30%	56 V	5mOhm @ 1kHz	90000 Hrs @ 25°C	Screw Terminals	Chassis Mount	Module, Screw Terminals	-	21.732" L x 13.583" W (552.00mm x 345.00mm)	5.433" (138.00mm)	-30°C ~ 70°C
B49410A2115Q000 CAP 110F -10% +30% 2.5V T/H EPCOS - TDK Electronics	-	RFQ	Datenblatt	UltraCap®	Bulk	Obsolete	110 F	-10%, +30%	2.5 V	3mOhm @ 1kHz	90000 Hrs @ 25°C	PC Pins	Through Hole	Radial, Can - 4 Lead	0.063" (1.60mm)	0.984" Dia (25.00mm)	2.677" (68.00mm)	-30°C ~ 70°C

Total 2853 Record«Prev 1... 108 109 110 111112113 114 115...143 Next»
