Strommess-Transformatoren

Strommess-Transformatoren sind magnetische Komponenten, die zur Erfassung, Überwachung und Messung von Strom in elektronischen und elektrischen Systemen eingesetzt werden. Sie bieten Isolation zwischen dem primären Strompfad und der Messschaltung und eignen sich daher für Leistungsüberwachung, Überlasterkennung, Rückkopplungsregelung und Schutzfunktionen. Sie werden häufig in Stromversorgungen, Motorantrieben, Industrieelektronik, Energiezählern, Wechselrichtern, Batteriesystemen, Kommunikationsgeräten und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Stromwandler, Stromerfassungs-Transformatoren, AC-Strommess-Transformatoren, PCB-Stromwandler, Split-Core-Stromwandler und verwandte magnetische Sensorkomponenten. Die Auswahl erfolgt häufig nach Strombereich, Übersetzungsverhältnis, Frequenzbereich, Isolationsspannung, Genauigkeit, Bürdenwiderstand, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Strommess-Transformatoren von anerkannten Herstellern wie Pulse Electronics, Bourns, Würth Elektronik, TDK, Murata, Triad Magnetics, Coilcraft, Hammond Manufacturing und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Frequenzbereich	Typ	Stromstärke (Ampere)	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Stromverhältnis	Gleichstromwiderstand (DCR)	Bewertungen	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Anschlussart
PA0368.070NL CURR SENSE XFMR 1:70 4A SMD Pulse Electronics	15	-	RFQ	Datenblatt	-	Tube	Active	50kHz ~ 1MHz	Invasive	4 A	3.3 mH	-	1:70	-	4mOhm Primary, 1.2Ohm Secondary	-	Surface Mount	0.285" L x 0.352" W (7.25mm x 8.25mm)	0.124" (3.15mm)	-
B82801B0305A125 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	0	-	RFQ	Datenblatt	B82801B	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	-	3 mH	-	1:125	-	0.8mOhm Primary, 6.5Ohm Secondary	-	Surface Mount	0.280" L x 0.320" W (7.11mm x 8.13mm)	0.200" (5.08mm)	Gull Wing

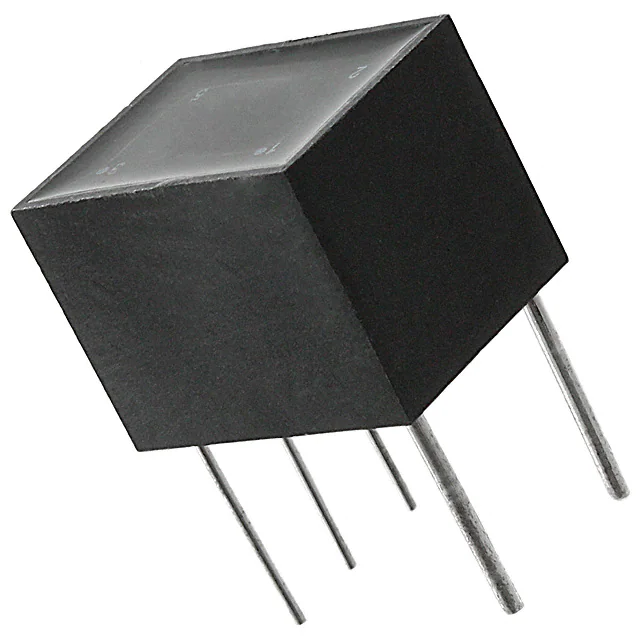

PE-63619NL CURR SENSE XFMR 20A T/H Pulse Electronics	0	-	RFQ	Datenblatt	THT	Tray	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200CT:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900" L x 0.700" W (22.86mm x 17.78mm)	0.700" (17.78mm)	PC Pin
PE-67300NL CURR SENSE XFMR 37A T/H Pulse Electronics	0	-	RFQ	Datenblatt	-	Tray	Active	10kHz ~ 200kHz	Invasive	37 A	180 mH	-	-	300:1	510Ohm Primary, 11Ohm Secondary	-	Through Hole	0.565" L x 0.750" W (14.35mm x 19.05mm)	0.750" (19.05mm)	PC Pin

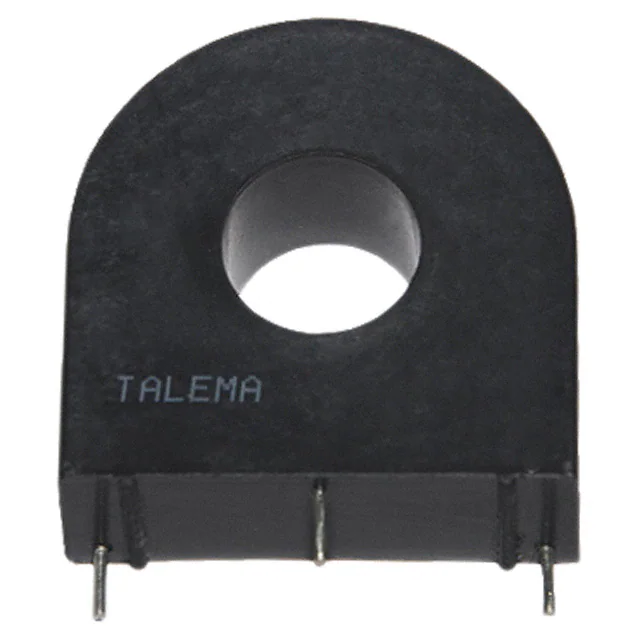

AC1075 CURR SENSE XFMR 75A T/H Talema Group LLC	0	-	RFQ	Datenblatt	AC	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	75 A	-	-	-	1000:1	24Ohm	-	Through Hole	1.500" L x 0.626" W (38.10mm x 15.90mm)	1.500" (38.10mm)	PC Pin
CCT272440-80-10-02 CURR SENSE XFMR 80A CHAS MNT TDK Corporation	0	-	RFQ	Datenblatt	CCT	Bulk	Active	50/60Hz	Non-Invasive (Split Core)	80 A	-	-	-	3000:1	352Ohm	-	Chassis Mount	1.201" L x 1.083" W (30.50mm x 27.50mm)	1.634" (41.50mm)	Wire Leads with Connector
CT5CF CURR SENSE XFMR CHAS MNT Hammond Manufacturing	0	-	RFQ	Datenblatt	CT	Box	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Chassis Mount	2.063" L x 1.100" W (52.40mm x 27.94mm)	1.250" (31.75mm)	Wire Leads
2277815 CURR SENSE XFMR 60A DIN RAIL Phoenix Contact	0	-	RFQ	Datenblatt	-	Bulk	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	60 A	-	-	-	-	-	-	DIN Rail	2.362" L x 1.181" W (60.00mm x 30.00mm)	3.150" (80.00mm)	Terminal Block

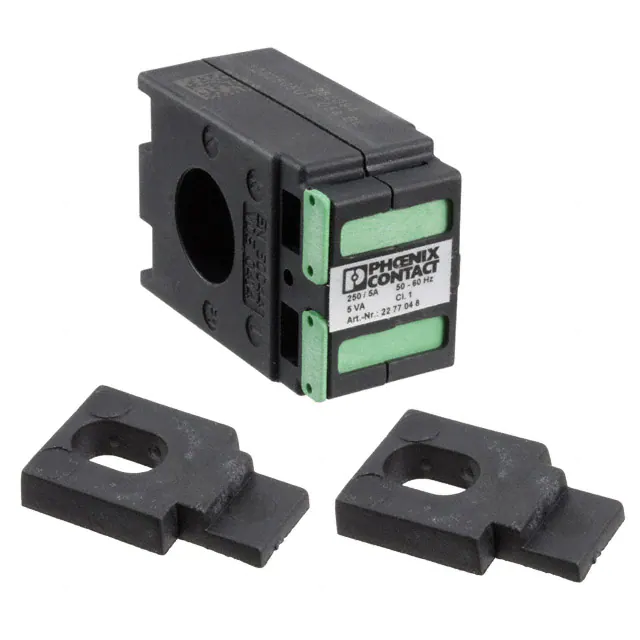

2277048 CURR SENSE XFMR 250A DIN RAIL Phoenix Contact	1	-	RFQ	Datenblatt	PACT	Bulk	Active	50/60Hz	Non-Invasive (Solid Core)	250 A	-	-	-	200:5	-	-	DIN Rail	1.732" L x 1.181" W (44.00mm x 30.00mm)	2.598" (66.00mm)	Terminal Block
CT-0100-D10 CURR SENSE XFMR 100:5 DONUT Littelfuse Inc.	1	-	RFQ	Datenblatt	CT	Bulk	Active	-	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Free Hanging (In-Line)	-	-	Wire Leads
CT-0100-F10 CURR SENSE XFMR 100:5 FOOTED Littelfuse Inc.	0	-	RFQ	Datenblatt	CT	Bulk	Active	-	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	-	-	-	Terminal Block
CT400A CURR SENSE XFMR 5A CHAS MNT Hammond Manufacturing	1	-	RFQ	Datenblatt	CT	Box	Active	-	Non-Invasive (Solid Core)	5 A	-	-	-	400:5	-	-	Chassis Mount	4.750" L x 1.750" W (120.65mm x 44.45mm)	4.250" (107.95mm)	Wire Leads
CT150A CURR SENSE XFMR 5A CHAS MNT Hammond Manufacturing	1	-	RFQ	Datenblatt	CT	Box	Active	-	Non-Invasive (Solid Core)	5 A	-	-	-	150:5	-	-	Chassis Mount	3.750" L x 1.750" W (95.25mm x 44.45mm)	3.250" (82.55mm)	Wire Leads
CT200A CURR SENSE XFMR 5A CHAS MNT Hammond Manufacturing	1	-	RFQ	Datenblatt	CT	Box	Active	-	Non-Invasive (Solid Core)	5 A	-	-	-	200:5	-	-	Chassis Mount	4.750" L x 1.750" W (120.65mm x 44.45mm)	4.250" (107.95mm)	Wire Leads
CT500A CURR SENSE XFMR 5A CHAS MNT Hammond Manufacturing	1	-	RFQ	Datenblatt	CT	Box	Active	-	Non-Invasive (Solid Core)	5 A	-	-	-	500:5	-	-	Chassis Mount	4.750" L x 1.750" W (120.65mm x 44.45mm)	4.250" (107.95mm)	Wire Leads
CT-0400-F20 CURR SENSE XFMR 400:5 FOOTED Littelfuse Inc.	1	-	RFQ	Datenblatt	CT	Bulk	Active	-	Non-Invasive (Solid Core)	400 A	-	-	-	400:5	-	-	-	-	-	Terminal Block
CT-0500-D20 CURR SENSE XFMR 500:5 DONUT Littelfuse Inc.	1	-	RFQ	Datenblatt	CT	Bulk	Active	-	Non-Invasive (Solid Core)	500 A	-	-	-	500:5	-	-	Free Hanging (In-Line)	-	-	Wire Leads
CT1200A CURR SENSE XFMR 5A CHAS MNT Hammond Manufacturing	1	-	RFQ	Datenblatt	CT	Box	Active	-	Non-Invasive (Solid Core)	5 A	-	-	-	1200:5	-	-	Chassis Mount	8.000" L x 1.750" W (203.20mm x 44.45mm)	7.250" (184.15mm)	Wire Leads
A82-20500 CURR SENSE XFMR 500A CHAS MNT Carlo Gavazzi Inc.	1	-	RFQ	Datenblatt	-	Bag	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	500 A	-	-	-	-	-	-	Chassis Mount	3.740" L x 0.787" W (95.00mm x 20.00mm)	2.657" (67.50mm)	Wire Leads
A82-20250 CURR SENSE XFMR 250A CHAS MNT Carlo Gavazzi Inc.	0	-	RFQ	Datenblatt	-	Bag	Active	40Hz ~ 1kHz	Non-Invasive (Solid Core)	250 A	-	-	-	-	-	-	Chassis Mount	3.740" L x 0.787" W (95.00mm x 20.00mm)	2.657" (67.50mm)	Wire Leads

Total 2059 Record«Prev 1... 43 44 45 464748 49 50...103 Next»
