Strommess-Transformatoren

Strommess-Transformatoren sind magnetische Komponenten, die zur Erfassung, Überwachung und Messung von Strom in elektronischen und elektrischen Systemen eingesetzt werden. Sie bieten Isolation zwischen dem primären Strompfad und der Messschaltung und eignen sich daher für Leistungsüberwachung, Überlasterkennung, Rückkopplungsregelung und Schutzfunktionen. Sie werden häufig in Stromversorgungen, Motorantrieben, Industrieelektronik, Energiezählern, Wechselrichtern, Batteriesystemen, Kommunikationsgeräten und Embedded-Anwendungen verwendet.

Diese Kategorie umfasst Stromwandler, Stromerfassungs-Transformatoren, AC-Strommess-Transformatoren, PCB-Stromwandler, Split-Core-Stromwandler und verwandte magnetische Sensorkomponenten. Die Auswahl erfolgt häufig nach Strombereich, Übersetzungsverhältnis, Frequenzbereich, Isolationsspannung, Genauigkeit, Bürdenwiderstand, Montageart, Bauform und Anwendungsanforderungen.

TomatoElec liefert originale Strommess-Transformatoren von anerkannten Herstellern wie Pulse Electronics, Bourns, Würth Elektronik, TDK, Murata, Triad Magnetics, Coilcraft, Hammond Manufacturing und weiteren wichtigen Marken. Als lagerführender Lieferant und unabhängiger Distributor für elektronische Komponenten bietet TomatoElec Bestandsunterstützung, Originalbauteil-Beschaffung und BOM-Sourcing für internationale Kunden.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Frequenzbereich	Typ	Stromstärke (Ampere)	Induktivität	ET (Volt-Zeit)	Windungszahlverhältnis - Primär:Sekundär	Stromverhältnis	Gleichstromwiderstand (DCR)	Bewertungen	Montageart	Größe/Abmessung	Höhe - Sitz (Max)	Anschlussart
B78419A2251A003 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	33	-	RFQ	Datenblatt	B78419	Tape & Reel (TR)	Active	50kHz ~ 250kHz	Invasive	-	7 mH	-	1:100	-	0.5mOhm Primary, 3.1Ohm Secondary	-	Surface Mount	0.504" L x 0.535" W (12.80mm x 13.60mm)	0.567" (14.40mm)	Gull Wing
101990065 CURR SENSE XFMR 70A CHAS MNT Seeed Technology Co., Ltd	40	-	RFQ	Datenblatt	SCT013	Bulk	Active	-	Non-Invasive (Split Core)	70 A	-	-	-	-	-	-	Chassis Mount	-	-	Wire Leads with Connector
SPCT 50/30 200/5 A VA 3 CL 1-CU-ROHS CURR SENSE XFMR 200A DIN RAIL Selec Controls USA Inc.	49	-	RFQ	Datenblatt	SPCT	Box	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	DIN Rail	1.969" L x 1.693" W (50.00mm x 43.00mm)	2.953" (75.00mm)	Terminal Block
SPCT 62/40 400/5 A VA 3.75 CL 0.5-CU-ROHS CURR SENSE XFMR 400A DIN RAIL Selec Controls USA Inc.	35	-	RFQ	Datenblatt	SPCT	Box	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	400:5	-	-	DIN Rail	2.441" L x 1.811" W (62.00mm x 46.00mm)	3.169" (80.50mm)	Terminal Block
CR8350-2000 CURR SENSE XFMR 200A T/H CR Magnetics Inc.	50	-	RFQ	Datenblatt	CR8300	Bulk	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	200 A	-	-	-	2000:1	73Ohm	-	Through Hole	1.476" L x 0.551" W (37.50mm x 14.00mm)	1.535" (39.00mm)	PC Pin
CCT261631-30-06-00 CURR SENSE XFMR 30A CHAS MNT TDK Corporation	8	-	RFQ	Datenblatt	CCT	Bulk	Active	50/60Hz	Non-Invasive (Split Core)	30 A	-	-	-	3000:1	492Ohm	-	Chassis Mount	1.126" L x 0.728" W (28.60mm x 18.50mm)	1.260" (32.00mm)	Wire Leads with Connector
MODEL 19 CURR SENSE XFMR IN-LINE CR Magnetics Inc.	74	-	RFQ	Datenblatt	PH	Bulk	Active	50Hz ~ 1kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.039" L x 0.949" W (26.40mm x 24.10mm)	0.461" (11.70mm)	Wire Leads
CBCT-35-1-CE CORE BALANCE CURRENT TRANSFORMER Selec Controls USA Inc.	54	-	RFQ	Datenblatt	CBCT	Box	Active	-	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Panel Mount	2.520" L x 2.067" W (64.00mm x 52.50mm)	3.780" (96.00mm)	Terminal Block
C/CT-0810 CURR SENSE XFMR 3000:1 80A CHAS KEMET	67	-	RFQ	Datenblatt	C/CT	Box	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	80 A	-	-	3000:1	3000:1	-	-	Chassis Mount	0.078" L x 0.050" W (35.30mm x 22.90mm)	0.827" (37.50mm)	Wire Leads with Connector
CR2550-G CURR SENSE XFMR IN-LINE CR Magnetics Inc.	63	-	RFQ	Datenblatt	CR2550	Bulk	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094" L x 0.866" W (27.80mm x 22.00mm)	-	-
SPCT 62/22 30/5 A VA 1 CL 5-CU-ROHS CURR SENSE XFMR 30A DIN RAIL Selec Controls USA Inc.	45	-	RFQ	Datenblatt	SPCT	Box	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	30 A	-	-	-	30:5	-	-	DIN Rail	2.441" L x 1.811" W (62.00mm x 46.00mm)	3.169" (80.50mm)	Terminal Block
CBCT-70-1-CE CORE BALANCE CURRENT TRANSFORMER Selec Controls USA Inc.	18	-	RFQ	Datenblatt	CBCT	Box	Active	-	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Panel Mount	3.858" L x 3.425" W (98.00mm x 87.00mm)	5.157" (131.00mm)	Terminal Block
CR2SFT-101 CURR SENSE XFMR 100A T/H CR Magnetics Inc.	50	-	RFQ	Datenblatt	CR2	Bulk	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Chassis Mount	2.681" L x 2.000" W (68.10mm x 44.50mm)	2.681" (68.10mm)	Stud
CR45-G CURR SENSE XFMR PANEL MOUNT CR Magnetics Inc.	54	-	RFQ	Datenblatt	CR45	Bulk	Active	50Hz ~ 1kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Panel Mount	0.949" L x 0.461" W (24.10mm x 11.70mm)	1.039" (26.40mm)	-

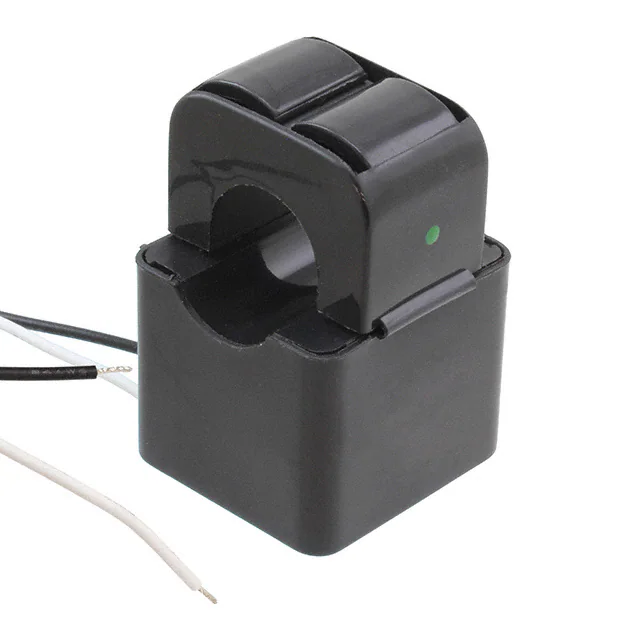

CR3111-3000 CURR SENSE XFMR 100A IN-LINE CR Magnetics Inc.	51	-	RFQ	Datenblatt	CR3100	Bulk	Active	20Hz ~ 1kHz	Non-Invasive (Split Core)	100 A	-	-	-	-	390Ohm	-	Free Hanging (In-Line)	1.236" L x 1.220" W (31.40mm x 31.00mm)	1.772" (45.00mm)	Wire Leads
CCT323047-100-16-00 CURR SENSE XFMR 100A CHAS MNT TDK Corporation	40	-	RFQ	Datenblatt	CCT	Bulk	Active	50/60Hz	Non-Invasive (Split Core)	100 A	-	-	-	3000:1	285Ohm	-	Chassis Mount	1.378" L x 1.280" W (35.00mm x 32.50mm)	1.870" (47.50mm)	Wire Leads with Connector
TT 50-SD CURR SENSE XFMR LEM USA Inc.	36	-	RFQ	Datenblatt	TT	Bulk	Not For New Designs	50/60Hz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	-	1.280" L x 0.925" W (32.50mm x 23.50mm)	1.693" (43.00mm)	PC Pin
2277064 CURR SENSE XFMR 1:20 100A DIN RL Phoenix Contact	19	-	RFQ	Datenblatt	PACT	Bulk	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	DIN Rail	2.362" L x 1.181" W (60.00mm x 30.00mm)	3.150" (80.00mm)	Terminal Block

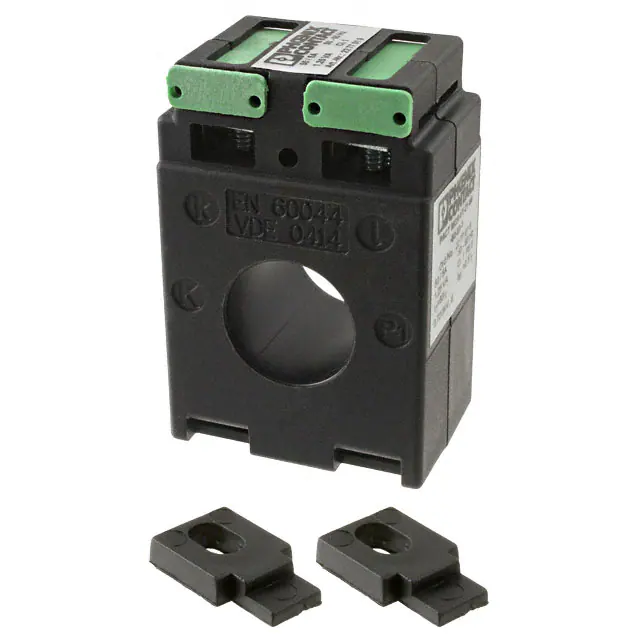

2277019 CURR SENSE XFMR 1:10 50A DIN RL Phoenix Contact	28	-	RFQ	Datenblatt	PACT	Bulk	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	50 A	-	-	-	-	-	-	DIN Rail	1.732" L x 1.181" W (44.00mm x 30.00mm)	2.598" (66.00mm)	Terminal Block
2277611 CURR SENSE XFMR 75A DIN RAIL Phoenix Contact	15	-	RFQ	Datenblatt	-	Bulk	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	75 A	-	-	-	-	-	-	DIN Rail	1.732" L x 1.181" W (44.00mm x 30.00mm)	2.598" (66.00mm)	Terminal Block

Total 2059 Record«Prev 1... 23 24 25 262728 29 30...103 Next»
