DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMV0505SACDC DC CONVERTER 5V 1W |
375 | - |
|
Datenblatt |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
MEV1D2412SCDC DC CONVERTER +/-12V 1W |
131 | - |
|
Datenblatt |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|

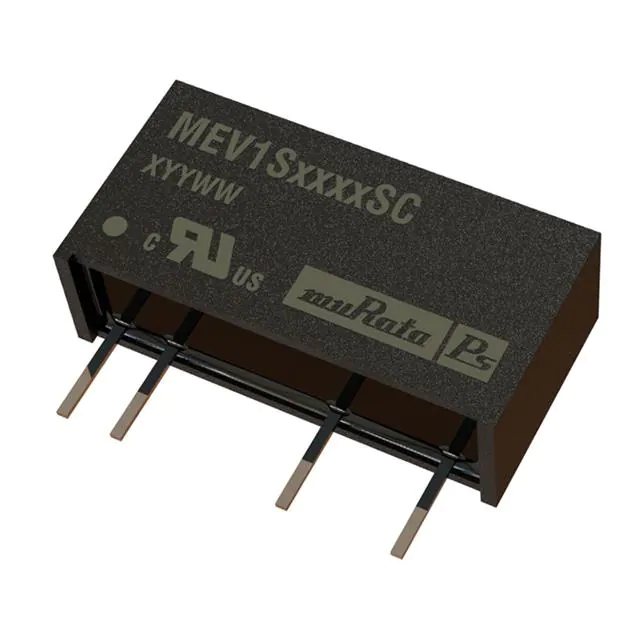

MEV1S1205SCDC DC CONVERTER 5V 1W |
127 | - |
|
Datenblatt |
MEV1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | - | - |
|
|
MEV1S2409SCDC DC CONVERTER 9V 1W |
119 | - |
|
Datenblatt |
MEV1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
OKI-78SR-5/1.5-W36E-CDC DC CONVERTER 5V 8W |
482 | - |
|
Datenblatt |
Okami™ OKI-78SR-E | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 7V | 36V | 5V | - | - | - | 1.5A | 8 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 90.5% | - | - | Through Hole | 0.47" L x 0.39" W x 0.69" H (11.9mm x 10.0mm x 17.6mm) | - | - | - | - |
|
TSR 1-2450DC DC CONVERTER 5V 5W |
18,547 | - |
|
Datenblatt |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.1mm) | - | - | - | - |
|
TSR 1-24120DC DC CONVERTER 12V 12W |
3,367 | - |
|
Datenblatt |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.1mm) | - | - | - | - |
|
TPSM84205EABDC DC CONVERTER 5V |
2,432 | - |
|
Datenblatt |
TPSM | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 7V | 28V | 5V | - | - | - | 1.5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.40" L x 0.31" W x 0.44" H (10.1mm x 7.8mm x 11.1mm) | 3-SIP Module | - | - | - |
|
TLVM13610RDFR36-V INPUT, 1-V TO 10-V OUTPUT, |
859 | - |
|
Datenblatt |
HotRod™ | 22-PowerBQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 10V | - | - | - | 8A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 94.3% | - | - | Surface Mount | 0.30" L x 0.26" W x 0.16" H (7.5mm x 6.5mm x 4.0mm) | 22-B3QFN (6.5x7.5) | Enable, Active High | - | - |
|
RO-2412SDC DC CONVERTER 12V 1W |
1,003 | - |
|
Datenblatt |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
RO-2405SDC DC CONVERTER 5V 1W |
586 | - |
|
Datenblatt |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
RO-2424SDC DC CONVERTER 24V 1W |
159 | - |
|
Datenblatt |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
MPM3650GQW-Z1.2MHZ, SYNCHRONOUS, 2.75V TO 17 |
6,210 | - |
|
- |
MPM | 24-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.75V | 17V | 0.6 ~ 12V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 0.24" L x 0.16" W x 0.06" H (6.0mm x 4.0mm x 1.7mm) | 24-QFN (4x6) | Enable, Active High | - | - |
|
|
RO-3.324SDC DC CONVERTER 24V 1W |
1,886 | - |
|
Datenblatt |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
MPM3650CGQW-Z1.2MHZ, SYNCHRONOUS, 2.75 TO 17V |
1,217 | - |
|
- |
MPM | 24-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.75V | 17V | 0.6 ~ 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 0.24" L x 0.16" W x 0.06" H (6.0mm x 4.0mm x 1.6mm) | 24-QFN (4x6) | Enable, Active High | - | - |
|
|
RO-3.33.3SDC DC CONVERTER 3.3V 1W |
277 | - |
|
Datenblatt |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
RPX-4.0-RDC DC CONVERTER 1-7V |
9,117 | - |
|
Datenblatt |
INNOLINE RPX-4.0 | 15-PowerBQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3.8V | 36V | 1 ~ 7V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 87% | - | - | Surface Mount | 0.22" L x 0.20" W x 0.16" H (5.5mm x 5.0mm x 4.1mm) | 15-QFN (5.5x5) | Enable, Active High | - | - |
|
R1S-0505DC DC CONVERTER 5V 1W |
8,978 | - |
|
Datenblatt |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
OKR-T/3-W12-CDC DC CONVERTER 0.59-6V 15W |
1,308 | - |
|
Datenblatt |
Okami™ OKR-T/3 | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.59 ~ 6V | - | - | - | 3A | 15 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 0.41" L x 0.30" W x 0.65" H (10.4mm x 7.6mm x 16.5mm) | - | Enable, Active High | - | - |
|

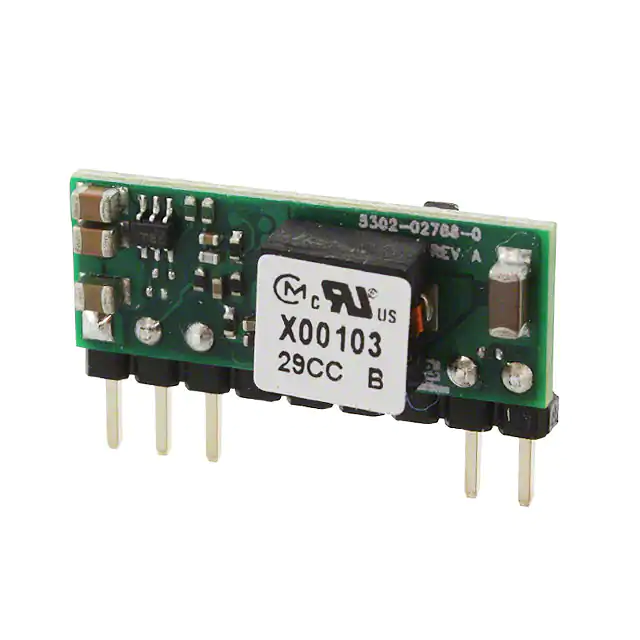

OKX-T/5-W5P-CDC DC CONVERTER 0.7525-3.6V 17W |
902 | - |
|
Datenblatt |
Okami™ OKX-T/5-W5 | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.7525 ~ 3.6V | - | - | - | 5A | 17 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.90" L x 0.28" W x 0.40" H (22.9mm x 7.1mm x 10.2mm) | - | Enable, Active High | - | - |
