Motortreiber und Controller

Motortreiber und Controller sind Power-Management-ICs zur Steuerung von Motordrehzahl, Drehrichtung, Drehmoment und Schutzfunktionen in elektronischen Systemen. Sie werden häufig mit bürstenbehafteten DC-Motoren, bürstenlosen DC-Motoren, Schrittmotoren und Servomotoren in Industrieautomation, Robotik, Automobilelektronik, Haushaltsgeräten, Elektrowerkzeugen, Lüftern, Pumpen und eingebetteten Bewegungssteuerungen eingesetzt.

TomatoElec ist ein unabhängiger Distributor für elektronische Komponenten und liefert Motortreiber- und Controller-ICs von führenden Herstellern wie Texas Instruments, Analog Devices, STMicroelectronics, onsemi, Infineon, Microchip, Renesas, NXP, Diodes Incorporated und Monolithic Power Systems. Kunden können in der untenstehenden Produktliste inventory, price, package, specifications, parameters and PDF datasheets prüfen und eine BOM oder RFQ für die Beschaffung von Motortreibern und Controllern einreichen.

Hersteller-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung/Gehäuse	Verpackung	Produktstatus	Motortyp – Schrittmotor	Motortyp – AC, DC	Funktion	Ausgangskonfiguration	Schnittstelle	Technologie	Schrittauflösung	Anwendungen	Strom - Ausgang	Spannung - Versorgung	Spannung – Last	Betriebstemperatur	Klasse	Qualifizierung	Montageart	Lieferant Gerätepaket

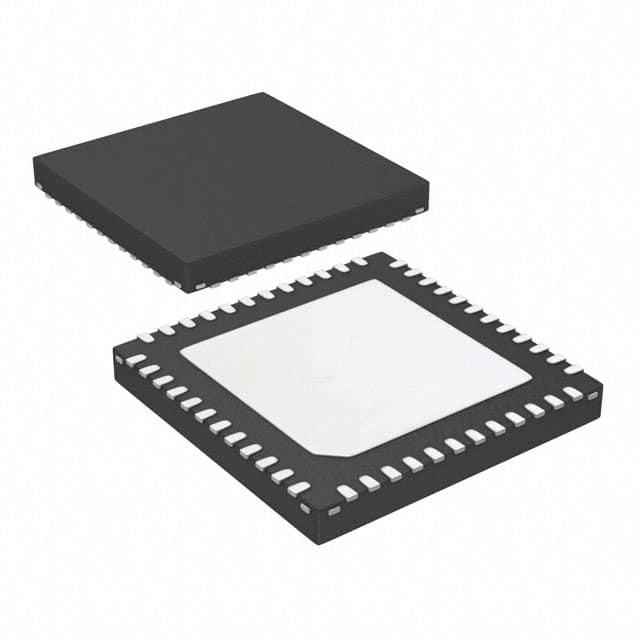

IMC101TQ048XUMA1 IC MOTOR DRIVER 3V-5.5V 48VQFN Infineon Technologies	12	-	RFQ	Datenblatt	iMOTION™	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	-	AC, Synchronous	Controller	-	Analog, PWM	-	-	Home Appliance	50mA	3V ~ 5.5V	-	-40°C ~ 105°C (TA)	-	-	Surface Mount	PG-VQFN-48-73
DRV8143SQRXYRQ1 AUTOMOTIVE 40-V, 20-A HALF-BRIDG Texas Instruments	2,952	-	RFQ	Datenblatt	-	14-VFQFN	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge	PWM, SPI	Bi-CMOS	-	-	20A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount, Wettable Flank	14-VQFN-HR (3x4.5)
DRV8143HQRXYRQ1 AUTOMOTIVE 40-V, 20-A HALF-BRIDG Texas Instruments	2,802	-	RFQ	Datenblatt	-	14-VFQFN	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge	Hardwired (HW)	Bi-CMOS	-	-	20A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount, Wettable Flank	14-VQFN-HR (3x4.5)
DRV8143PQDGQRQ1 AUTOMOTIVE 40-V, 20-A HALF-BRIDG Texas Instruments	2,480	-	RFQ	Datenblatt	-	28-PowerTSSOP (0.118", 3.00mm Width)	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	High Side	SPI	NMOS	-	-	20A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	28-HTSSOP
A4946GLPTR-T IC FAN DRIVER BLDC TSSOP Allegro MicroSystems	8,000	-	RFQ	Datenblatt	-	16-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Multiphase	AC, Synchronous	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	-	NMOS	-	-	1.91A	4.75V ~ 5.25V	4.75V ~ 5.25V	-40°C ~ 105°C	Automotive	-	Surface Mount	16-eTSSOP-EP
DRV8316CTQRGFRQ1 AUTOMOTIVE 40-V MAX 8-A PEAK THR Texas Instruments	2,548	-	RFQ	Datenblatt	-	40-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	PWM	NMOS	-	-	8A	4.5V ~ 35V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	-	Surface Mount	40-VQFN (7x5)
TB67H452FTG,EL IC MOTOR DRIVER 48QFN Toshiba Semiconductor and Storage	2,000	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver	Half Bridge (4)	PWM	Power MOSFET	-	General Purpose	5A	4.5V ~ 5.5V	6.3V ~ 38V	-20°C ~ 85°C (TA)	-	-	Surface Mount	48-QFN (7x7)
MP6545AGV-P 45V, 2.5A, SIMPLE THREE-PHASE PO Monolithic Power Systems Inc.	500	-	RFQ	Datenblatt	-	28-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Logic	Power MOSFET	-	General Purpose	2.5A	4.5V ~ 45V	4.5V ~ 45V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	28-QFN (4x5)
MP6545GF-P 45V, 2.5A, SIMPLE THREE-PHASE PO Monolithic Power Systems Inc.	500	-	RFQ	Datenblatt	-	28-TSSOP (0.173", 4.40mm Width) Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Logic	Power MOSFET	-	General Purpose	2.5A	4.5V ~ 45V	4.5V ~ 45V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	28-TSSOP-EP
MP6545GV-P 45V, 2.5A, SIMPLE THREE-PHASE PO Monolithic Power Systems Inc.	500	-	RFQ	Datenblatt	-	28-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Multiphase	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Logic	Power MOSFET	-	General Purpose	2.5A	4.5V ~ 45V	4.5V ~ 45V	-40°C ~ 125°C (TJ)	-	-	Surface Mount	28-QFN (4x5)
A5947KLPTR-B-T THREE PHASE SENSORLESS SINUSOIDA Allegro MicroSystems	6,873	-	RFQ	Datenblatt	-	20-TSSOP (0.173", 4.40mm Width) Exposed Pad	Bulk	Active	Multiphase	Brushless DC (BLDC)	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Analog, I2C, PWM	Power MOSFET	-	Fan Motor Driver	3.6A	40V	40V	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	20-TSSOP-EP
IRSM836-024MA IC MTR DRIVER 13.5V-16.5V 36PQFN Infineon Technologies	445	-	RFQ	Datenblatt	-	36-PowerVQFN	Tray	Active	-	AC, Synchronous	Driver - Fully Integrated, Control and Power Stage	Half Bridge (3)	Parallel	UMOS	-	Appliance	2A	13.5V ~ 16.5V	200V (Max)	-40°C ~ 150°C (TJ)	-	-	Surface Mount	36-PQFN (12x12)
MP6604CGV-P 4.5-45V,2.5A, SIMPLE DUAL H-BRID Monolithic Power Systems Inc.	500	-	RFQ	Datenblatt	-	28-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	-	Power MOSFET	-	General Purpose	2.5A	4.5V ~ 45V	-	-	-	-	Surface Mount	28-QFN (4x5)
TB6560AFTG,C8,EL STEPPING MOTOR DRIVER, 40V/3.5A, Toshiba Semiconductor and Storage	1,923	-	RFQ	Datenblatt	-	48-VFQFN Exposed Pad	Tape & Reel (TR)	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	Power MOSFET	1, 1/2, 1/4, 1/8, 1/16	General Purpose	2.5A	4.5V ~ 5.5V	4.5V ~ 34V	-30°C ~ 85°C (TA)	-	-	Surface Mount	48-QFN (7x7)

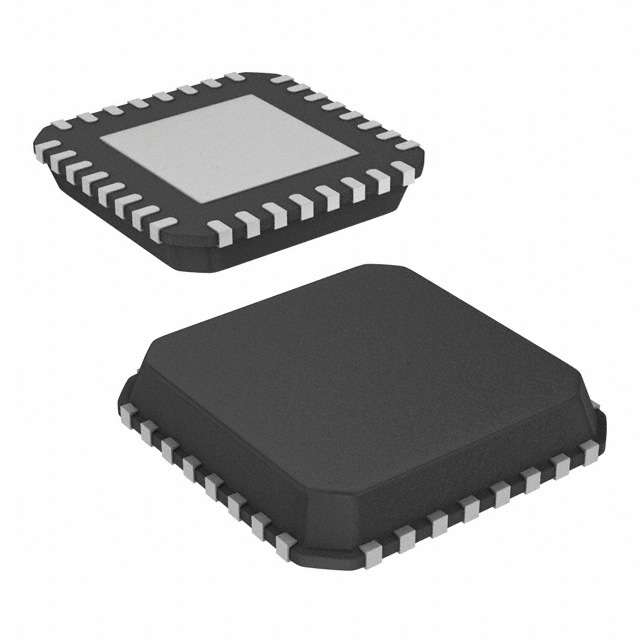

NCV7518MWATXG IC MOTOR DRIVER 3V-5.25V 32QFN onsemi	4,880	-	RFQ	Datenblatt	FLEXMOS™	32-VFQFN Exposed Pad	Tape & Reel (TR)	Active	-	Brushed DC	Controller - Commutation, Direction Management	Pre-Driver - Low Side (6)	SPI, Parallel	NMOS	-	-	-	3V ~ 5.25V	-	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	32-QFN (5x5)
MAX22211ATJ+ 36V , 3.8A DUAL BRUSHED/SINGLE S Analog Devices Inc./Maxim Integrated	1,891	-	RFQ	Datenblatt	-	32-WFQFN Exposed Pad	Tray	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	PWM	NMOS	-	General Purpose	3.8A	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 125°C	-	-	Surface Mount	32-TQFN (5x5)
LV9974UVC-XH 5 IN 1 MODULE PACKAGE FOR THE 40 onsemi	980	-	RFQ	-	-	-	Tube	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
L6228D IC MTR DRVR BIPOLAR 8V-52V 24SO STMicroelectronics	800	-	RFQ	Datenblatt	STSPIN L62	24-SOIC (0.295", 7.50mm Width)	Tube	Active	Bipolar	-	Driver - Fully Integrated, Control and Power Stage	Half Bridge (4)	Parallel	DMOS	1, 1/2	General Purpose	1.4A	8V ~ 52V	8V ~ 52V	-25°C ~ 125°C (TJ)	-	-	Surface Mount	24-SO
MAX22210ATJ+ 36V , 3.8A DUAL BRUSHED/SINGLE S Analog Devices Inc./Maxim Integrated	688	-	RFQ	Datenblatt	-	32-WFQFN Exposed Pad	Tray	Active	Bipolar	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge (2)	Step/Direction	NMOS	-	Stepper Motor Driver	3.8A	4.5V ~ 36V	4.5V ~ 36V	-40°C ~ 125°C	-	-	Surface Mount	32-TQFN (5x5)
DRV8144ASQRYJRQ1 AUTOMOTIVE 40-V 30-A HALF BRIDGE Texas Instruments	2,770	-	RFQ	Datenblatt	-	16-PowerVFQFN	Tape & Reel (TR)	Active	-	Brushed DC	Driver - Fully Integrated, Control and Power Stage	Half Bridge	SPI	Power MOSFET	-	-	30A	0V ~ 5.5V	4.5V ~ 35V	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount, Wettable Flank	16-VQFN-HR (3x6)

Total 4748 Record«Prev 1... 54 55 56 575859 60 61...238 Next»
